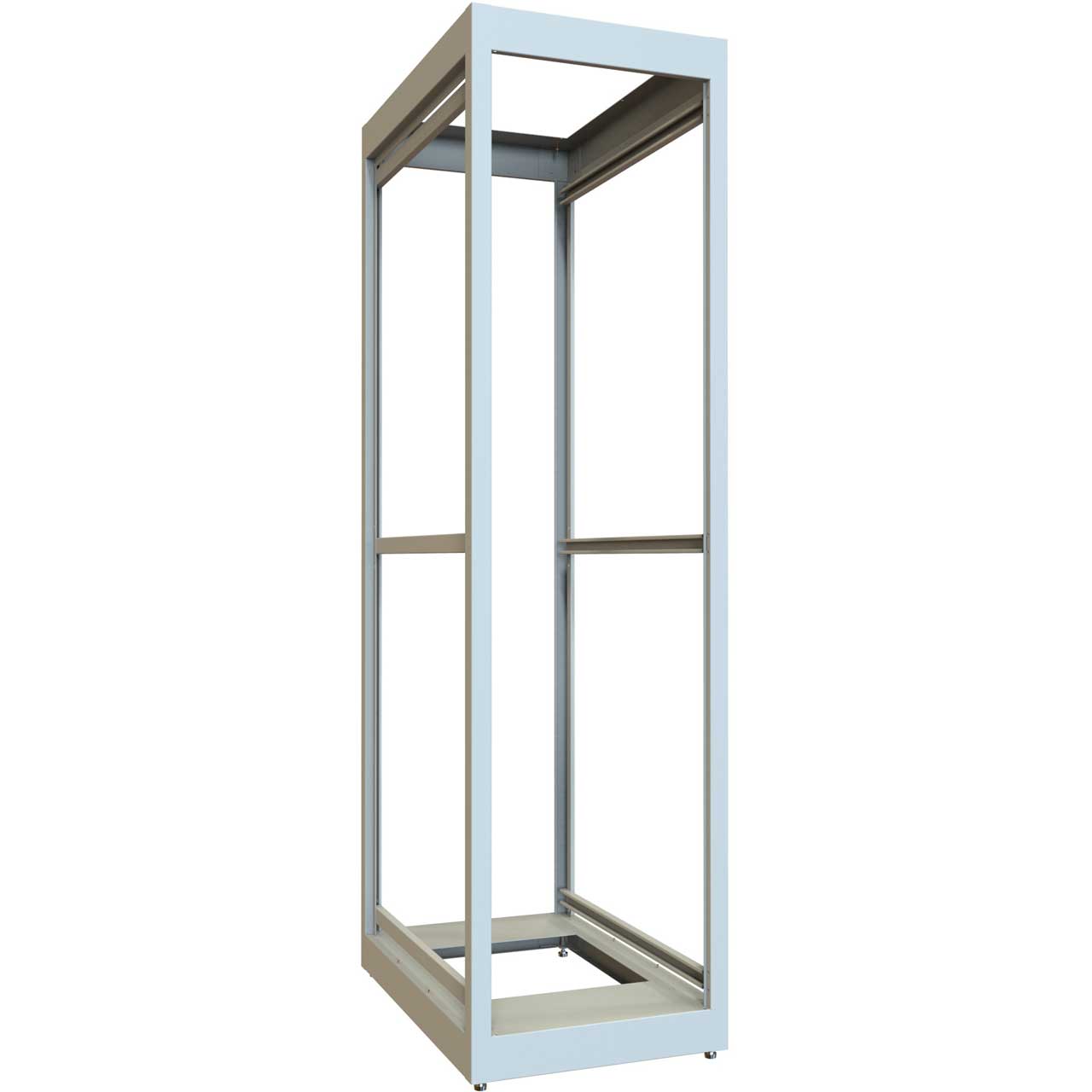

Hammond C2F197836LG1 C2 Rack Cabinet Frame with 1500 lb Weight Capacity - 36 x 23 x 87 Inches - 45 RU

C2F197836LG1 - Overview

• Features:

  • 45U mounting height.
  • 23" overall frame widths.
  • 36" overall frame depths.
  • All frames include four (4) levelling feet and support optional casters.
  • Mounting rails are sold separately and are available with square-hole punched or drilled and tapped 10-32.
  • Flush-mounted doors with quarter-turn lock available in solid, louvre vented, vented, window, and vented window.
  • Side panels are available in both solid and vented for thermal induction.
  • One (1) interchangeable top panel opening, available in solid, vented, fan tops with or without fans installed.
  • One (1) interchangeable bottom panel opening, available in solid or gland membrane.
  • Vertical cable managers are available in-tray, enclosed metal or fingers versions.
  • Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
  • Cabinet doors and side panels constructed in 16-gauge steel.

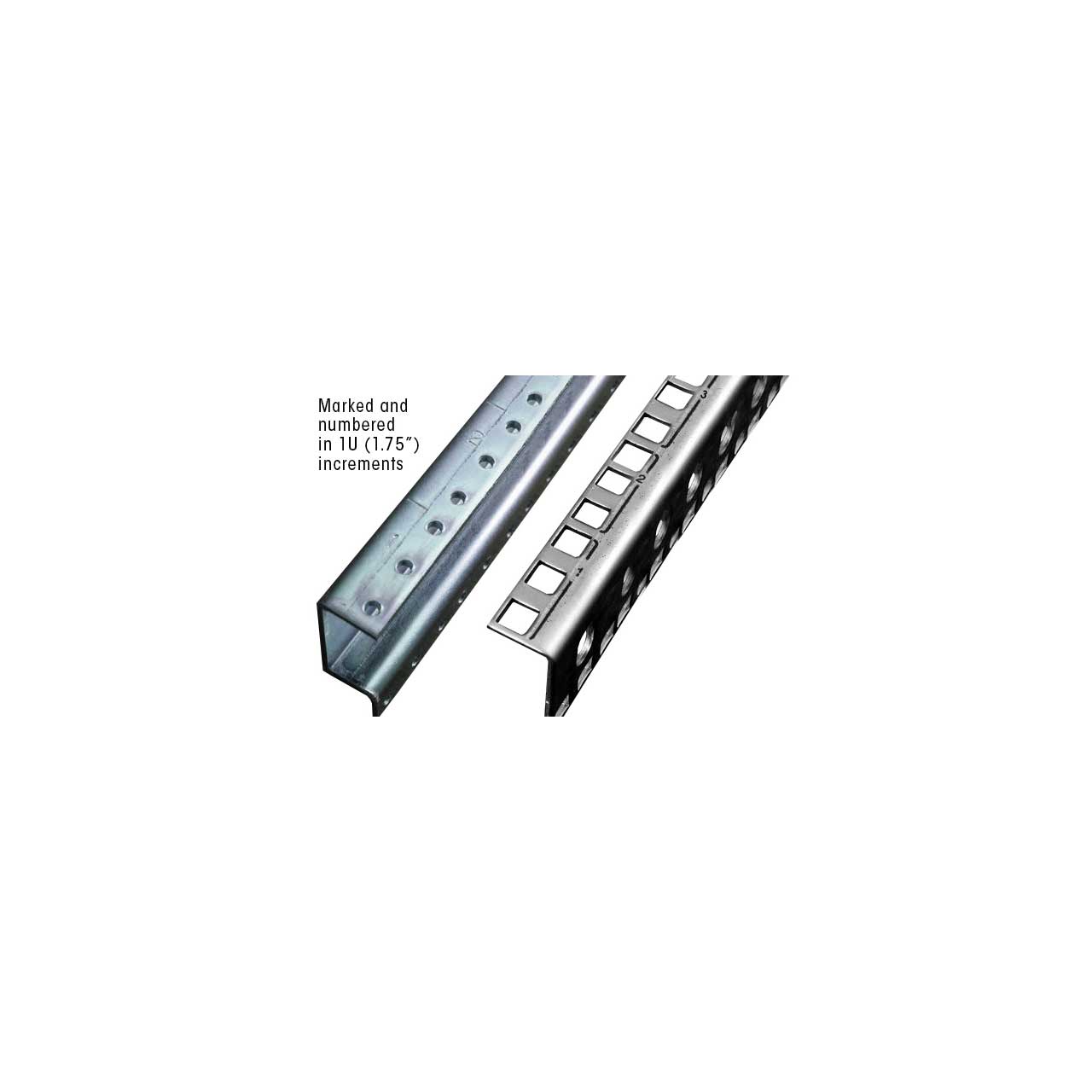

  • 19" mounting rails are constructed in 12-gauge steel (square hole punched) or 10-gauge steel (drilled and tapped 10-32).
  • Rails include rack unit indicators and are Zinc-plated to provide superior surface areas for equipment grounding.
  • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
  • Load rated for up to 1,500 lbs (680 kg).
  • Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
  • Finished in textured black or RAL 7035 light gray powder paint.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility


• Specifications:

  • Height: 86.91
  • Width: 23.00
  • Depth: 36.00
  • Rack Units: 45U


• Item Includes:

  • 1x C2F197836LG1 Rack Cabinet Frame
  • 4x Levelling Feet and Support Optional Casters


• GTIN:

  0623980121185
