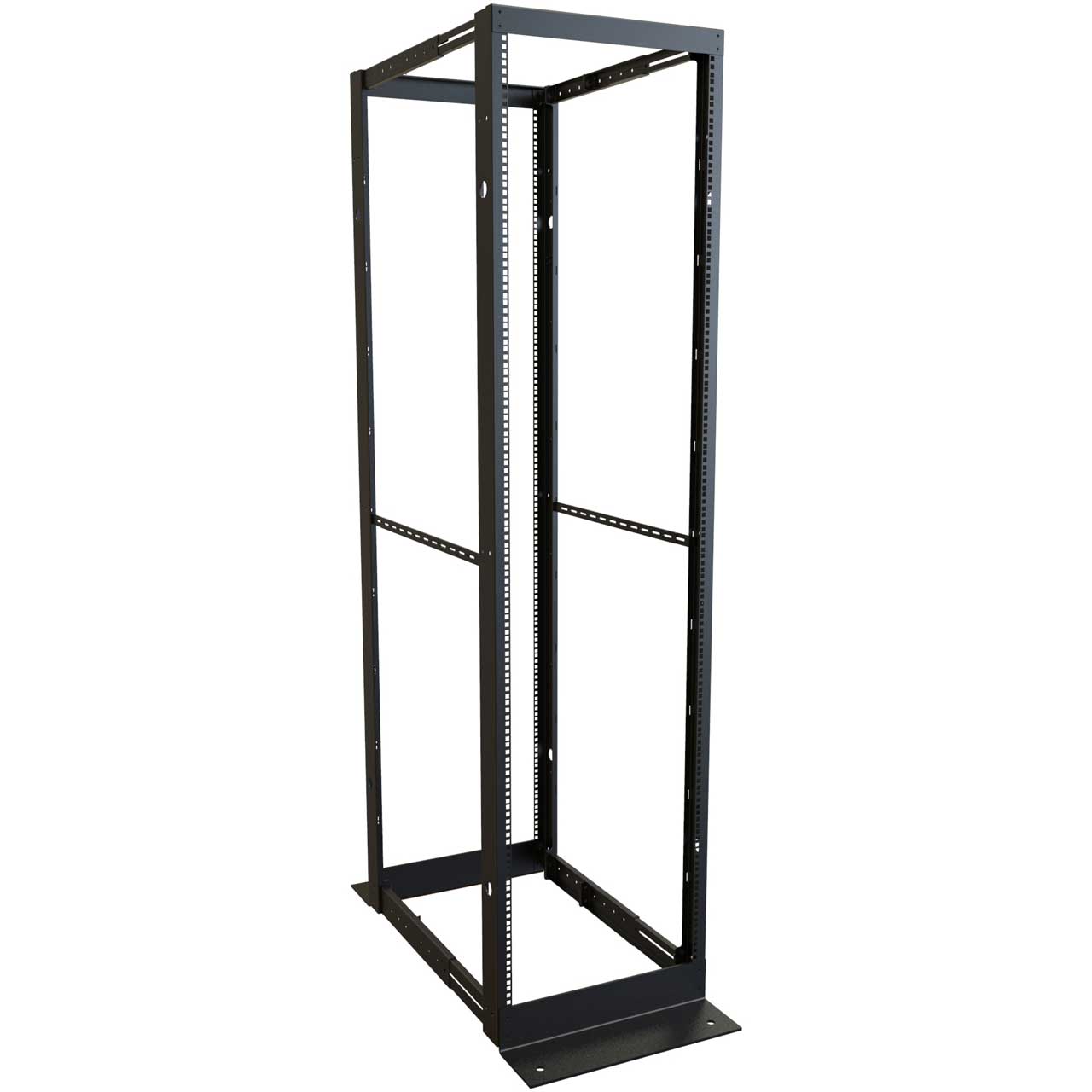

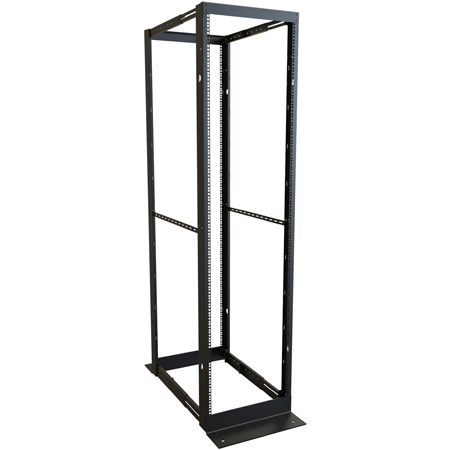

Hammond DC4R44 44RU 4-Post Adjustable Depth 24-36 Rack

DC4R44 - Overview

• Features:

  • Two (2) pairs of 19" mounting EIA compliant square-hole rails.
  • Ships with a 50-pack of screws and cage nuts CAGKIT1032-50.
  • Includes marked rack unit dividers to aid in equipment mounting.
  • For 44U height, add optional DC4RPR44 pair of rails for additional adjustable mounting depths.
  • Optional solid side panels gives you the look, feel and security of a welded cabinet.
  • Four (4) pairs of integrated 10-32 ground studs, at both the front and rear of the rack. Stud pairs are conveniently spaced 5/8" apart and located across from each other inside the rail channel. For added convenience, two (2) pairs are located near the top of the rack, while the others are near the bottom of the rack.
  • Rail depth L-bracket restrict the installer from over-extending the rack. This ensures the integrity of the rack.
  • Self-squaring design for a short assembly time.
  • One (1) set of two (2) horizontal cable manager bars. Additional cable manager bars available by ordering part number DC4RSHCM.
  • Finished in smooth black powder paint.
  • Knockdown design ships unassembled for easy handling and shipping protection.


• Specifications:

  • Constructed of 12-gauge steel
  • Suggested static load capacity of 2,000Lbs (907kg)
  • TAA compliant for GSA Schedule purchases
  • RoHS and REACH Compliant
  • Manufactured in North America
  • Dimensions (HxWxD): 83.13 x 20.5 x 36" (2112 x 521 x 914mm)
  • Shipping Weight: 98Lbs (44.45kg)
  • REACH Compliant: Yes
  • RoHS Compliant: Yes
  • Rack Units: 44
  • Rack Type: Open Rack
  • Paint Color: Black
  • Rail Type: Square Hole with 10-32 Cage Nu


• GTIN:

  0623980040226
