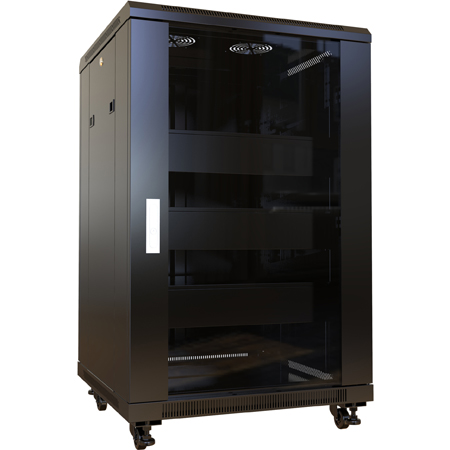

Hammond RB-AV18 18RU 24D Audio-Visual Cabinet w/ 950 lbs Weight Capacity

RB-AV18 - Overview

• Features:

  • Available in 18U, 27U, and 42U mounting heights.
  • Available in 23.62" overall width and depth.
  • Passive cooling vents are located on the top, bottom and sides.
  • Includes provision for up to two (2) optional fans on the top panel.
  • Ships fully assembled and ready for installation on-site.
  • Doors can be flipped to hinge from the opposite side.


• Specifications:

  • Height: 38.90
  • Width: 23.62
  • Depth: 23.62
  • Rack Units: 18U
  • Mount Height: 31.50
  • Mount Width: 19.00
  • Mount Depth: 21.00


• Item Includes:

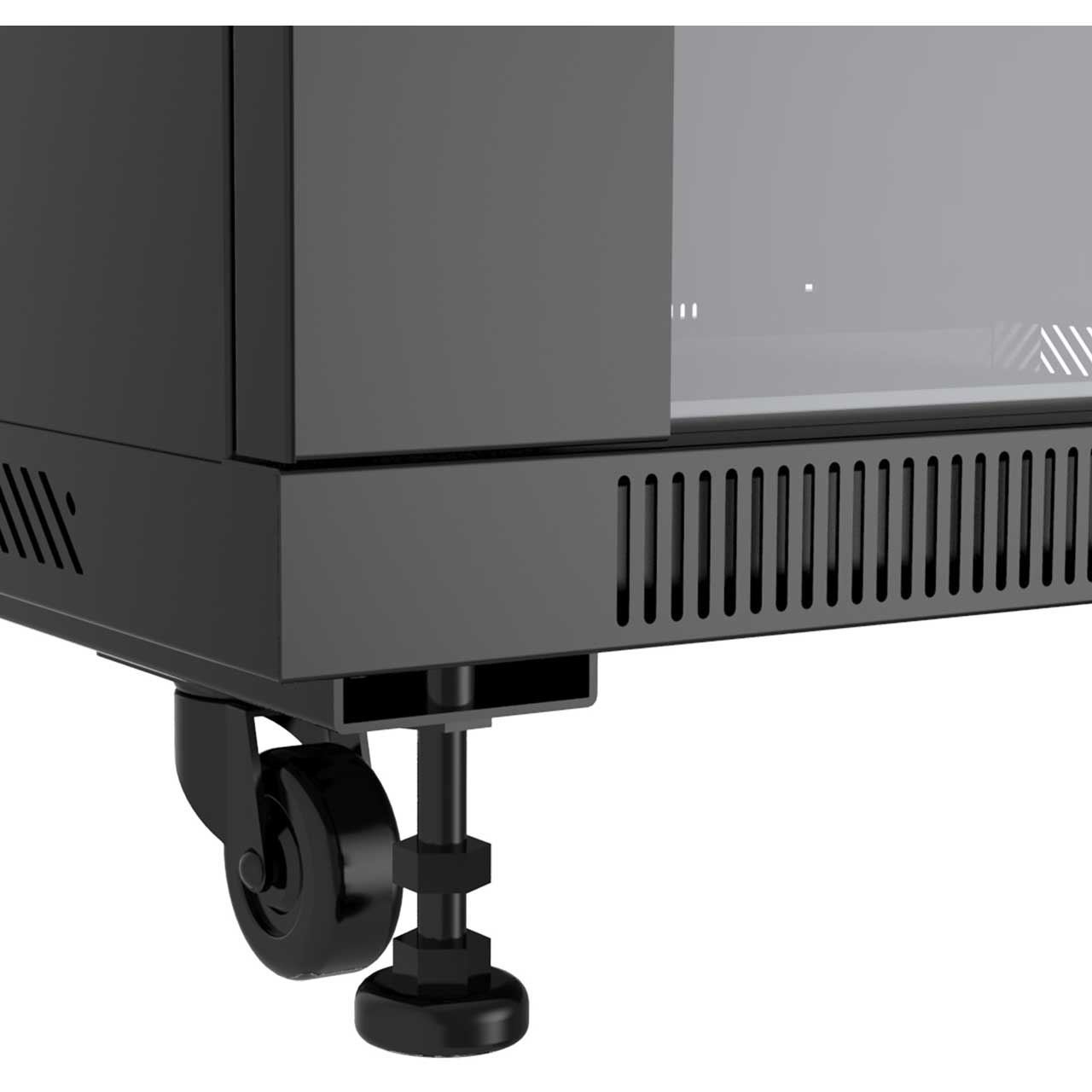

  • 1x Steel frame with factory-installed levelling feet recessed casters and grounding studs.
  • 2x pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
  • 1x Starter pack of (50) 10-32 screws included.
  • 1x lightly smoked tempered glass front door with a quarter-turn lock.

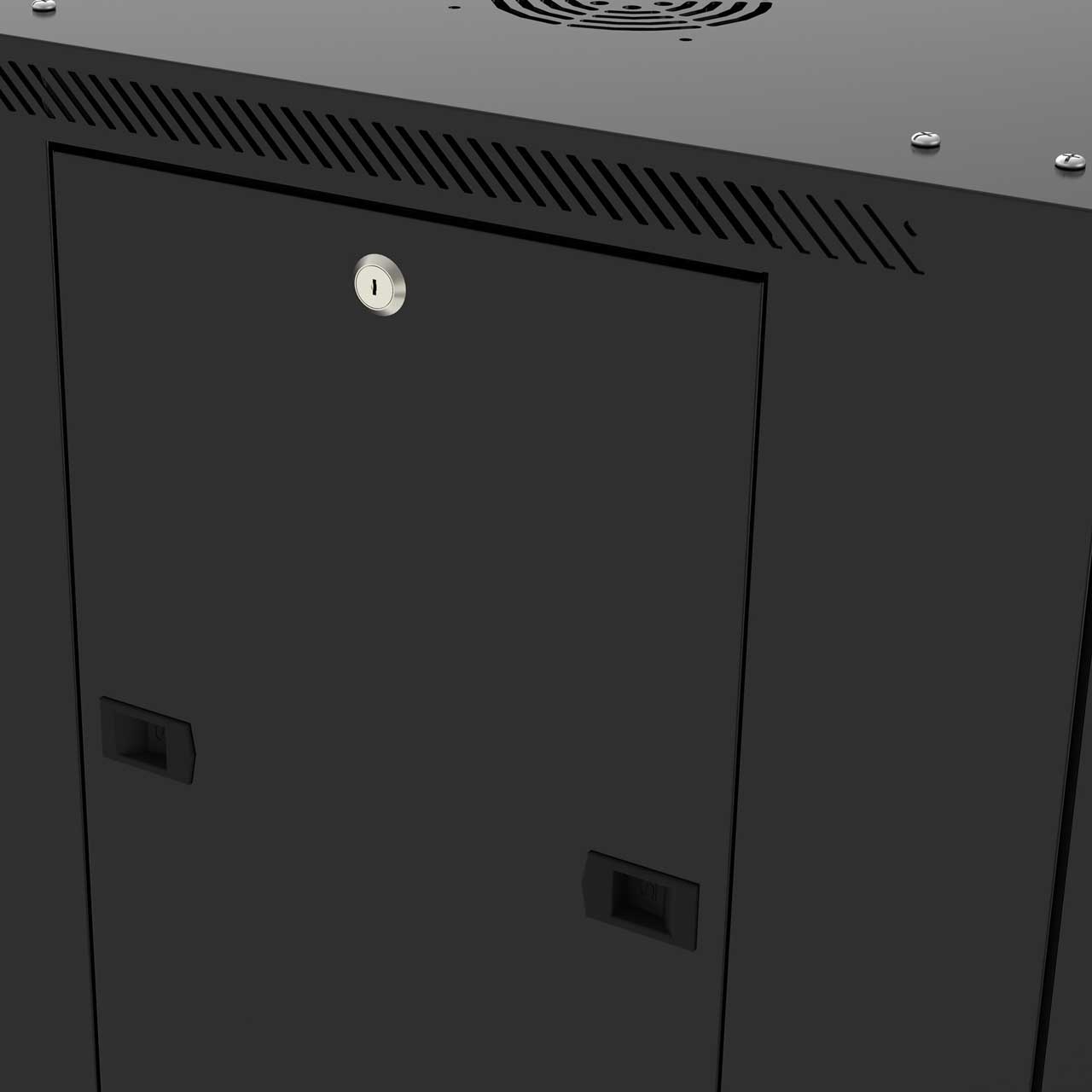

  • 1x solid steel rear door with a quarter-turn lock.
  • 2x solid removable side panels with quarter-turn lock.
  • 1x Removable cable access panels on cabinet top and bottom.
  • 1x Includes factory-installed vented rack shelves and filler/blank panels


• GTIN:

  0623980810089
