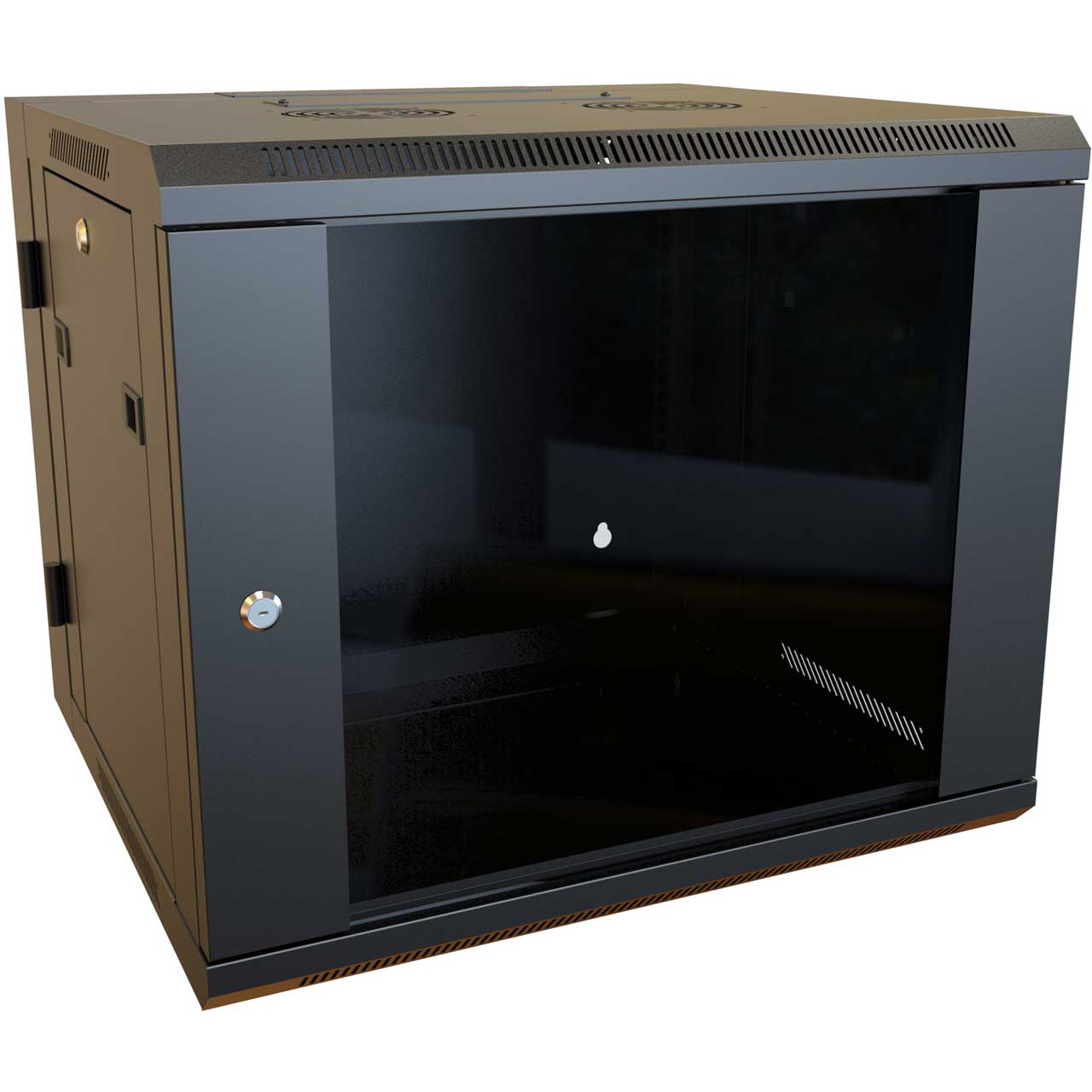

Hammond RB-SW9 9RU Swing-out Wall Cabinet with 130 lbs Weight Capacity

RB-SW9 - Overview

• Features:

  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light-duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19" mounting.
  • Starter pack of (25) M6 screws and cage nuts included.
  • For 10-32 hardware, see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • The front and side of the frame include venting for airflow.
  • Top, bottom and rear cable access.
  • Provision for optional fans on the top panel.
  • The middle body section is not reversible and hinges on the left side.
  • Ships assembled - ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs (59 kg) of equipment load capacity.
  • RoHS Compliant.


• Specifications:

  • Height: 19.90
  • Width: 23.62
  • Depth: 21.65
  • Rack Units: 9U
  • Mount Height: 15.75
  • Mount Width: 19.00
  • Mount Depth: 16.13


• GTIN:

  0623980046341
