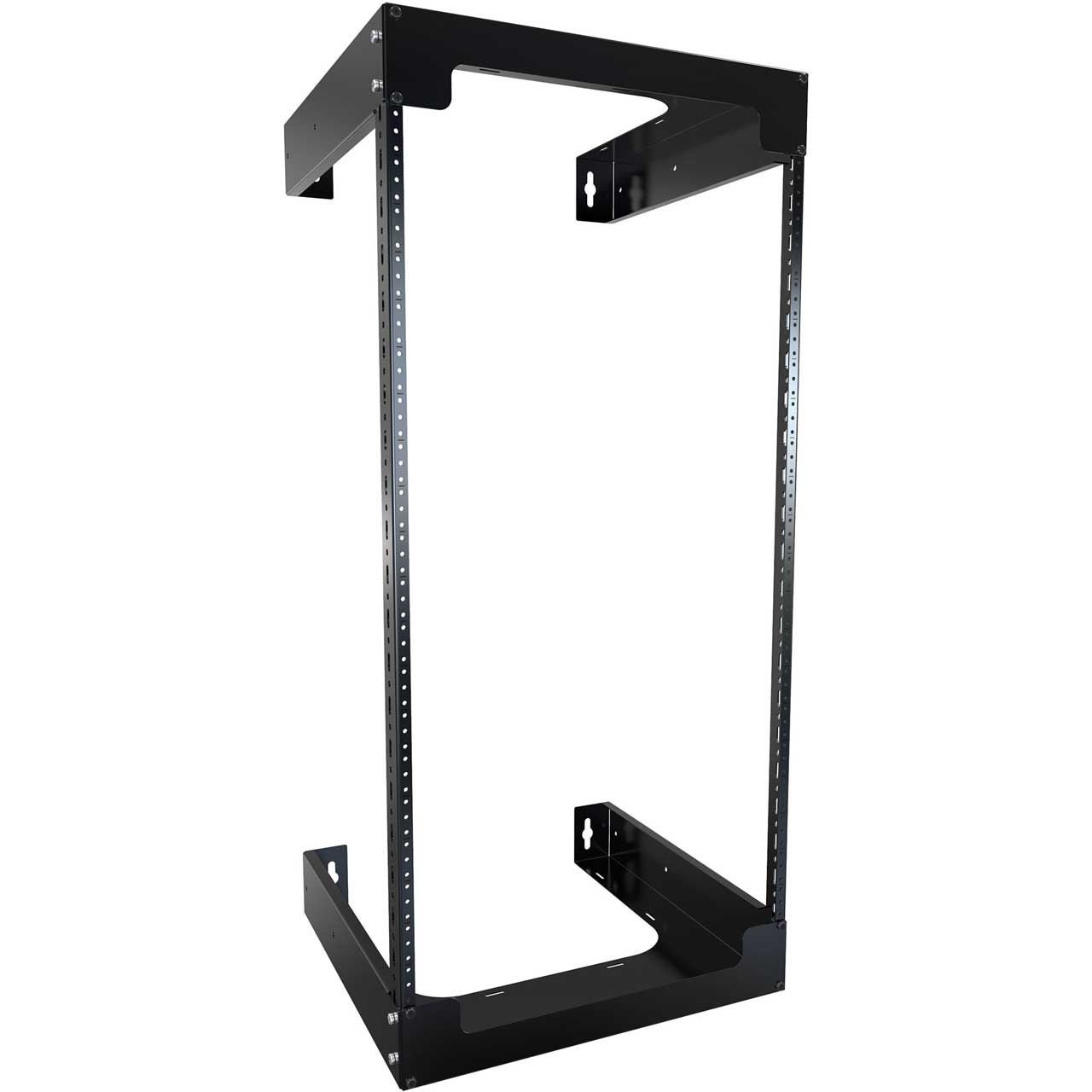

Hammond RB-2PW20 20RU Open Frame Wall Rack with 18 Inch of Usable Depth

RB-2PW20 - Overview

• Features:

  • The rails are constructed in 12-gauge steel while the body is constructed in 14-gauge steel.
  • EIA compliant 10-32 tapped rails with 19" mounting and rack unit indicators.
  • Provides 18 inches of usable depth.
  • An optional RB-2PW-EXT extender can be used to add up to 7" of usable mounting depth while maintaining the load capacity.
  • Open-rear design can be installed over existing equipment.
  • Finished in RAL9005 black powder paint.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • Includes starter pack of SCREW1032-25 screws.
  • Tested up to nearly double the suggested load rating of 200 lbs (90.72 kg).
  • TAA Compliant.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Height: 40.00
  • Width: 20.00
  • Depth: 18.00
  • Rack Units: 20U
  • Mount Height: 35.00
  • Mount Width: 19.00
  • Mount Depth: 18.00


• GTIN:

  0623980002989
