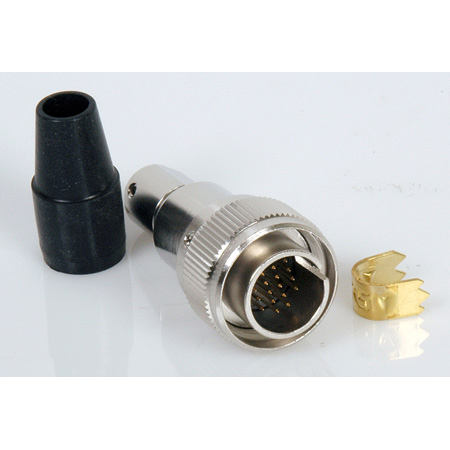

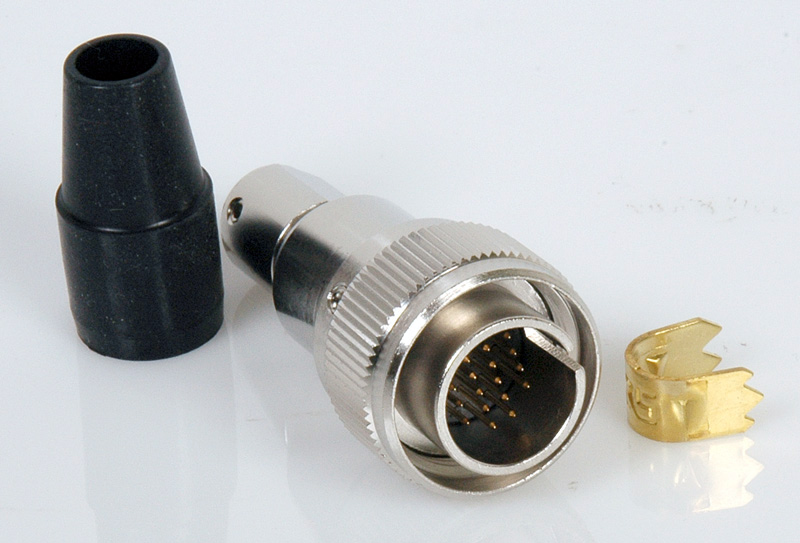

Hirose HR10A13TPD20P01 20 Pin Circular Connector

ITEM #: HR10A13TPD20P01 MFG #: HR10A13TPD20P01

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the HR10A13TPD20P01

HR10A13TPD20P01 - Overview

The HR10 series connectors are push-pull coupling type micro-connectors.They have been developed in response to customers' needs for miniaturization, high density, and easy handling.The HR10 series connectors offer light weight and assure high reliavility and durability as well as easy "push-pull" operation.

You may apply the HR10 series connectors to all kinds of small-sized electronic equipment requiring high reliability.However, these simple but refined connectors are most suitable for portable electronic equipment which requires good appearance.

  • Features:

    • The most compact HR10 series is as slender as a cigarette but it fits every application with well-balanced, simplified layout in limited space.
    • Easy "PUSH-PULL" OPERATION. One touch "push-pull" coupling mechanism assures easy and quick connecting and disconnecting. You can couple it accurately just by pushing any part of the connector housing.
    • Polarization Five-key system permits only one way of coupling so that you can find right position to connect even when blind mating.
    • Protection of connection pin. A connector pin is located to avoid any damage which may be caused when blind mating.
    • High density. The space-saving "push-pull" mechanism facilitates multi-installation of connectors.
    • Easy wiring and mounting. No use of screws makes wireing and mounting easier.
    • Simple and well designed connectors with matte finish enhance the appearance of the equipment.
