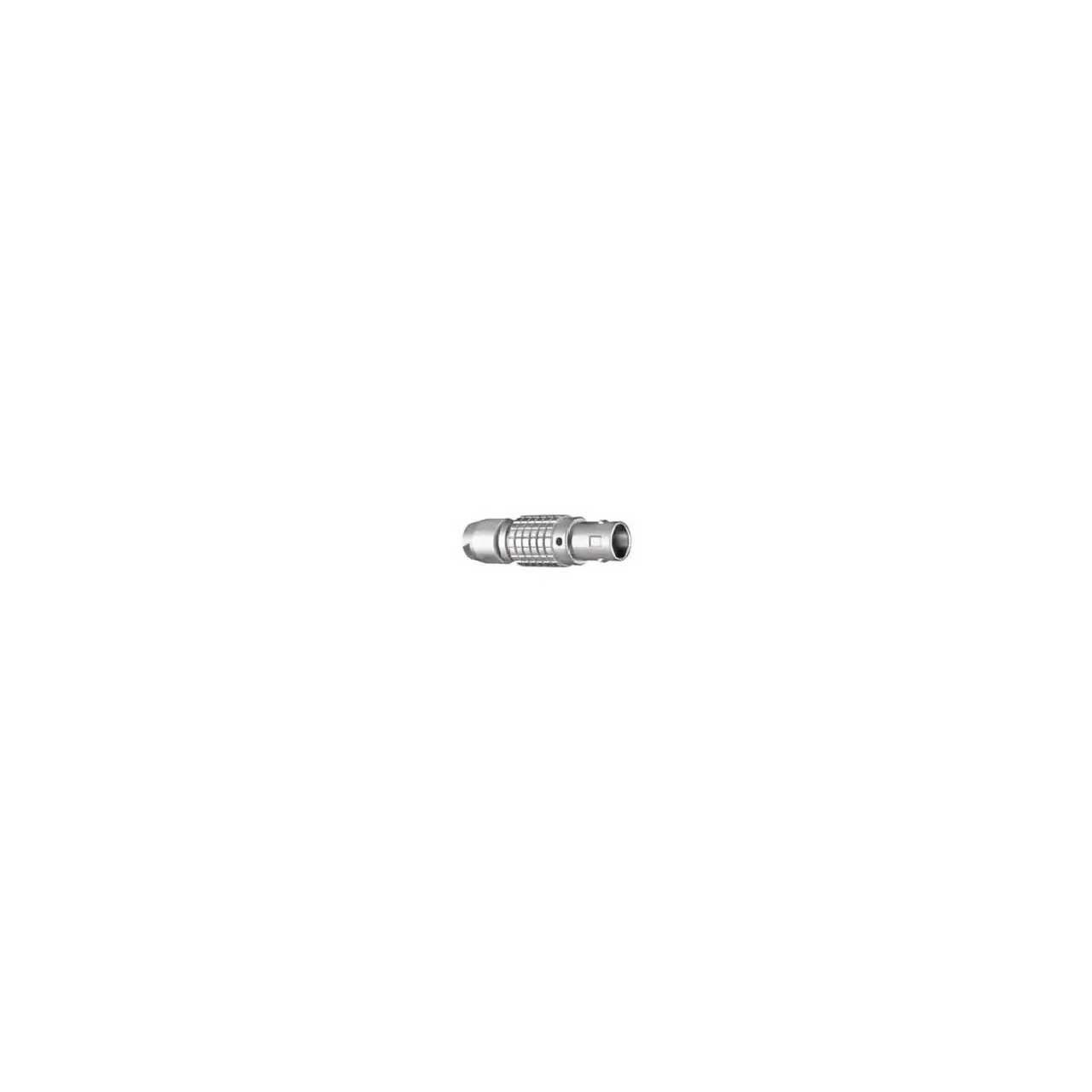

Lemo FGG.0B.306.CLAD52 Circular Push Pull Connectors - PlUG CDG 6 CTSL CCOL

ITEM #: FGG-0B-306CLAD52 MFG #: FGG-0B-306CLAD52

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Lemo USA
Free Shipping with $49 Minimum Order

List Price:

$31.48

Our Price:

$26.25

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped to USA (50 states) only.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

FGG-0B-306CLAD52 - Overview

LEMO B Connectors are keyed, multipole, and hybrid connectors that are ideal for instrument applications across many markets. The push-pull latching mechanism provides a secure connection while the density of the contacts offer panel space savings. Multi-key options prevent cross-mating of similar connectors within a panel. Contact types include LV, fiber optic, HV, coax, as well as hybrid versions. LEMO B Connectors have a temperature range of -55°C to +250°C and rugged housing for extreme working conditions.

  • Features:

    • Push-pull self-latching
    • Rugged housing for extreme working conditions
    • UL recognized


  • Specifications:

    • Low Voltage: 6
    • Series: 0B
    • Termination Type: Male solder
    • IP Rating: 50
    • AWG Wire Size: 34.00 - 28.00
    • Cable Ø: 0.16 - 0.20 in (4.30 - 5.20 mm)
    • Status: active
    • Shell Style/Model: FG*: Straight plug, cable collet and nut for fitting a bend relief
    • Keying: 1 key (alpha = 0, plug: male contacts, receptacle: female contacts)
    • Housing Material: Brass (chrome plated shell and collet nut, nickel plated brass latch sleeve and mid pieces
    • Variant: Z: Nut for fitting a bend relief
    • Configuration: 0B.306 : 6 Low Voltage
    • Insulator: L: PEEK (UL 94 / V-0/1.5)
    • Rated Current:
    • Contact Type: Solder
    • Contact Dia.: 0.5 mm (0.02in)
    • Bucket Dia.: 0.45 mm (0.018in)
    • Max. Solid Conductor: 0.09 mm^2 (AWG 28)
    • Max. Stranded Conductor: 0.09 mm^2 (AWG 28) R (max): 8.7 mOhm
    • R (max): 8.7 mOhm
    • Vtest (contact-shell): 650 V (AC), 920 V (DC)
    • Vtest (contact-contact): 850 V (AC), 1200 V (DC)
    • Endurance (Shell): 5000
    • Temp (min / max): -67° - 482°F (-55°C - +250°C)
    • Humidity (max): <=95% [at 60°C /140°F]
    • Vibration: 15 g [10 Hz - 2000 Hz] Shock Resistance: 100 g [ 6 ms]
    • Climatical Category: 50/175/21
    • Shielding (min): 75 dB (10 MHz)
    • Shielding (min): 40 dB (1 GHz)
    • Salt Spray Corrosion: >1000 hr receptacle


  • Item Includes:

    • 1x 0B Circular Push-Pull Connector
