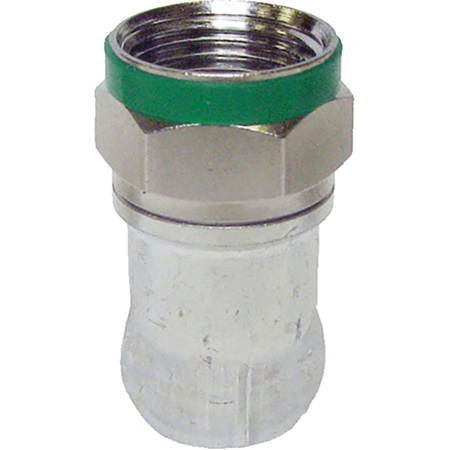

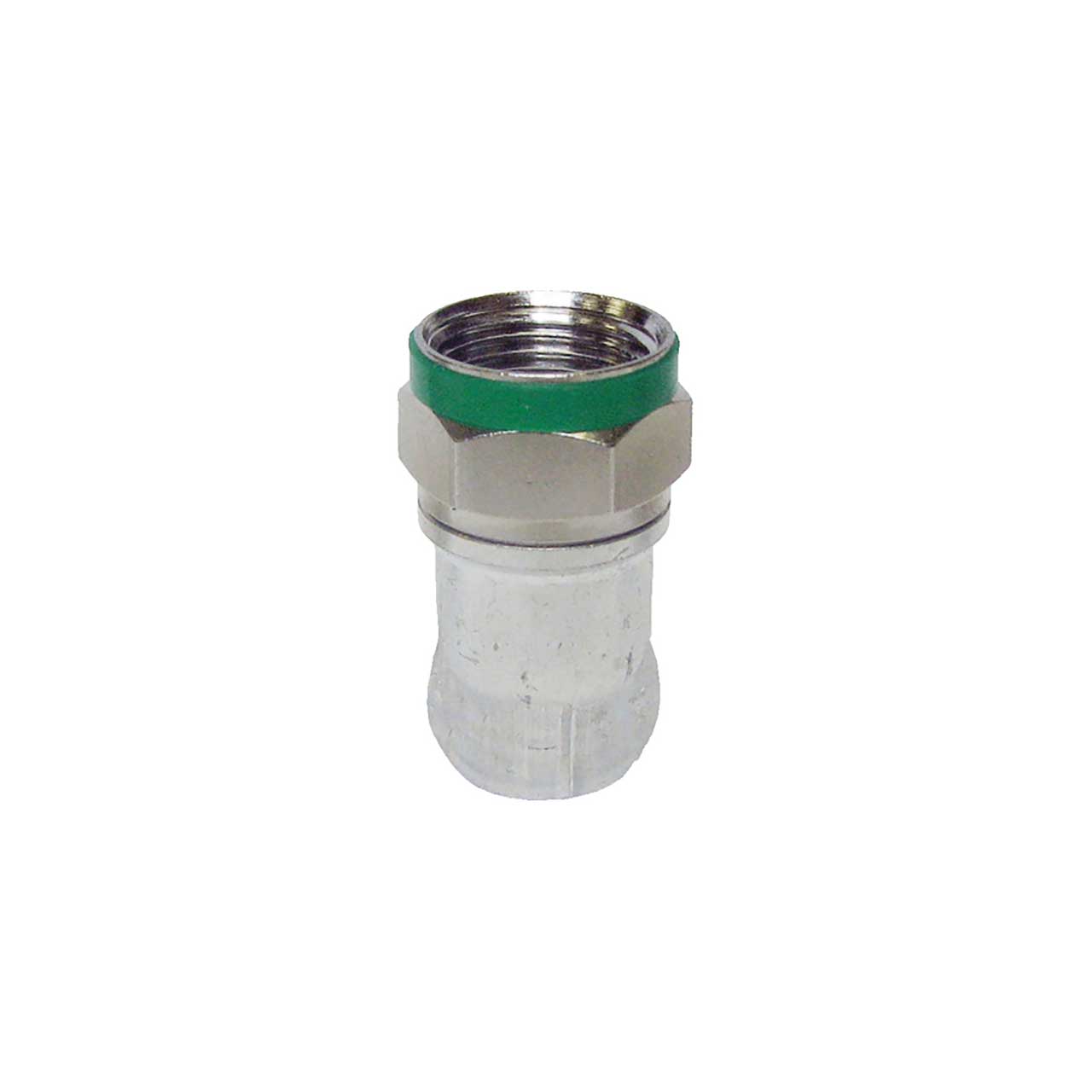

ICM DB6PL2 Double Bubble RG-6 Plenum F Coax Compression Connector - Size 2

ITEM #: ICM-DB6PL2 MFG #: DB6PL2

Primary Image
ICM Corporation
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.03

Our Price:

$0.96

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DB6PL2 - Overview

ICM DB6PL2 Double Bubble RG6 F Plenum connector, fits most plenum RG6 coaxial cables. Compression design that molds the metal completely around the cable.

  • Features:

    • Suitable Applications: CCTV, Security Cameras, Video


  • Specifications:

    • Physical Characteristics (Overall)
    • Conductor Size: 18 AWG
    • Number of Pieces: 1

      Connectors
    • Materials: Nickel plated Brass

      Electrical Characteristics
    • Impedance: 75 Ohms
    • Return Loss (RL) - Frequency [MHz]:
    • DC-1 GHz 31 dB Return Loss 1.05 VSWR
    • DC-2 GHz 26 dB Return Loss 1.09 VSWR
    • DC-3 GHz 21 dB Return Loss 1.18 VSWR

      Mechanical Characteristics
    • Footprint/Type: Coax
    • Connector Interface Type: F
    • Gender: Male - plug
    • Connector Series Name: Double Bubble
    • Locking: No
    • Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
    • Termination Type: Compression
    • Cable Center Conductor Diameter Limits: .0399 - .0418 inch
    • Cable Dielectric Diameter Limits: .165 - .172 inch
    • Cable Outer Jacket Diameter Limits: .220 - .250 inch

      Standards
    • RG Type: 6/U Type
    • Series Type: 6/U

      Applicable Environmental and Other Programs
    • EU CE Mark: Yes

      Suitability
    • Suitability - Indoor: Yes


  • GTIN:

    0845671005097
