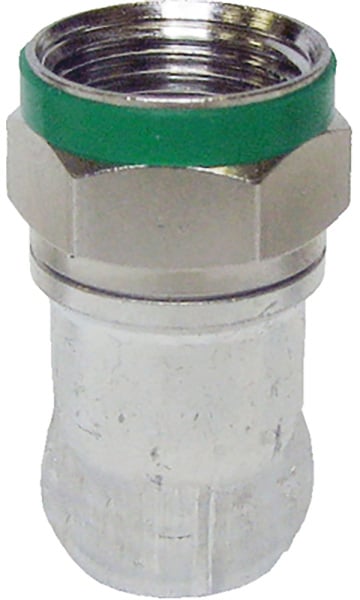

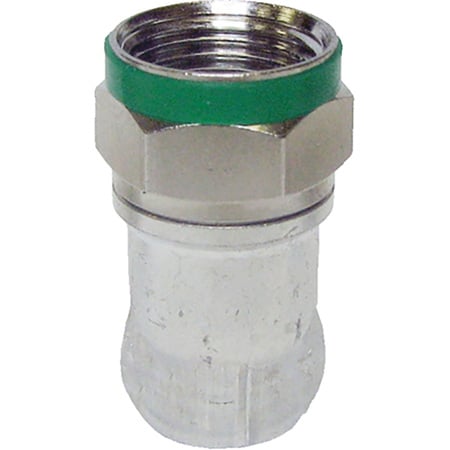

ICM DB6U Double Bubble RG-6 F Coax Compression Connector for RG6 / Belden 1694A / Gepco VSD2001 - 25 Pack

DB6U - Overview

• Features:

  • Suitable Applications: CCTV, Security Cameras, Video


• Specifications:

  • Physical Characteristics (Overall)
  • Conductor Size: 18 AWG
  • Number of Pieces: 25

    Connectors
  • Materials: Nickel plated Brass

    Electrical Characteristics
  • Impedance: 75 Ohms
  • Return Loss (RL) - Frequency [MHz]:
  • DC-1 GHz 30 dB Return Loss 1.07 VSWR
  • DC-2 GHz 25 dB Return Loss 1.10 VSWR
  • DC-3 GHz 24 dB Return Loss 1.16 VSWR

    Mechanical Characteristics
  • Footprint/Type: Coax
  • Connector Interface Type: F
  • Gender: Male - plug
  • Connector Series Name: Double Bubble
  • Locking: No
  • Tool Compatibility: CPLCRBC-BR (compression), PS59/6/RGB (strip)
  • Termination Type: Compression
  • Cable Center Conductor Diameter Limits: .0399 - .0418 inch
  • Cable Dielectric Diameter Limits: .180 - .193 inch
  • Cable Outer Jacket Diameter Limits: .265 - .305 inch

    Standards
  • RG Type: 6/U Type
  • Series Type: 6/U

    Applicable Environmental and Other Programs
  • EU CE Mark: Yes

    Suitability
  • Suitability - Indoor: Yes


• GTIN:

  0845671004861
