IDX A-CP(A) Universal Cheese Plate/15mm Lightweight Rod Clamp

ITEM #: IDX-A-CPA MFG #: A-CP(A)

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$94.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    A-CP(A) - Overview

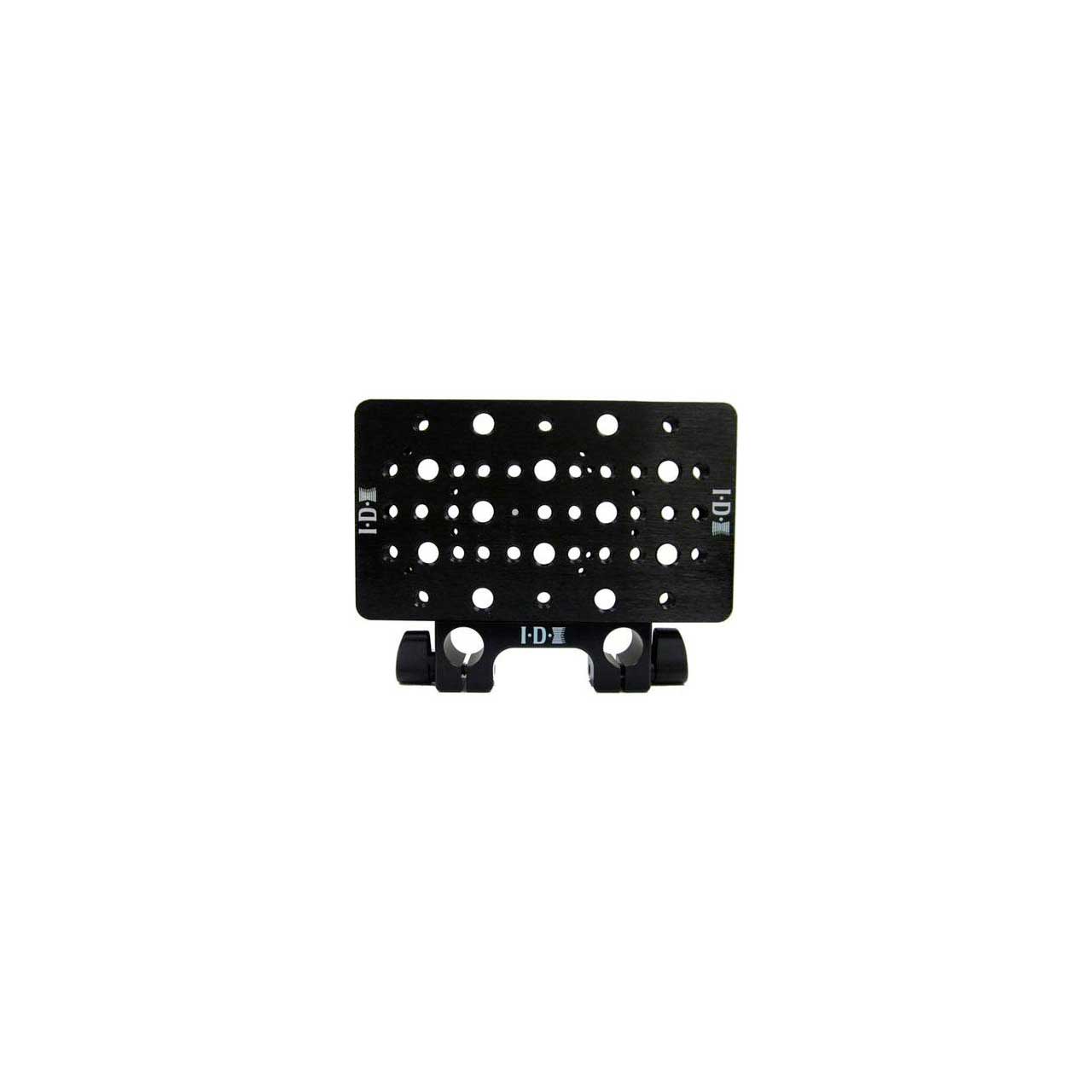

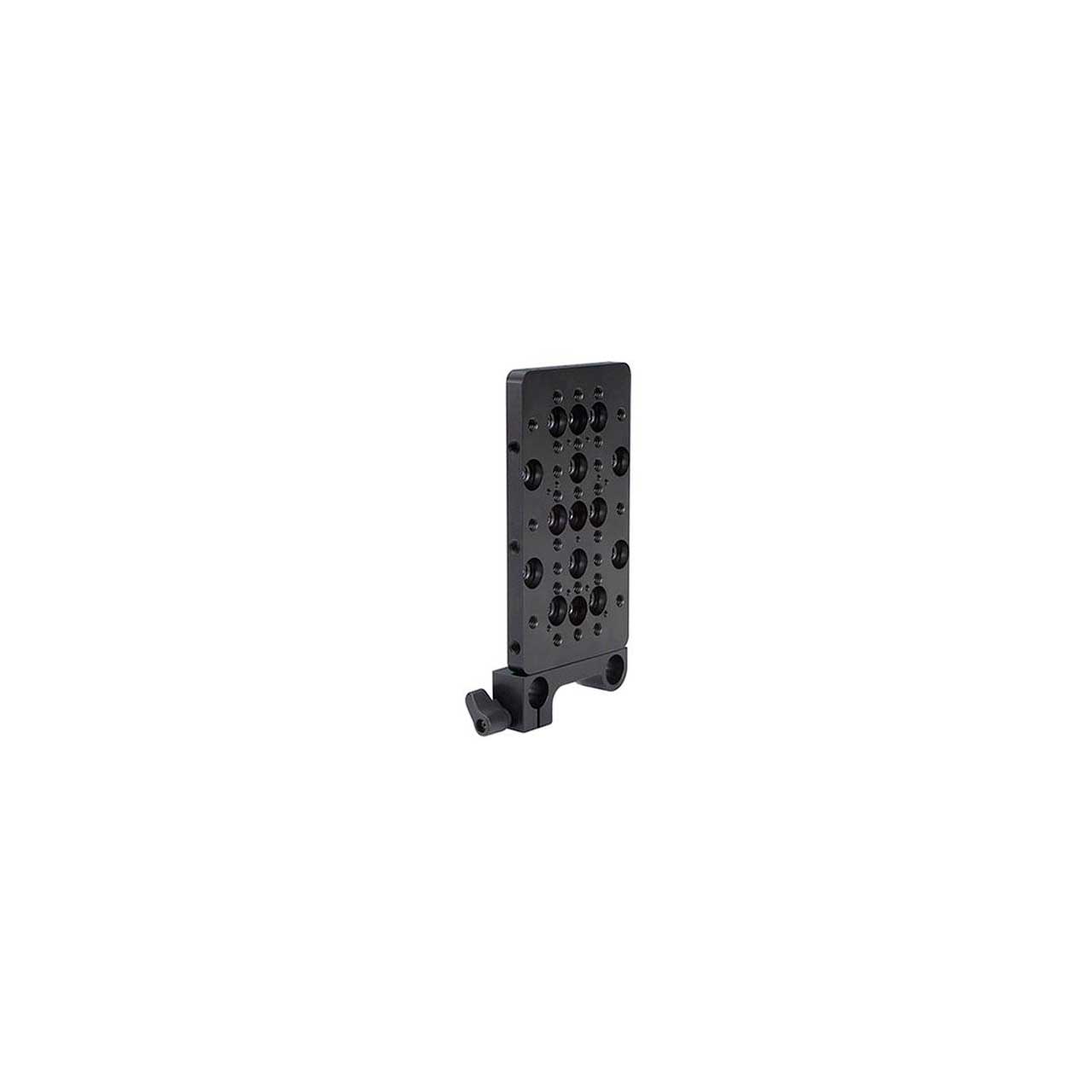

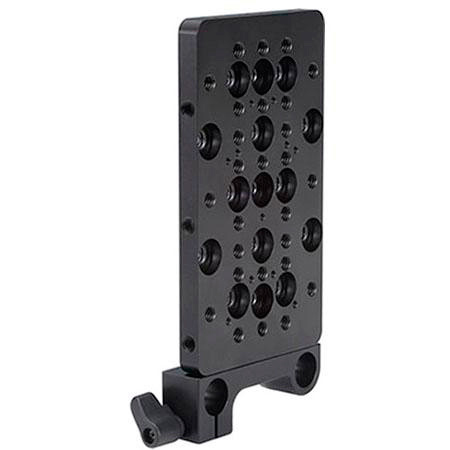

    The A-CP(A) is a versatile aluminum cheese plate that is designed to attach to IDX V-Mount P-V2 series plates. An industry standard 15mm rod clamp is included, which is mountable on various positions of the cheese plate for fully customizable configurations. Multiple 1/4” and 3/8” screw holes are available for accessory or camera mounting. The A-CP(A) with IDX’s ET-PV2BM (Black Magic Camera power adaptor) or A-E2EOSC (Canon C300/C500 power adaptor) together offer a sleek power source on a camera rod system. The P-V257, P-V284, and P-V212 are also compatible with the A-CP(A) for powering various Sony, Panasonic, Canon, and JVC cameras on a rod system.

    • Specifications:

      • Material: 6061 Aluminum / Black Anodized
      • Screw Holes: (39) 1/4”
      • (3) 1/4” with counter bore
      • (12) 3/8” with counter bore
      • Clamp Mounting: (6) Positions
      • Compatible V-Mount Plates:
      • P-V2 / P-VS2
      • P-V212
      • P-V284
      • P-V257
      • ET-PV2BM
      • A-E2EOSC
      • Dimensions: 98(W) x 141(H) x 20(D) mm
      • Weight: 290g / 0.63lbs approx.
