ikan BZ500-PRO Blitz 500 Pro Wireless Video Kit with Batteries and Charger

ITEM #: IKAN-BZ500-PRO MFG #: BZ500-PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the IKAN-BZ500-PRO

BZ500-PRO - Overview

The ikan BZ500-PRO Blitz 500 Pro is essential in today's increasingly wireless production world. The Blitz features uncompressed, zero delay wireless video in a lightweight and affordable package. With a 500 foot range, this system is perfect for various types of uses such as with wireless follow focus systems as well as gimbal and Steadicam operators. The Blitz 500 Pro is perfect for anytime you need to be untethered from the camera.

  • Features:

    • Transmits Uncompressed Zero Delay Wireless Video
    • 3G-SDI and HDMI Inputs and Outputs
    • Up to 1,230ft Line of Sight Range
    • Best Performance within 500ft Range
    • Uncompressed 10-Bit, 4:2:2 Video
    • HDMI to SDI Cross Conversion
    • Supports Sony L Series Batteries
    • Supports up to 4 Receivers connected to 1 Transmitter


  • Specifications:

    • Audio Output: SDI Embedded 4 Channel 24-bit/48kHz
    • Band: 40MHz
    • Compliance: FCC, CE
    • Fixture Power Consumption: < 6.5W
    • Frequency Bands: 5.1 - 5.9GHz
    • Input Audio Format: SDI Embedded 4 Channel 24-bit/48kHz
    • Input Video Format: HDMI: 525i, 625i, 720p 50/59.94/60 1080i 50/59.94 1080p 23.98/24/25/29.97/30/50/59.94/60 SDI: 3G, HD, and SD-SDI (Auto Selected) SMPTE-259/274/292/296/372/424/425
    • Input Voltage: 7 - 36V DC
    • Interface: Transmitter: 3G-SDI Input (BNC Female) HDMI Input (Type A Female) 2x Antenna Ports (RF-2 SMA Male) DC Input (2 pin LEMO Female) Receiver: 3G-SDI Input (BNC Female) HDMI Output (Type A Female) DC Input (2 pin LEMO Female)
    • Modulation Mode: OFDM 16QAM
    • Operating Temperature: 32° to 104°F (0°C to 40°C)
    • Storage Temperature: -4° ro 140°F (-20°C to 60°C)
    • Output Video Format: HDMI: 525i, 625i, 720p 50/59.94/60 1080i 50/59.94 1080p 23.98/24/25/29.97/30/50/59.94/60 SDI: 3G, HD, and SD-SDI (Auto Selected) SMPTE-259/274/292/296/372/424/425
    • Receiver Sensitivity: -75 dBm
    • Signal Indicators:
      Transmitter: Power: Green/Video: Yellow
      Receiver: Power Green; Wireless Signal 5x Green/Video: Yellow
    • Shipping Weight: 13lbs
    • Shipping Dimensions: 16.2" x 6.2" x 17.5"

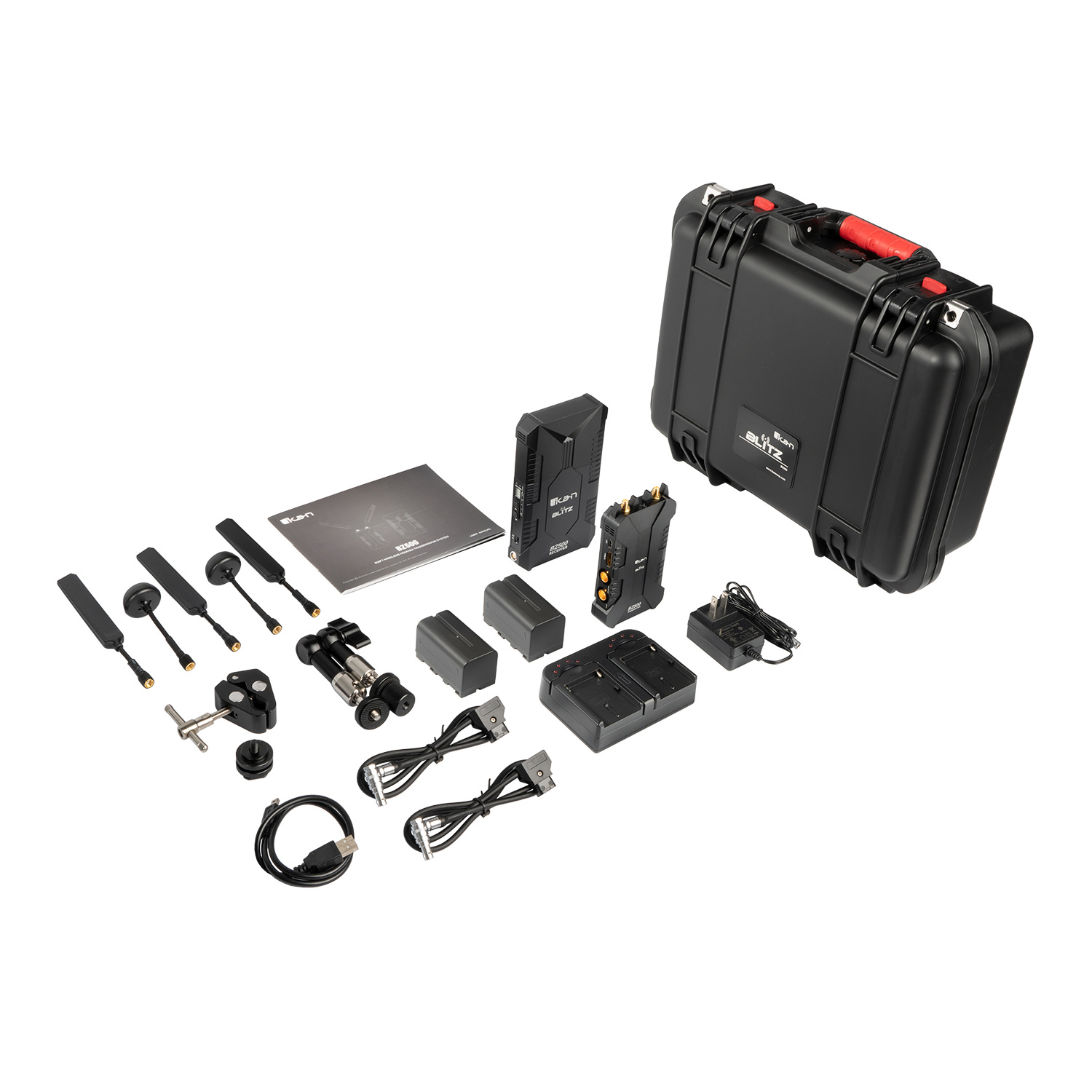

  • Item Includes:

    • 2 x P-Tap to Lemo Cables
    • 2 x Battery
    • 2 x 5GHz Antennas (SMA Female)
    • 2 x 5GHz Mushroom Antennas (SMA Female)
    • 1 x Dual Battery Charger
    • 1 x Transmitter
    • 1 x Shoemount Adapter for Transmitter
    • 1 x Receiver
    • 1 x Power Adapter for Receiver
    • 1 x Hard Case
    • 1 x Clamp
    • 1 x Articulating Arm


  • GTIN:

    0847983030651
