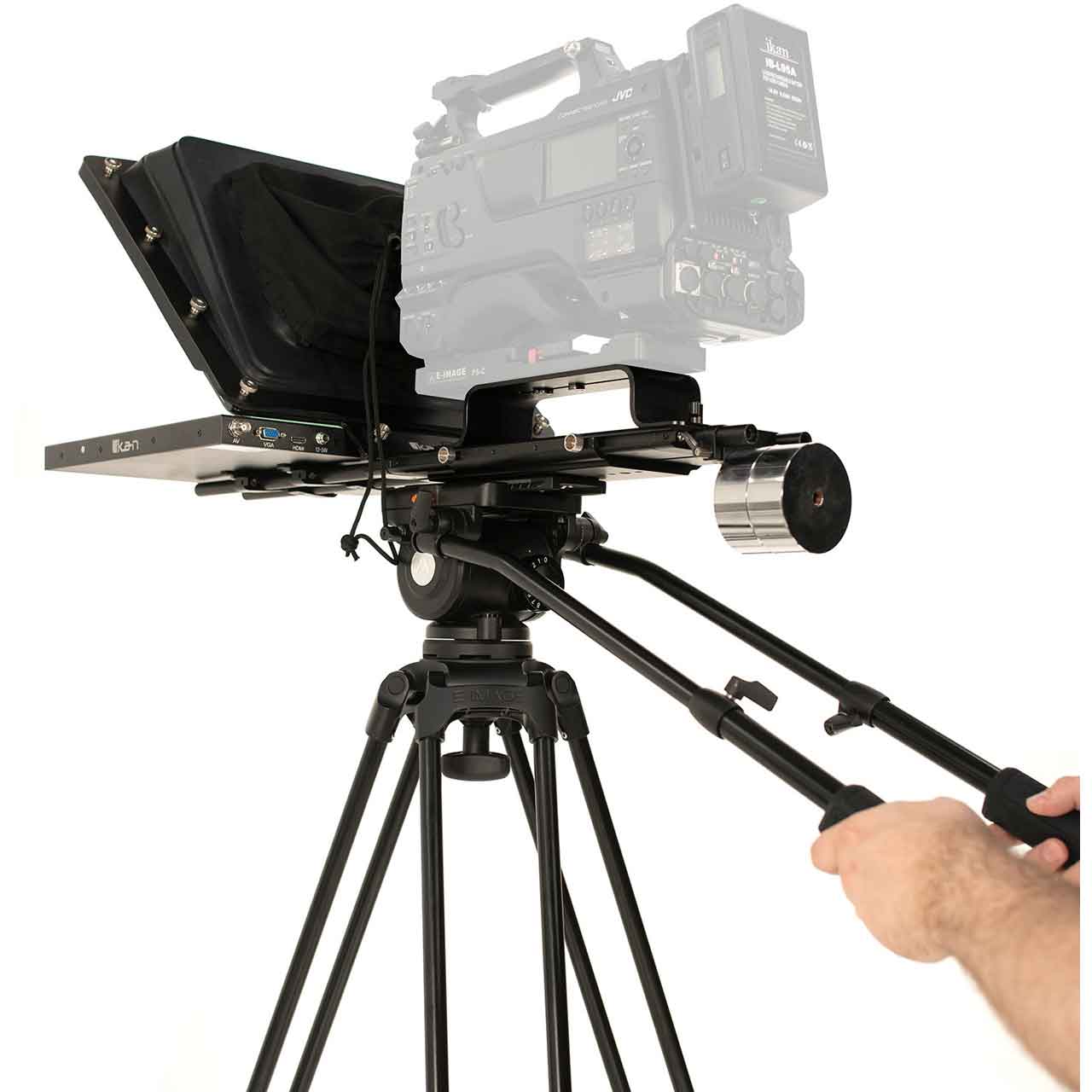

ikan PT4500-TRIPOD-TK 15-Inch Turnkey Teleprompter Kit with Tripod/Dolly and Travel Case

ITEM #: IKAN-PT4500TRPTK MFG #: PT4500-TRIPOD-TK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PT4500-TRIPOD-TK - Overview

Turnkey Broadcast Solution
Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 15" teleprompter, tripod, and dolly. All of their systems have been tested internally for payload compatibility. This PT4500-TRIPOD-TK solution also includes a hard case for the teleprompter & carrying bag for the tripod.

The remaining payload capacity, after mounting the full 15" teleprompter system without the counterweight, can accommodate camera setups up to 25.2 lbs. The tripod, without the teleprompter system, can accommodate cameras up to 44.1 lbs.

15" Teleprompter System
Ikan’s 4th generation teleprompter series is designed for quick and easy setups for all applications. The lightweight aluminum teleprompter has multiple 3/8-16"and 1/4-20" mounting points. The teleprompter monitor and talent monitor both include HDMI, VGA, and Composite (BNC) inputs. The 15" talent monitor allows the talent to easily check their look and framing without moving or looking away from the lens.

Extreme Clarity
The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you’re under the sun or studio lighting.

Ships in Reusable Foam
The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam perfectly fits in the included SKB iSeries 3i-2217-12BE Waterproof Hard Case.

  • Features:

    • Includes 15" Teleprompter, Tripod, Dolly, & Hard Case
    • Includes PrompterPro4 Software for Mac & PC
    • Accommodates Camera Payloads up to 25.2 lbs (w/o Counterweight)
    • For Use in Studios, Live Events, & Virtual Productions
    • Video Inputs: HDMI, VGA, Composite (BNC)
    • Tripod w/ Fluid Head
    • Dolly w/ Cable Guards
    • Hard Cases for Teleprompter, Carrying Bags for Tripod & Dolly

  • Specifications:

    • General Specs
    • Available Payload w/o Counterweight: 25.2Lbs
    • Available Payload w/ Counterweight: 19.3Lbs
    • Weight of Full System: 42.66Lbs
    • Max Height of Full System: 7.14' (2.18m)
    • Min Height of Full System: 3.43' (1.05m)

      15" Teleprompter
    • Riser Plate Height:
      Low: 2.06" (52.5mm)
      Medium: 3.74" (95mm)
      High: 5.31" (135mm)
      DSLR: 6.29" (160mm)
    • Length of Rods: .59 x 15.74" (15 x 400mm)
    • Build Material: Chassis: Anodized Aluminum / Rods: Carbon Fiber
    • Reading Range: 17 ft./5.18m
    • Beamsplitter Ratio: 70/30
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 8 x 1/4" -20 Female / 6 x 3/8" -16 Female
    • Product Weight w/ Low Plate: 24.11Lbs
    • Product Weight w/ Medium Plate: 24.51Lbs
    • Product Weight w/ High Plate: 24.64Lbs
    • Product Weight w/ DSLR Plate: 24.01Lbs
    • Sliding Range: 5.9" (150mm)

      15" Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 15"
    • Mount: VESA 3.94" (100mm)
    • Video Inputs: AV COMPOSITE, HDMI, VGA
    • Input Voltage: DC 12v / 4A
    • Power Consumption: 28W
    • Product Weight: 3.97Lbs
    • Product Dimensions: 12.13 x 14.25 x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H) / 170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes / Vertical: Yes

      Tripod
    • Material: Anodized aluminum alloy
    • Bowl Size: 3.94" (100mm)
    • Leg Stages/Sections: One-Stage / Three-Section
    • Leg Lock Type: Rotary clamp
    • Spreader: Mid-Level
    • Spiked/Retractable Feet: Yes
    • Load Capacity: 132.3Lbs
    • Height Range: 18.5 to 63" (47 to 160cm)
    • Folded Length: 29.1" (74cm)
    • Weight: 11.2Lbs (5.1kg)

      Fluid Head
    • Head Payload Capacity: 44.1Lbs - 20kg
    • Bowl Size: 3.94" (100mm)
    • Counterbalance System: Stepped, 1-8
    • Pan Drag Settings: Fixed
    • Tilt Drag Settings: Fixed
    • Tilt Lock: Thumb Lock
    • Tilt Range:: -60°/+90°
    • Bubble Level: Yes
    • Pan Handle Length Range: 16.7 - 24"
    • Net Weight: 7.7Lbs/3.5kg
    • Net Weight w/ Pan Handles: 9.5Lbs/4.30kg
    • Sliding Plate Range: 7.87" 200mm
    • Temperature Range: -40°F - 194°F
    • Camera Plate Length: 8" 203.2mm

      Dolly
    • Net Weight: 15Lbs/6.8 kg
    • Footprint Diameter: 39.4" 100cm
    • Cable Guard Diameter: 4.92" 12cm
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.94" (100mm)
    • Lockable Wheels: Yes
    • Build Material:
    • Legs: Aluminum
      Wheels: Rubber
      Screws: Steel
    • Payload: 132.3Lbs (60kg)

      Travel Case
    • Internal Dimensions: 22 x 17 x 12.75"
    • External Dimensions: 24.34 x 19.47 x 14.38"
    • Weight: 18.75Lbs
    • Carry/Transport Options: Handle, Retractable Handle, Wheels (Built-In)
    • Color: Black
    • Security Lock: Accepts Padlock
    • Water Resistance: Waterproof
    • Build Material: Polypropylene

  • Item Includes:

    • 1x Tripod w/ Head
    • 1x Dolly w/ Wheels & Cable Guards
    • 1x 15" Teleprompter System w/ Monitor
    • 4x Camera Riser Plates
    • 1x PrompterPro Software (FREE with this teleprompter)
    • 1x Rolling Hard Case for Teleprompter System

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983034123
