INOGENI SHARE2 Dual HDMI/DVI to USB 3.0 Camera Mixer - TAA-compliant

ITEM #: IN-SHARE2 MFG #: SHARE2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Inogeni
Free Shipping with $49 Minimum Order

Our Price:

$1,545.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SHARE2 - Overview

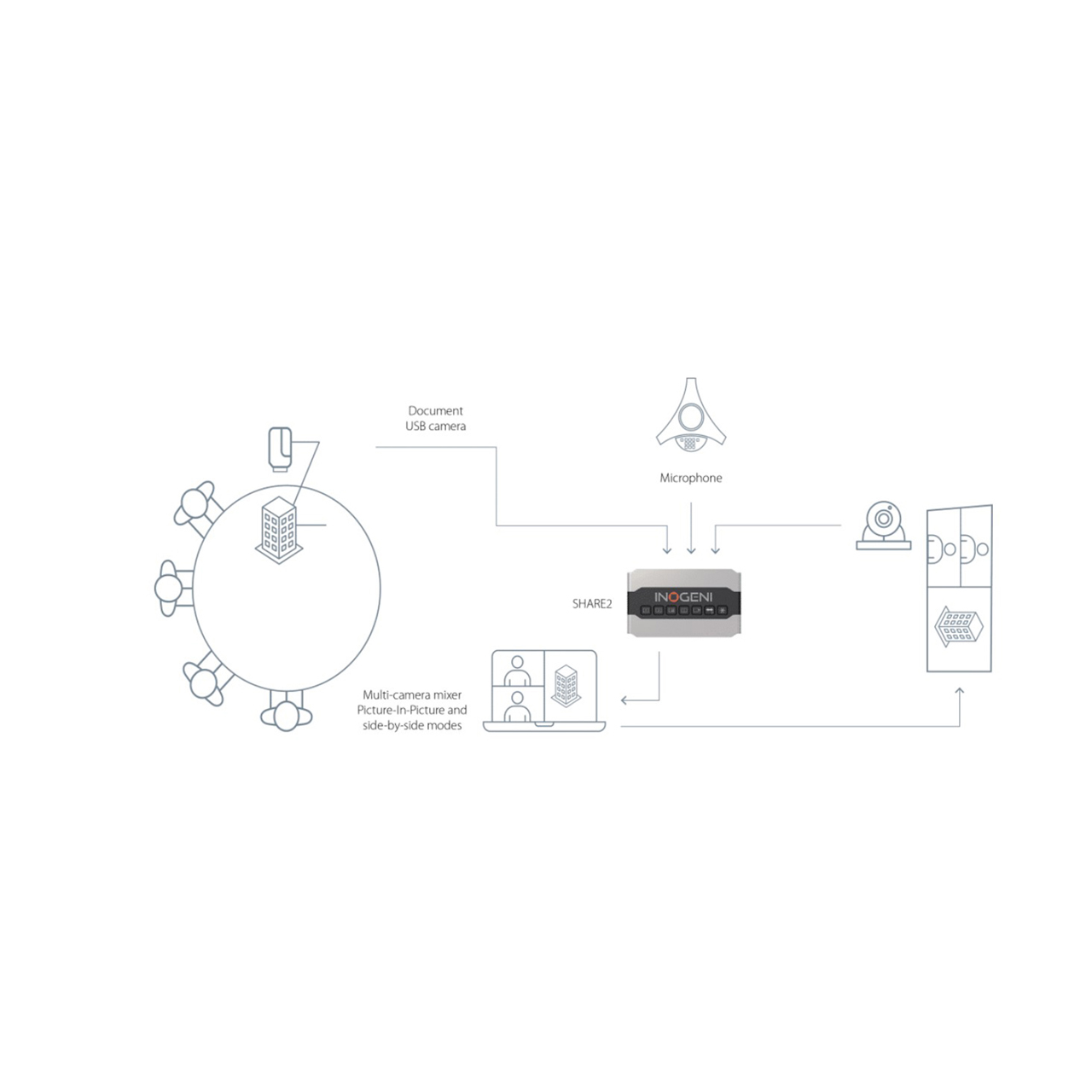

INOGENI's easy and versatile SHARE2 camera mixer provides Picture-in-Picture in one video flow. Create interactive presentations for collaborative meetings and HyFlex classrooms.

The SHARE2 dual HDMI/DVI to USB 3.0 professional camera mixer can be controlled by an application on the host side using our LAN or RS-232 interfaces. You can also use the keypad on the top of the device to control it manually.

You can use the camera mixer feature of the SHARE2 to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams, Zoom, Webex, GoToMeeting and all video conferencing applications. SHARE2 also features easy push-button to switch easily up to 14 mix setup videos.

  • Features:

    • 2 HDMI cameras mixer into a single USB 3.0 interface
    • Engage a dynamic presentation and easily switch up to 14 mix setup videos
    • Change camera and video configuration without cutting the flow of your presentation
    • Ideal for remote education, collaborative meetings, webinars or live streaming
    • Compatible with the Q-SYS Core processors
    • Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
    • Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
    • Controllable by LAN & RS-232
    • Cost-effective solution that is reliable as well as simple to install and connect (no driver required)
    • Designed and manufactured in Canada
    • TAA-compliant


  • Specifications:

    • Video Input
    • Connector #1: 1x HDMI
      - Video Resolutions: 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
      - Frame rate: up to 60 Hz, all formats
    • Connector #2: 1x DVI-I (Digital + Analog) OR HDMI with included HDMI DVI Adapter
      - DVI Resolutions: 1080p, 1080i, 720p, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
      - VGA Resolutions: 1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200, 1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480
      - Component Resolutions: 1080p, 1080i, 720p, 480p, 480i, 576p and 576i CVBS - 480i, 576i
      - Frame rate: up to 60 Hz, all formats.
    • Color Space: RGB, YCbCr, 4:4:4, and 4:2:2

      Video Output
    • USB: 1x USB 3.0 uncompressed up to 1080p60 (One mixed video stream)
    • USB Color Space or CODEC: USB 3.0: YCbCr (YUY2) 4:2:2 8-bit USB 2.0: MJPEG
    • USB Video Scaler: Automatic hardware-based
    • USB Color Space Conversion: Automatic hardware-based
    • USB Sampling Conversion: Automatic hardware-based
    • USB Frame Rate Conversion: Automatic hardware-based

      USB Port
    • USB Expansion Port: Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

      Audio
    • Analog Audio Connections: Analog stereo, line level, 3.5 mm jack
    • Analog Audio I/O: 2-channel LPCM 48kHz audio from line input
    • Digital Audio I/O: Embedded in HDMI

      Control
    • Control Options: Integrated keypad, LAN, USBHID, INOGENI REMOTE, RS-232 (SHARE2 requires installation of COM port driver)
    • IP Interface: 10 Mbps Static address configuration through our Control App. DHCP not supported.

      Compatibility
    • Q-SYS Core Processors Compatible: Compatible with the Q-SYS Core processors
    • Barco ClickShare Conference Compatible: Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
    • Operating Systems:
      - Windows 7 and above (32/64-bit)
      - macOS 10.10 and above
      - Linux (kernel v2.6.38)
    • Minimum host requirements:
      - USB 2.0 port (INOGENI recommends USB 3.0 for uncompressed video)
      - 4GB RAM
      - Intel Core i5 or equivalent Graphics card with dedicated memory
      - Supported Cameras: Cameras and camcorders with an HDMI, DVI, VGA or CVBS output
      - Software Compatibility: UVC-compliant, it runs with all software compatible with DirectShow, AVFoundation and V4L2. Teams, Zoom, Webex, Google Meet, etc.

      Physical
    • Dimensions (WxLxH): 7.25" x 4.25" x 1.25" (18.5cm x 11.0cm x 3.0cm)
    • Power Supply: 12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
    • Weight: 1.17 lb (530g)
    • Operating Temperature: 32°F to 113°F (0°C to 45°C)
    • Storage Temperature: -40°F to 221°F (-40°C to 105°C)
    • Relative Humidity: 0% to 90% non-condensing

      Certifications
    • HDCP-Compliant: The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
    • Certifications: FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM
    • TAA-compliant: Yes


  • Item Includes:

    • 1x INOGENI SHARE2 Camera Mixer
    • 1x 3.3 ft./1 USB 3.0 cable (Type-A to Type-B)
    • 1x HDMI to DVI Adapter
    • 1x VGA to DVI Adapter
    • 1x Serial RS-232 cable (DB9 female to RJ45 plug)
    • 1x Power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    • 1x Kit of International Adapters (AUS, EUR, UK and US)


  • Warranty:

    • 5 Year Limited Warranty
