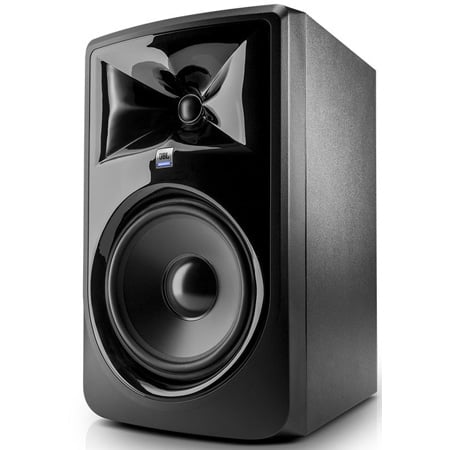

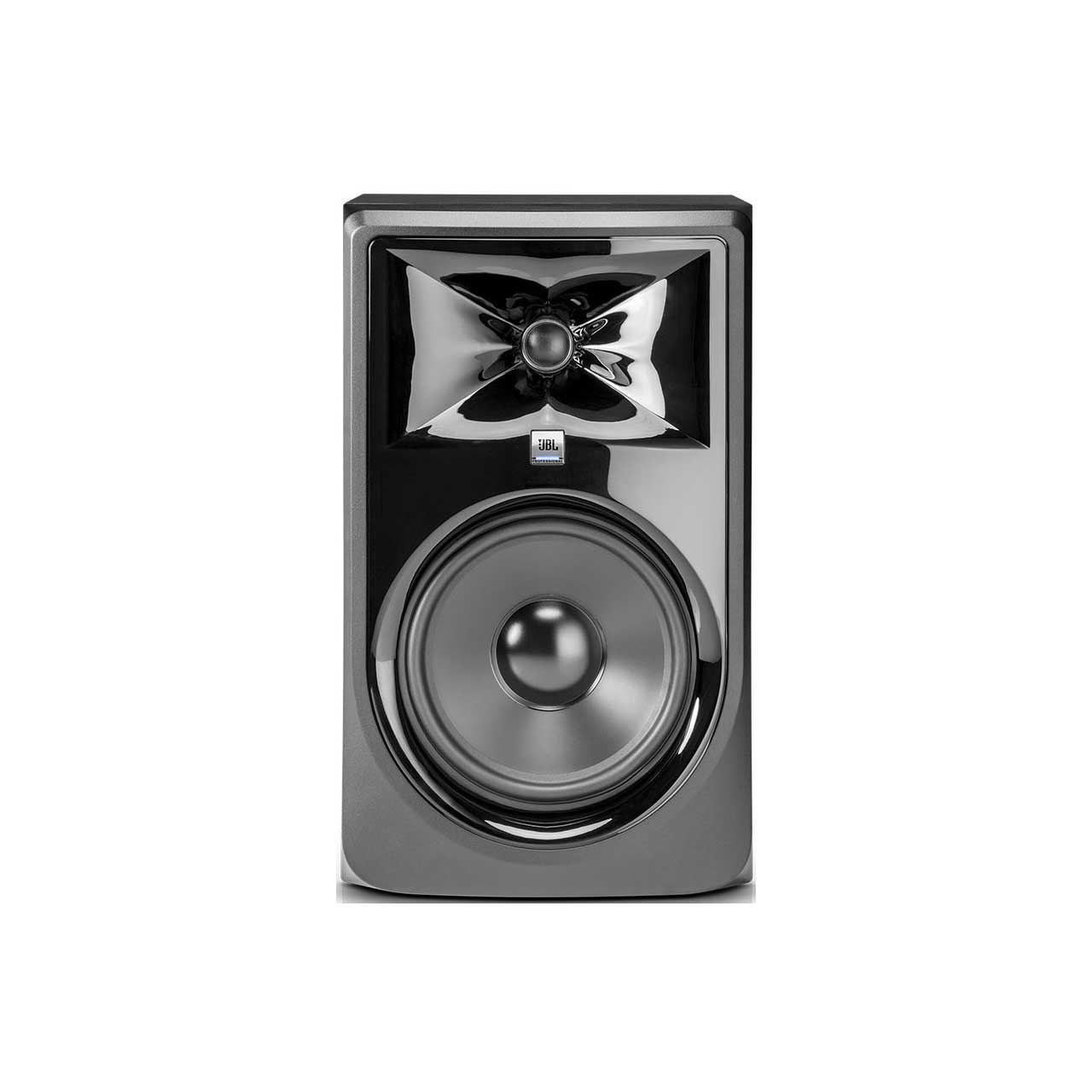

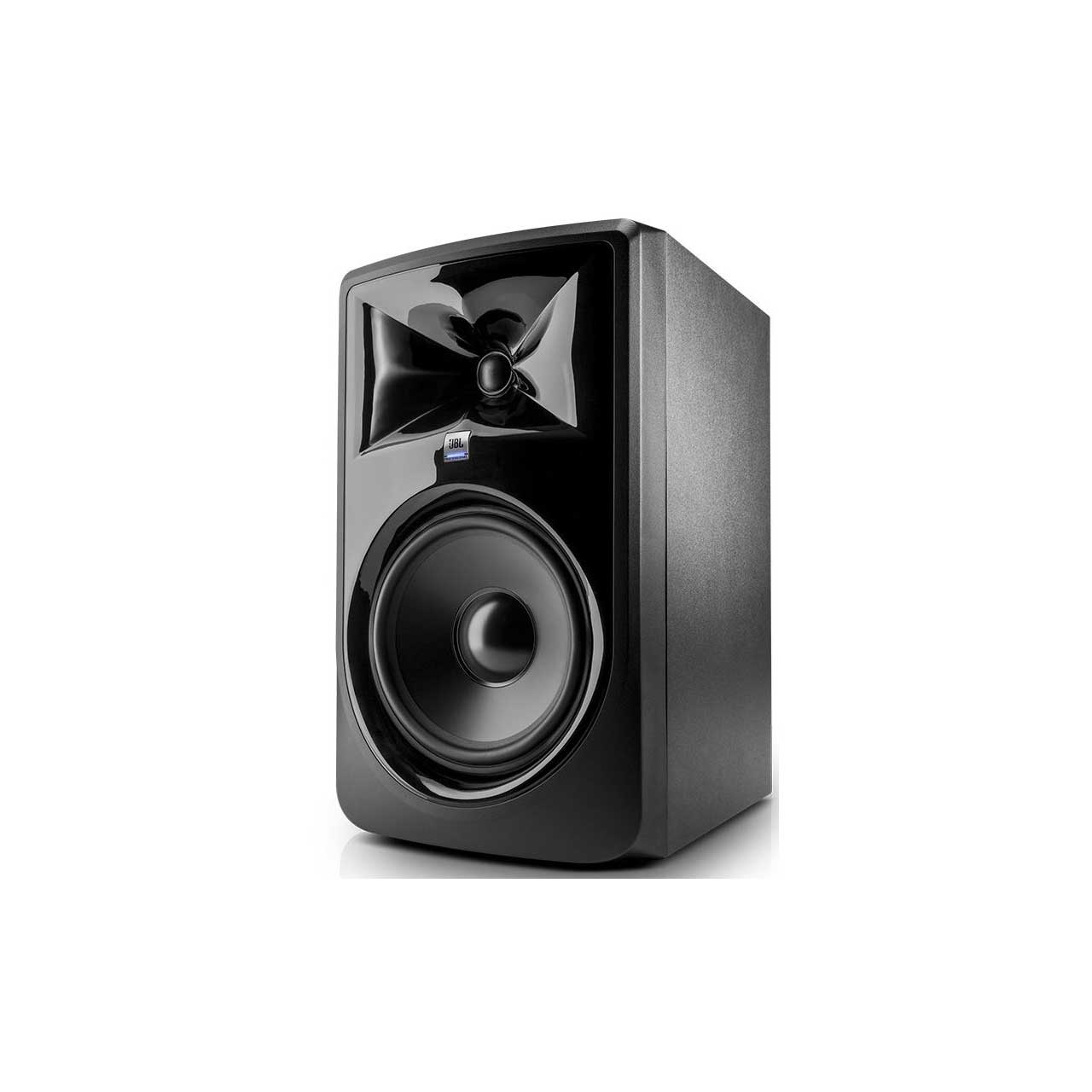

JBL 308P MkII Powered 8-Inch Two-Way Studio Monitor

308PMKII - Overview

• Features:

  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
  • Next-generation JBL transducers for optimized transient response and improved linearity
  • Patented Slip StreamT low-frequency port for superior bass performance at all playback levels
  • Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
  • New Boundary EQ settings compensate for low frequency variants introduced by the environment
  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

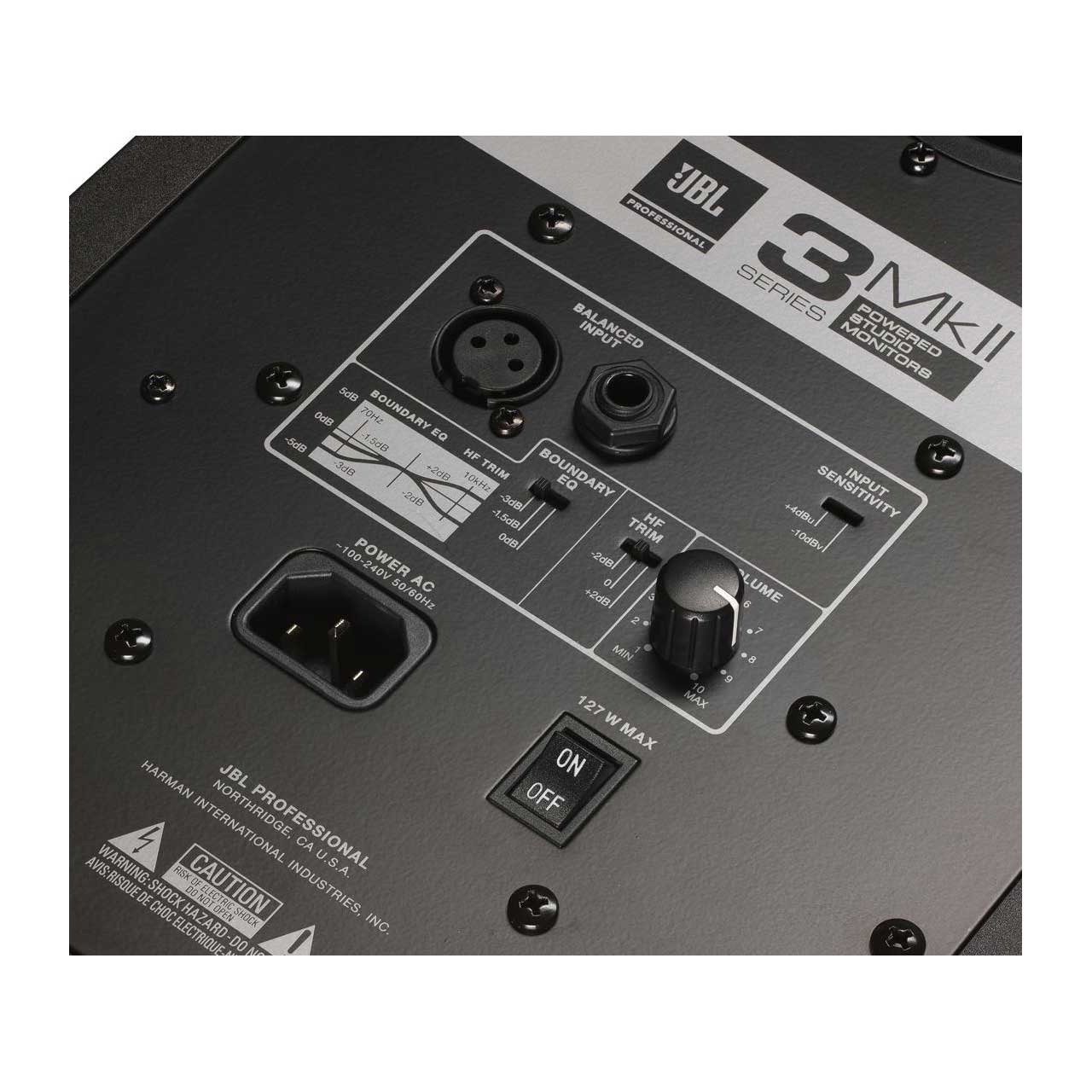

  • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
  • Strenuous JBL 100-hour full-power test ensures years of reliability
  • Sleek, modern design provides a visual upgrade to any studio


• Specifications:

  • LF Driver Size: 203mm (8")
  • HF Driver Size: 25mm (1")
  • HF Driver Type: Soft dome
  • Crossover: 1800Hz 4th order acoustic Linkwitz-Riley
  • Input Sensitivity (-10dBV Input): 92dB / 1m
  • Power Configuration: Bi-amplified
  • HF Driver Power Amp: 56W, Class-D
  • LF Driver Power Amp: 56W, Class-D
  • Frequency Response (±3dB): 45Hz - 20kHz
  • Frequency Range (-10dB): 37Hz - 24kHz
  • Low Frequency Extension (-10dB): 37Hz
  • Maximum Continuous SPL: 102dB
  • Maximum Peak SPL: 112dB
  • Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
  • System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
  • Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
  • Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
  • Coverage (Horizontal x Vertical): 120° x 90°
  • Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
  • HF Trim Control: -2dB, 0dB, +2dB
  • Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
  • AC Input Voltage: 100 - 240VAC (±10%), 50 / 60Hz
  • Enclosure Type: Ported
  • Enclosure Construction: 15mm MDF
  • Enclosure Finish: Matte black PVC
  • Baffle Construction: Injection-molded structural ABS
  • Cabinet Dimensions (H x W x D): 419 x 254 x 308mm (16.5" x 10" x 12.1")
  • Display Carton (H x W x D): 473 x 312 x 358mm (18.6" x 12.3" x 14")
  • Shipping Carton (H x W x D): 491 x 326 x 372mm (19.3" x 12.8" x 14.6")
  • Net Weight: 8.1 kg (17.87 lbs)
  • Shipping Gross Weight: 9.4 kg (20.73 lbs)


• GTIN:

  0691991007729
