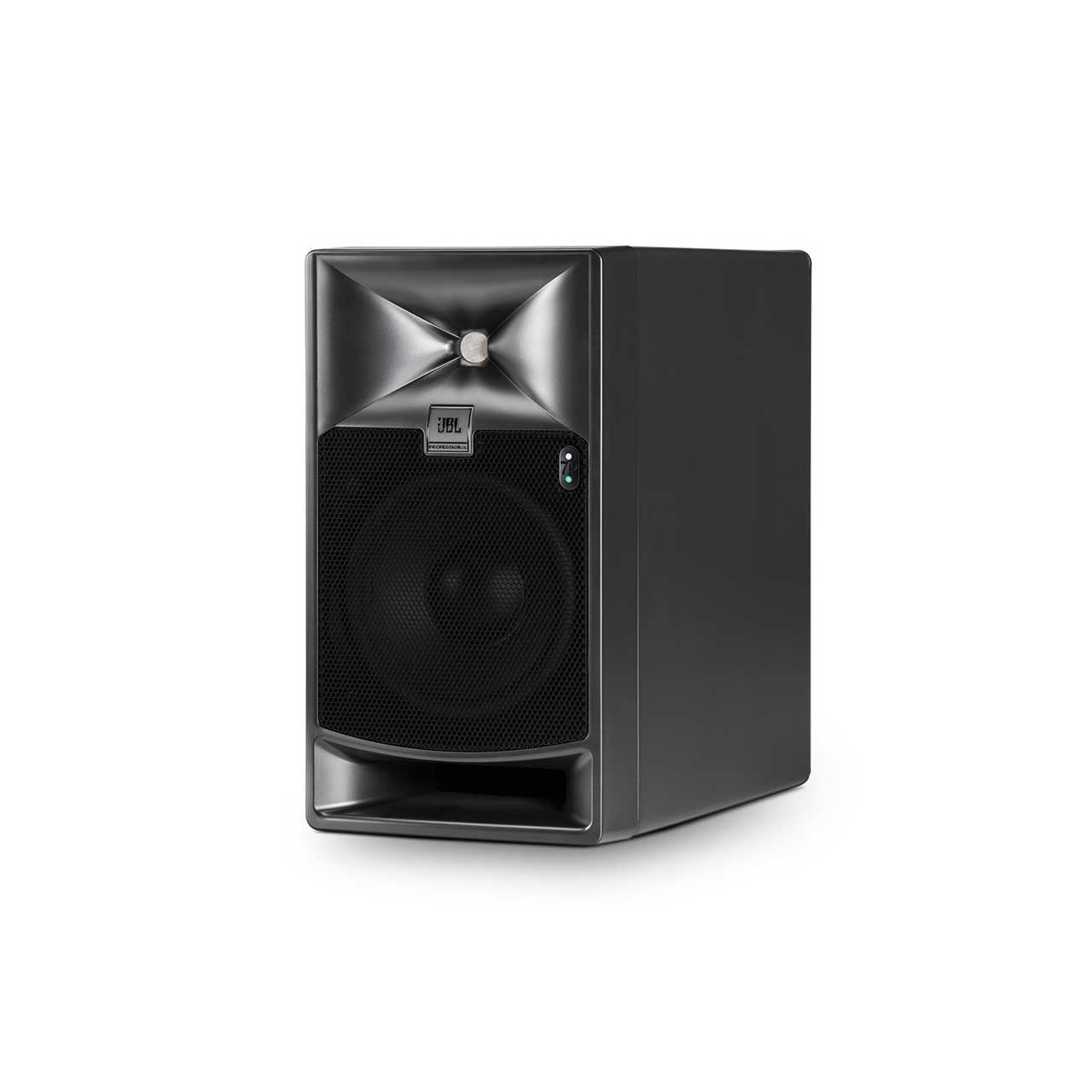

JBL 705P 7 Series 5-Inch Bi-Amplified Master Reference Studio Monitor

ITEM #: JBL-705P MFG #: 705P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,498.75

Our Price:

$1,199.00

After Savings:

$999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
JBL 2024 Year-End SavingsCrank up the JBL Savings with these Exclusive, Year-End Specials. Order Now, this is a Limited Time Offer!


705P - Overview

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL's renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.

  • Features:

    • Next-generation JBL driver technology
    • Patent-pending JBL Image Control Waveguide
    • Integrated dual amplification system with internal floating-point DSP
    • Comprehensive room EQ and delay controls
    • Compact enclosures for easy placement and installation
    • JBL 725G low-frequency transducer delivers low-distortion and high SPL
    • JBL 2409H high-frequency transducer with low-mass annular diaphragm
    • JBL-designed patent-pending Image Control Waveguide
    • 2-channel Class-D amplifier HF 250W / LF 250W
    • 192 kHz, 32-bit floating point processing
    • 12 bands of Room EQ, 8 bands of User EQ
    • 6 factory presets, 6 user-defined presets
    • 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
    • 1 x XLR-1/4" balanced combination analog audio input
    • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
    • Digital input accepts sample rates of up to 192 kHz
    • User-enabled sample rate converters
    • RJ-45 network connection for Harman HiQnet connectivity

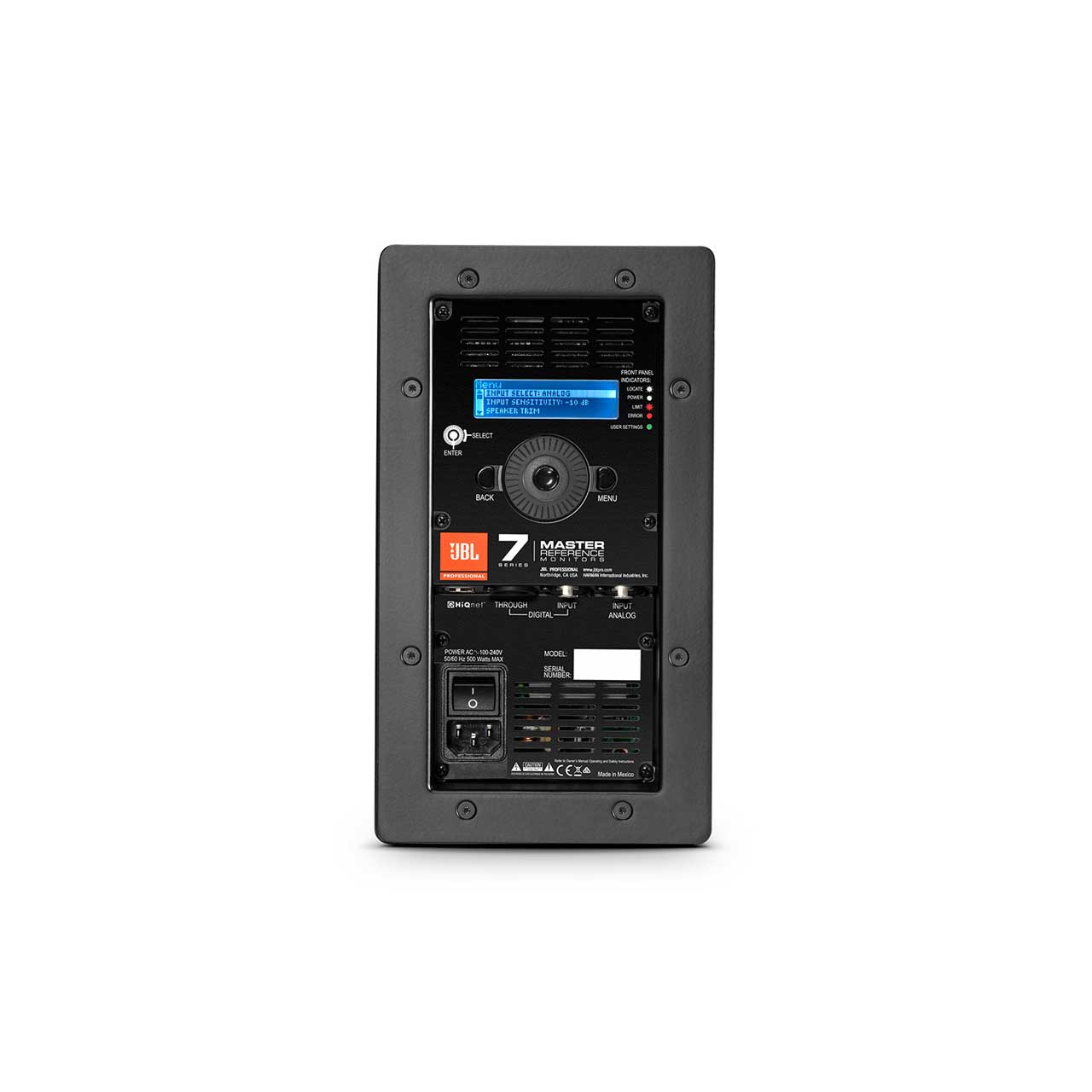

    • Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
    • Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
    • Protective steel grilles

  • Specifications:

    • Frequency Response: -1.5 dB @ 48Hz - 23kHz
    • Frequency Range: 39Hz - 36 kHz
    • Max SPL: (80 Hz - 20 kHz) >101 dB SPL / 1m
    • Maximum Peak SPL: (80 Hz - 20 kHz) >107 dB SPL / 1m
    • HF Driver: 2409H
    • LF Driver: 725G
    • Dividing Network Transition Frequency: 1.9 kHz
    • Input Types-
    • 1 x XLR-1/4" balanced combination analog audio input
    • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
    • Digital input will accept sample rates up to 192 kHz
    • Dimensions (HxWxD): 10.5 x 5.875 x 8.125 in
    • Weight Each: 9.0 lb
    • Enclosure: Birch plywood reinforced for mounting
    • Mounting: Top, bottom and rear mounting points. 2-hole mounting pattern

  • GTIN:

    0691991006326
