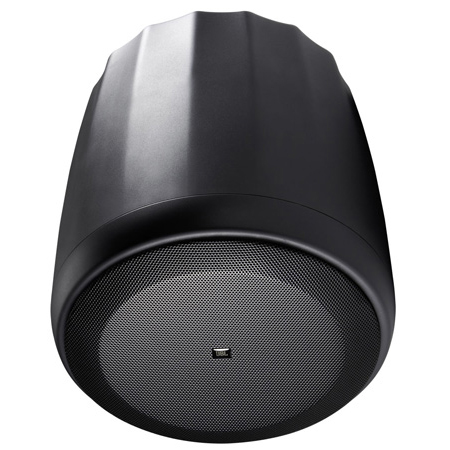

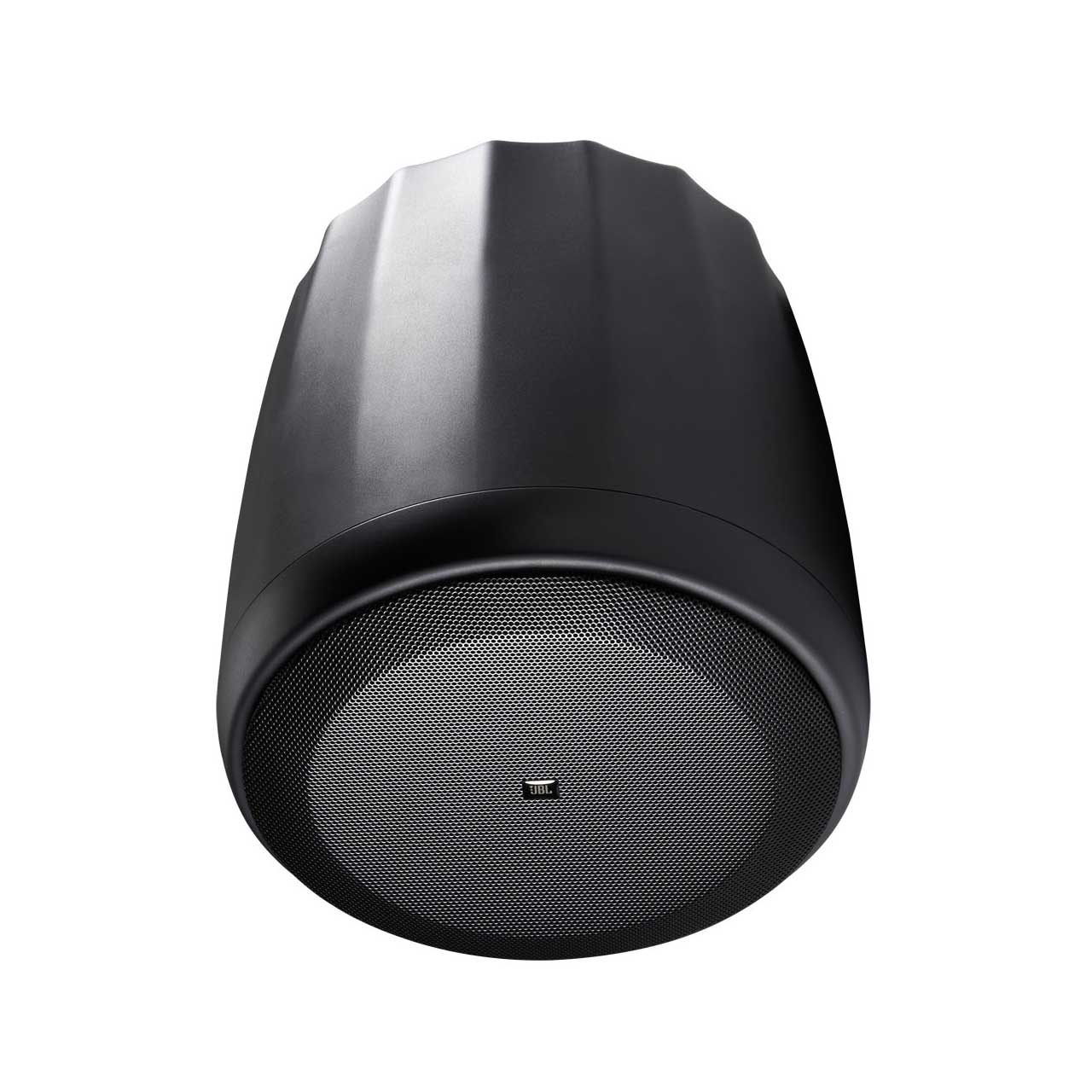

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.
The Control 60PS/T may be driven by itself (or with other subwoofers) on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides highpassed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a fullrange, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.
A 100 Watt multi-tap, wide-bandwidth, lowsaturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system or as a direct low-impedance 8 Ohm speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 to 16 Ohm each).
A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals and the optional MTC-PC60 full-top cover accessory adds additional terminal protection for when using outdoors.
