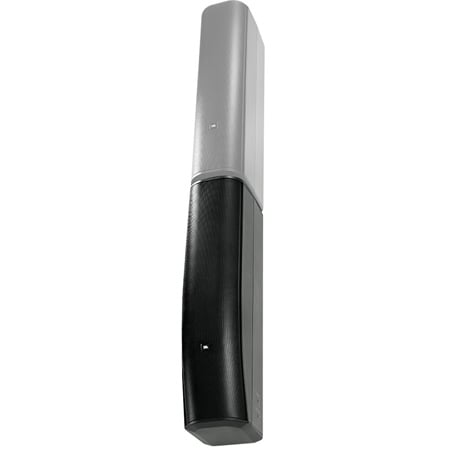

Primary Image

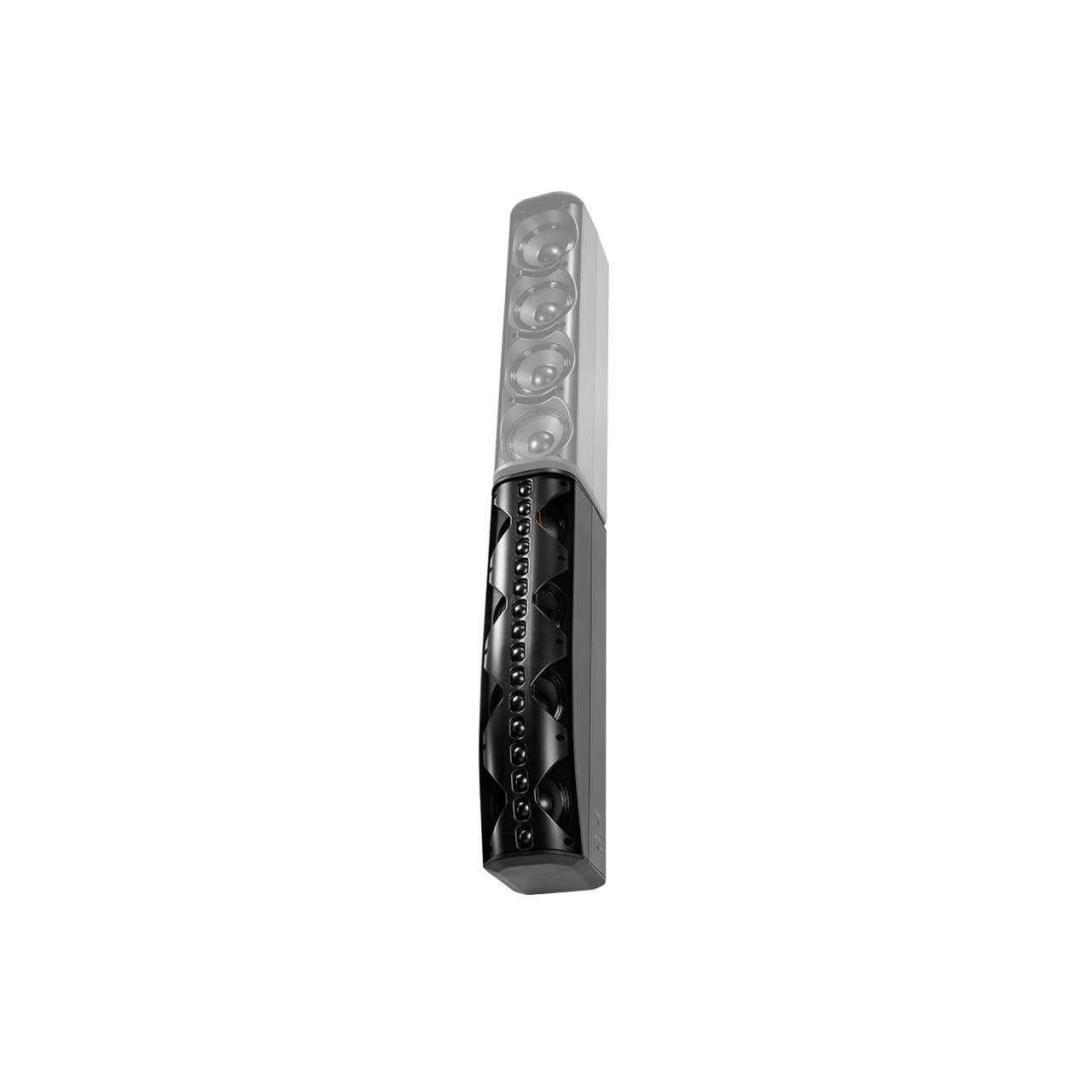

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,610.12

Our Price:

$1,290.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


CBT 70J - Overview

The J-shape of the array works in conjunction with the Constant Beamwidth Technology circuitry to provide asymmetrical coverage similar to that of expensive line arrays commonly used in concert systems. The J column sends highly concentrated sound toward the back of the venue, while down-filling a broader, less concentrated sound to the front of the venue. This results in more consistent sound levels from front to back. 70 cm J-shaped coaxial line array with 16 x 1" tweeters, 4 x 5" woofers plus patent-pending Constant Beamwidth Technology™ circuitry. Perfect for A/V, Small Performance Auditoriums, Classrooms, Lecture Halls. For Outdoor Applications: Pole-Mounted at School Stadiums, Racetracks, Theme Parks, Fill Applications.

  • Specifications:

    • Frequency Response (-10 dB): 60 Hz - 20 kHz
    • Sensitivity (SPL @ 1m, 3.3 ft): 100 dB
    • Power Handling (low - Z): 500 W
    • Max SPL: 127 dB (133 dB peak)
    • Pattern Control Frequency (± 20°): 800 Hz
    • Mounting: 10 x M6 insert points, wall bracket included
    • Dimensions (H x W x D): 27.4" x 6.6" x 9.3"
    • Vertical Coverage: Narrow = 25° asymmetrical Broad = 45° asymmetrical
    • Equalization: Music (flat)/Speech
    • Tap Settings: 8 ohms

  • GTIN:

    0050036904216
