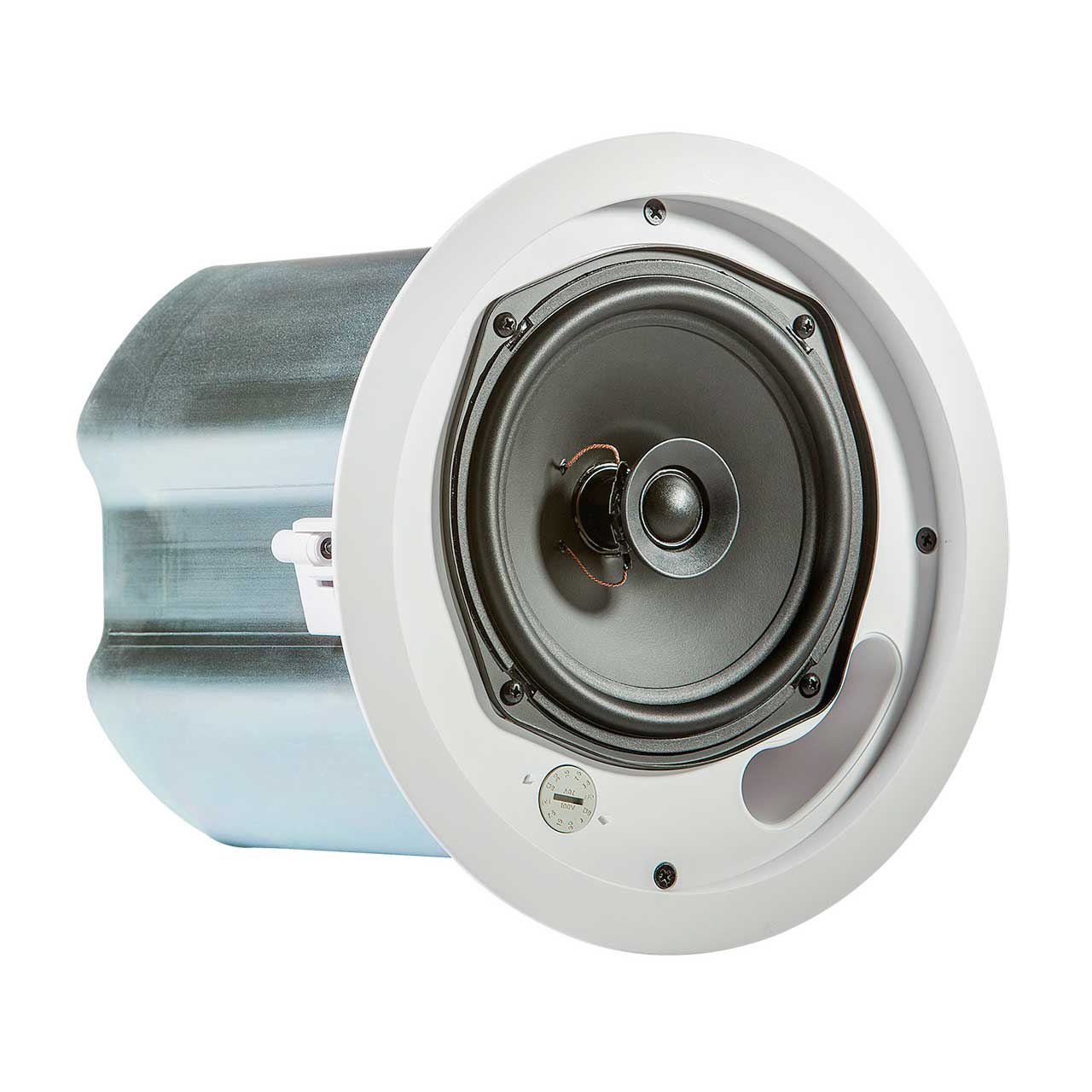

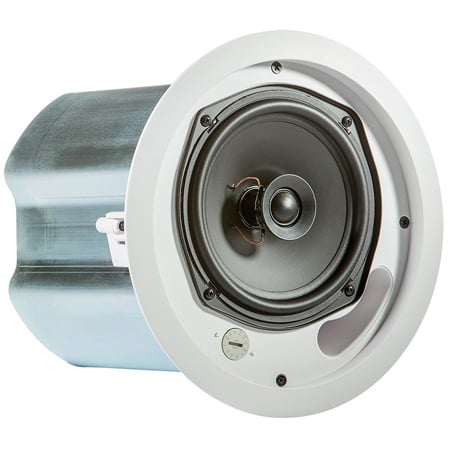

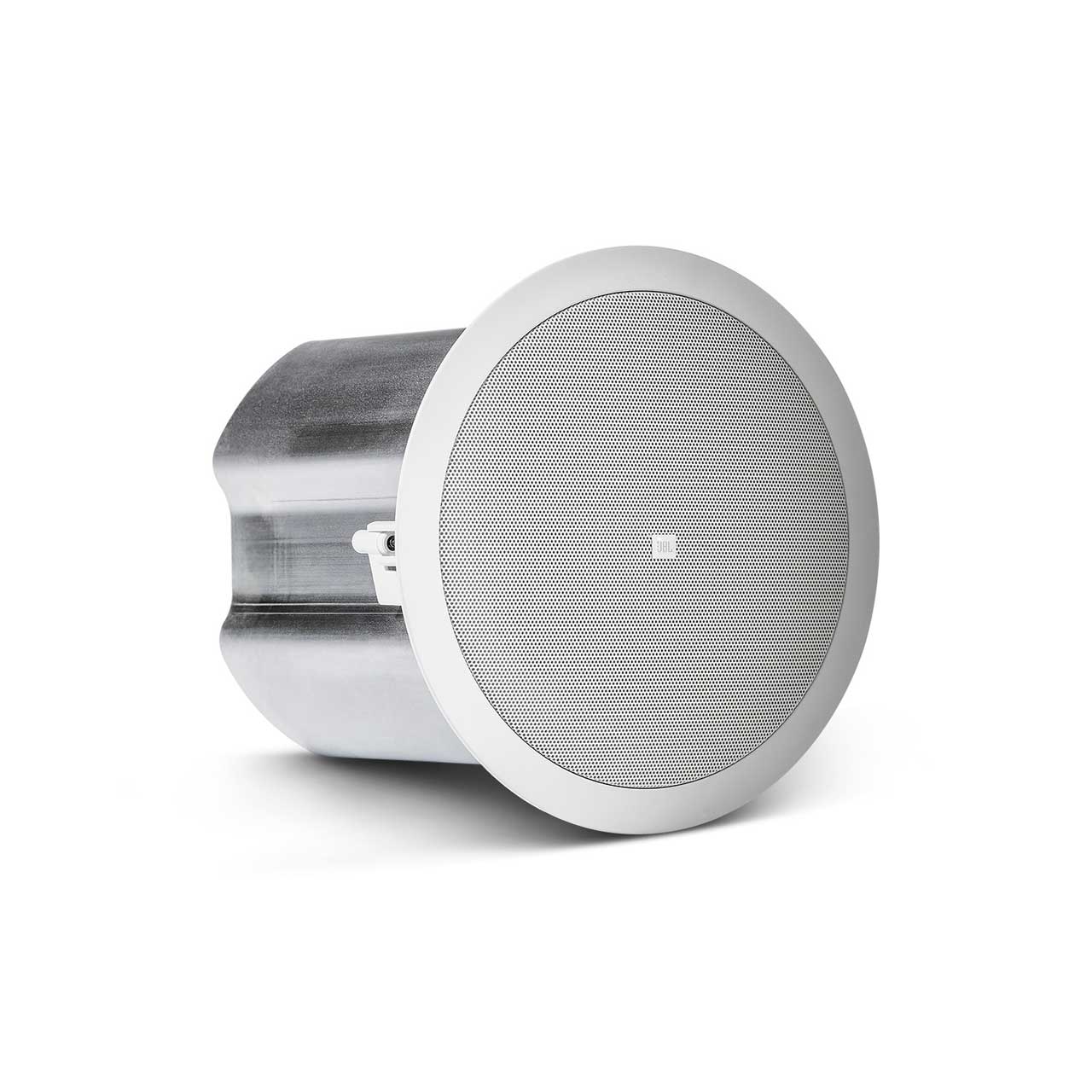

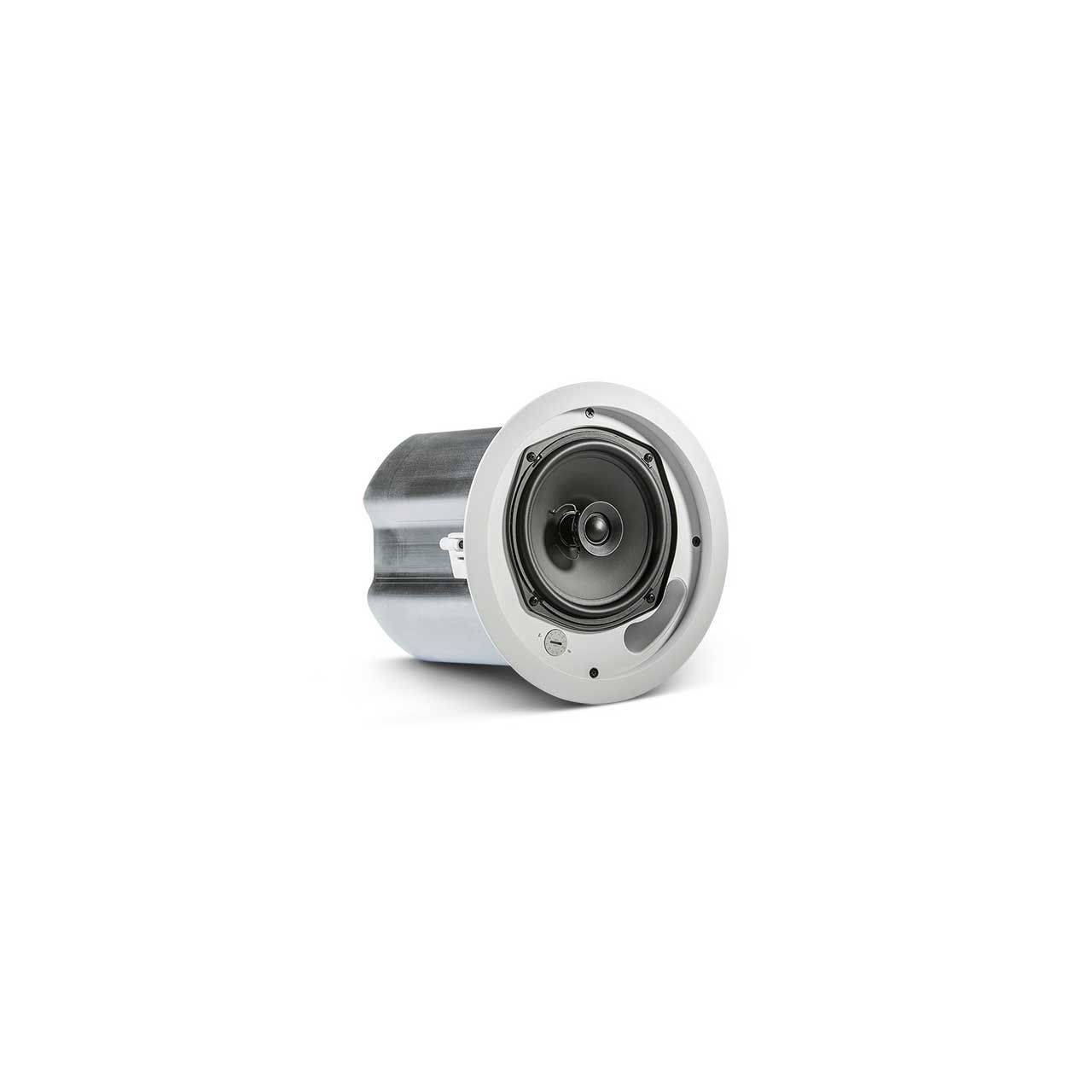

JBL CONTROL 16C/T Two-Way 165 mm Co-axial Ceiling Loudspeaker - White - Pair

CONTROL16C/T - Overview

• Features:

  • Components:
  • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
  • 50 Watts at 8Ω nominal setting
  • 30W multi-tap at 70V/100V
  • 62 Hz - 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL
  • White or black (-BK)


• Specifications:

  • Frequency Range (-10 dB) 62 Hz - 20 kHz
  • Power Capacity (at low-Z) 100 Watts Continuous Program Power
  • 50 Watts Continuous Pink Noise
  • Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V
  • (plus 3.8 W @ 70V only)
  • Frequency Response (±3 dB) 96 Hz - 15 kHz
  • Nominal Sensitivity 91 dB
  • Nominal Coverage Angle 110° conical coverage
  • Directivity Factor (Q) 7.8
  • Directivity Index (DI) 8.2 dB
  • Rated Maximum SPL 108 dB @ 1 m (3.3 ft) average, 116 dB peak
  • Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
  • Crossover Network 12 dB/oct (2nd order) low-pass to LF driver,
  • 12 dB/oct (2nd order) high-pass to HF driver
  • LF Driver 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
  • HF Driver 19 mm (3/4 in), highly-damped treated-silk dome, KaptonT voice coil, liquid cooling, wide dispersion waveguide
  • Input Connector Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated
  • steel backcan
  • Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions 253 mm diameter x 225 mm depth from back of baffle
  • (10.0 in diameter x 8.8 in depth)
  • Ceiling Cutout Size Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout
  • template included)
  • Ceiling Thickness Range Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
  • Safety Seismic Attachment One point, top surface
  • Net Weight 3.4 kg (7.4 lbs, one speaker)
  • Shipping Weight 11.2 kg (24.7 lbs, pair in master carton)
  • Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille


• GTIN:

  0050036904575
