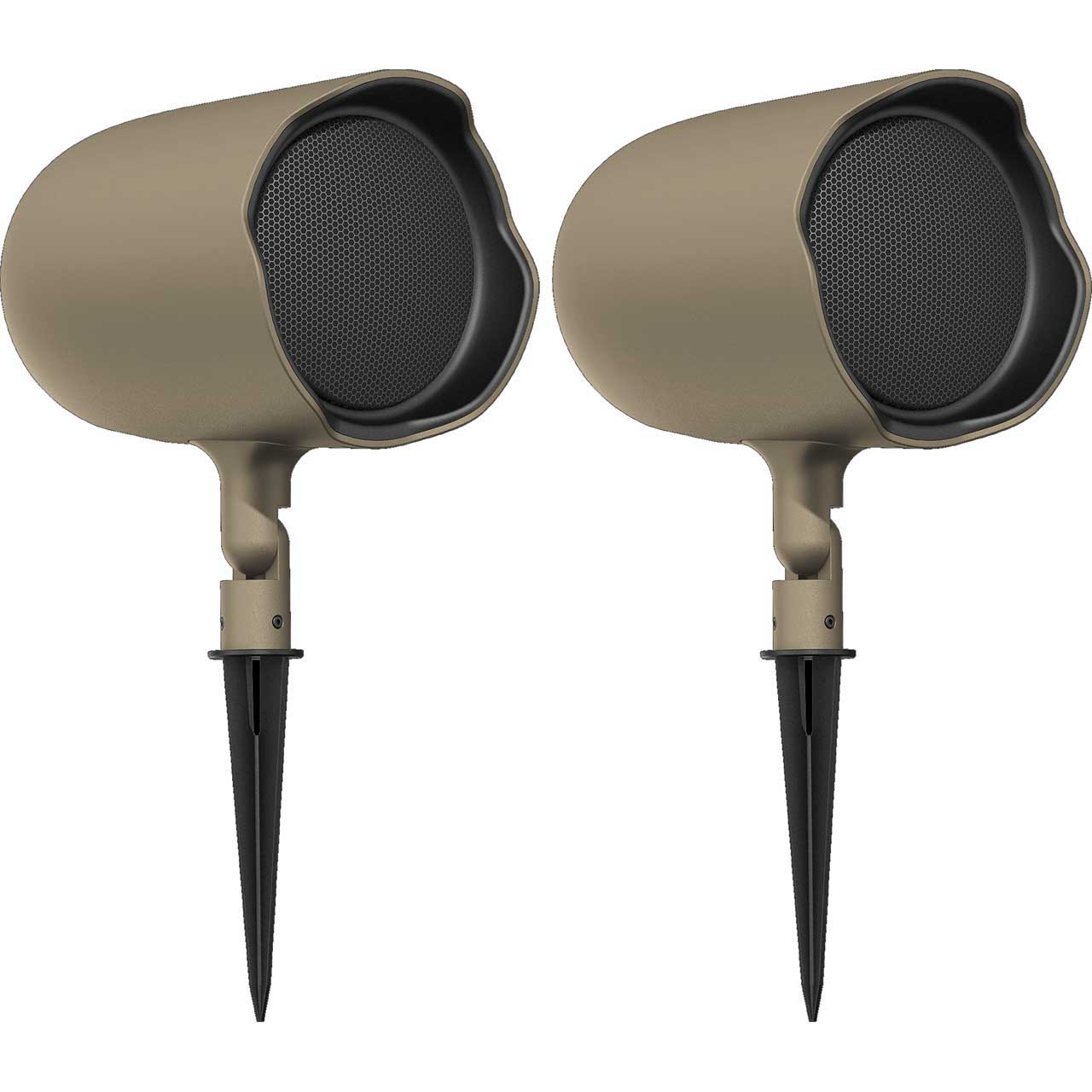

JBL GSF6-TN Ground-Stake Landscape Loudspeaker 200W Peak - Tan - Pair

ITEM #: JBL-GSF6-TN MFG #: GSF6-TN

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$616.00

Our Price:

$502.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    GSF6-TN - Overview

    Ground-Stake Landscape Loudspeaker
    The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

    Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

    The elegant, discreet GSF6-winner of international design awards for industrial design excellence-is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

    • Features:

      • Transducers: 165 mm (6.5") woofer with polypropylene cone and 25 mm (1") voice coil on aluminum voice coil former; 25 mm (1.0") titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
      • Frequency range: 65 Hz-20 kHz
      • Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
      • Multi-tap 30W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
      • IP66 rated against water and dust ingress
      • Bottom drip hole provides drainage for drivers
      • Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
      • Aimable via adjustable hinge
      • Includes ground stake and L-bracket for surface mounting
      • Includes tap selector located on bottom of speaker, away from water incursion
      • Available in hunter green or tan finish

    • Specifications:

      • Frequency Range (-10dB): 65 Hz - 20 kHz
      • Frequency Response (+/-3 dB): 90 Hz - 18 kHz
      • Power Rating: 100 W Continuous Program (2 hrs), 50 W (200 W Peak), Continuous Pink Noise (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (100 hrs)
      • Sensitivity: 87 dB (ave. 300 kHz - 12 kHz)
      • Maximum SPL: 110 dB peak (104 dB continuous, 2 hr) @ 1m
      • Coverage Pattern: 70° conical
      • Nominal Impedance: 8 Ω (at 8Ω tap)
      • Transformer Taps: 70V: 30 W, 15 W, 7.5 W, 100V: 30W, 15 W
      • Drivers: 165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former, 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former

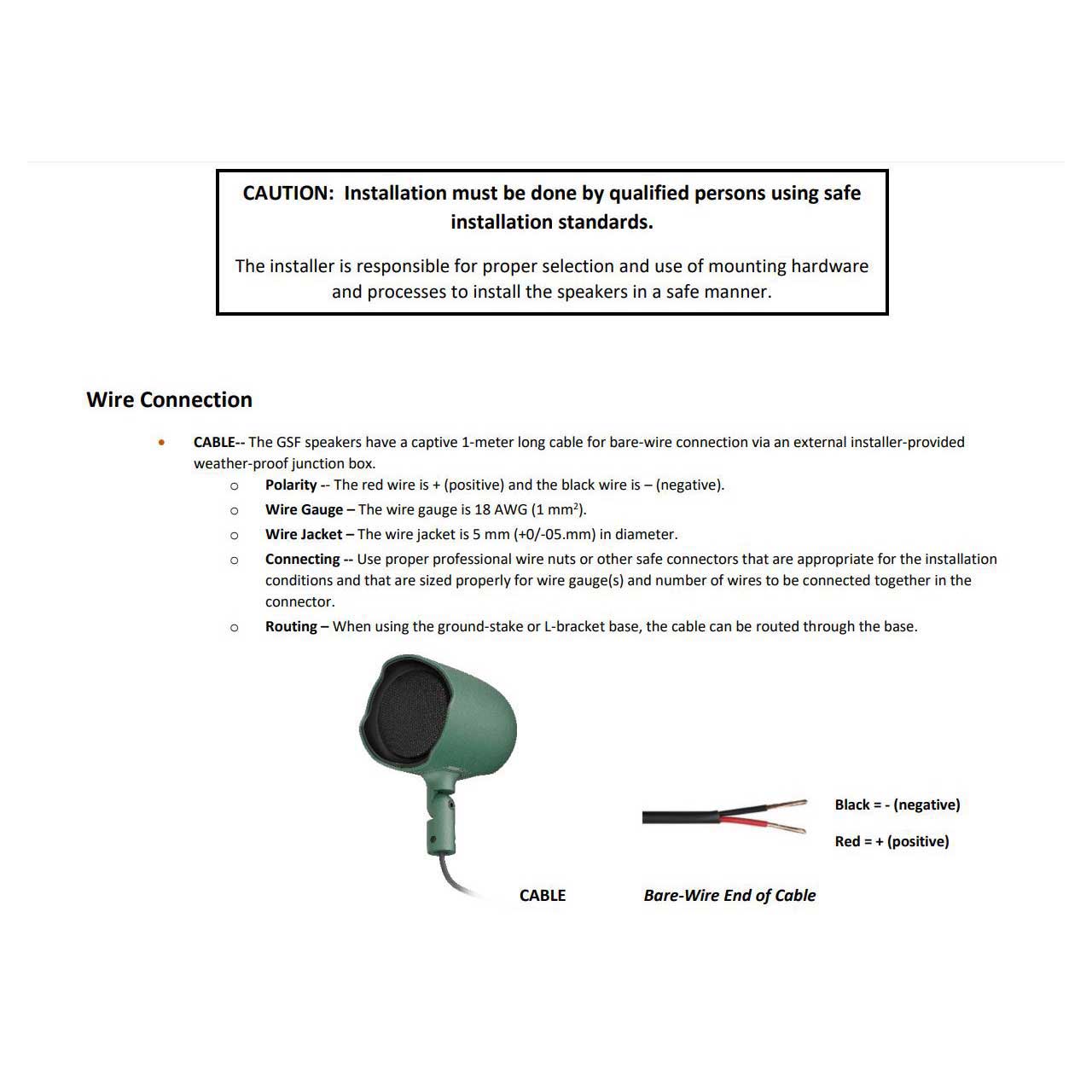

      • Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
      • Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
      • Color: Hunter Green RAL 6018, or Tan RAL7004
      • Dimensions: Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in)., Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.
      • Net Weight: 3.5 kg (7.7 lbs)

    • Item Includes:

      • 1x Ground Stake Bracket
      • 1x L-Bracket

    • GTIN:

      0691991039348
