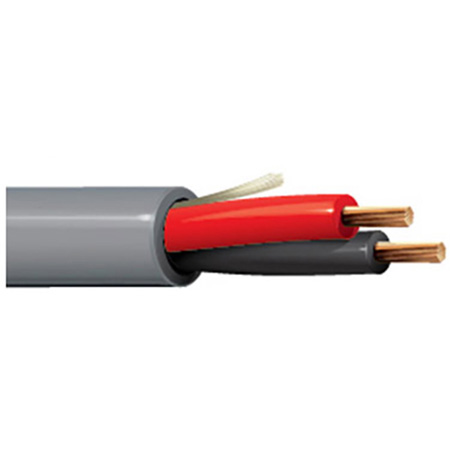

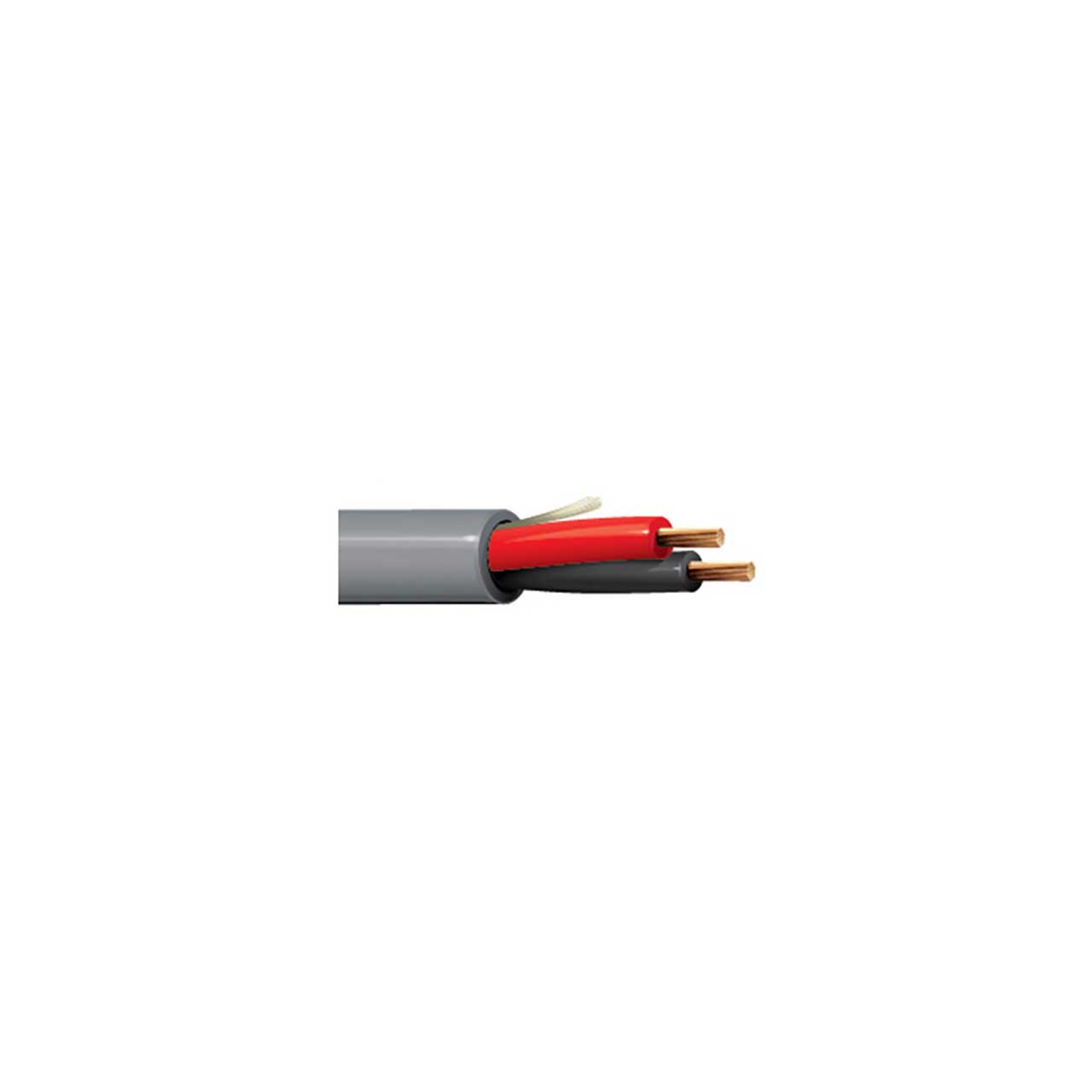

Belden 1311A 2-Conductor Flexible Indoor/Outdoor Direct Burial BC-OFHC Speaker Cable 12 AWG - Black - 500 Ft

1311A 010500 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Conductor Element: Conductor(s)
  • Conductor Number of Element: 2
  • Conductor Size: 12 AWG
  • Conductor Stranding: 168x34
  • Conductor Material: BC - Bare Copper (High Conductivity)
  • Insulation Element: Conductor(s)
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.018 in (0.46 mm)
  • Insulation Nom. Insulation Diameter: 0.14 in (3.6 mm)
  • Insulation Color Code: Black, Red
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.036 in (0.91 mm)
  • Outer Jacket Nom. Diameter: 0.352 in (8.94 mm)
  • Overall Cable Diameter (Nominal): 0.352 in (8.94 mm)
  • UL Voltage Rating: 300 V (CM, CL3)
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial
  • Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CL3, CM
  • CEC / C(UL) Compliance: CM


• Item Includes:

  • Belden 1311A Speaker Cable 12 AWG - Black - 500 Ft


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825111610
