The Juice Goose CQ 50 is a convenient addition to the CQ product series. It functions just like the other CQ models with plug-and-play simplicity, mounts easily to any stable surface and plugs into any fifteen amp AC receptacle. The two switched outlets turn on with a single sequence event. Like other CQ Series models, the CQ 50 has a sequence signal line Input and Output port to allow it to be daisy chained with any number of other CQ devices or triggered with a RC5 accessory or latching contact closure.
With the CQ 50, AV installations can be designed without racked equipment and controlled with a simple wall mounted key switch. The increased popularity of integrating a range of AV equipment into a power control "network" has created a need for distributed power control. Powered speakers, projectors and other non racked equipment can be powered on and off with the CQ 50 from the FOH location.

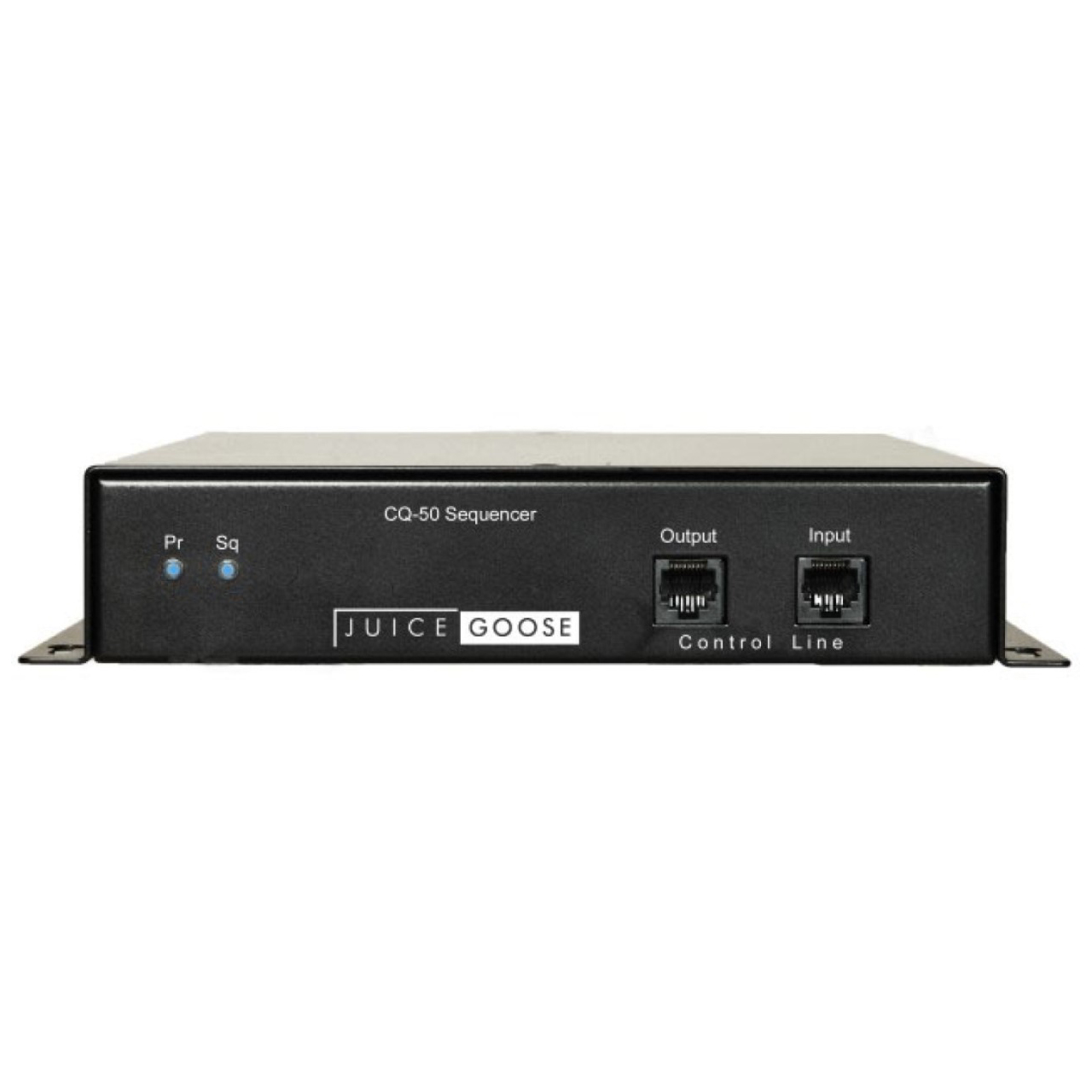

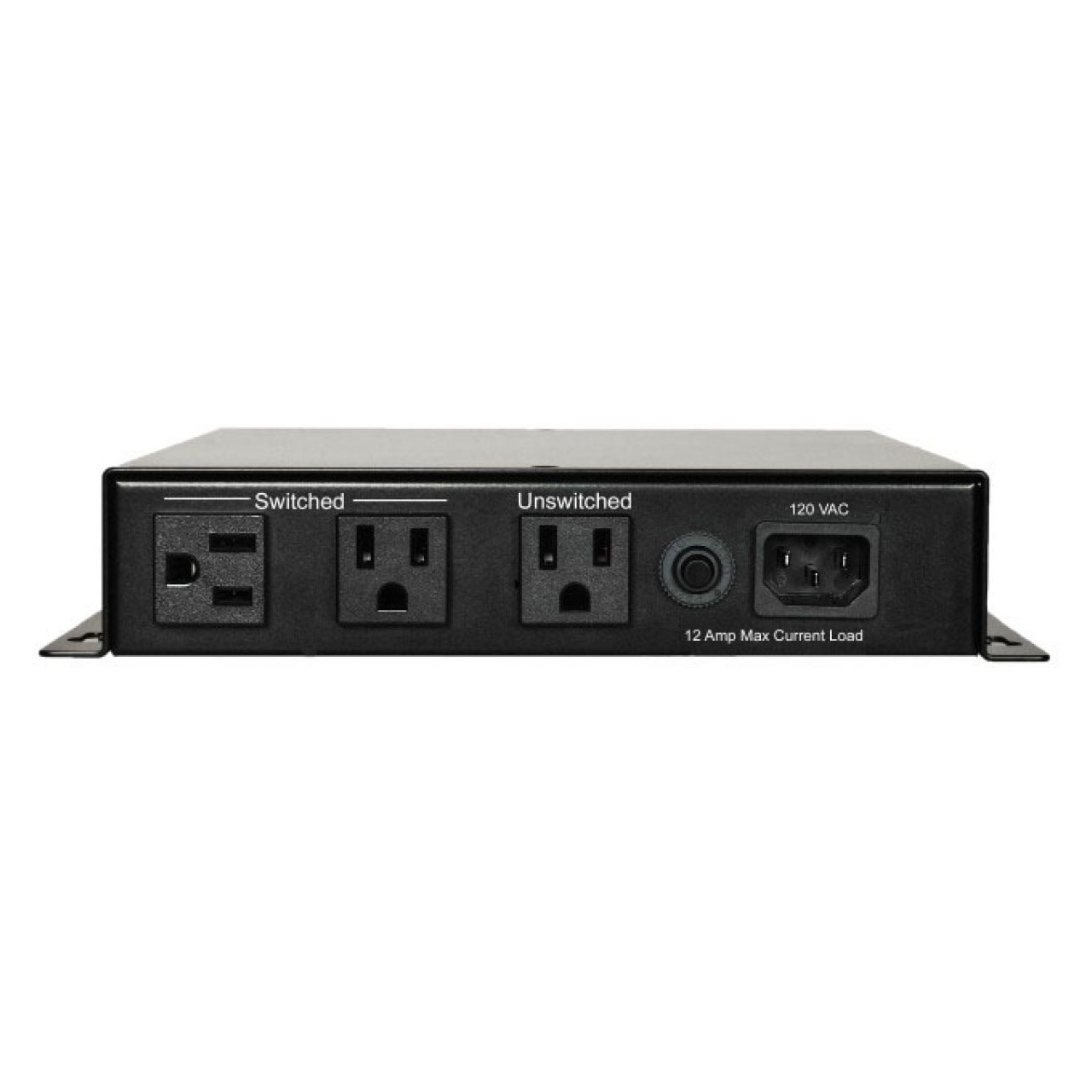

The CQ 50 consists of a small metal enclosure, three NEMA5-15R receptacles (two switched in a single sequence event and one unswitched), two RJ45 control line ports, circuit breaker, detachable power cord and circuitry for complete power control coordination with other CQ Series devices or a remote trigger.
Once the CQ 50 is connected to utility AC and the eight wire, RJ-45 style CQ control cable is inserted in the Input port the device is ready for remote power control. That's it!
