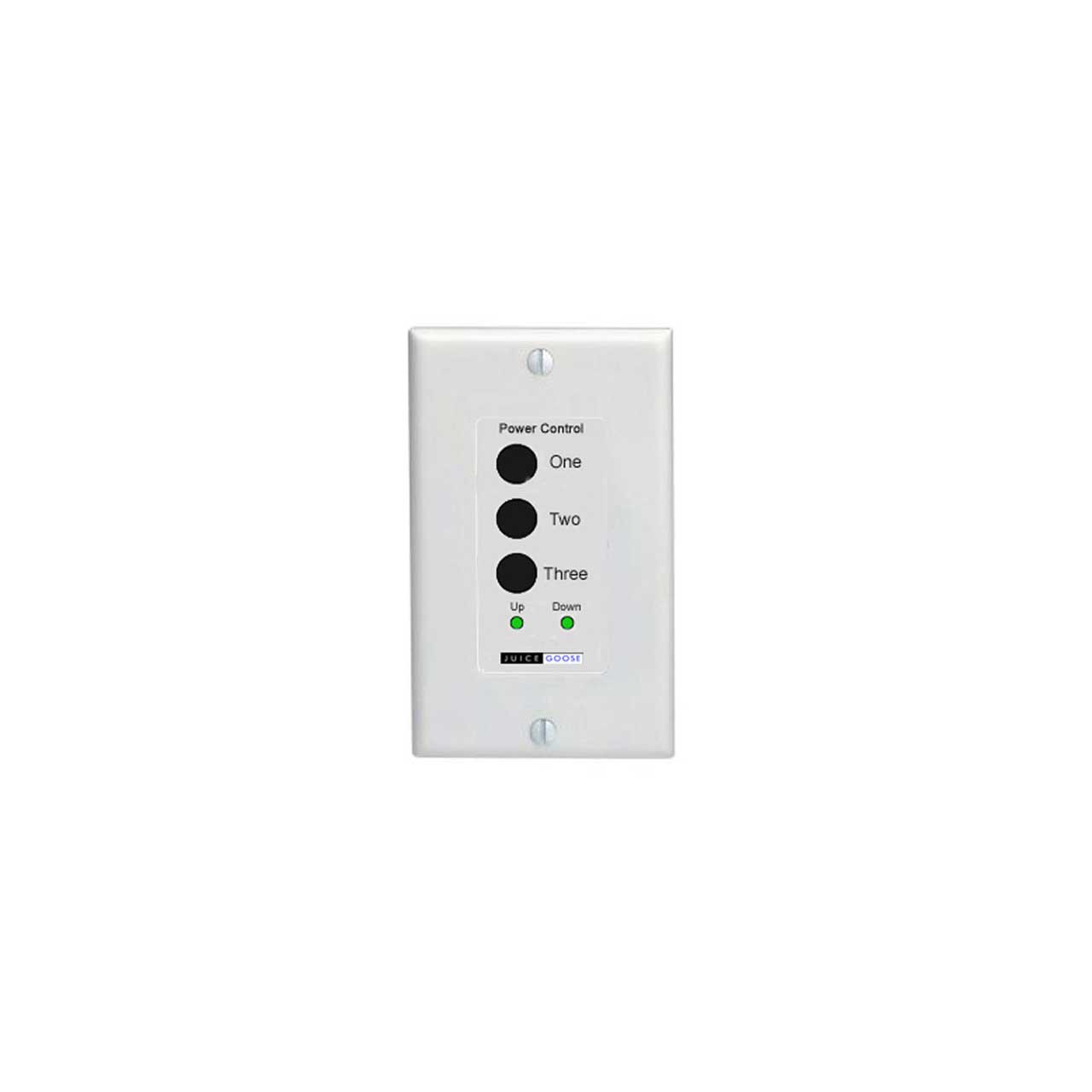

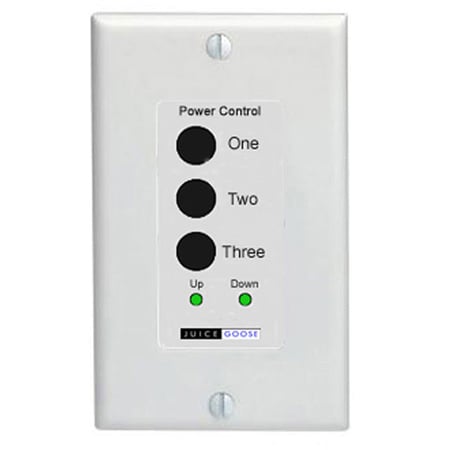

The Juice Goose RC5-KP is a remote control and operations monitor for the Juice Goose CQ Series line of power sequencing products. The RC5-KP requires no external power supply. It fits inside a single gang switch box, intended to be mounted in a wall or similar location. The front panel fits a "Decora" style faceplate.
The RC5-KPS is intended for use when access to power control should be limited to authorized individuals. The system functions when the operator enters a four digit code using the three push buttons on the RC5-KPS. Entering that code will sequence the system up if it is down or sequence it down if it is up. The code can be changed from the factory preset. LEDs on the front of either RC5-KP indicate sequence up or down completion.
The operating code "toggles" between a sequence up and sequence down command. The same code is entered to cause the CQ power sequencing modules to sequence up or down. If they are powered down, or in the process of powering down, entering the code will cause them to change to the power-up sequence. Entering the code again will cause them to sequence down.

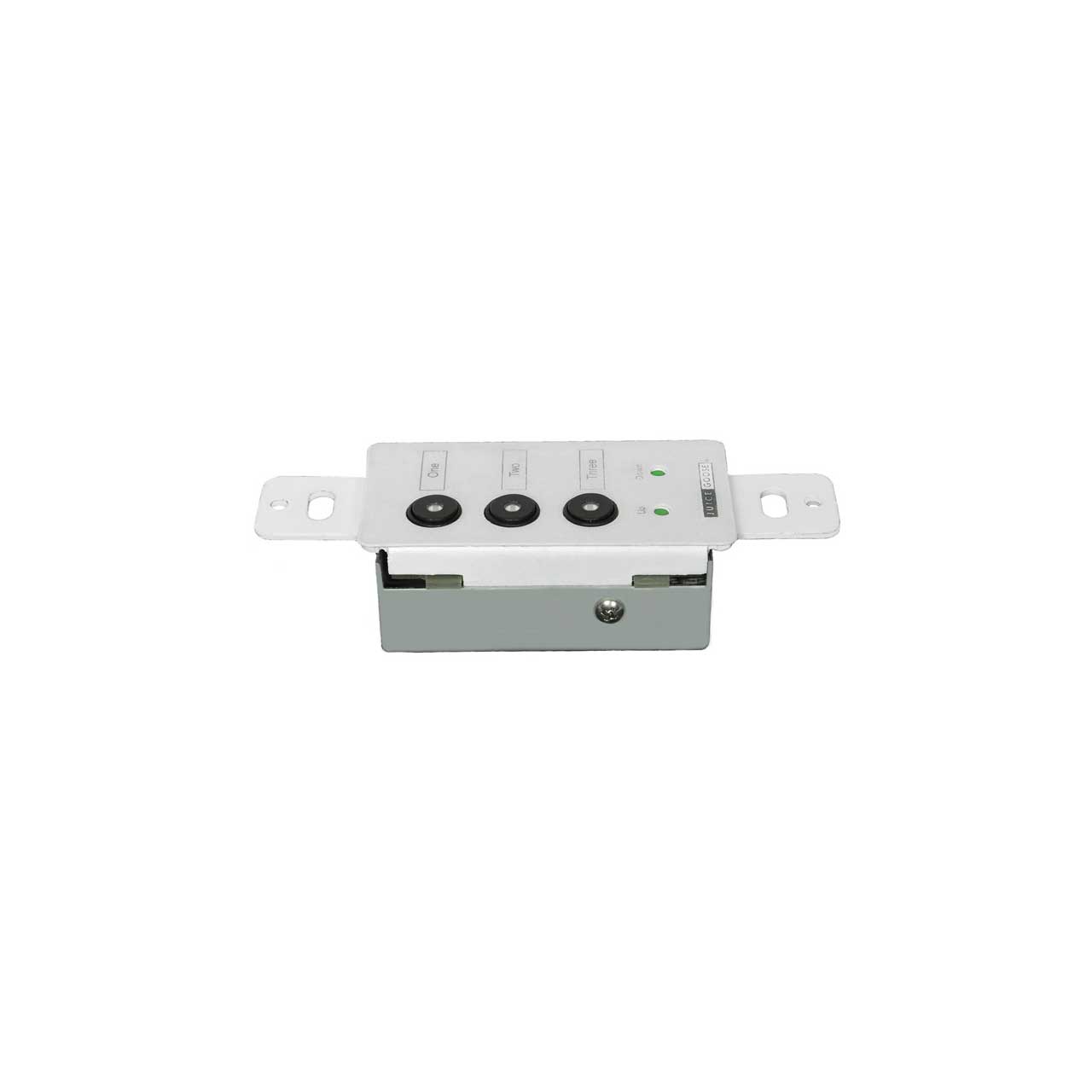

The RC5-KP power sequence controller is a microprocessor-based accessory product that provides key-less remote control when connected to one CQ Series power sequencing module. Functions of the RC5-KP are proprietary and not of use with other applications. This product uses a three button key pad for either analog (RC5-KPA) or coded, secure (RC5-KPS) operation.
Indicator LEDs show function and status of the power sequence Up or Down process. The appropriate LED will blink while a sequence Up or Down operation is in process and stay lighted when that process is completed.

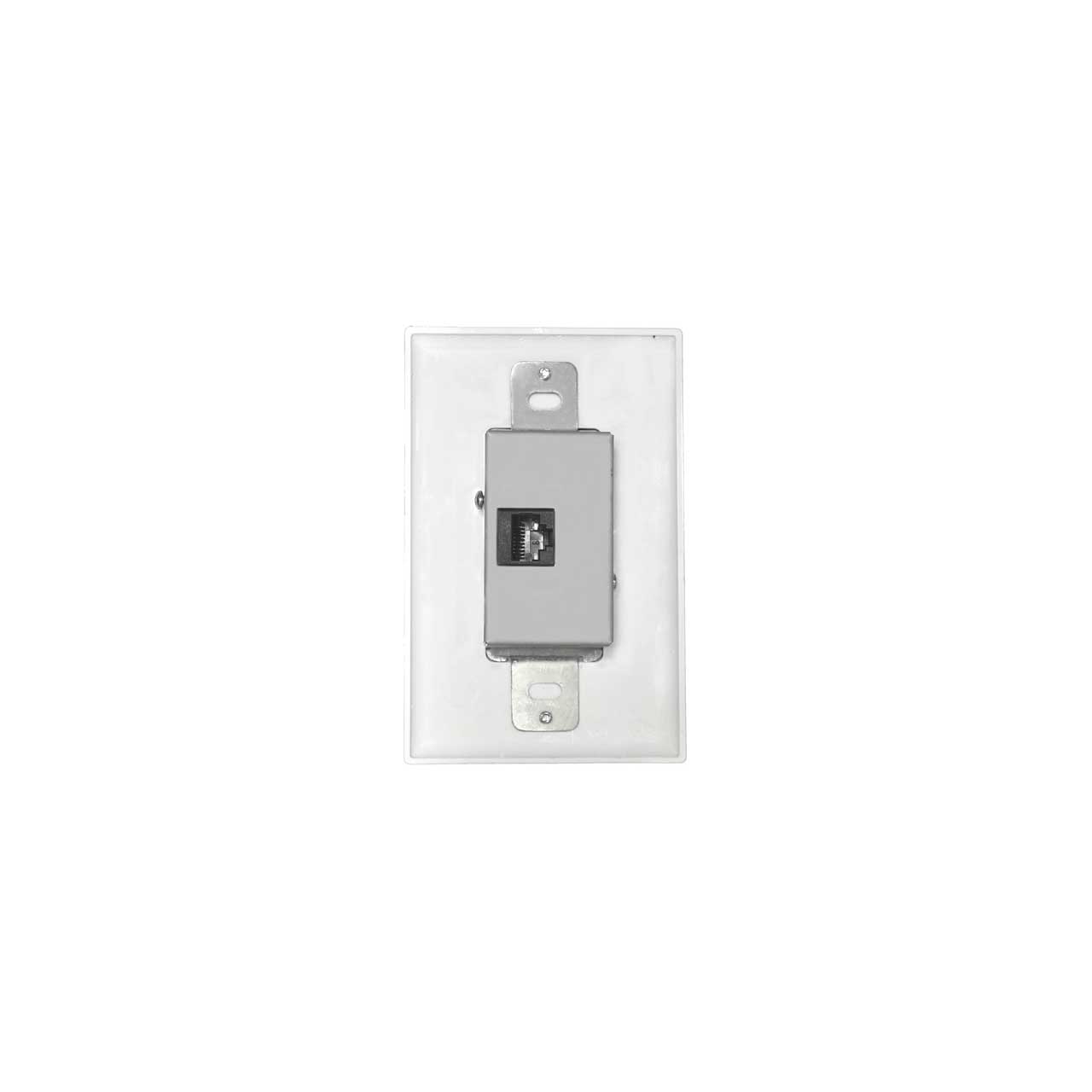

Note: The RC5-KP is not intended to function with any other power sequencing product or any other product that uses a 8 wire RJ type connection, including data communications or telephony equipment.
Made in America
