Power Monitoring, Conditioning and Distribution - 20 Amp

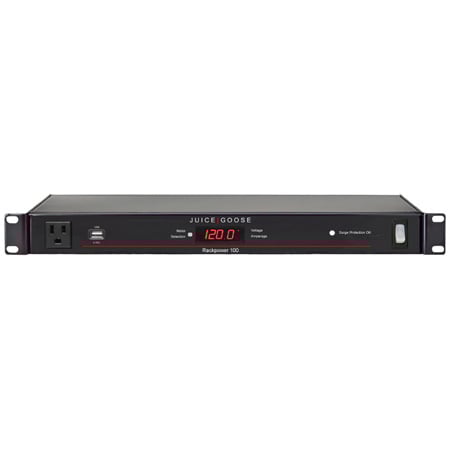

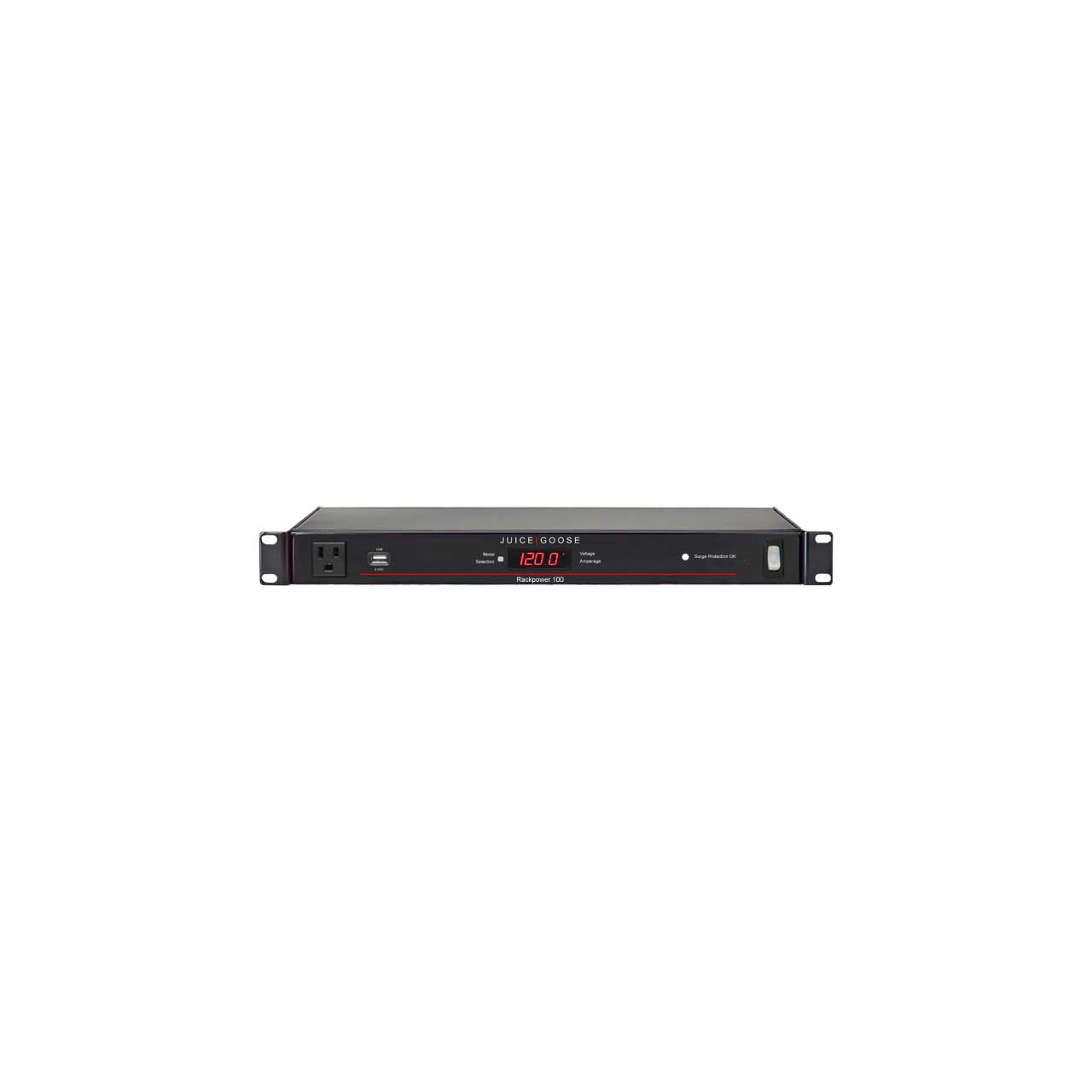

The Juice Goose RP100-20A Rackpower 100 is a premium grade rack mounted power distribution unit with quality and features for the musician or audio professional. Features include AC power meter, USB power ports and a replaceable surge protection module. Rackpower 100 updates, refines and reintroduces one of the original, signature Juice Goose products.
Employing today's styling and technology, the RP100 sports several valuable features:

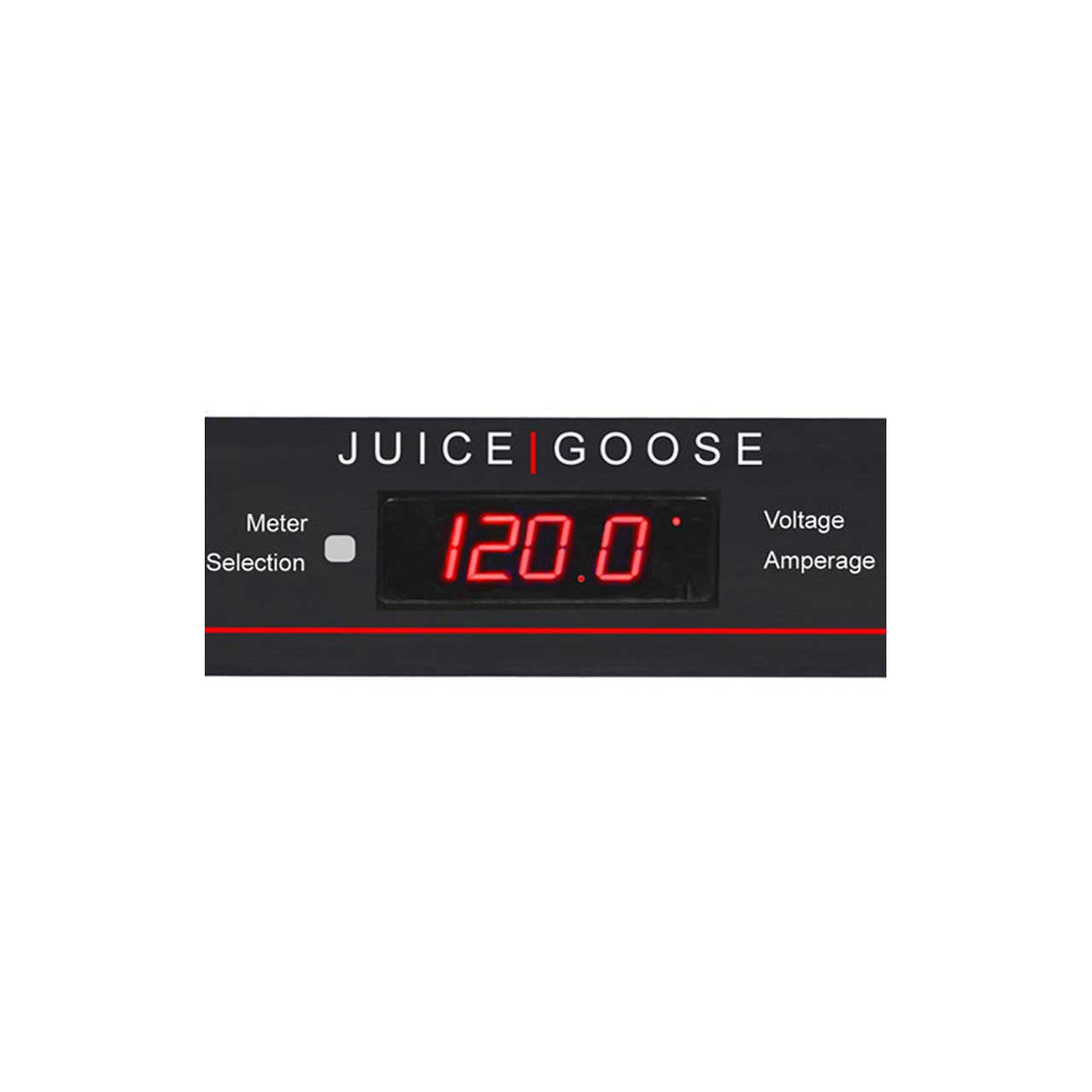

Power Meter - The two function meter reports in easy to read LED numerals the status of your power supply and consumption. Toggle between volts and amps with a convenient push button on the front of the chassis. Voltage is measured to the nearest 0.10 VAC. Amperage is measured to the nearest 0.10 amperes in a range from 0.20A to 25.0A.
USB Ports - One USB port is provided on the front and one on the back of the chassis. These five volt DC connections are usable for utility lighting or powering accessories. Connect an inexpensive, flexible USB light fixture for lighting in the front or back of the rack. Both USB ports can also be used to charge accessories including an iPhone or iPad.AC Power Receptacles - One AC outlet is located on the front. Nine are on the back. The rear outlets are rotated to accommodate wall warts and include extra generous spacing between four of them. Model RP 100-20A includes a single NEMA 5-20R, rated for a twenty amp load.Power Input - RP 100-15A features a seven foot, fourteen gauge power cord with a NEMA 5-15P plug. Because of the higher twenty amp rating, the RP 100-20A has a twelve gauge power cord with a NEMA 5-20P plug which requires a twenty amp, 5-20R, receptacle for connection to utility power.Replaceable Surge Protection - Three layer, fast acting surge protection includes an indicator LED on the front panel to show that protection is functioning. If the LED goes out, indicating loss of protection due to a surge event beyond the limits of the protection components, the surge protection module can be easily removed and replaced.Tour Class (TM) Chassis - This professional grade enclosure is formed from a single piece of cold rolled steel. Reinforced mounting brackets and a flush mount top complete a package that's been used to rack mount other products weighing over 200 pounds. Two Amperage Options - For the fifteen amp model specify RP 100-15A. For the twenty amp model specify RP 100-20A.PLEASE NOTE: The RP100 ("RACKPOWER") series are designed to operate with 120VAC, 60 Hz. Operation with 220 or 240 volts will cause damage and possibly personal injury.
