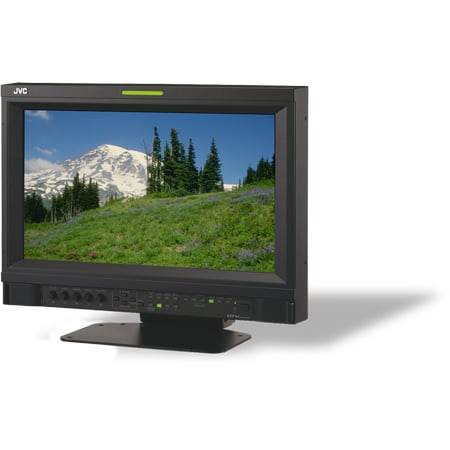

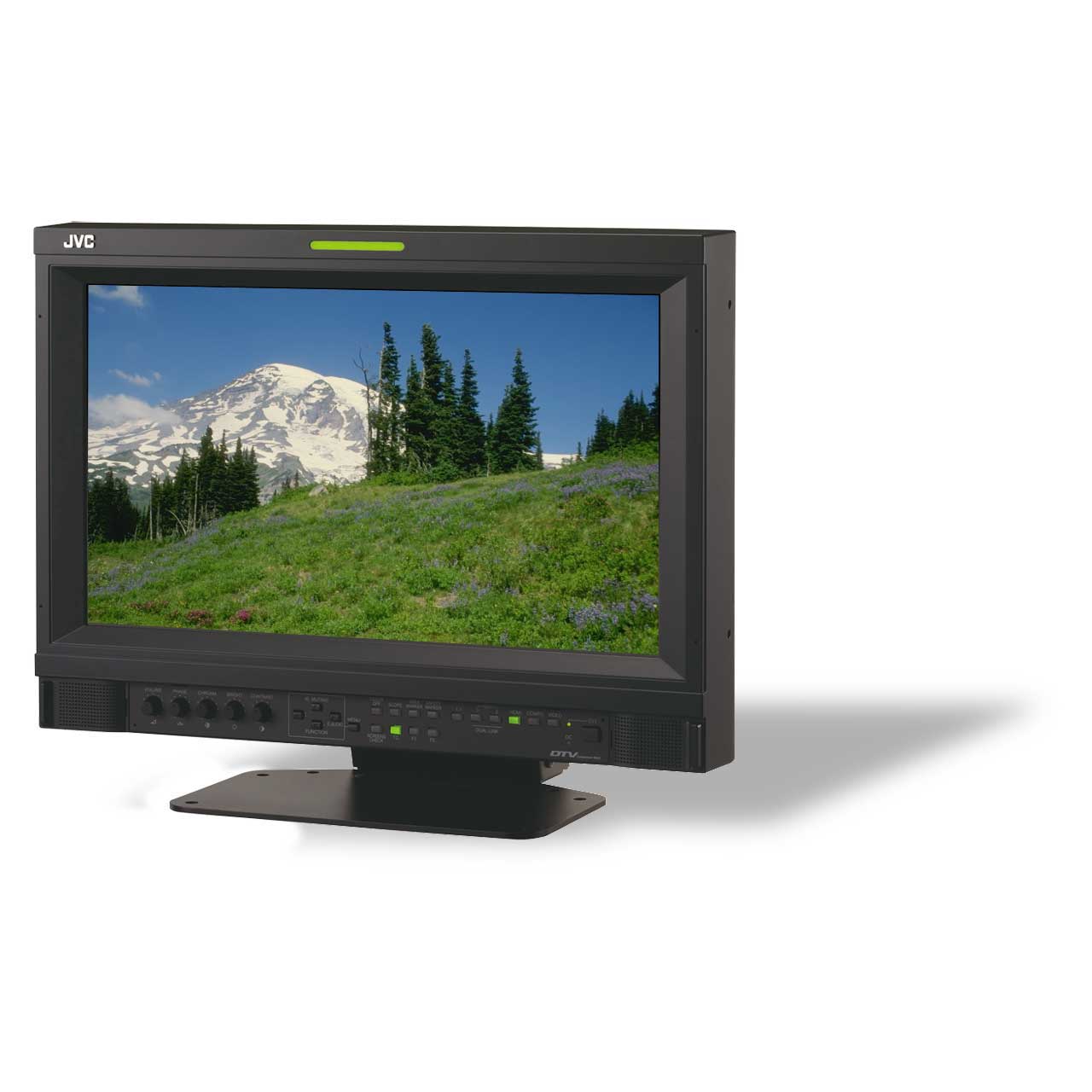

JVC DT-V17G2Z 16.5-Inch Multi-Format Broadcast Field/Studio LCD Production Monitor

DT-V17G2Z - Overview

• Features:

  • 17" class (16.5-inch viewable) IPS panel with 16.7 million color reproduction
  • High 1500:1 Contrast Ratio
  • Full HD resolution: 1920x1080 pixels
  • Fully capable of displaying 2048x1080/24p (DCI 2K) signal
  • Built-in Histogram, Waveform, Vector Scope, Zebra
  • Built-in Audio Level Meter up to 16ch
  • Lissajous audio metering
  • 3 Gamma Preset Modes
  • Wide array of markers and indicators
  • Two 3G-SDI & Dual Link inputs
  • IMD (in monitor display)
  • Optimized I-P conversion
  • Supports the EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards
  • Color Temperature settings (9,300K, 6,500K, 5,600K or User mode)
  • IP modes: Normal, Field, and Cinema (24p)
  • Pixel-by-pixel (1:1) display
  • Time code display (SDI)
  • Built-in stereo speaker
  • Tiltable stand with 2-way installation capability
  • Carrying handle


• Specifications:

  • Panel
  • Size: 16.5
  • Resolution: 1920x1080 Pixels
  • Aspect Ratio: 16:9
  • Panel Type LCD: Yes
  • Panel Modulation IPS: Yes
  • Back-Light LED: Yes
  • Brightness in cd/m²: 300
  • Bit Depth: 8
  • Image Processing Bit Depth: 10
  • Response Times in ms: 8ms
  • Viewing Angle H/V: 178°/178°
  • Contrast Ratio: 1500:1

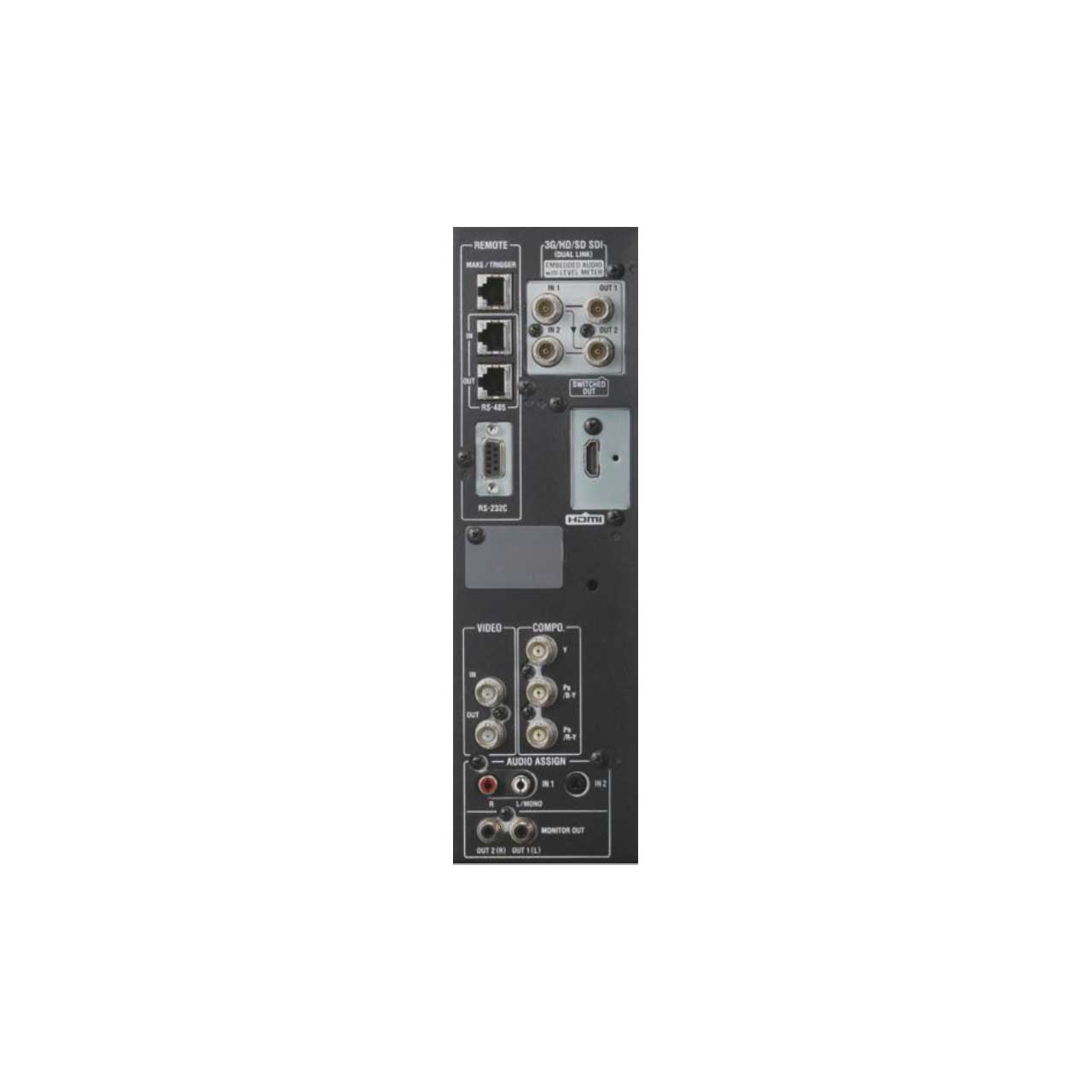

    Video I/O
  • Input HD-SDI: Yes, 3G
  • HD-SDI Inputs: 2
  • HD-SDI Dual Link: Yes
  • Input HDMI: Yes
  • HDMI Inputs: 1
  • HDMI HDCP: Yes
  • Input YUV: Yes, 3x BNC
  • Input Composite: Yes
  • Composite Inputs: 2
  • Loop Out HD-SDI: Yes, 2 with bridge function
  • Loop Out Composite: Yes

    Audio I/O
  • Audio Line IN:
    - 2x RCA
    - 1x 3.5mm mini jack
  • Audio Embedded Channel Out: Yes, selectable
  • Speaker Integrated: Yes, 2
  • Watts: 2x1W

    Connections Controls I/O
  • GPI IN: Yes, RJ45
  • RS485/422 IN: Yes, RJ45
  • RS485/422 Loop Out: Yes
  • RS232 IN: Yes, 9-Pin Sub D
  • Service Port: Yes, internal

    Supported Signal Formats
  • Note for SMPTE/ITU Definitions: SMPTE or ITU definitions have servile specification in-between, like SMPTE 274 for Interlace Frames rates for example, this is not reflecting here! Please ask for details Signal Spec's and Frame-rate supports
  • HDSDI/SD Signal Formats: SMPTE 424M/425M-A/B/BTA S-004C/292M/ITU-R BT656/DUAL-LINK or 3G SMPTE-372M-2002
  • SDI SIgnal Formats: SMPTE-259M
  • Signal Format: ITU BT601-7/SMPTE 299M/SMPTE 272M
  • HDMI Format 1080p+: Up to 1080p
  • Composite: Yes, PAL/NTSC

    Dedicate Functions
  • SDI Timecode: Yes, LTC, VITC, and D-VITC
  • R/G/B/Mono: Yes
  • H/V Delay: Yes, only with special upgrade
  • Field/Frame Mode: Yes, Field 1/Field 2/Reverse only with special upgrade
  • Scan Modes: Progressive/Field Cinema 3:2 pull down/1:1
  • Safety Area Markers: Yes, 80% - 100%
  • Center Marker: Yes
  • Scale Markers: Yes, 4:3/16:9/14:9/13:9/2.35:1/1.85:1/1.75:11.66:1
  • Area Marker Visibility: OFF, Line, Half, Half + Line
  • Tally via GPI: Yes
  • Tally Multi-Color: Yes
  • Low Latency Mode: Yes
  • Screen Saver: Yes
  • Environment Power Save Function: Yes
  • TSL UMD/IMD Support: Yes, Serial RS485
  • Function Keys: 2
  • Direct Input Channel Buttons: Yes
  • Auto Aspect: Yes, Analog and Digital sources
  • Operation Key-Lock: Yes
  • Operation LED Dimmer (Buttons): Yes
  • Direct Brightness/Contrast/Color Control: Yes

    Measurement and Indication Tools
  • Waveform: Yes
  • Waveform Enlargement: Yes
  • Waveform Subs: R/G/B, Y/PB/PR, and Y/CB/CR. peak brightness with over-level function
  • Vector-Scope: Yes
  • Vector-Scope Enlargement: Yes
  • Vector-Scope Subs: Video, Component, SDI (SD/HD) input signals
  • Histogram: Yes
  • Audio Level Meter: Yes
  • Audio Level Meter Channels: 16
  • Audio Level Meter Subs: Over Level Indication plus Lissajous Meter

    Calibration and Color Settings
  • Preset Color Temperature 9300K: Yes
  • Preset Color Temperature 6500K: Yes
  • Preset Color Temperature 5600K: Yes
  • Preset Color Temperature USER: Yes
  • Manual Calibration of Color Temperature (Gain or/and Cut-Off): Yes
  • External Auto-Calibration (Software Tool): Yes
  • External Colormetrie Sensor Needed: Yes, Minolta CA-210, X-Rite i1 Display 2, i1 Display 3/Pro (OEM version), Jeti Specbos (with FTDI driver v.2.8.24), Datacolor Spyder4
  • Calibration Hints: Free Calibration Software in our Support area
  • Gamma Levels: 2.2/2.35/2.45/2.6
  • Adjustable Back-Light: Yes
  • Lip-Sync Processing Time: Less 1 Frame

    MTBF Life-Times
  • MTBF Notes: MTBF Data are based on theoretical Mathematics-calculations, the values therefore are just a guess of reference life time estimation.
  • MTBF Panel (Back-light): 30000 hours
  • MTBF Electrical: 0 hours

    Power and Enviroment
  • Power AC: Yes
  • Power DC: Yes, 12V - 17V

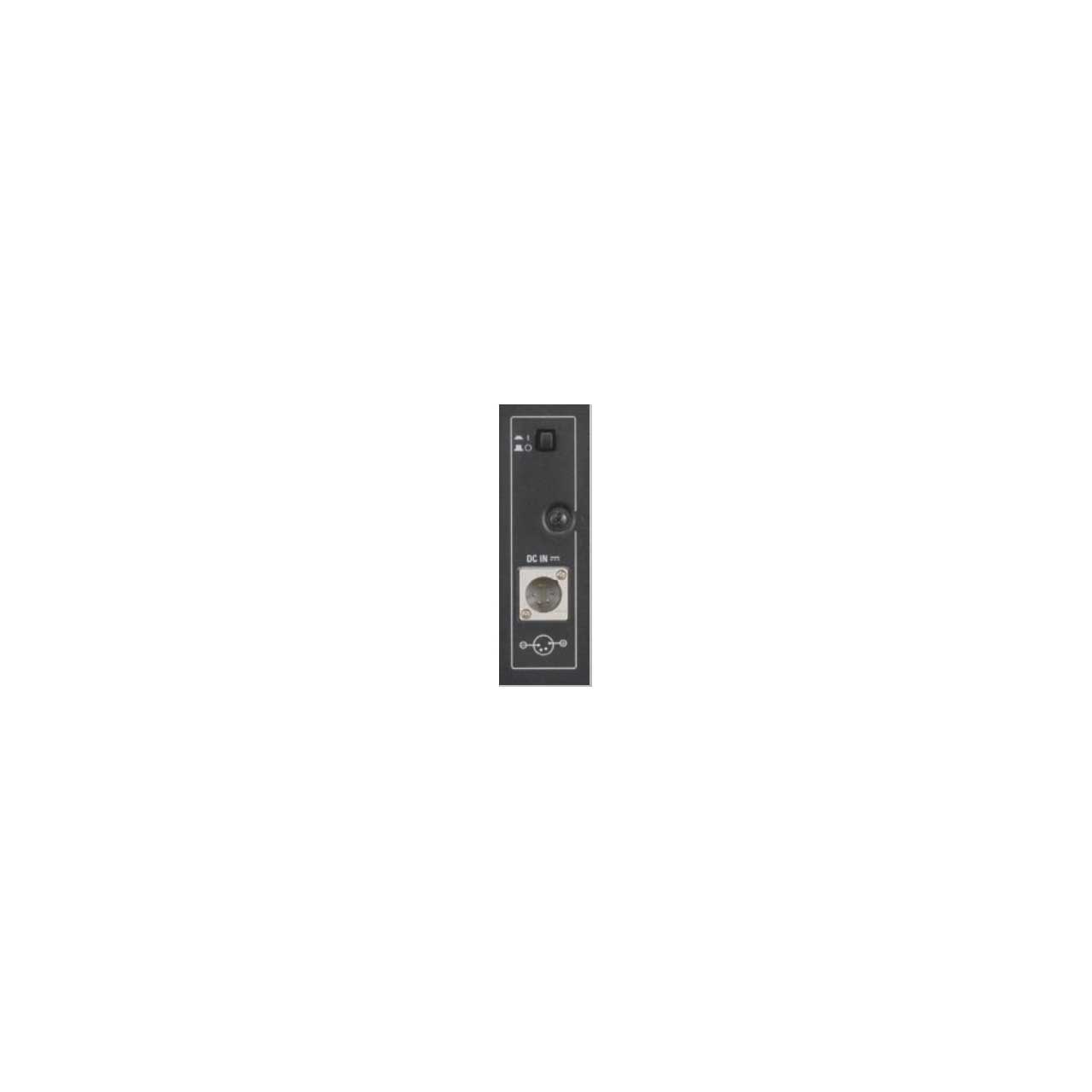

  • DC Connector Type: 4-pin XLR
  • Power Consumption: 0.3 Ampere/AC 5A DC
  • Operation Temperature: 41°F - 95°F (5°C - 35°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operation Humidity: 20% - 80% (Non-Condensing)
  • Storage Humidity : 10% - 90% (Non-Condensing)

    Physical Information
  • VESA Mount: Yes
  • VESA Format: 100x100
  • VESA Screw Type: M4 x 4mm


• Item Includes:

  • 1x JVC DT-V17G2Z 16.5" Broadcast Field/Studio Monitor
