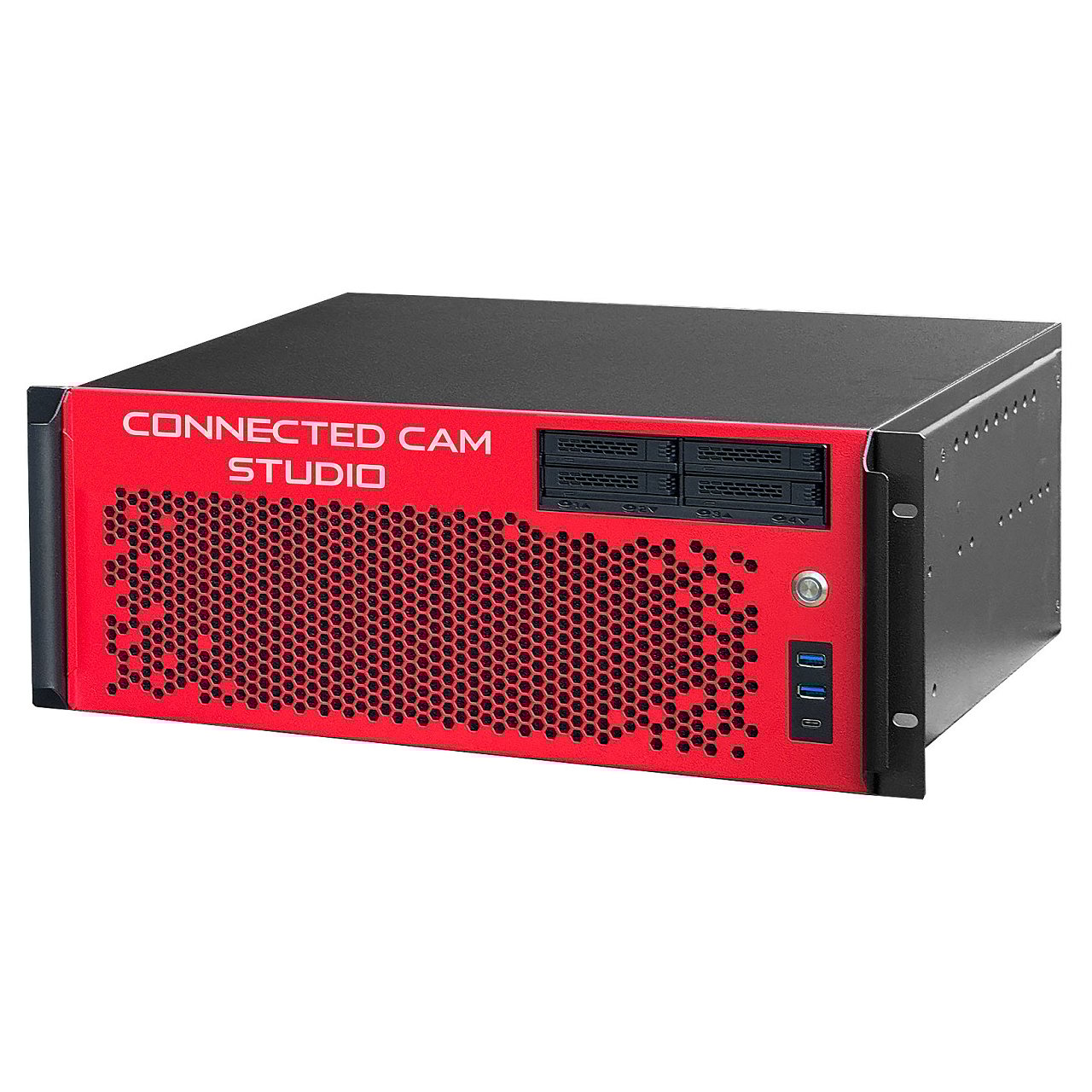

JVC KM-IP12S8PRO CONNECTED CAM 12 NDI/8SDI Input IP Studio Switcher with vMix Pro - 8 Channels of Instant Replay

KM-IP12S8PRO - Overview

• Features:

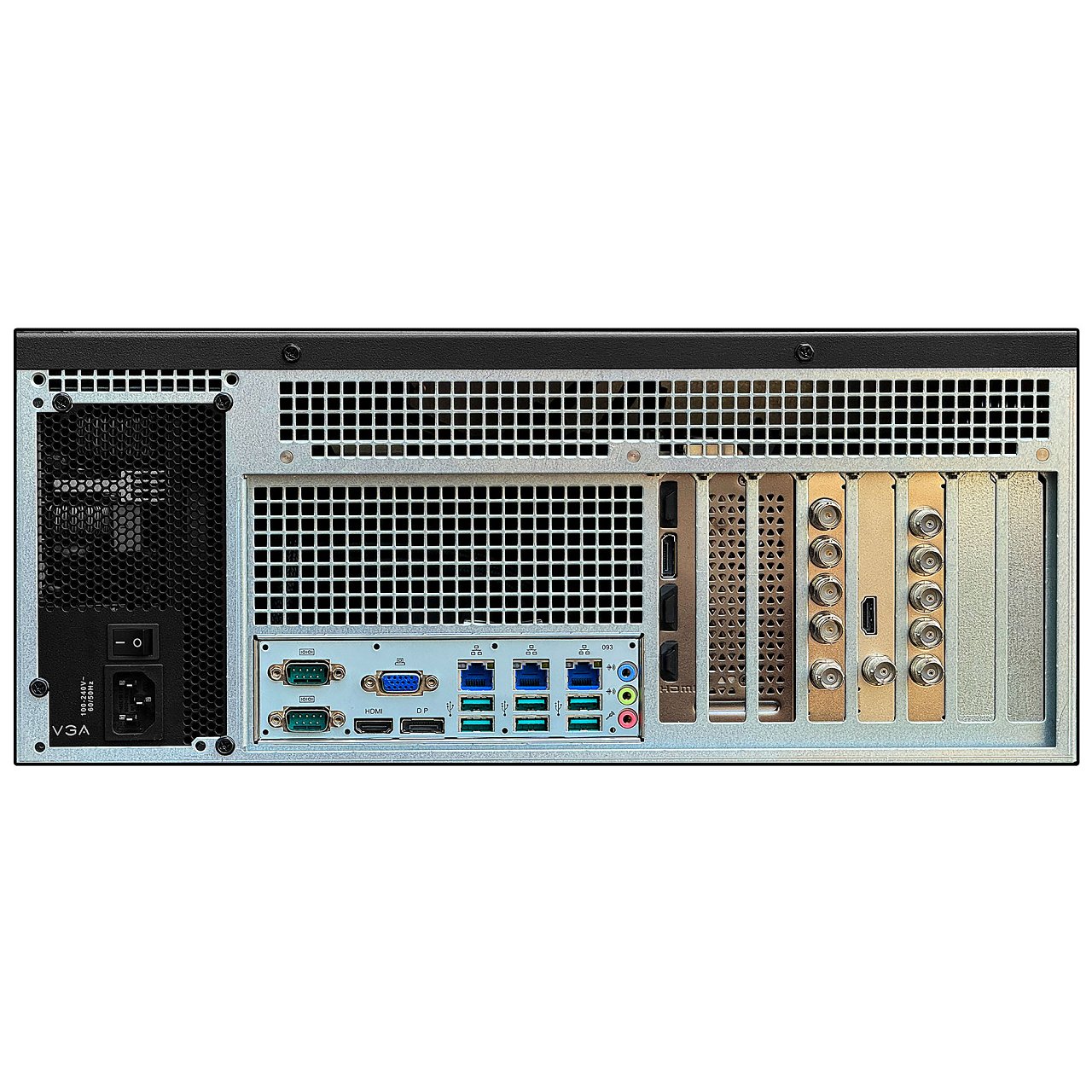

  • Supports multiple inputs/outputs including 12G-SDI, 3G-SDI, HDMI, and DisplayPort
  • Front dock for 4x SSD, USB 3.0 Gen.2 ports for Digital Audio and control surfaces
  • Quiet 4U case with liquid cooling
  • 8x SDI and up to 12 NDI/SRT inputs video switcher powered by vMix
  • Three 2.5 GbE Ethernet ports for NDI, SRT, Dante, and RTMPS/Internet connectivity
  • Concurrent output to three CDNs, Multiview, ISO recording, 8-channel Instant Replay


• Specifications:

  • 12G SDI In/Out: 4
  • HDSDI IN: 4
  • Optional Inputs: NDI, SRT, RTSP, RTMP/VLC, UDP, H.264, H.265
  • IP Video Stream Input: 12
  • NDI Input: 12
  • HD-SDI Output: Yes
  • NDI Output: Yes
  • HDMI Output (PGM): Yes
  • SDI/HDMI Embedded Audio: Yes
  • USB Audio Card Support: Yes
  • Graphics DSK: 4x DSKs
  • ISO: ISO Recording of all inputs
  • Live Streaming: Yes
  • 2160P (4K): 25p/29.97p/50p/59.94p
  • 1080P: 1080 25p/29.97p/50i/50p/59.94i/59.94p
  • 720P: 720 25/29.97/50/59.94p
  • Smart PTZ: Yes
  • Powered by Vmix: Yes
  • vMix Replay: Yes, 8 Channels
  • Measurements (WxHxD): 17" x 17" x 7"
  • 19" Rackmount: Yes
  • Rackmount Height in U: 4 U


• Warranty:

  • 2 Year Limited Warranty
