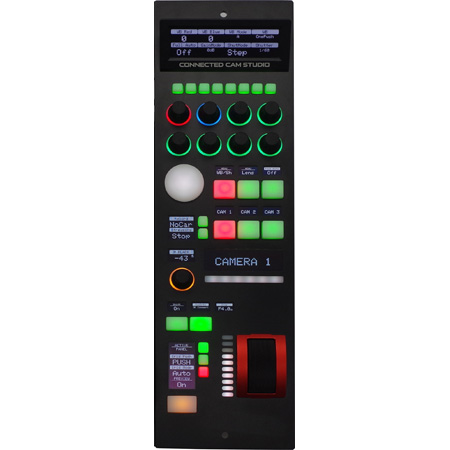

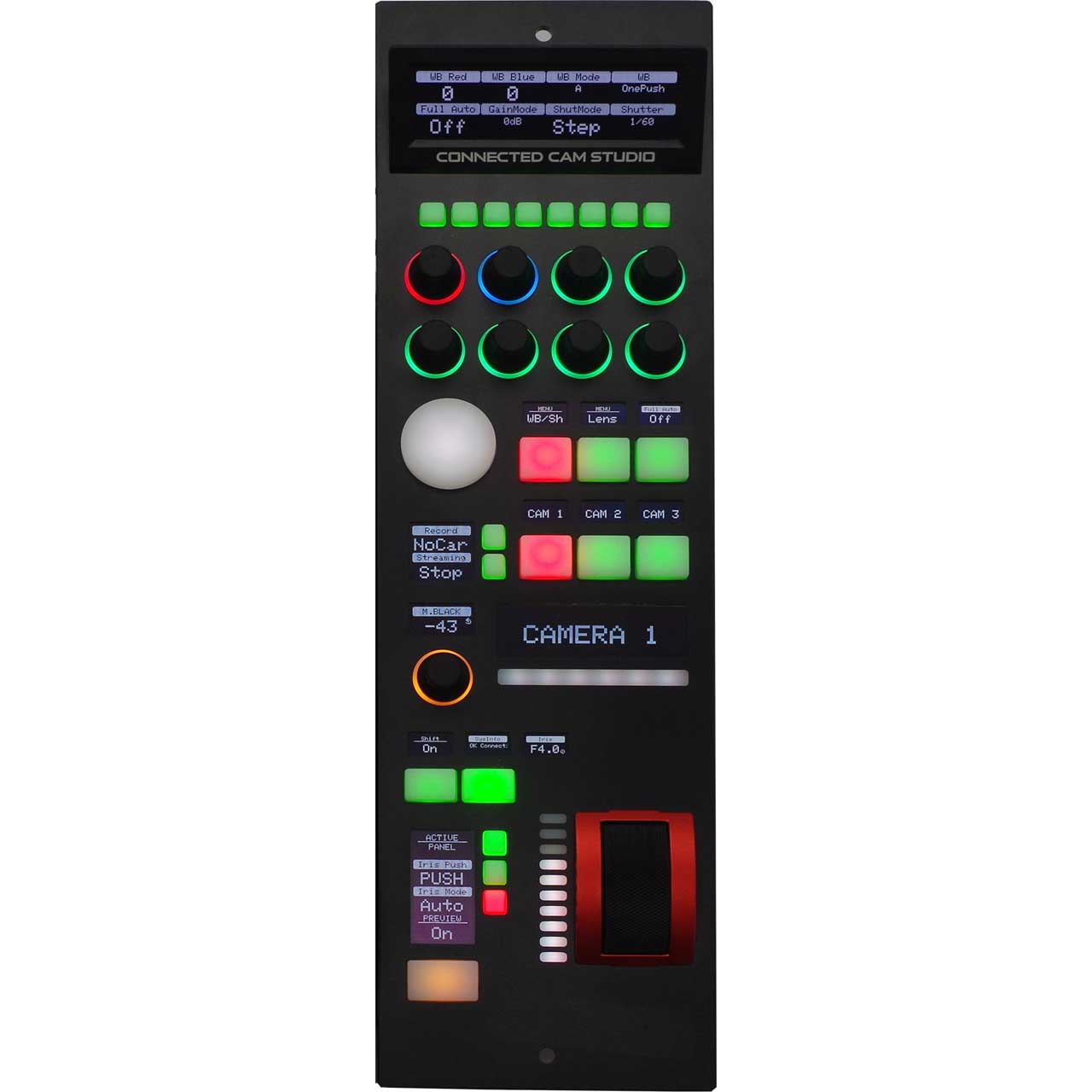

JVC RM-LP250M Multi-Camera IP Based Remote Control Panel for up to 3 CONNECTED CAMS

RM-LP250M - Overview

• Features:

  • IP Remote Control for up to three JVC CONNECTED CAM cameras*
  • Iris control
  • Zoom + focus control (if lens supports it)
  • Master Black control
  • Gain Settings
  • AE Levels
  • Shutter mode and speed
  • WB Mode, WB One Push and WB Paint
  • Detail
  • Tally
  • Character Output Mix
  • Menu and Menu Navigation

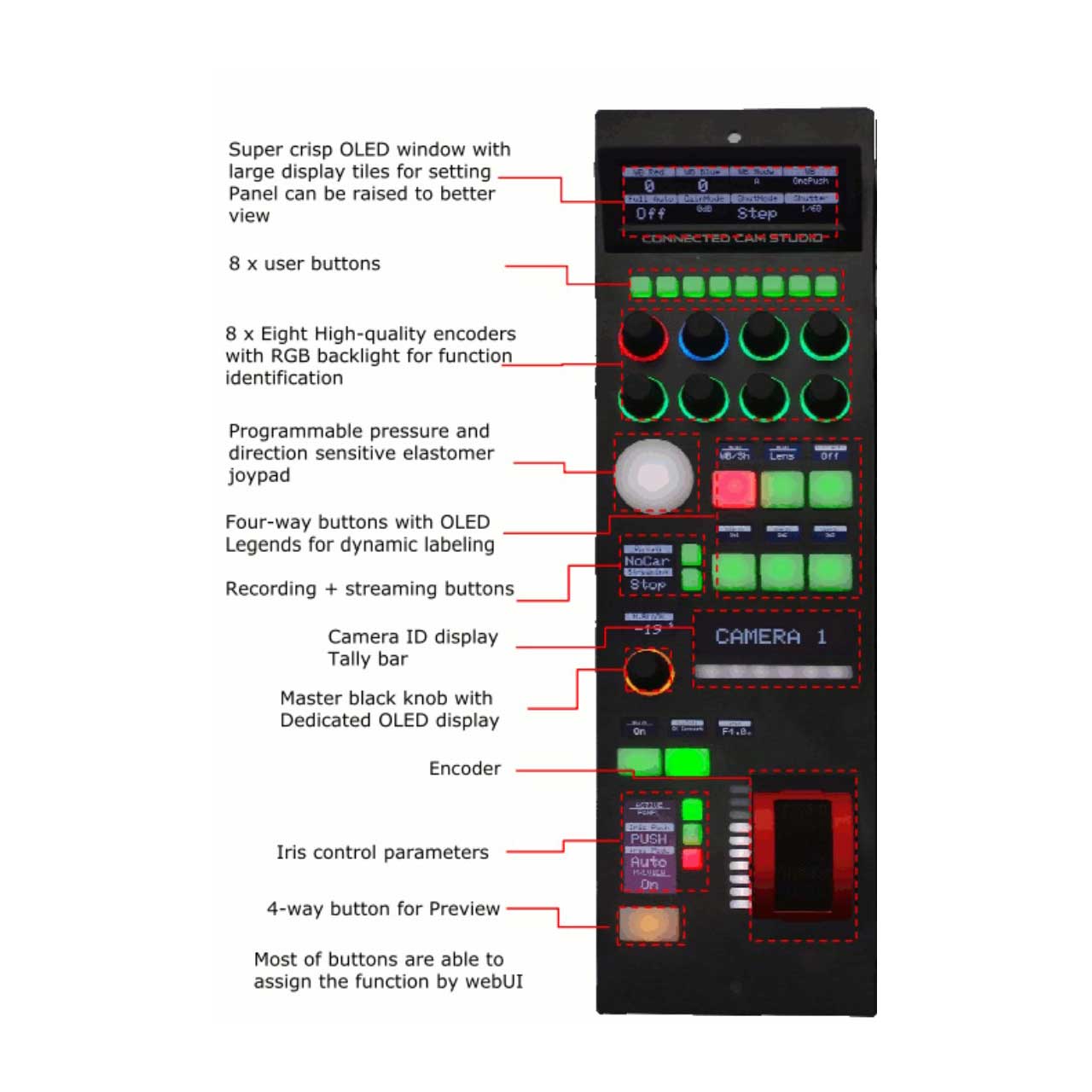

  • Super crisp window with large display tiles for settings
  • High-quality encoders with RGB backlight for function identification
  • Camera ID display with OLED technology
  • RGB tally bar
  • Preview button for GPI or control of video router
  • Four-way buttons with OLED legends for dynamic labelling and functionality
  • Pressure and direction sensitive joystick pad
  • Master black knob with dedicated OLED display
  • Encoder wheel with display and LED bar
  • Industry standard form factor (4""/102mm wide)
  • Sits console style on table top or mountable in OB van rack


• Specifications:

  • Camera Control: RM-LP250M can connect x3 camera recorders
  • Interface:
    RJ-45
    DB9 (EXT I/O) connector
    Firmware Upgrade via USB2.0
  • Network Interface:
    The controller have a 100 Mbps network interface
    Network switch must have Auto-MDI/MDIX
    Network switch must support 100 Mbps
  • Power: DC 12V, PoE (48V IEEE 802.3af )
  • Power Consumption: 6W
  • Dimensions (WxDxH): 102.2 x 355 x 72mm
  • Weight: 1.3Kg
  • Operating Temperature: 0°C~40°C
  • Operating humidity: 30%RH~80%RH
  • Storage Temperature: -20°C~+50°C


• Item Includes:

  • 1x RM-LP250M Remote Control
  • 1x Power Adaptor including power plug
  • 1x 2m CAT.5E Ethernet cable
  • 1x 1m USB 2.0 Type A/Type Micro B cable


• GTIN:

  5714074002048
