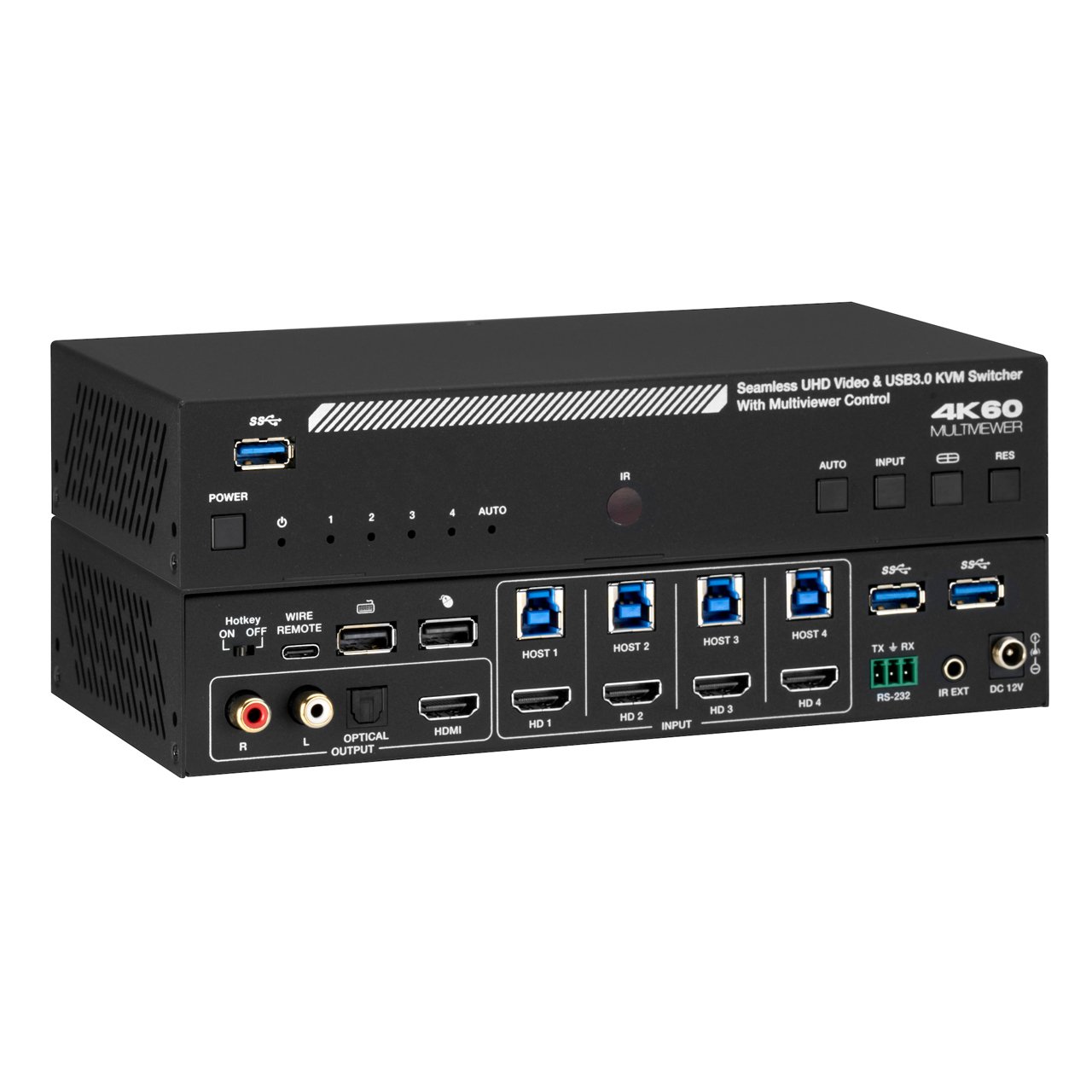

The KanexPro KVM-4X1MV4K HDMI & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.
It combines up to four video signals onto a single UHD or HD displayer. The user can then manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input.
This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It provides a single screen display and multiview display on a single screen.
This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

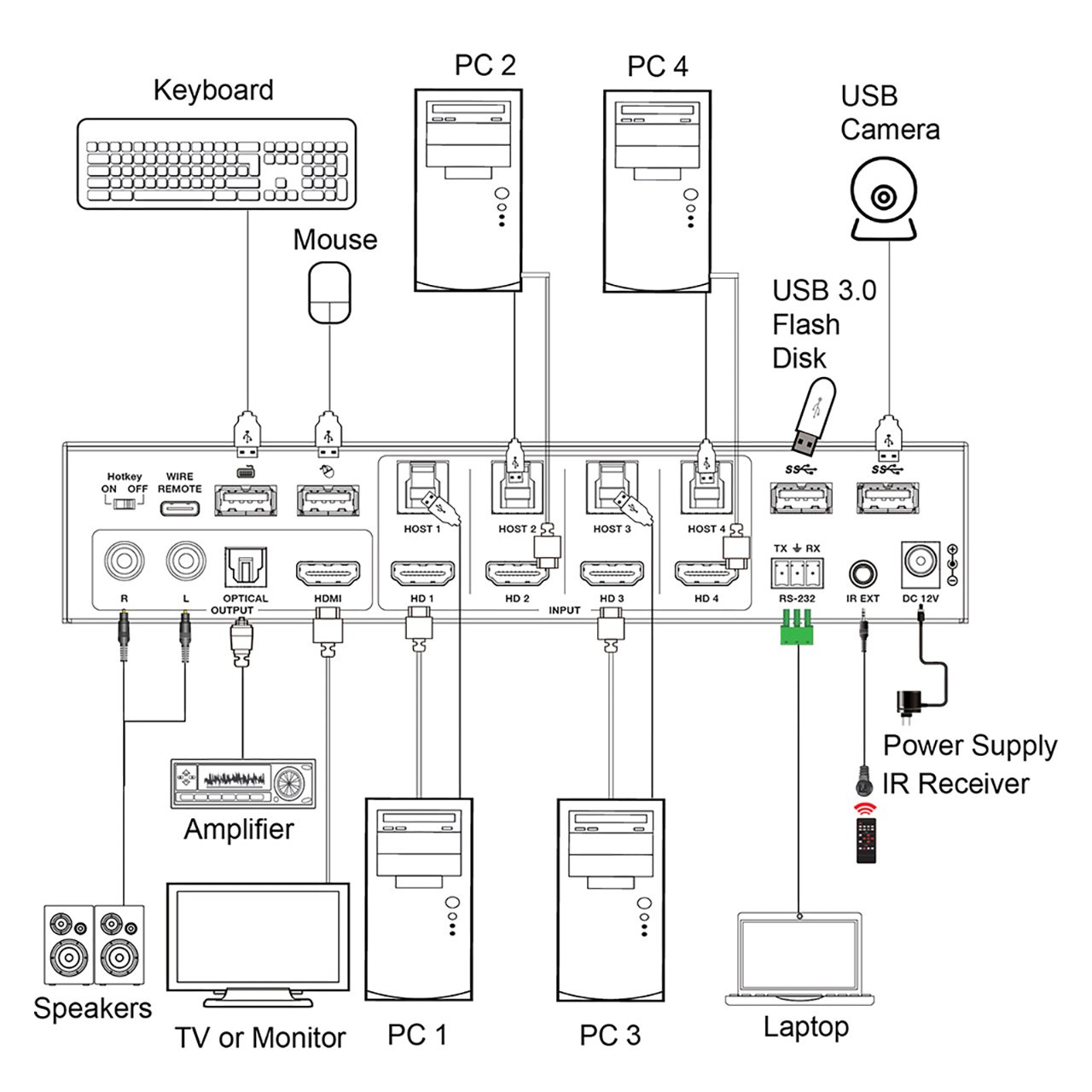

The switcher can also transmit USB 3.0 signals up to 5Gbps for KVM function while supporting direct switching through buttons on the front panel, an IR remote, or via hotkey through the keyboard/mouse connected to the USB port. It provides a wide compatibility choices for different operating systems, such as Windows, Mac OS and Linux, there's no driver required, simply plug and play.

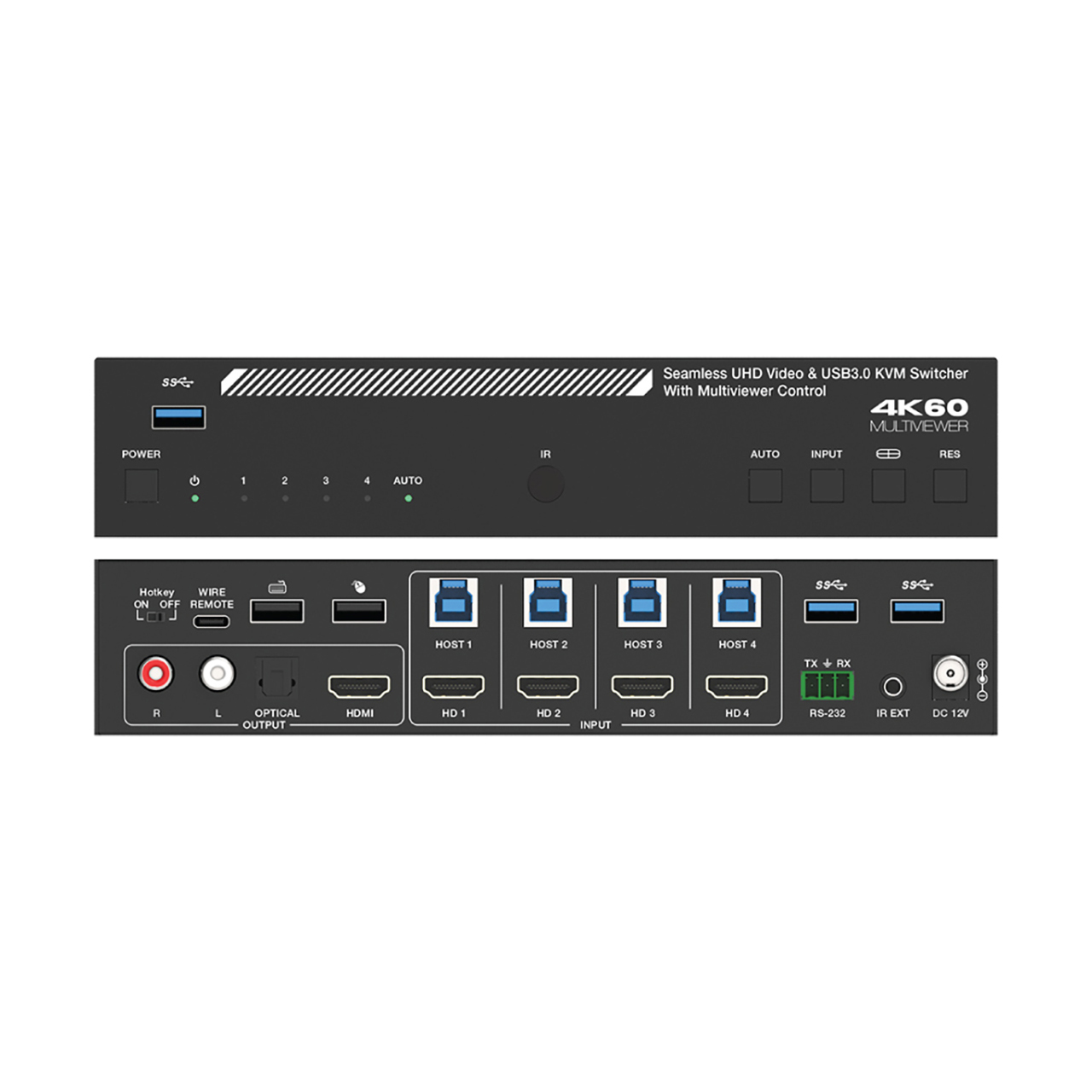

This device can be controlled via front panel buttons, IR remote, keyboard/ mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands.
