Kondor Blue KB-URSAM-BaseRig URSA Mini Base Rig (12K/4.6K/4K)

ITEM #: KB-URSAM-BASERIG MFG #: KB-URSAM-BASERIG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KB-URSAM-BASERIG

KB-URSAM-BASERIG - Overview

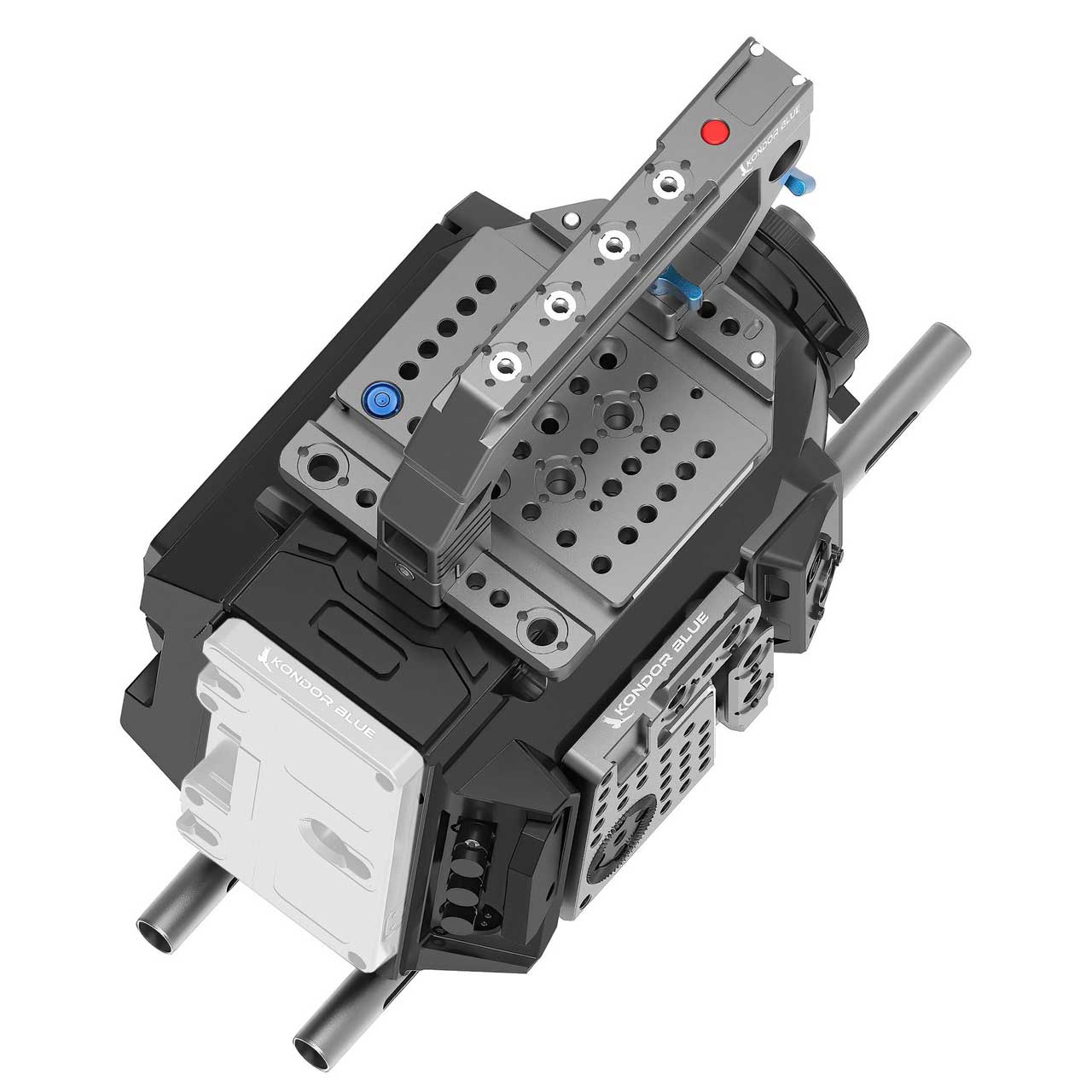

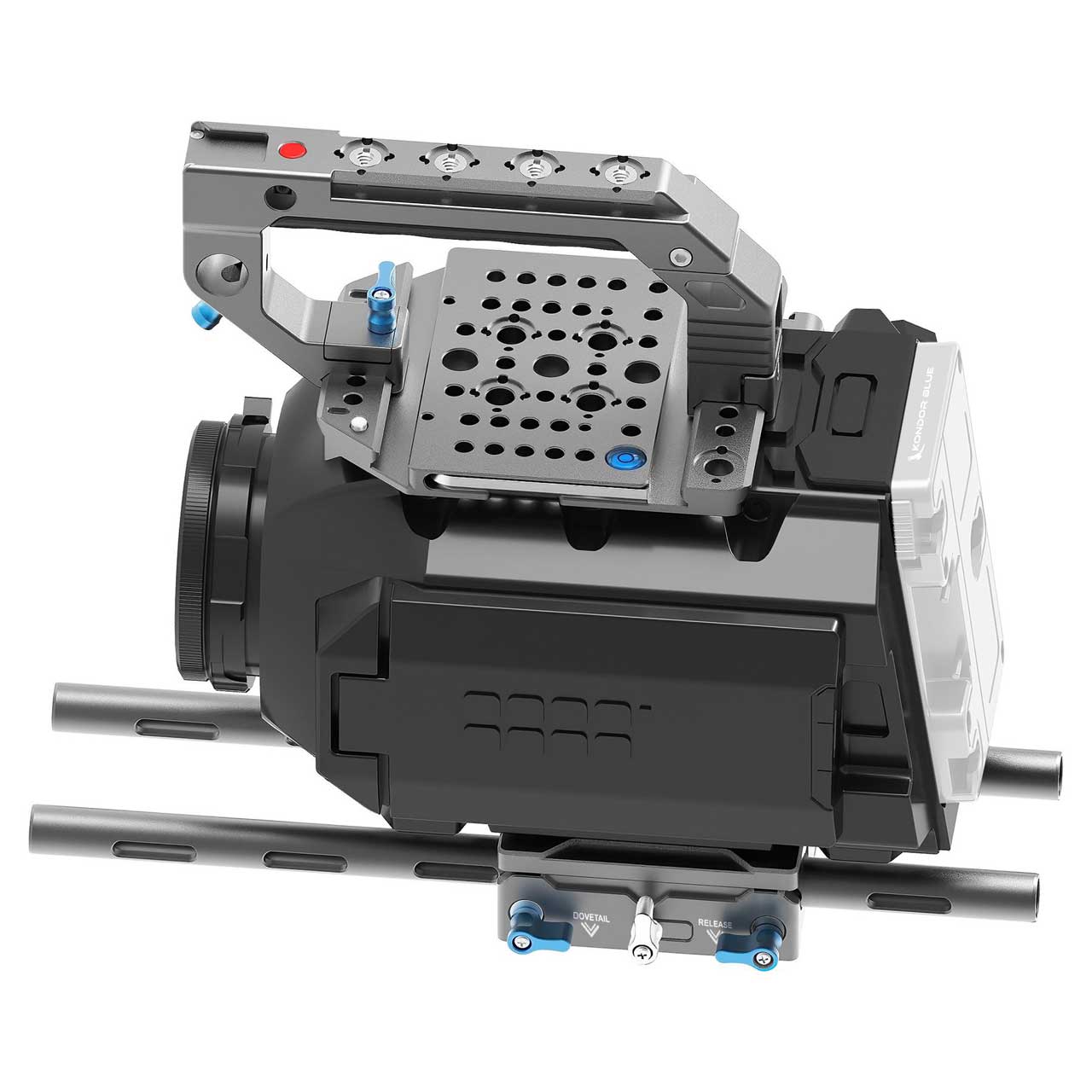

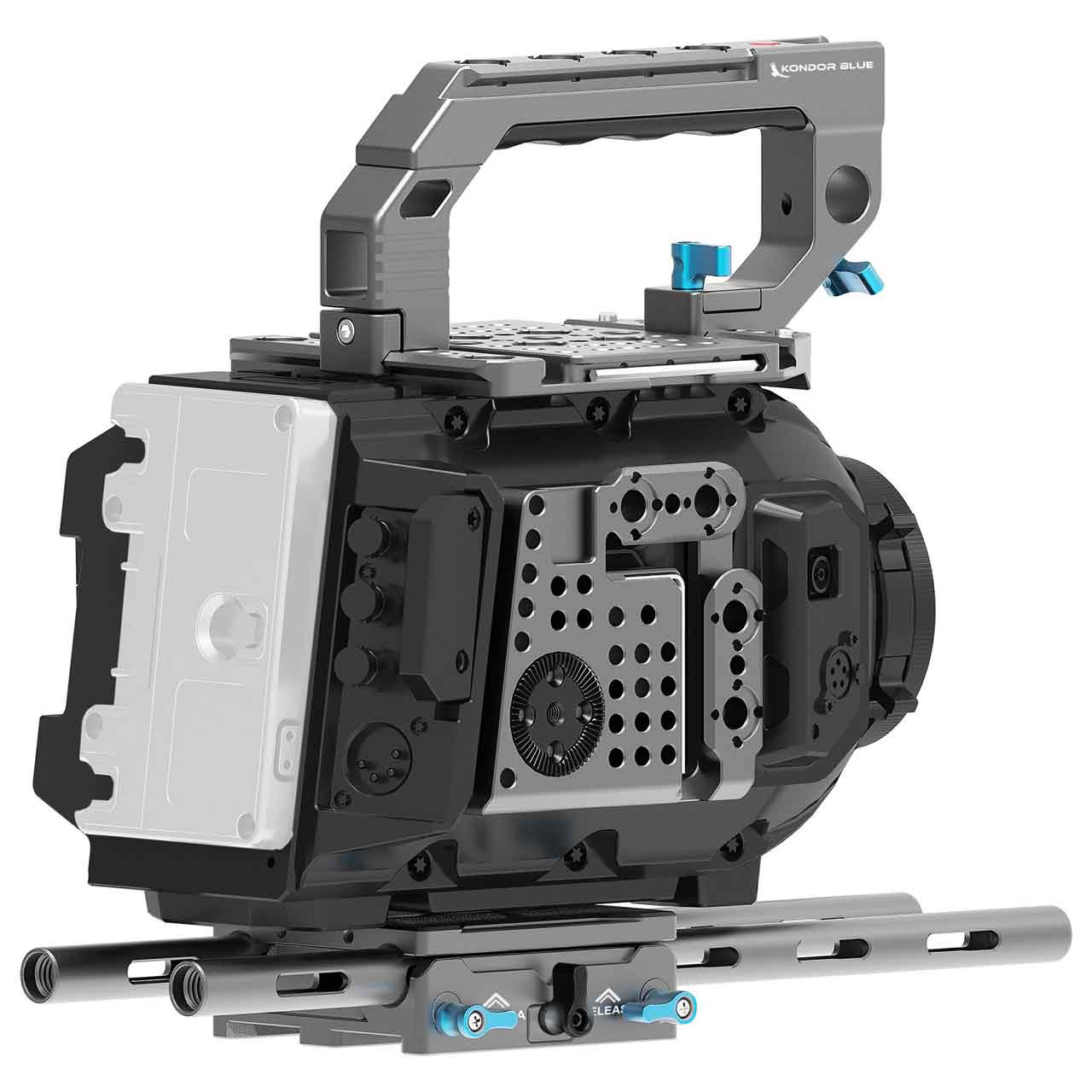

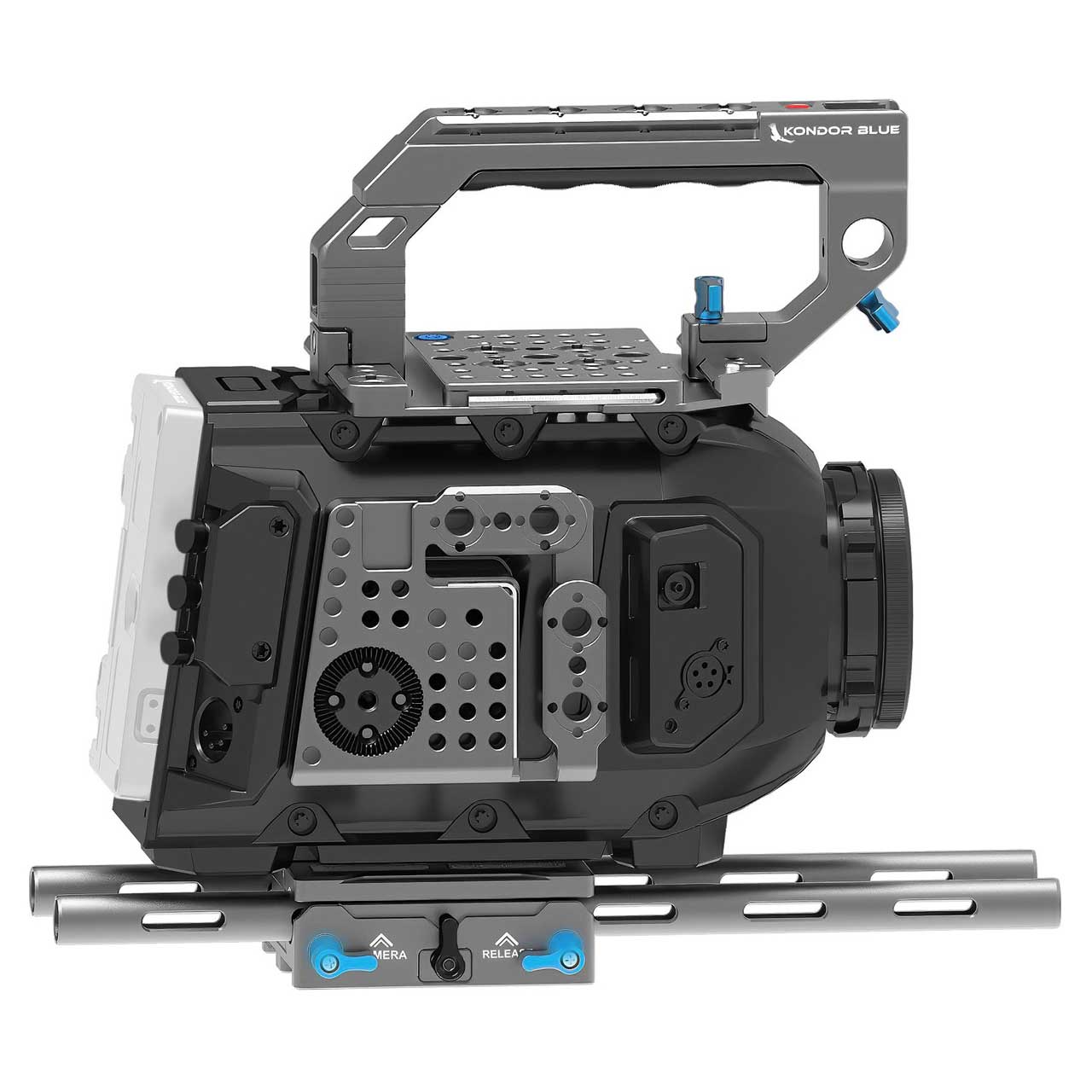

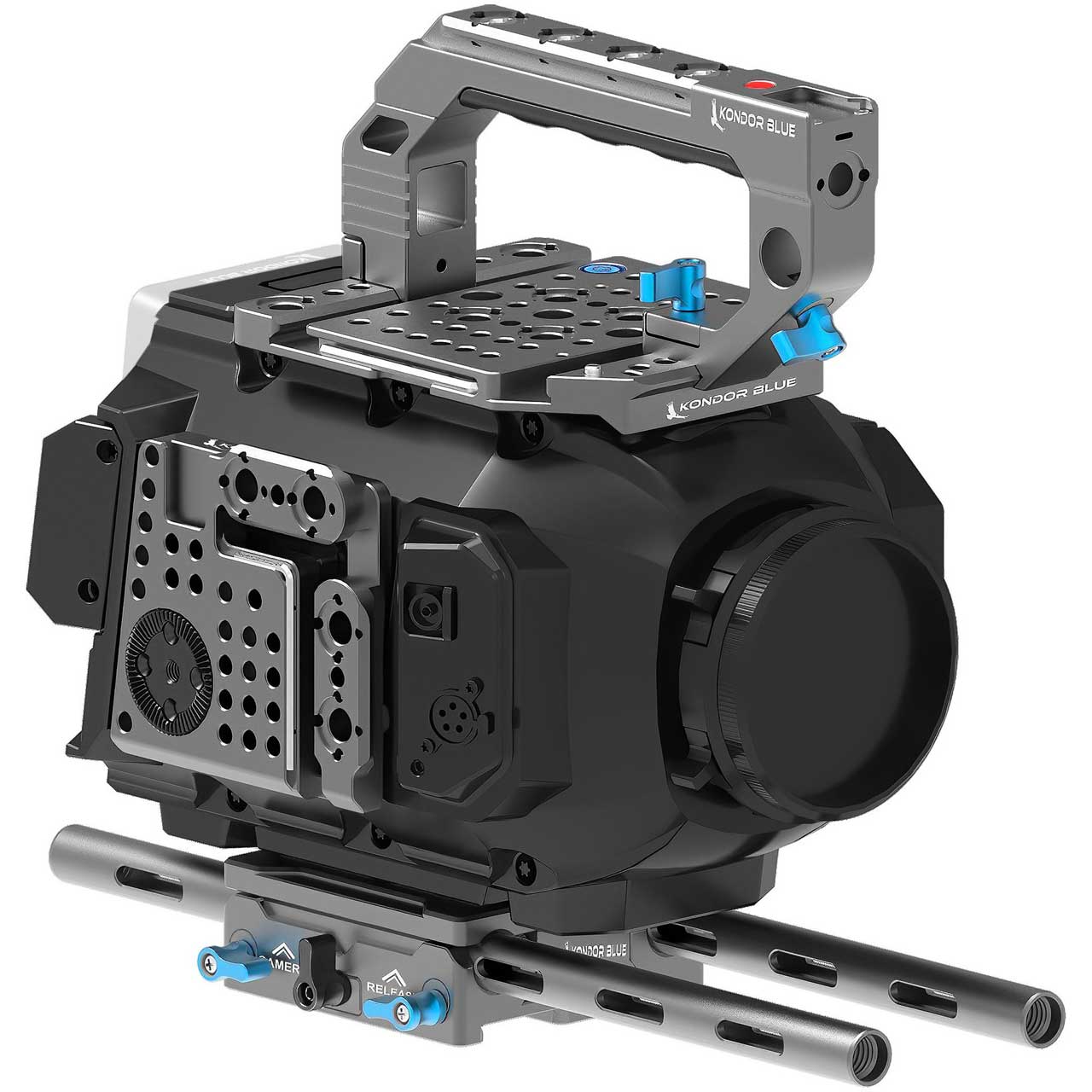

Add protection, handheld functionality, and a variety of accessories to your Blackmagic Design URSA Mini 12K, 4.6K, or 4K cinema camera with this Kondor Blue KB-URSAM-BaseRig Base Rig. The modular rig includes a modular two-piece camera cage, a trigger top handle, a 15mm ARRI bridge plate, and two 12" long 15mm rods.

The cage mounts on two sides of the camera and allows you to access all the camera's ports and controls, while each piece can be used on its own or with the other components. It features an ARRI-style rosette, a shoe mount, and multiple mounting threads on the side, and the top plate features multiple threads, two NATO rails, and a bubble level.

The top handle mounts onto the dual NATO rails using its dual NATO clamp system, and it provides start/stop trigger communication with the URSA Mini with a LANC cable. It also features a shoe mount and 1/4"-20 and 3/8"-16 ARRI-style accessory threads for additional accessories.

The bridge plate features a quick release ARRI-standard dovetail plate, standard 15mm LWS rod ports, 1/4"-20 and 3/8"-16 camera screws, and multiple 1/4"-20 and 3/8"-16 tripod mounting threads. The two included aluminum 15mm rods measure 12" in length and feature threaded ends.

Camera not included

  • Features:

    • Modular Design: Each plate can be mounted independently of the rest.
    • Top Plate: Dual NATO Rails, Bubble Level, 1/4"-20 and ARRI 3/8"-16 Threads, Magnetic Tools, Compatible with Blackmagic URSA Viewfinder
    • Side Plate: Dual NATO Rails, Cold Shoe, 1/4"-20 and ARRI 3/8"-16 Threads, Relocated Rosette
    • Top Handle Features:
    • Start/Stop Record Button with LANC control cable
    • Five 3/8" Threaded Holes with ARRI Locator Pins for Antitwist Accessories such as our Mini Quick Release Plates
    • Over Eighteen 1/4"-20 Hole Options for Mounting Accessories
    • 15mm Side Rod Support for EVF or Monitors
    • Cold Shoe Mount
    • Comfortable and Ergonomic Grip Design
    • Bridgeplate Key Features
    • ARRI-Standard Dovetail
    • 15mm LWS Rod Support
    • Quick Release Camera Plate System
    • 1/4"-20 and 3/8"-16 Mounting Bolts
    • 1/4"-20 and 3/8"-16 Tripod Mount Threads
    • Universal Design with Camera Specific Risers for 85mm Lens Height

  • Item Includes:

    • 1x URSA Cage w/ Trigger Top Handle
    • 1x LWS ARRI Bridge Plate
    • 2x 15MM PPSH Rods (12 Inches)
