The Kinefinity MAVO mark2 LF inherits the remarkable full frame 3:2 CMOS imaging sensor from MAVO Edge 6K, and full frame format allows for extra shallow depth of field and more immersive presence.

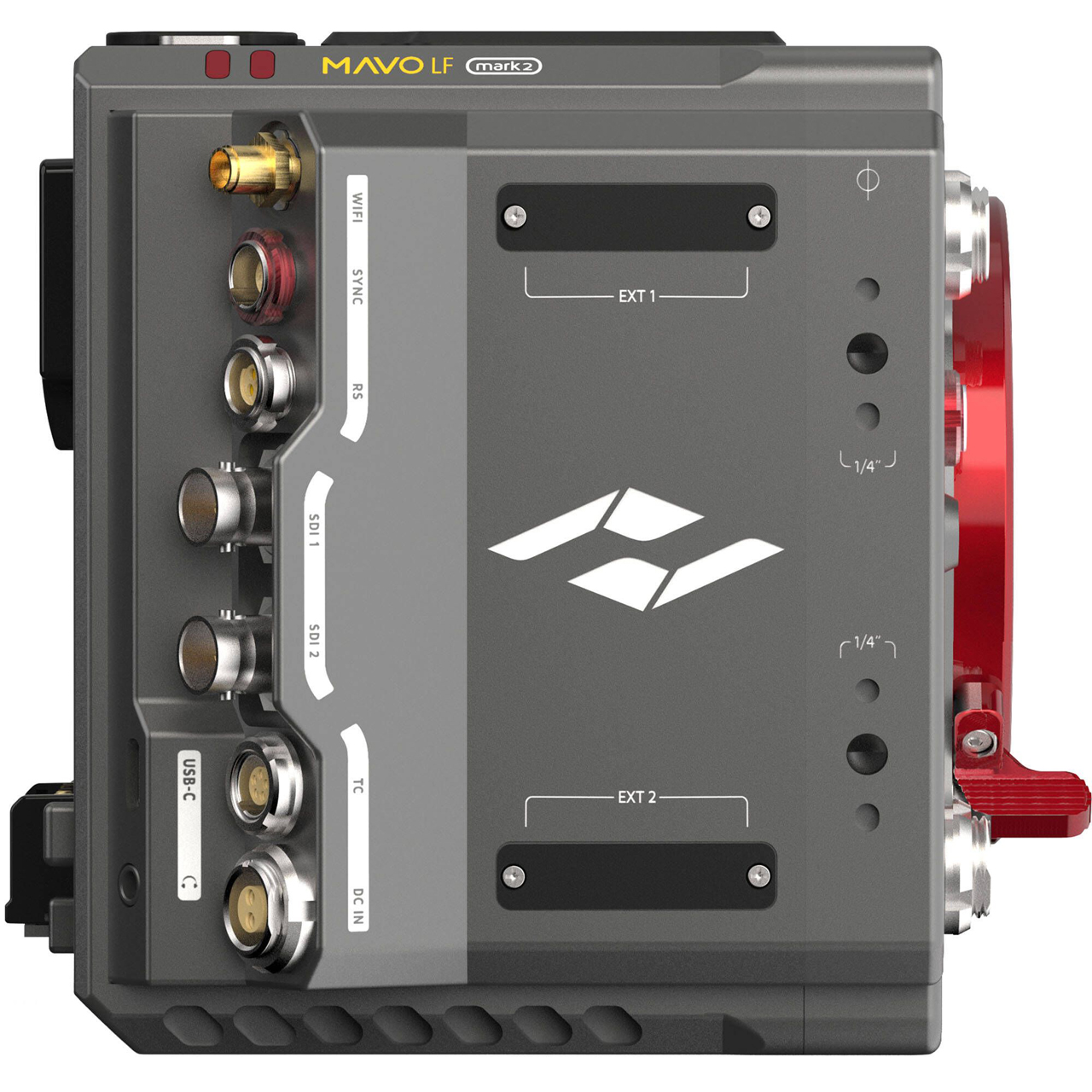

MAVO mark2 adopts the MAVO Edge high-performance computing platform, integrates industry standard ports like independent dual SDI outputs with meta data and encodes stunning images as Apple ProRes4444/XQ footage onto NVMe M.2 2280 SSD. Coming in the lightweight compact camera body with the streamlined workflow, MAVO mark2 S35 and MAVO mark2 LF provide more cinematographers with a professional and efficient film making experience at a more affordable price.
The MAVO mark2 LF continues to feature the remarkable 6K full frame 3:2 CMOS imaging sensor from the popular MAVO Edge 6K, maintaining high frame rate of up to 75fps at 6K Wide, 150fps at 4K Wide and amazing dual native ISO 5120/800. The industry-standard ISO 800 is regular for shooting in normal light scenes, while the second native ISO up to 5120 is perfect for low light scenes to obtain a clean image with high latitude and low noise, ideal for documentary filmmakers or those who favor available light during night shoots. Compared to MAVO LF, MAVO mark2 is capable to retain more highlight details, ideal for shooting in complex lighting environments, presenting organic images and cinematic look.
Apple ProRes4444 Recording
MAVO mark2 has the powerful capability of directly recording high-quality clips in camera from Apple ProRes 422 LT to ProRes 4444XQ. The advanced architecture allows the MAVO mark2 to record ProRes4444XQ format and and records Kine LOG3 Gamma to preserve all the dynamic range data captured by its CMOS image sensor, achieving fast post-production workflow.
Safe and Flexible Recording Media
The SSD slot of MAVO mark2 is based on PCIe, and the recommended recording media is the proprietary KineMAG Nano 1TB/2TB based on NVMe M.2 2280 SSD. KineMAG Nano SSD has two superior safety features: Read-only and RAID 5. It improves the safeness of the KineMAG Nano while copying or writing to the SSD at blazing fast speed in camera. With a universal USB-C port, KineMAG Nano allows offloading data to the workstation at a speed of up to 10Gbps.

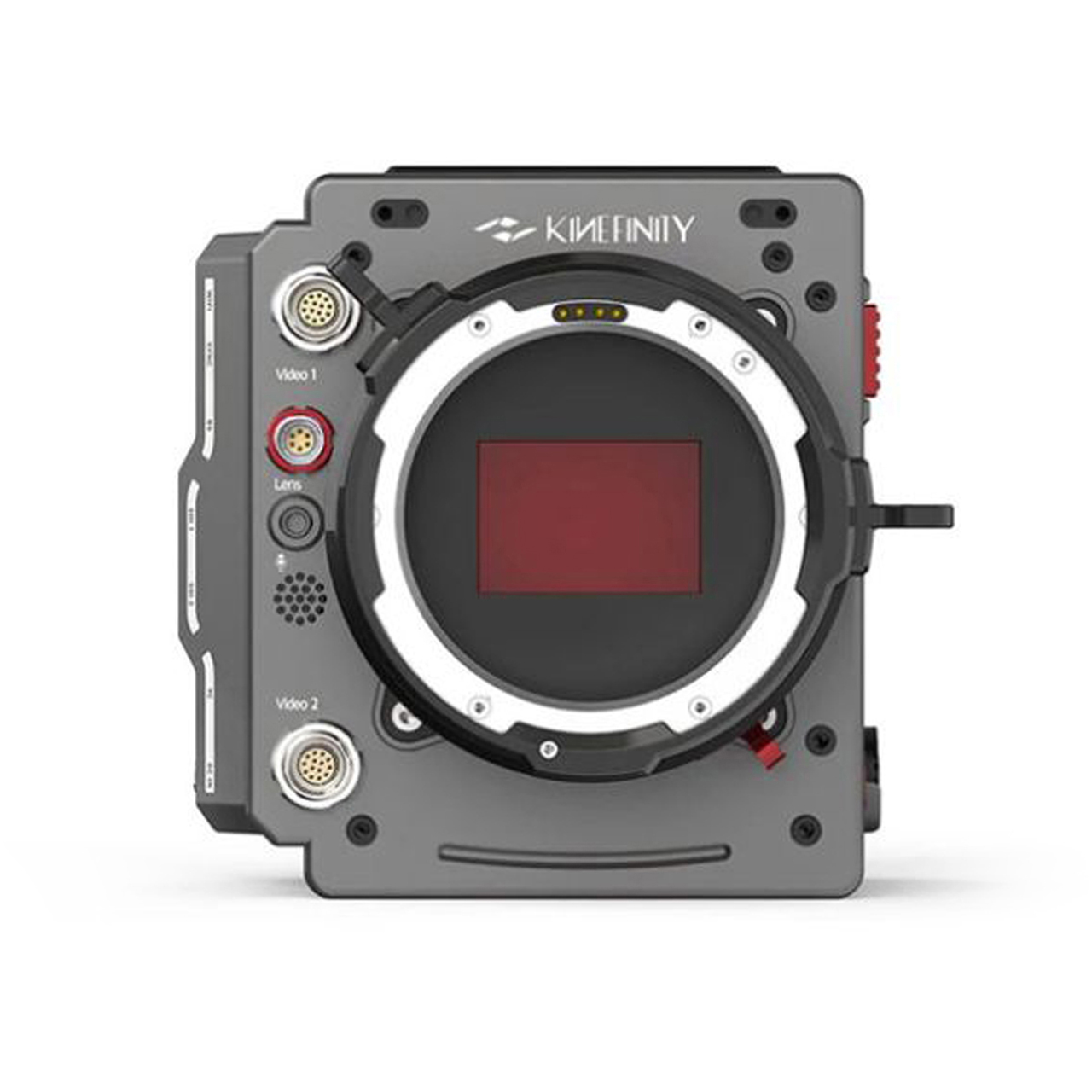

Active PL Mount
Based on the second-generation PL mount, Kinefinity has released the new active PL mount.
The active PL mount is suitable for MAVO Edge 8K/6K cameras. It is connected to the camera body by screws at the four corners to ensure the stability of the overall structure, while it can also be switched with the KineMOUNT mount, enriching creative diversity.
The active PL mount also supports the Cooke i/Technology protocol, which enable the camera to record lens metadata, and controlling the full shooting work flow.
