Kinefinity KineMON-7U2 Ultra-Bright 1080p IPS LCD Retina Display Monitor - 7 Inch Screen - For Use with MAVO Edge

ITEM #: KINE-A120-002-01 MFG #: KINE-A120-002-01

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Kinefinity
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$849.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

KINE-A120-002-01 - Overview

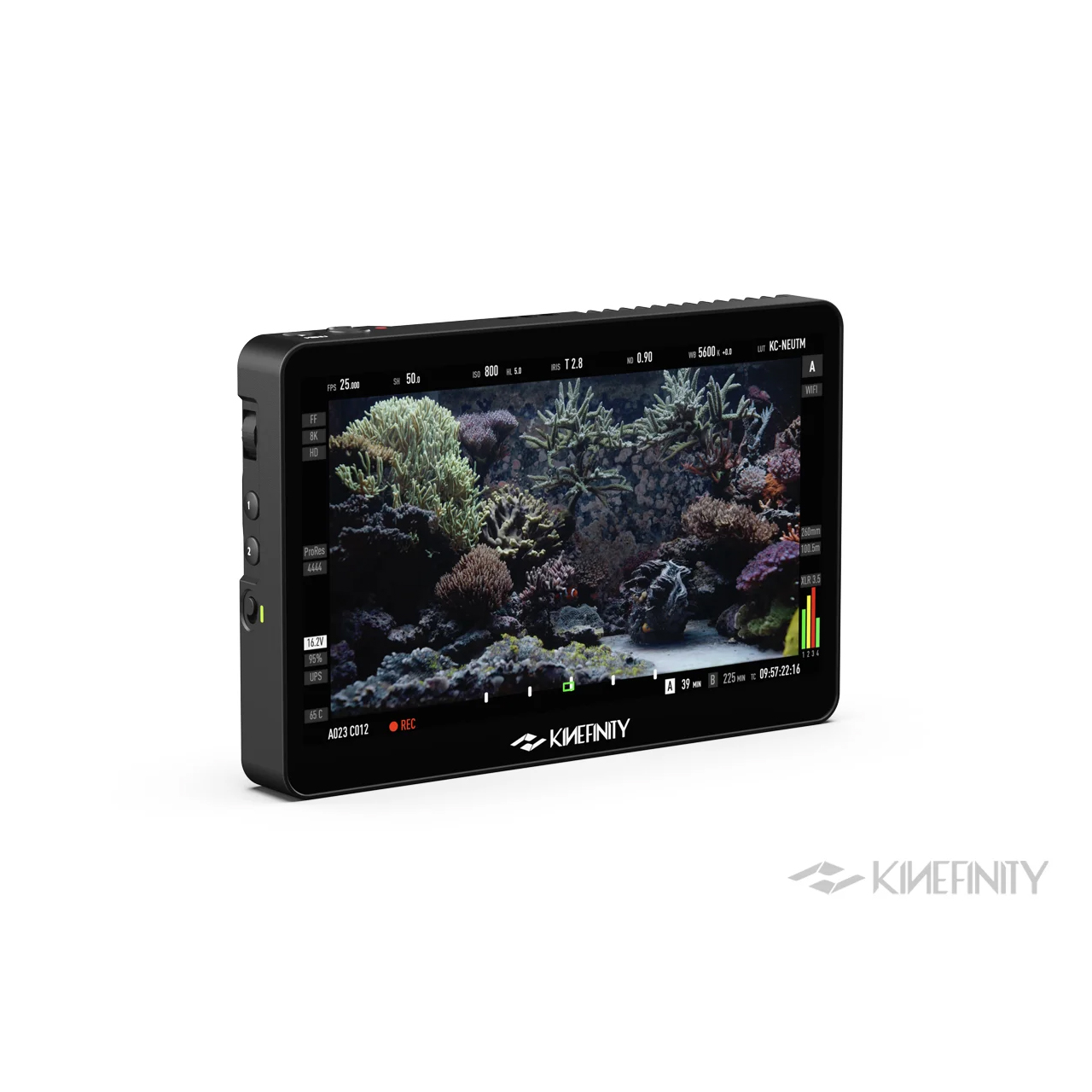

The Kinefinity KineMON-7U2 is the ultra-bright 7" monitor with new touch screen function dedicated to MAVO Edge. It features 2000nit Retina display, 7-inch display, 1080p full-HD and 16M colors, new touch screen function, to bring sharp and clear image on the beautiful display. Only one Kine Video Cord is needed for the monitor to get power supply and video signal from MAVO Edge.

KineMON-7U2 is easy to be mounted on the camera body firmly by using appropriate accessories for different needs.

New Touch Screen and Simple Operation
The ultra-bright 7-inch monitor KineMON-5U2 supports the global touch screen. You can quickly adjust eight parameters such as FPS, shutter, ISO, etc. by simply clicking the selected area of the monitor interface with your hand. You can adjust all parameters of the camera combined with the MENU, Playback and Wheel buttons.

Durability and Simple Connection
Re-designed monitor plus full lamination screen with tempered glass. With full tempered glass in front of the monitor, the screen gets better protection with high screen ratio. The case is made of rugged milled aluminum for better heat dissipation. Its surface process is more exquisite than old version KineMON-5L.

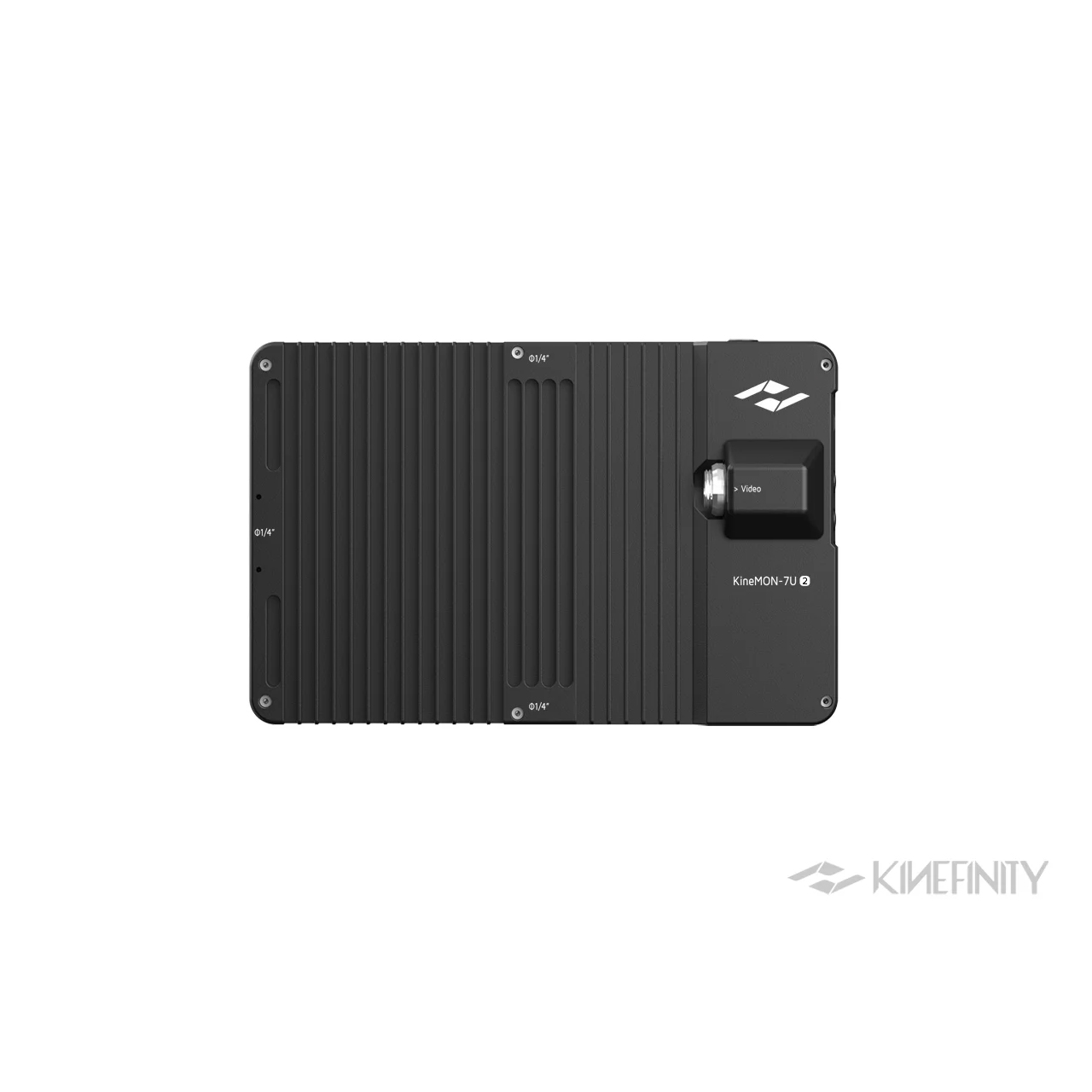

KineMON-7U2 has a standard 1/4" threaded hole and two pin-holes at the bottom to fasten itself firmly to camera in any case, while most other monitors have only one 1/4" threaded hole.

2000nit Full Lamination & High Brightness Screen
KineMON-7U2 is able to work directly in indoors or outdoors with its 2000nit high brightness screen. Even with direct sunlight, indie filmmakers are also able to check the composition and exposure as normal. The whole Kinefinity camera system is more flexible to create works by slim and lightweight KineMON-7U2 with full frame MAVO LF.

The ultra-bright monitor also adopts OCR Full Lamination crafts with high strength and transmissivity tempered glass to bring higher light transmission and lower light reflection, thus the image brightness is more clear under sunlight with its brightness improved. Moreover, there is grease-proofing AF Coating on glass surface, more cleanable and convenient.

Please Note: The Touch Screen function of the KineMON-7U2 is only applicatle to MAVO Edge Cameras

  • Features:

    • Ultra-low Latency: Monitoring latency is reduced 50% compared to traditional field monitors; especially with MAVO Edge/MAVO/TERRA 4K in KineOS6.3, the latency of whole camera system is relatively low to control dynamic image accurately;
    • Fast Response: Fast reponse to boot up and power off, nearly no delay, while traditional monitor often needs 5~10 sec to boot up;
    • Low Power Consumption: with the platform, the power consumption of monitor are largely reduced and KineMON-7U2 is still no more than 6W when at its full brightness, while the traditional one may be up to 18W, thus the monitor is capable to keep in low temperature and runs stably without active cooling;
    • True and Natural Color: As a monitoring device, the KineMON-7U2 adopts more natural rendering to restore details and natural colors of the image instead of additional processing like deliberate sharpness, increasing saturation, etc.


  • Specifications:

    • Display: 7 Inch LCD
    • Resolution: 1920x1080
    • Color Depth: RGB 24 Bits, 16M Colors
    • Pixels Per Inch: 441ppi
    • Brightness: 2000nits
    • Contrast: 1000:1
    • View Angle: 170°
    • Gamut: 100% of Rec. 709
    • Size (LxWxT): 6.9 x 45 x .6 in (176 x 115 x 14mm)
    • Weight: .99 lbs (450g)
    • Power Consumption:
      - 4W (500 nits)
      - 6.5W (2000 nits)


  • Item Includes:

    • 1x KineMON-7U2 Ultra-Bright Monitor


  • GTIN:

    6153050286222
