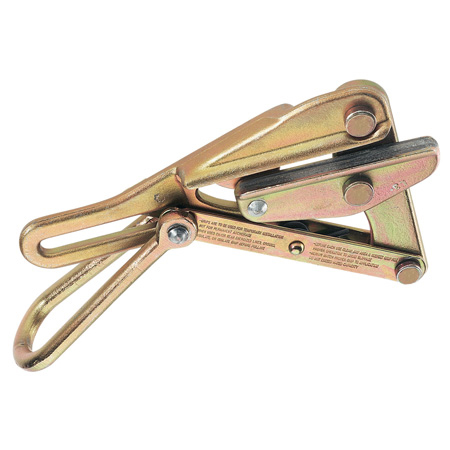

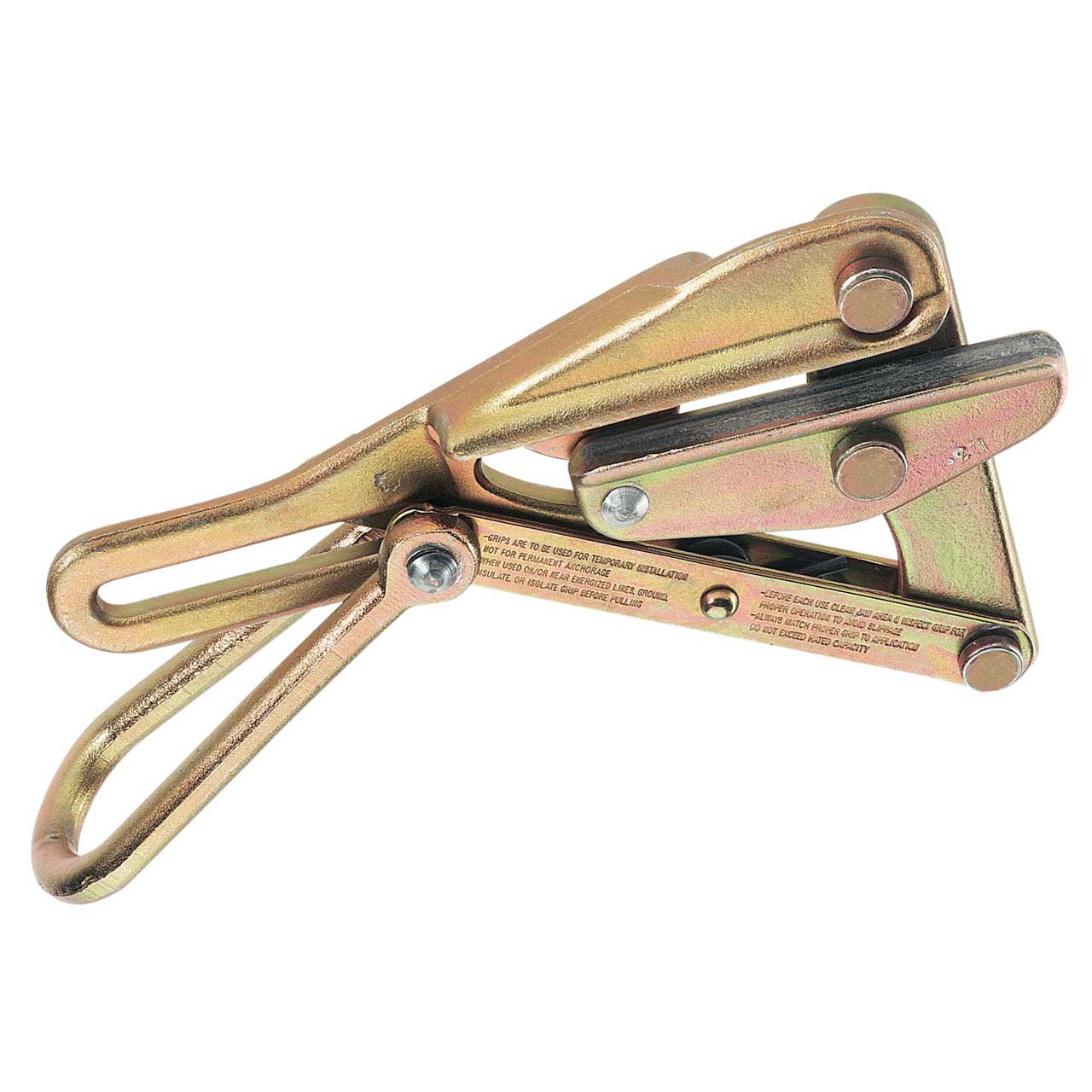

Klein Tools 1684-5F Grip for High Strength Cable

1684-5F - Overview

• Features:

  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick


• Specifications:

  • Application: Wire Pulling
  • Cable Type: Aircraft, EHS, Messenger, Guy Strand
  • Cable Diameter: 0.16'' to 0.55'' (4.06 to 13.97 mm)
  • Jaw Type: Single V with File Insert
  • Jaw Length: 5'' (127.0 mm)
  • Maximum Safe Load: 8000 lb (3629 kg)
  • Weight: 6.4 lb (2.9 kg)


• Warnings:

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.


• GTIN:

  0092644479465
