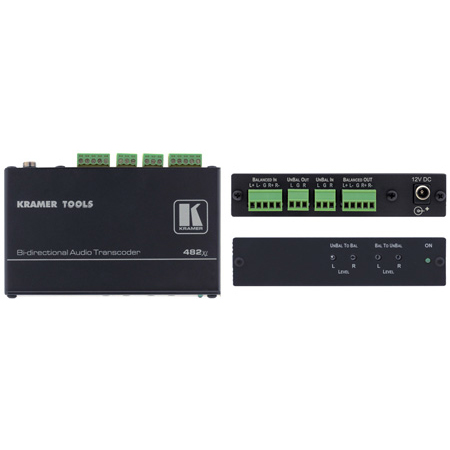

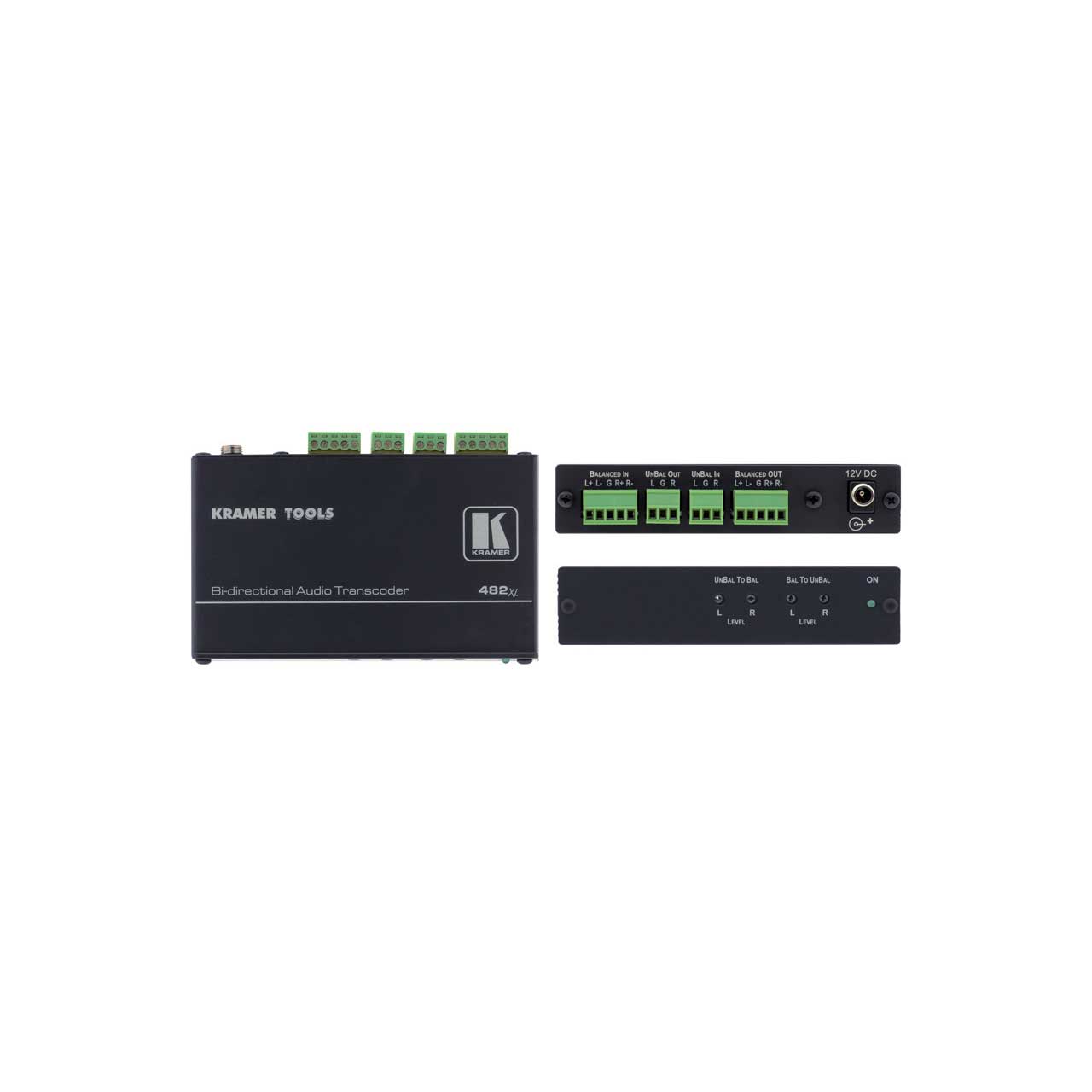

Kramer 482XL Balanced/Unbalanced Stereo Audio Transcoder

482XL - Overview

High-performance audio transcoder

• Features:

  • Connectors - Terminal Blocks (balanced & unbalanced)
  • Level (Gain) Control - Independent L & R adjustment while Transcoding for both Balanced to unbalanced conversion and unbalanced to Balanced conversion.
  • S/N Ratio - 95db Balanced to unbalanced & 87db unbalanced to balanced, unweighted
  • Compact Size - Part of the Kramer TOOLS family of compact, high quality and cost effective solutions


• Specifications:

  • INPUTS
  • 1 unbalanced audio stereo on a 3-pin terminal block connector, 1 balanced audio stereo on a 5-pin terminal block


  • OUTPUTS
  • 1 balanced audio stereo on a 5-pin terminal block connector, 1 unbalanced audio stereo on a 3-pin terminal block connector


  • MAX. OUTPUT LEVEL
  • Balanced: 21dBu
  • unbalanced: 21dBu @max gain


  • BANDWIDTH (-3DB)
  • >100kHz


  • CONTROLS
  • -57dB to +6dB (balanced to unbalanced level)
  • - 16dB to +19dB (unbalanced to balanced level)


  • COUPLING
  • Balanced to unbalanced: in=AC, out=DC
  • Unbalanced to balanced: in=AC, out=DC


  • THD+NOISE
  • 0.049%


  • 2ND HARMONIC
  • 0.005%


  • S/N RATIO
  • 95dB/87dB balanced to unbalanced/unbalanced to balanced, unweighted


  • POWER CONSUMPTION
  • 12V DC, 280mA (fully loaded)


• Item Includes:

  • 482xl Transcoder
  • Power Supply
  • Mounting Bracket


• Warranty:

  • Limited 7 Year Warranty

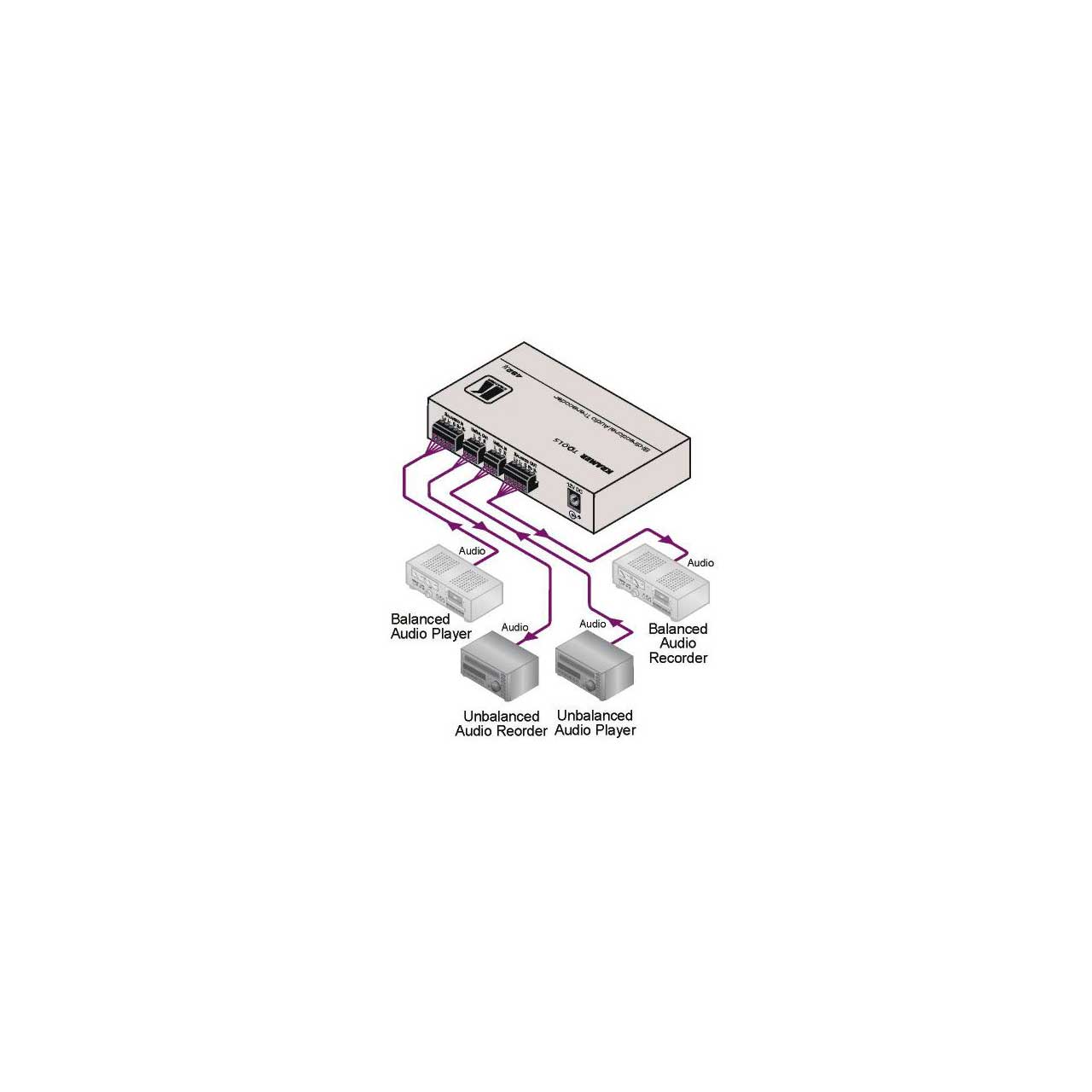

• Applications:

  • Video and audio production facilities
  • Audio recording studios
  • Live sound applications


• GTIN:

  7291063032005
