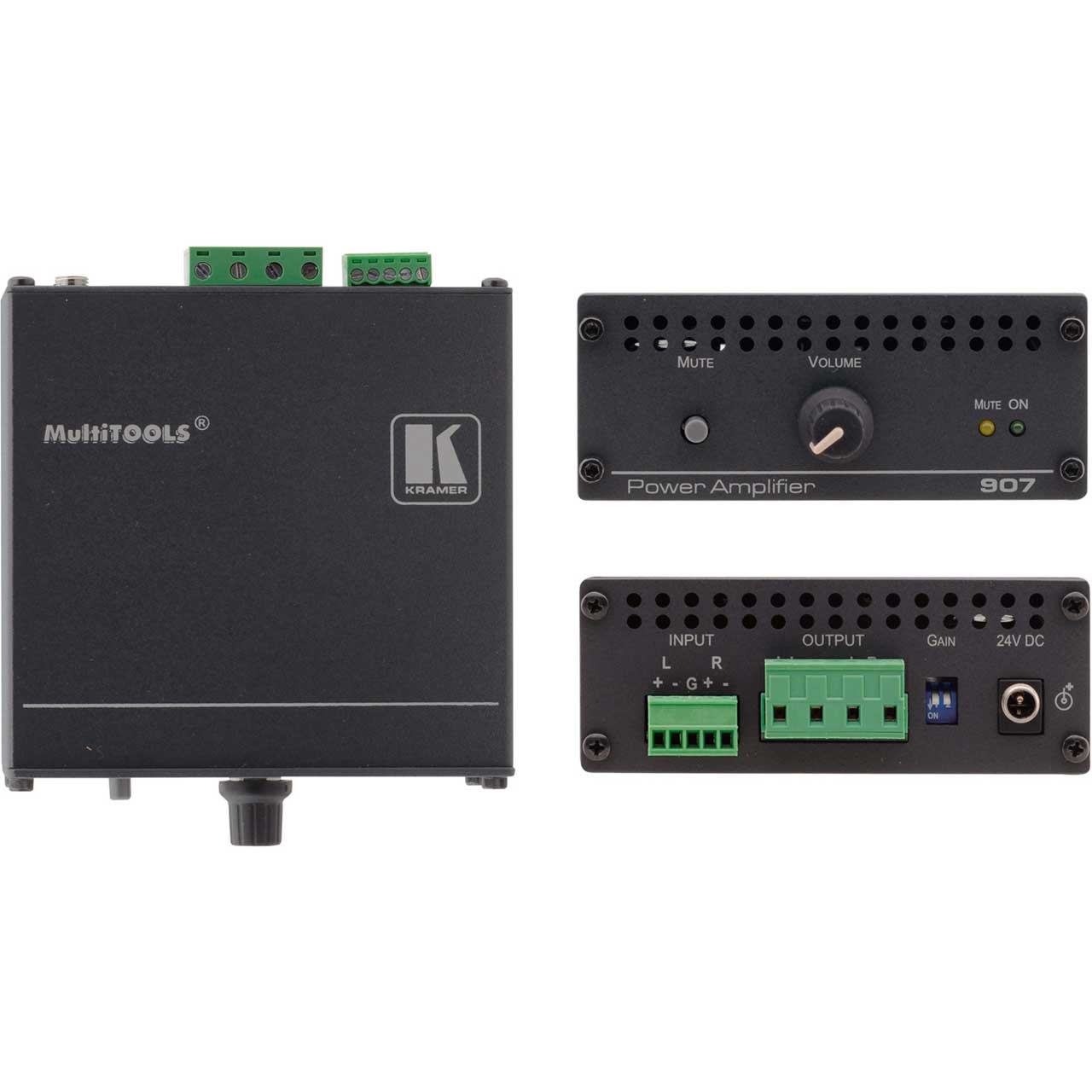

Kramer 907 40W Per Channel Stereo Power Amplifier

907 - Overview

• Features:

  • High Efficiency - Class D operation.

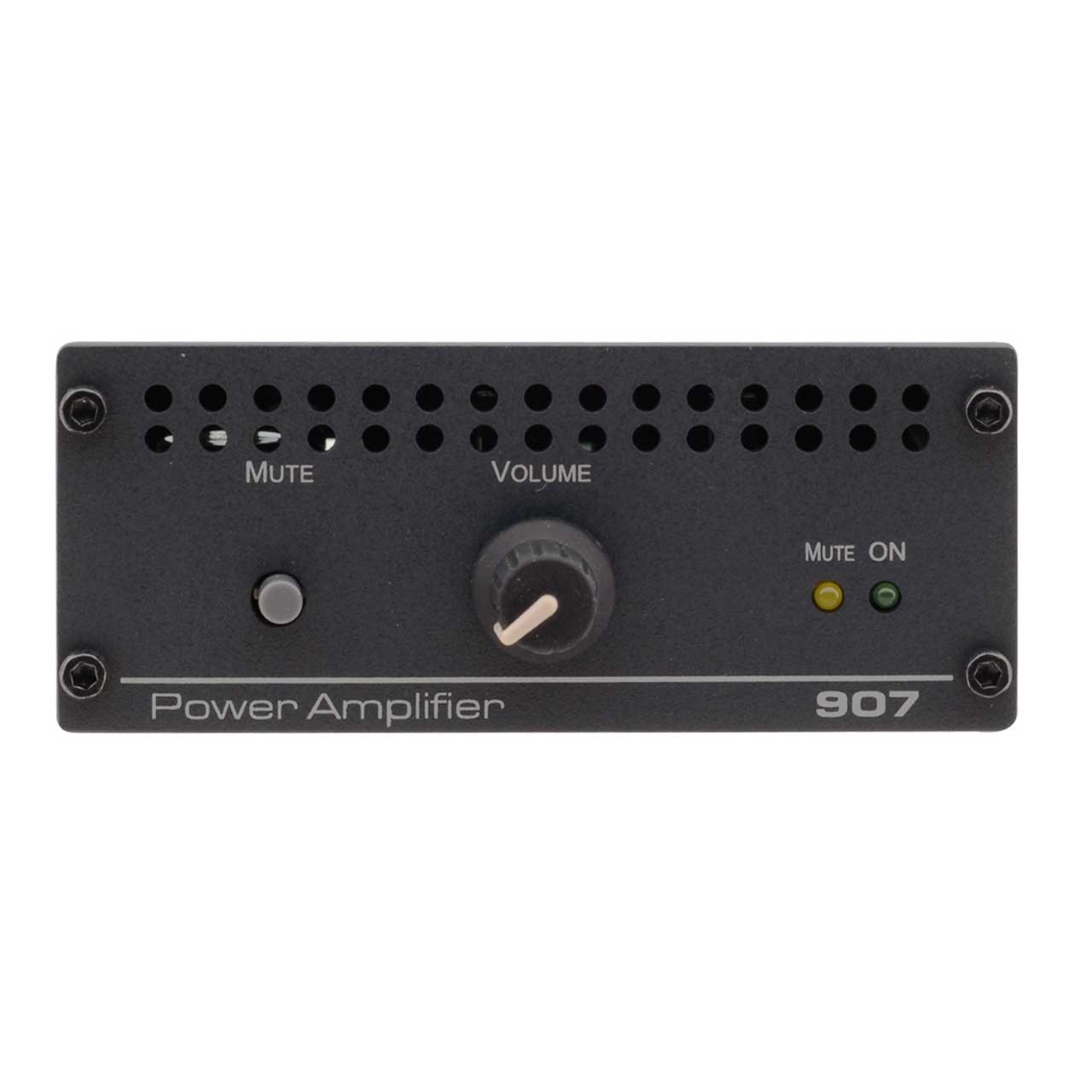

  • Controls - Volume control knob & mute button.
  • Gain Control DIP-Switch.
  • Mute and On Indicator LEDs.
  • Compact MultiTOOLS® - Up to 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

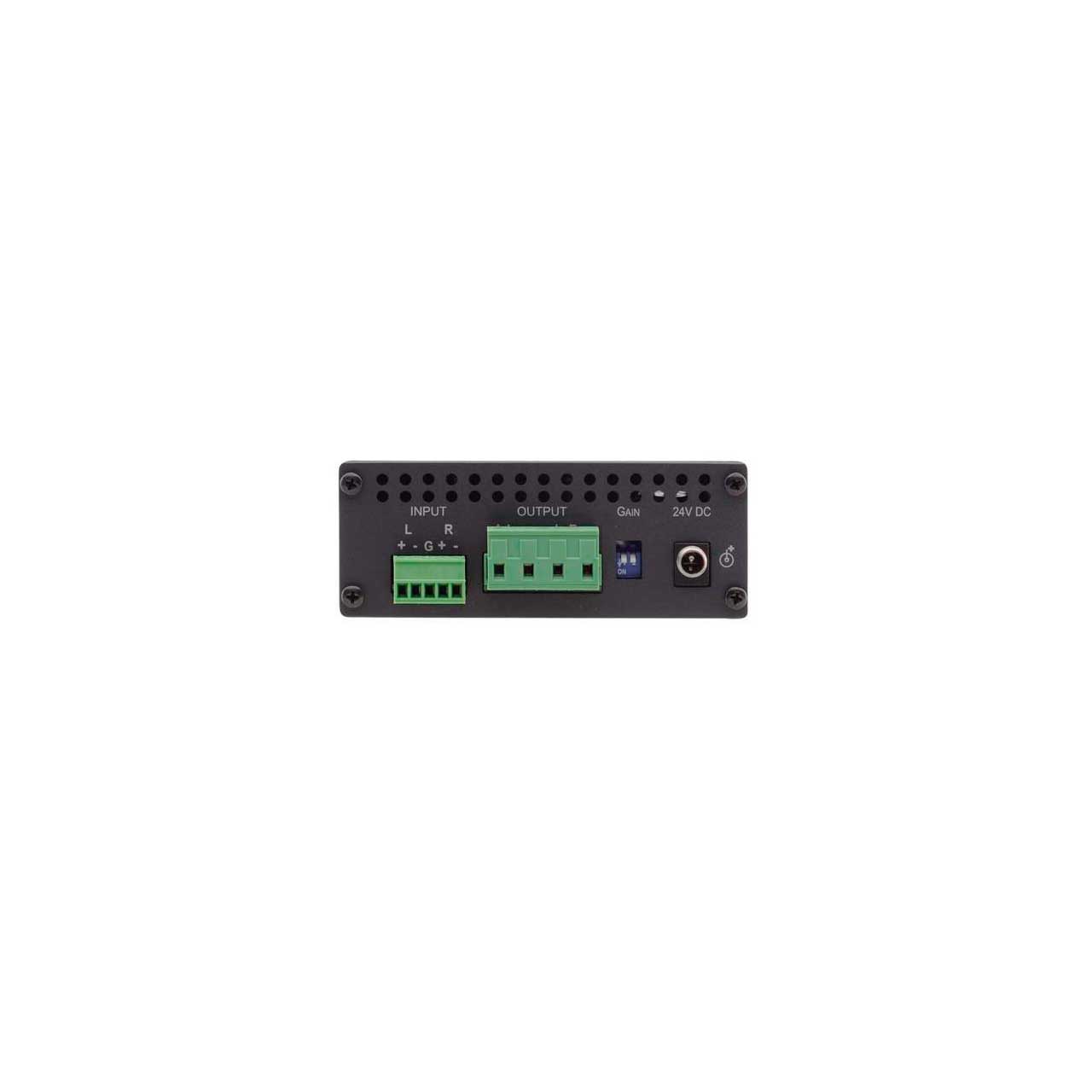

  • INPUT
  • 1 balanced stereo audio on a terminal block connector


  • OUTPUT
  • 1 balanced stereo audio (speakers) on a terminal block connector


  • OUTPUT POWER
  • 40 watts per channel into 8Omega;


  • OUTPUT MUSIC POWER
  • 150W per channel into 8Omega;


  • INPUT SENSITIVITY
  • 1.2Vrms


  • AMPLIFIER TYPE
  • Class D


  • VOLTAGE GAIN
  • 20dB (x10)


  • BANDWIDTH (-3DB)
  • 20kHz


  • S/N RATIO
  • 60.2dB


  • COUPLING
  • DC


  • AUDIO THD + NOISE
  • 1.9%


  • AUDIO 2ND HARMONIC
  • 0.3%


  • POWER CONSUMPTION
  • 24V DC, 5A


• Item Includes:

  • 907 Power Amp
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063002909
