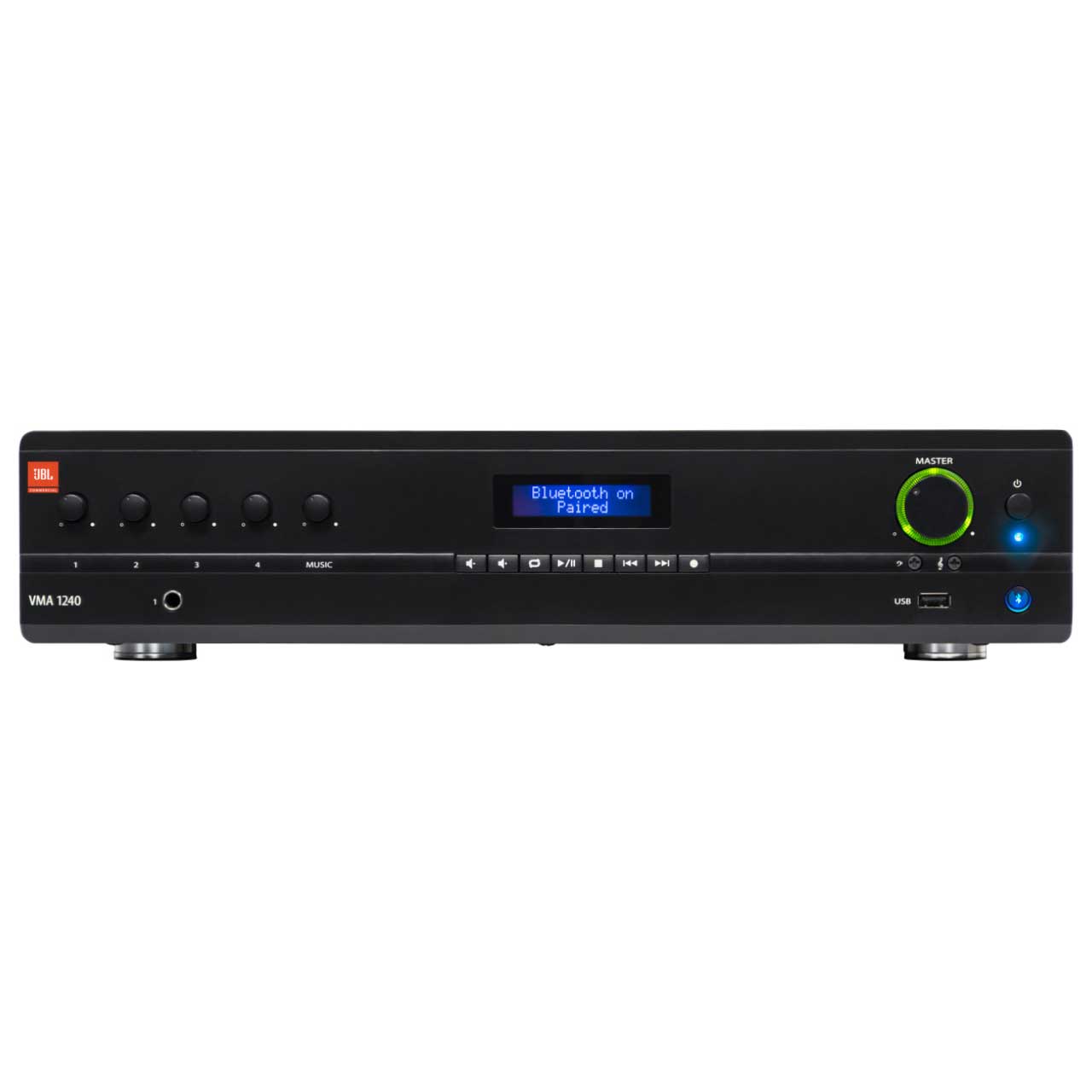

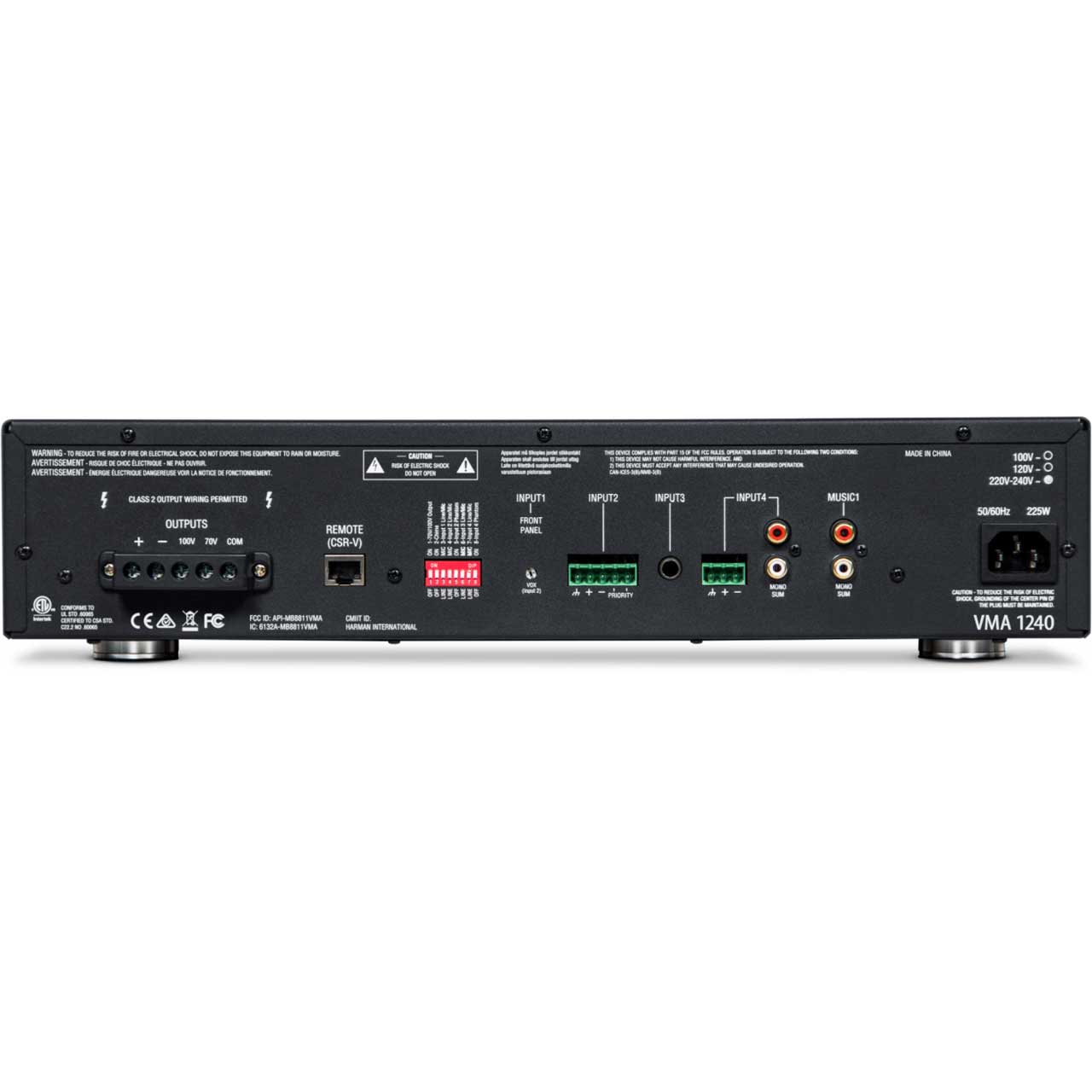

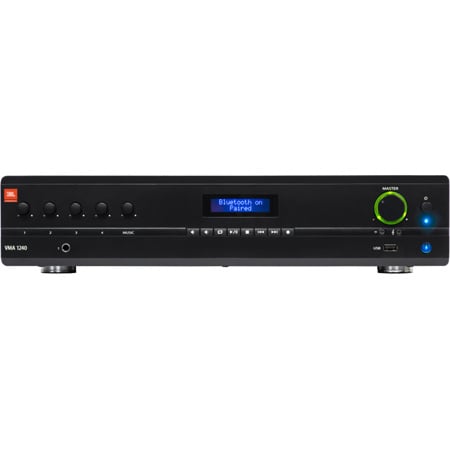

JBL VMA1240 Commercial Series 240W Bluetooth-Enabled Mixer/Amplifier (5-In/1-Out)

VMA1240 - Overview

• Features:

  • 5 inputs with 1 output of 60, 120, or 240-watts of power
  • Independent bass and treble controls for each output channel
  • 100V and 70V output, or 4Ω/8Ω
  • Paging Chime, and Priority muting
  • Works with JBL CSR-V wall controllers
  • Balanced mic/line inputs; RCA (.775V) inputs
  • Rack mounting hardware included


• Specifications:

  • Max Output Power per Channel: into 4 Ω or 8 Ω; 1kHz, 0.5% THD - VMA160: 60W VMA1120: 120W VMA1240: 240W
  • Insertion Loss: (70V & 100V outputs) 1dB maximum
  • Number of Inputs: 5
  • Number of Outputs: 1
  • Tone Controls: (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
  • Input Sensitivity: (to obtain full rated power into 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
  • Frequency Response: (measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
  • Total Harmonic Distortion (THD): (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
  • Signal to Noise Ratio: (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
  • Input Impedance: (nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
  • Phantom Power: 27VDC
  • Crosstalk: (reference rated power, volume at mid position, 1kHz) -70 dB
  • Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
  • Minimum Load Impedance: (Low Impedance Output, 70V Output, 100V Output) VMA160: 4 Ω, 80 Ω,160 Ω VMA1120: 4 Ω, 40 Ω, 80 Ω VMA1240: 4 Ω, 20 Ω, 40 Ω
  • Operating Temperature/Humidity: 0°C to 35°C @ 95% R.H. (non-condensing)
  • Storage Temperature: -20°C to 85°C
  • Net Weight: VMA160: 19.4 lb (8.8 kg) VMA1120: 20.2 lb (9.2 kg) VMA1240: 25.5 lb (11.6 kg)
  • Dimensions: Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
  • Shipping Weight: VMA160: 24.6 lb (11.2 kg) VMA1120: 25.5 lb (11.6 kg) VMA1240: 30.8 lb (14 kg)


• Item Includes:

  • Rack mounting hardware included


• GTIN:

  0691991004483
