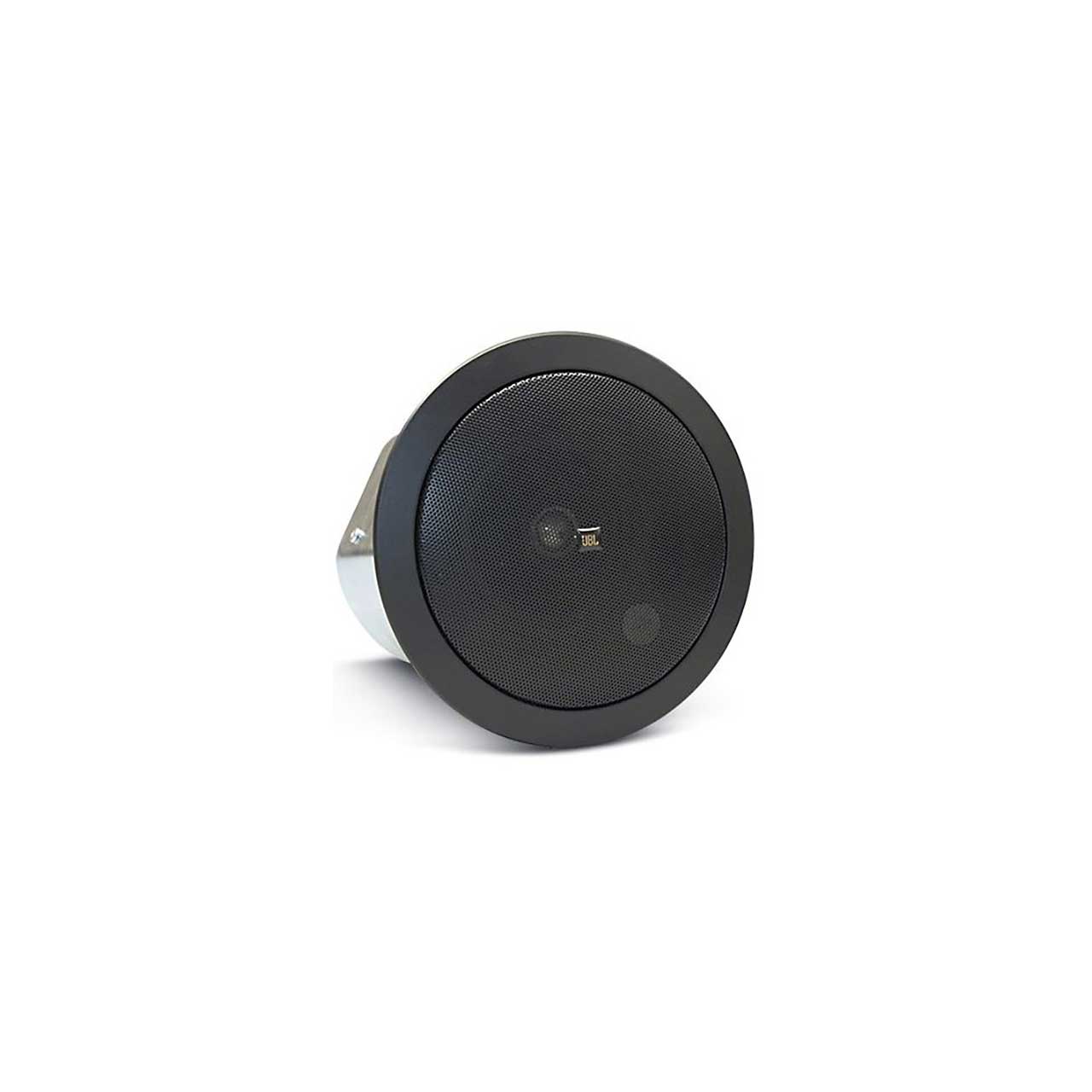

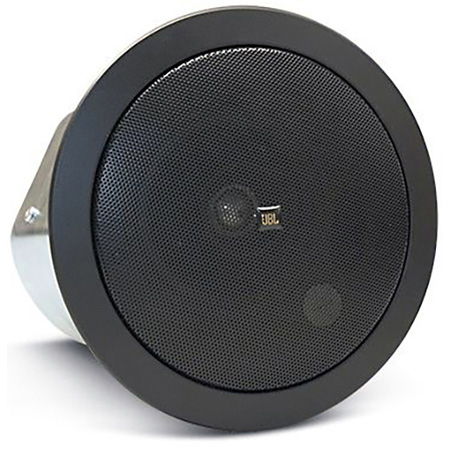

JBL C24CT-BK Medium Output Ceiling Speaker Assembly with Transformer - Black (Pair)

C24CT-BK - Overview

• Features:

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (_ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without
  • sacrificing performance
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • Black baffle and grille works well in black and dark ceiling


• Specifications:

  • Freq. Range (-10 dB): 80 Hz - 20 kHz
  • Power Capacity: 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise
  • Transformer Taps: 70 V: 30W, 15W, 7.5W & 3.7W taps 100 V: 30W, 15W, & 7.5W taps
  • Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft)
  • Nominal Coverage Angle: 130° conical coverage
  • Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz
  • Directivity Index (DI): 3.8 averaged 500 Hz to 4 kHz
  • Transformer Insertion Loss: Max 0.8 dB
  • Low-Frequency Transducers: 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former
  • High-Frequency Transducers: 19 mm (0.75 in) Titanium coated polyester
  • Enclosure: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
  • Termination: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm)
  • Outside Dimensions (H x Dia): (7.9 x 7.7 in)
  • Cutout Size: (6.6 in)
  • Net Weight (ea): (8 lb)
  • Shipping Weight (pair): (18 lb)


• GTIN:

  0658700911494
