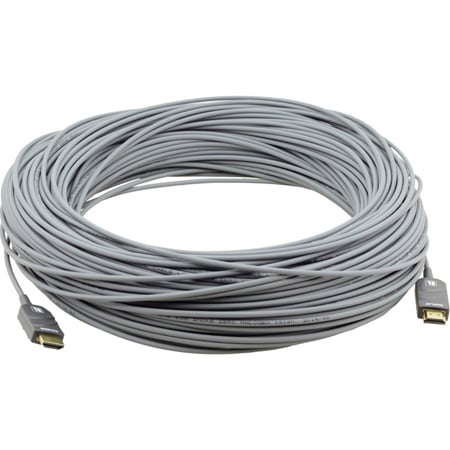

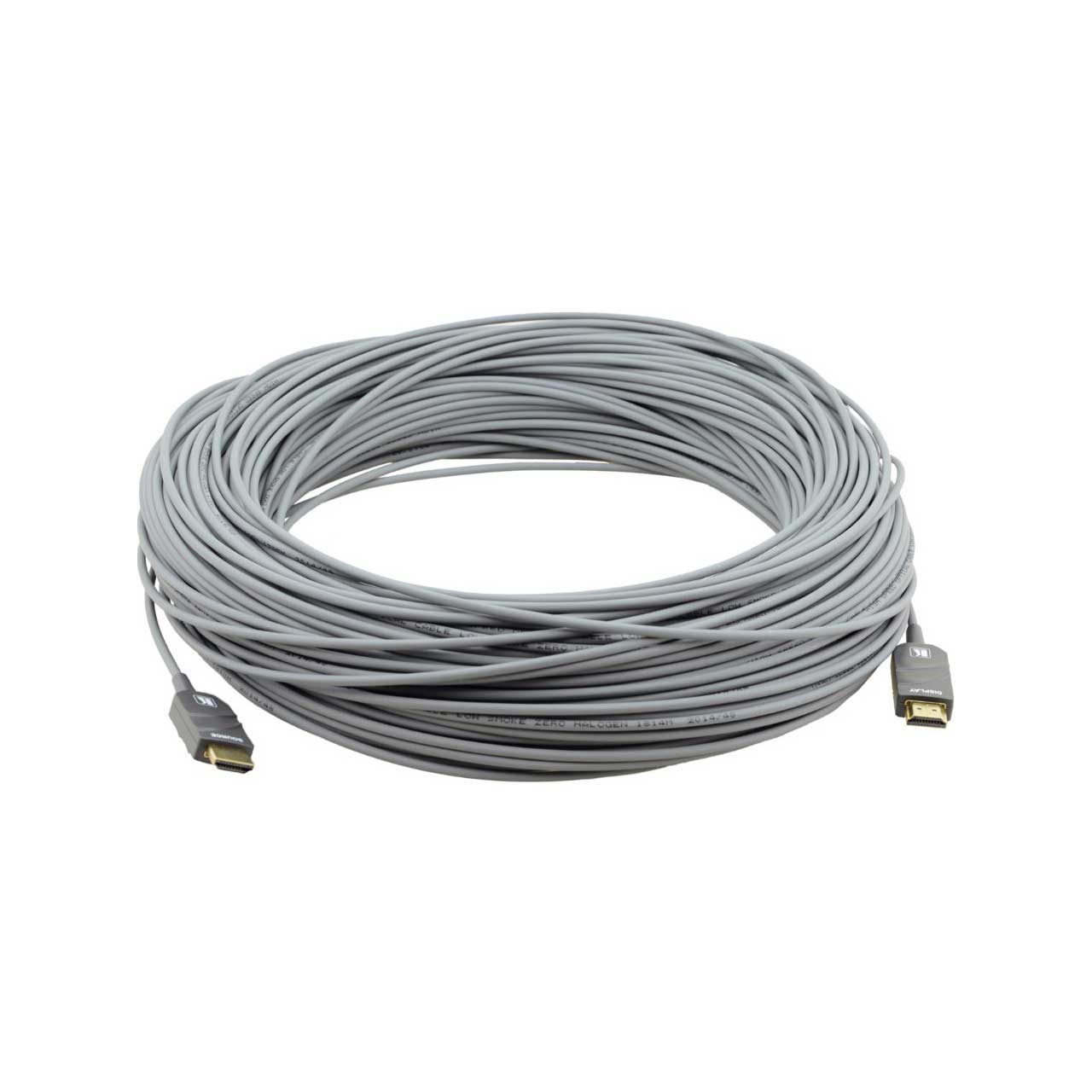

Kramer CP-AOCH/66 High-Speed HDMI Active Optical Hybrid Cable - Plenum Rated - 66 Foot

CP-AOCH-66 - Overview

• Features:

  • Video Resolution -- Up to 4K@60Hz (4:4:4)
  • High Data Transfer Rate -- Up to 18Gbps
  • Embedded Audio -- PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio
  • HDMI Support -- HDCP 2.2/1.4, HDR, EDID, ARC and CEC
  • High-Quality Connectors -- 24K gold-plated, corrosion-resistant and best possible connectivity
  • Reduced EMI & RFI
  • Thin Construction -- 4.5mm diameter
  • Jacket Construction -- Plenum rated
  • RoHS 2011/65/EU CE,FCC Compliant
  • Varied Selection of Lengths -- Available in versions from 10 to 90m (33 to 295ft)


• Specifications:

  • VIDEO
  • Max Resolution: 4K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC


  • AUDIO
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD


  • PHYSICAL
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector


  • GENERAL
  • Cable Type: Hybrid with OM3 fiber and copper wire
  • O/E Converter: 4 channel 850 nm VCSEL array
  • Material: Bare Copper


  • MECHANICAL
  • Cable Bending Radius: 20mm


  • JACKET
  • Color: Black
  • Diameter : 4.5mm


  • POWER
  • Consumption: 250mW (max)


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 50°C
  • Storage Temperature: -40-70°C


  • STANDARDS COMPLIANCE - EC VERIFIED
  • Safety: CE/FCC


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Environmental: REACH,RoHS 2011/65/ EU


• Item Includes:

  • Kramer CP-AOCH Active Optical HDMI Cable


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063071776
