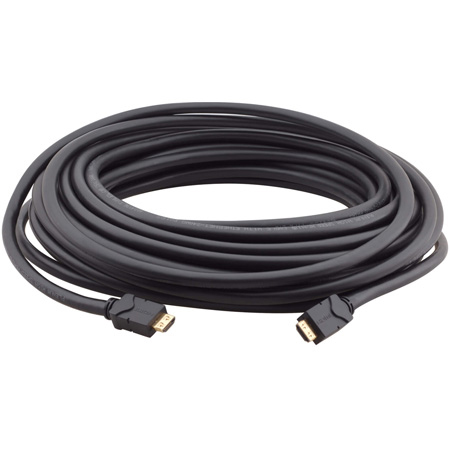

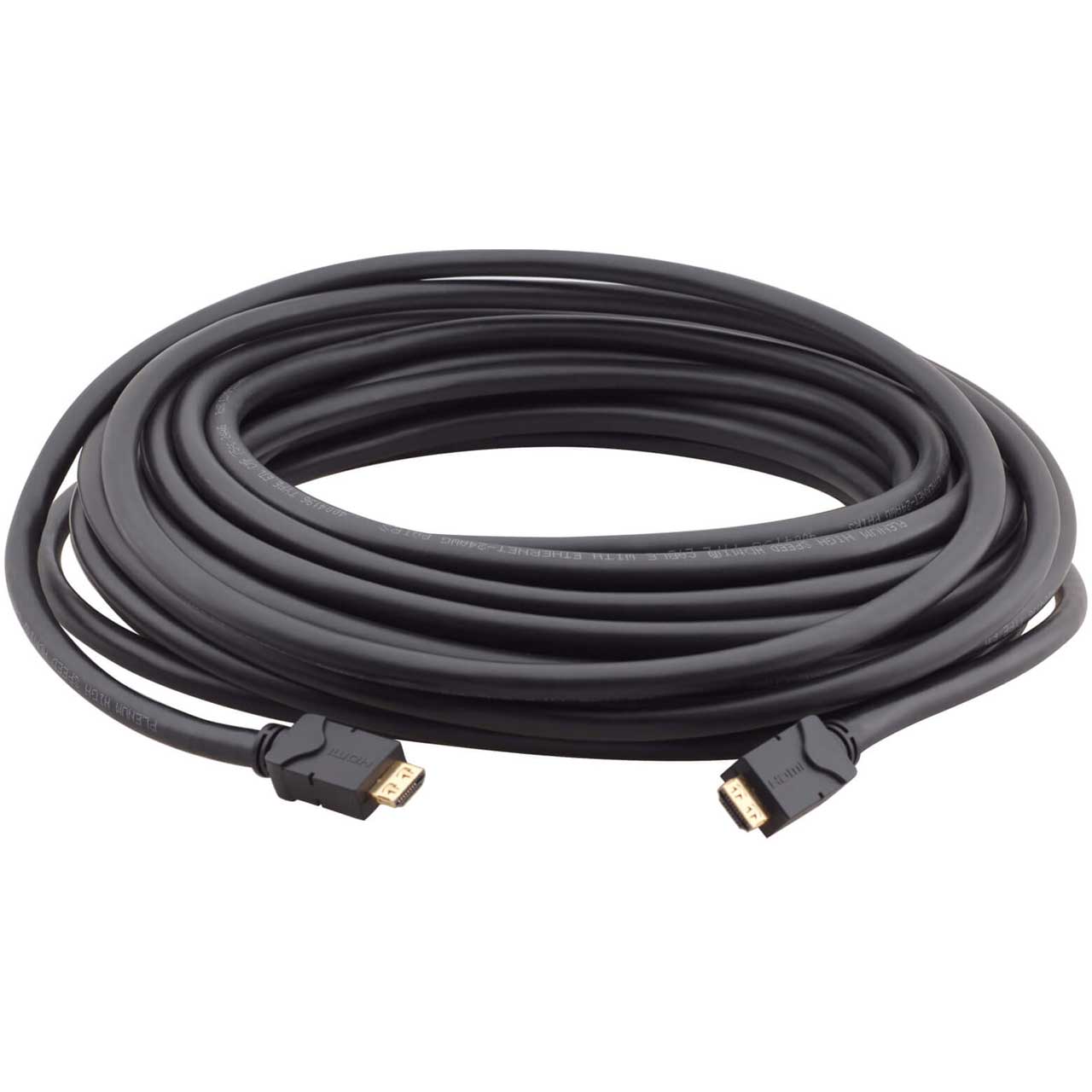

Kramer CP-HM/HM/ETH-50 High Speed HDMI to HDMI Cable with Ethernet - Plenum Rated - 50 Foot

CP-HM/HM/ETH-50 - Overview

High-Speed HDMI Cable with Ethernet - Plenum Rated

• Features:

  • Plenum Rated: The low smoke and fire-resistant properties of plenum rated cable allow it to reside in air return spaces of ceiling, floors, and walls, often saving the cost of installing conduit.
  • Quality Construction: 24AWG, HDMI cables provide an uncompressed digital link for digital audio and high-definition signals between electronic source equipment such as DVD players, set-top boxes and computers and high-definition televisions and large screen displays.
  • High-Quality Connectors: 24k gold-plated connectors resist corrosion, and provide the best possible connectivity.
  • K-Lock Pull-Resistant Connectors: Provide 15lbs of restraining force for a non-slip connection.


• Specifications:

  • Video
  • Max Resolution for 3-15ft (.9-4.6m) Lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25-35ft (7.6-10.7m) Lengths: 4K@60Hz (4:2:0)
  • Max Resolution for 50ft (15.2m) Lengths: 1080p
  • Max Data Rate for 3-15ft (.9-4.6m) Lengths: 18Gbps (6Gbps per channel)
  • Max Data Rate for 25-35ft (7.6-10.7m): 10.2Gbps (3.4Gbps per channel)
  • Max Data Rate for 50ft (15.2m) Lengths: 4.95Gbps (.99Gbps per channel)
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH


  • Amplifier
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master AudioHD™, DVD Audio, SA-CD


  • Physical
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector


  • Conductors
  • Material: Tinned Copper
  • 3-35ft (.9-10.7m) Lengths: 28AWG (7/0.127)
  • 50ft (15.2m) Lengths: 26AWG (7/0.160)


  • Screening
  • Type: Triple shielding


  • Jacket
  • Material: PVC
  • Color: Gray
  • Diameter for 3-35ft (.9-10.7m) Lengths: 7.30 ±0.20mm
  • Diameter for 50ft (15.2m) Lengths: 8.50 ±0.20mm


  • Mechanical
  • Cable Bending Radius for 3-35ft (.9-10.7m) Lengths: 73mm
  • Cable Bending Radius for 50ft (15.2m) Lengths: 85mm


  • Electrical
  • Temperature Rating: 176°F (80°C)
  • Voltage Rating: 30V
  • Conductor Resistance - 28AWG: 239.0Ω/km
  • Conductor Resistance - 26AWG: 150Ω/km MAX. at 20Ω


  • Standards Compliance
  • Safety: Flammability Rating - CL3/FT4
  • Environmental: RoHS 2011/65/ EU


• Warranty:

  • Limited 7 Year Warranty
