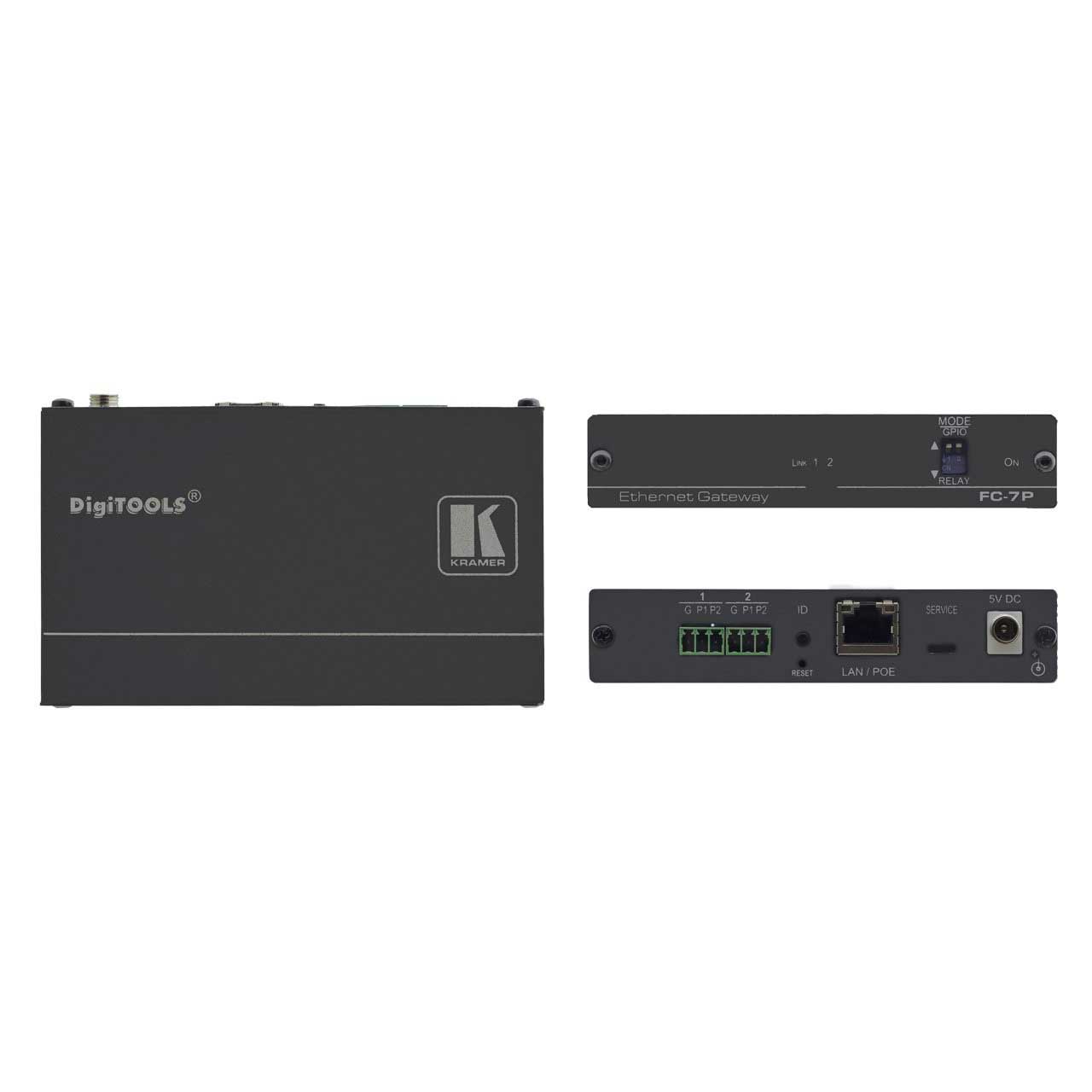

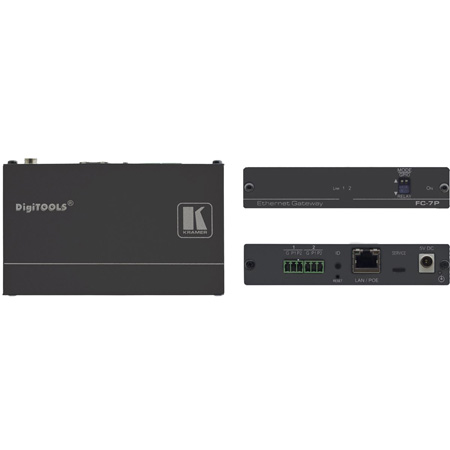

Kramer Control FC-7P 2-Port Multi-Function GPIO/Relay PoE Control Gateway

FC-7P - Overview

Built-in management web UI

• Features:

  • Dual-Function I/O Ports - Remote IP-Based control of devices connected to the control gateway dual-function I/O ports, with selectable port configuration to bidirectional GPIO or relay control.
  • Multiple IP Connected Clients - Remotely connected over customer Ethernet network, concurrently controlling any devices connected to control gateway universal I/O ports.
  • Easy & Reliable Installation - With single PoE cable for both, powering and connectivity, and Plug-and-Play IP Installation with dynamic (DHCP) address resolution and auto device discovery over customer LAN. Highly-resilient powering with multiple power options - USB, Power over Ethernet per IEEE 802.3af standard, and optional PSU (not included). Compact, designed for piggy-back installation, such as behind a TV or display, with the ability to draw power from device USB port and Ethernet connectivity.
  • Remote Management - Built-in web UI for remote browser-based management and support, by multiple IP-clients over customer LAN. Easy firmware upgrades, either remotely via customer LAN, or locally via device USB port.


• Specifications:

  • PORTS
  • 2 GPIO/relay multi-function ports on 3-pin terminal blocks, each selectable as one of:
  • - 2 GPI/O ports
  • - 2 relay ports,
  • 1 LAN on an RJ-45 female connector,
  • 1 mini USB connector for local services


  • MAXIMUM SIMULTANEOUS IP-CLIENT CONNECTIONS
  • 40


  • POWER SOURCE
  • 5V DC, 2A


  • POWER CONSUMPTION
  • 5V DC, 350mA


  • ENCLOSURE TYPE
  • Tools, aluminum


  • COOLING
  • Convection ventilation


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATOR COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • FC-7P Gateway
  • USB Cable (3 feet)
  • Bracket Set


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063079635
