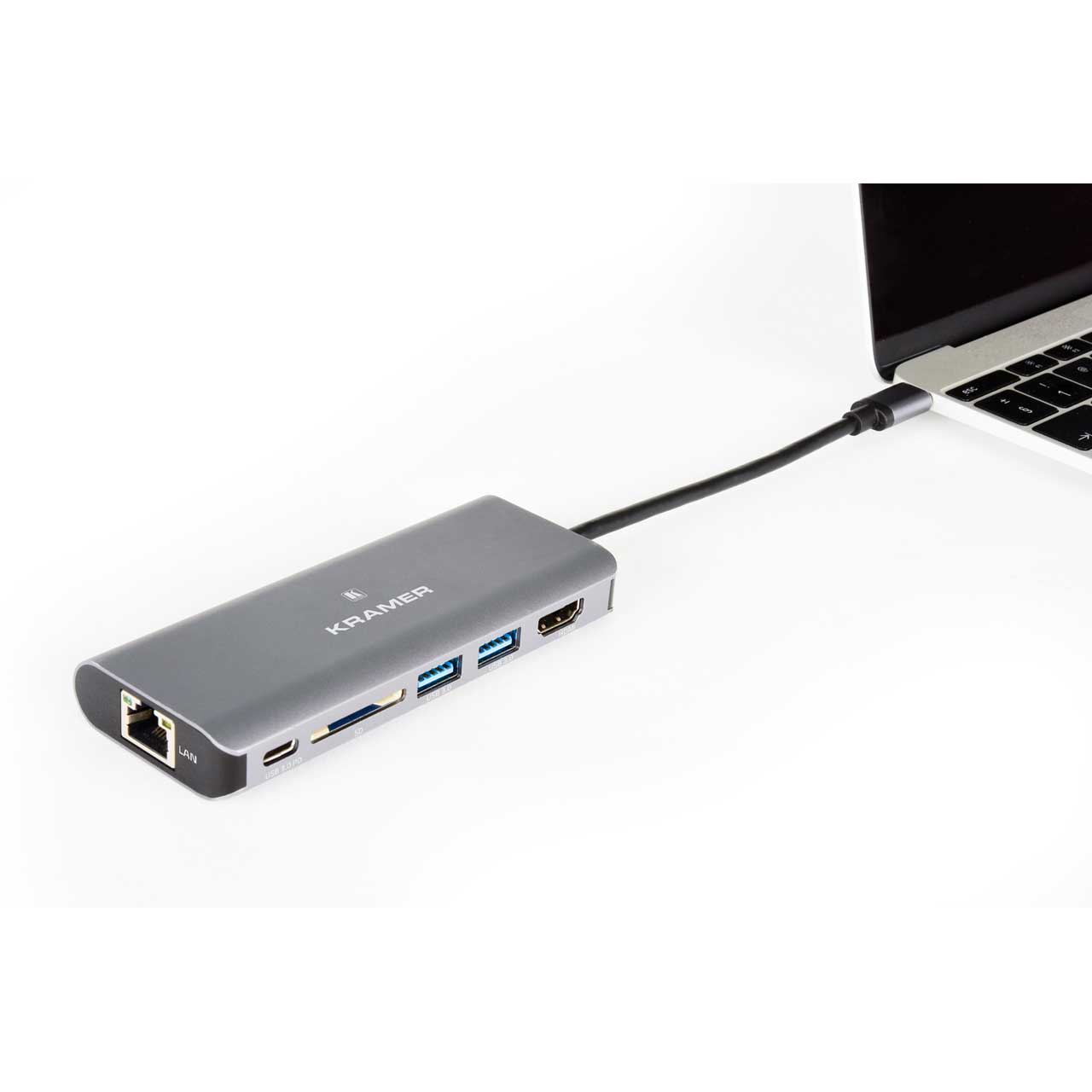

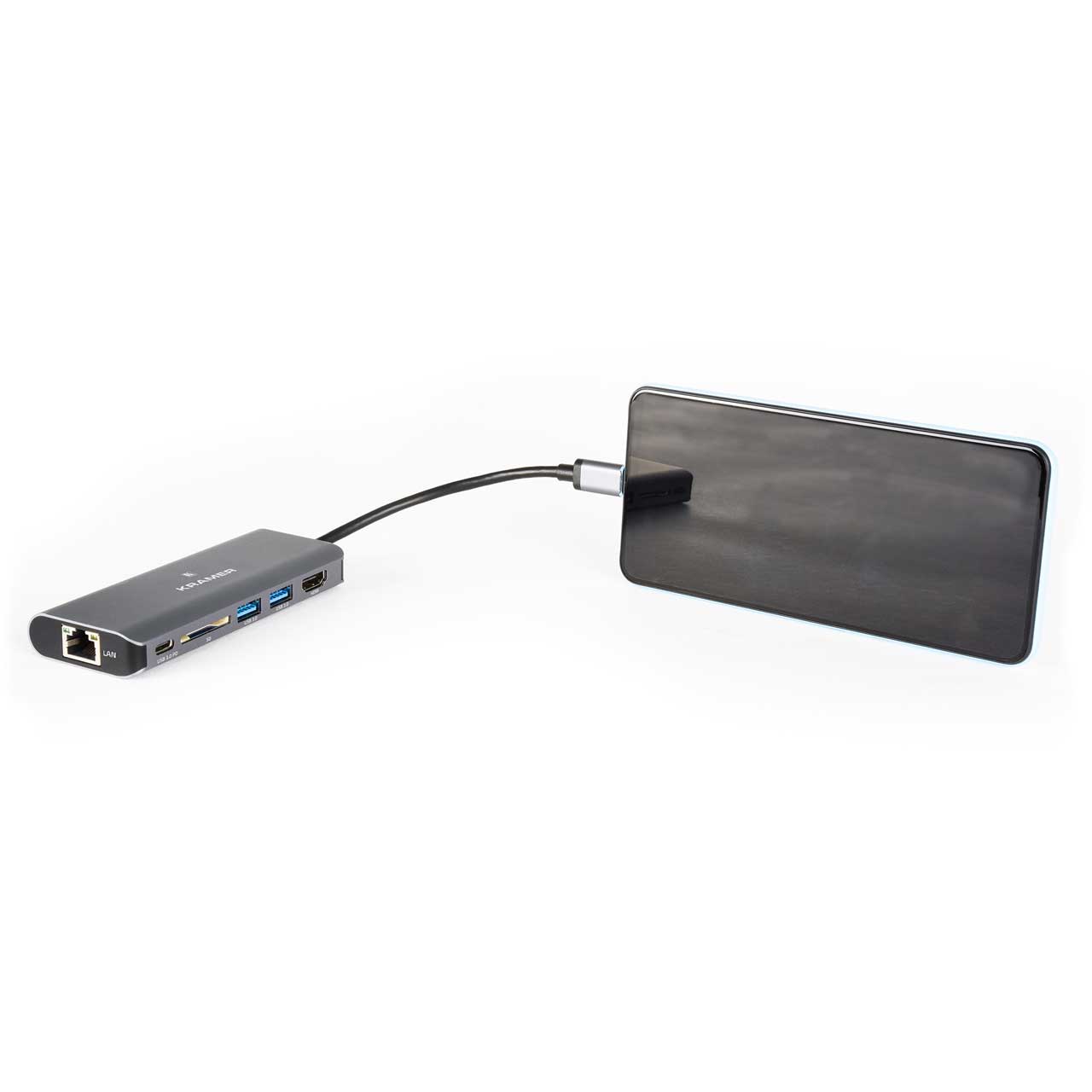

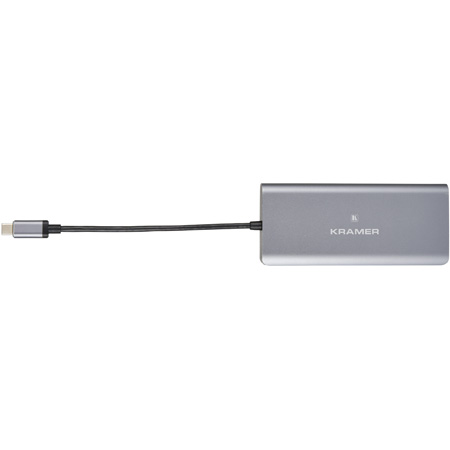

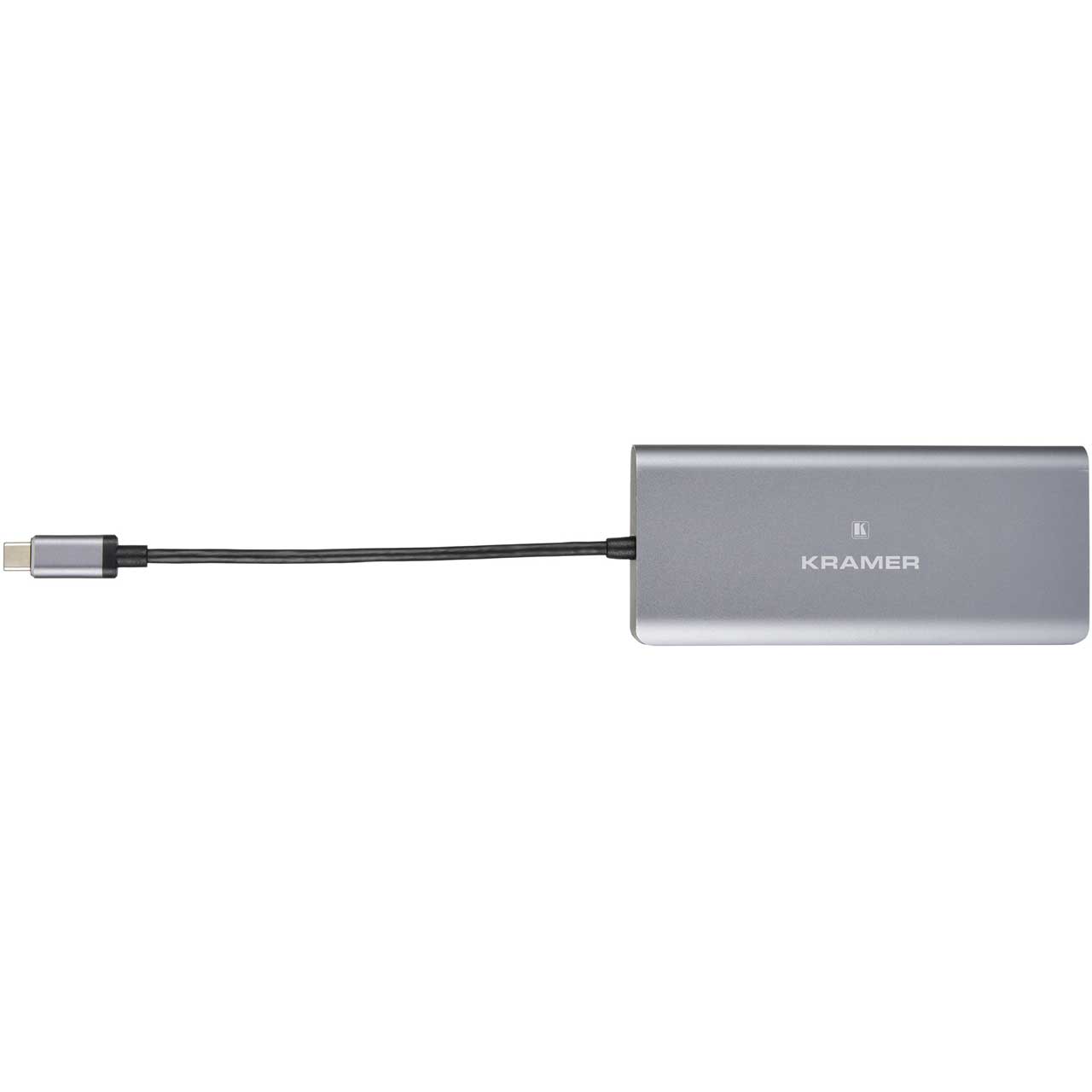

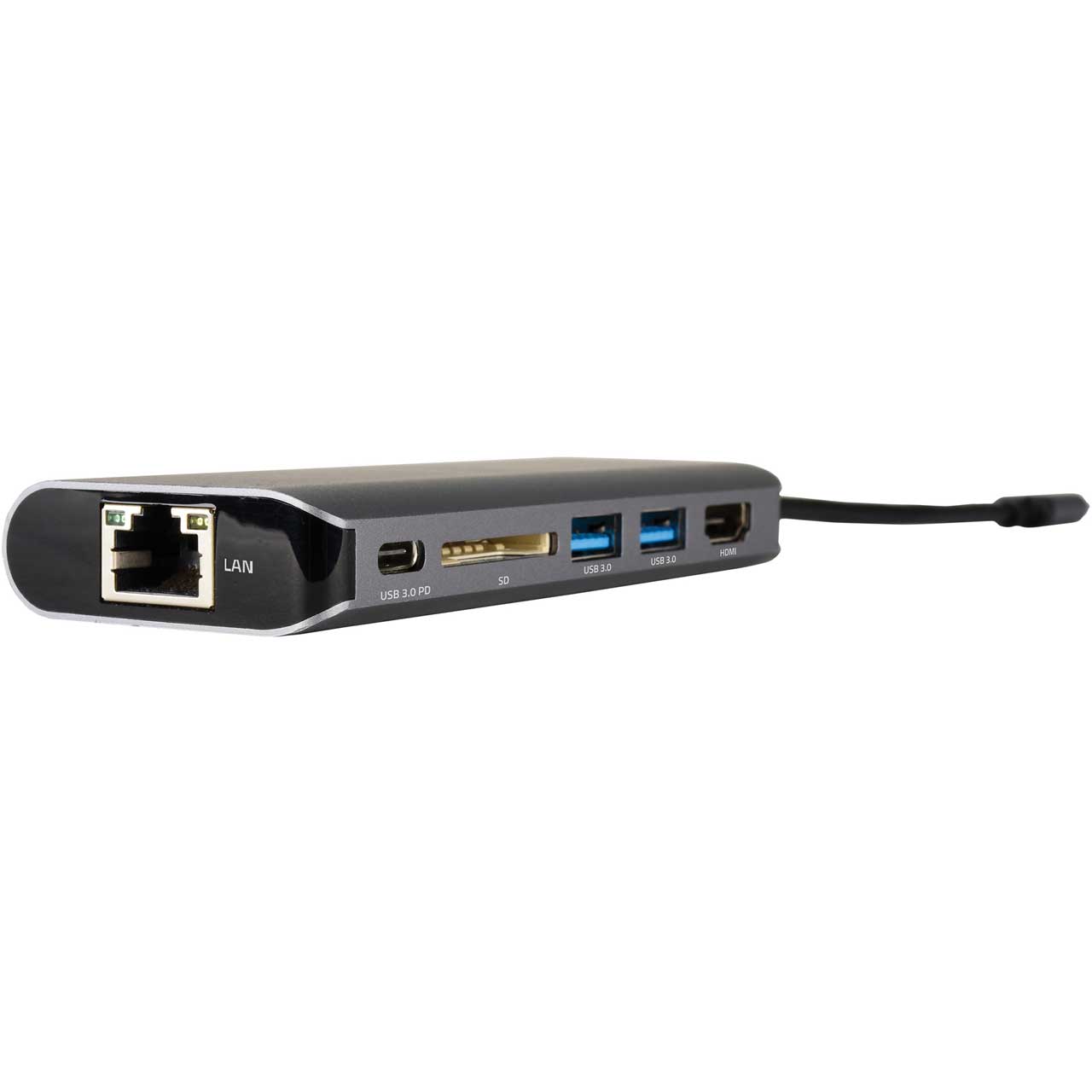

Kramer KDOCK-2 USB-C 3.0 Hub Multiport Adapter with Data/Charging & Ethernet

KDOCK-2 - Overview

4K@30 HDMI output

• Features:

  • 4K@30 HDMI output
  • USB 3.0 data and charging port
  • Ethernet port
  • USB-C data port and charging pass-through


• Specifications:

  • INPUTS
  • 1 USB: On a USB Type-C male connector


  • PORTS
  • 2 USB 3.0: On female USB type-A connectors
  • 1 Ethernet: On an RJ-45 connector
  • SD: On an SD card port
  • 1 USB: On a female USB type-C connector for data and charging


  • VIDEO
  • Max Resolution (HDMI output): 3840x2160P@30Hz
  • Max Data Rate: (HDMI output): 10.2Gbps (3.4Gbps per graphic channel)
  • Content Protection (HDMI output): HDCP 1.4


  • EXTENDED ETHERNET
  • Max Data Rate: 1000M (Gigabit)/100M/10M
  • Includes: Wake-on-LAN (WoL), single Mac address, PXE boot


  • GENERAL
  • USB Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps


  • POWER
  • Delivery: 100W
  • USB Charging: BC1.2 (5V 1.5A)
  • USB Limited Current when Connected to Power via female USB-C port: 1.9A
  • USB Limited Current when Not Connected to Power via female USB-C port: 1A


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +70°C (32° to 158°F)
  • Storage Temperature: -10° to +55°C (14° to 131°F)
  • Humidity: 5% to 90%, RHL non-condensing


  • ENCLOSURE
  • Type: Aluminum with built-in 16cm/6.3" flexible USB-C cable


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE
  • Environmental: RoHs, FCC


• Item Includes:

  • KDOCK-2 USB-C 3.0 Hub Multiport Adapter


• Warranty:

  • Standard One (1) Year Warranty


• GTIN:

  7291063092443
