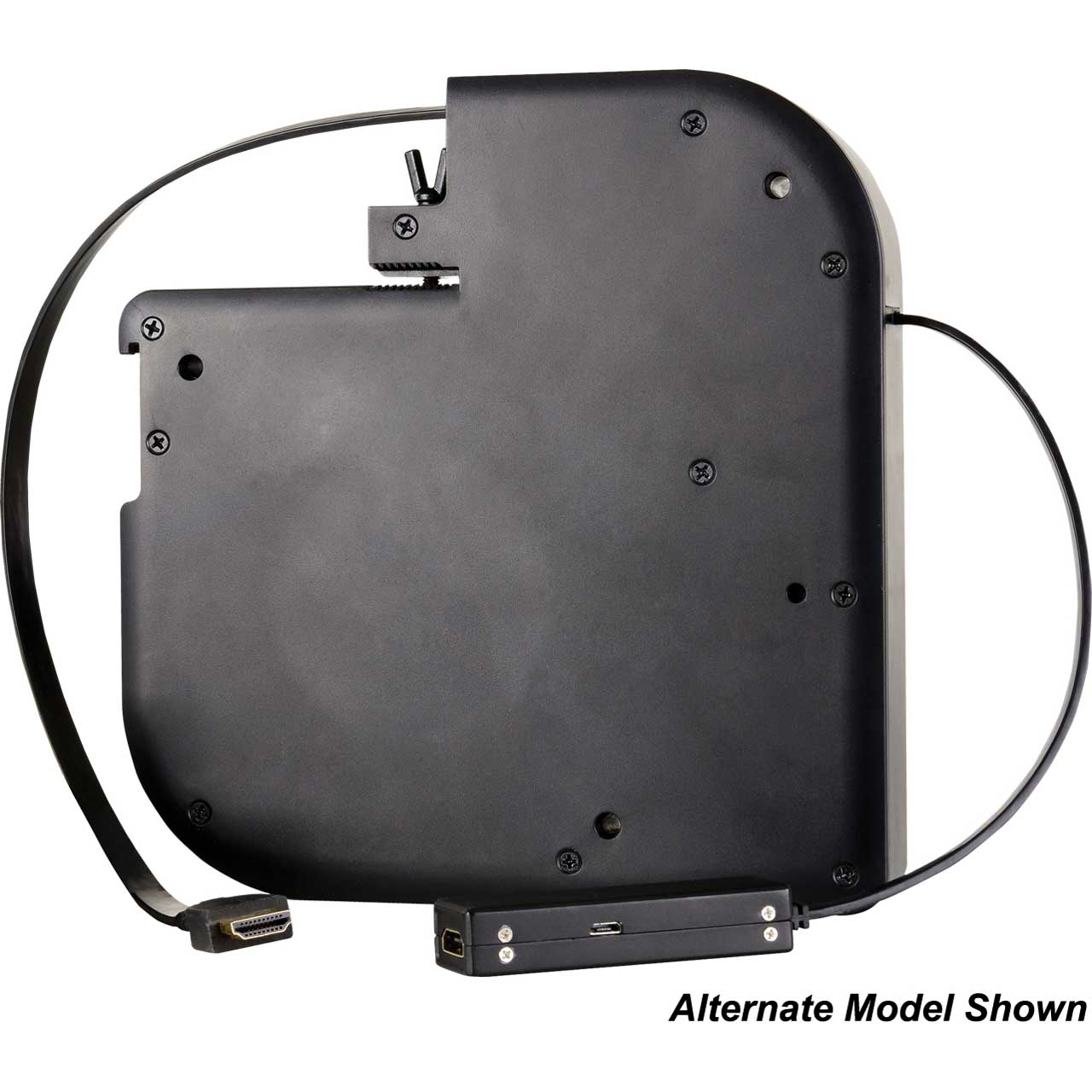

Kramer KRT-4-A Audio Cable Retractor with 3.5mm Mini Jack Connector

KRT-4-A - Overview

Easy to install in a TBUS or as a stand-alone

• Features:

  • Provides Convenient and Easy-to-Use Connecting - Pull the cable to extend up to 1.8m (5.9ft) from the installation site; the cable automatically locks in position to the desired length. When finished, pull the cable again and it retracts into the housing.
  • Improved Design - Gentle retraction feature extends the life of the cable and connector.
  • Simple and Flexible Installation Options - Install in compatible Kramer TBUS models or attach directly to the underside of a table with a few screws.
  • Available in Most Common AV Connector Types - HDMI, VGA, audio (3.5mm), LAN, USB, USB-C, and DisplayPort.


• Specifications:

  • PORTS
  • 1 Female Connector (fixed cable end) for one of the following: VGA, HDMI, Audio, LAN, USB-2.0, USB-3.0, USB-C, 3H2 or DisplayPort
  • 1 Male Connector (retractor cable end) for one of the following: VGA, HDMI, Audio, LAN, USB-2.0, USB-3.0, USB-C, 3H2 or DisplayPort


  • VIDEO
  • Max. Resolution (KRT-4-H, KRT-4-DP): 4K@60Hz (4:4:4)


  • KRT 4-3H2 EXTENDER ADDITIONAL SPECIFICATIONS
  • Optional External Power Source - 5V, 150mA micro USB port
  • Maximum Range for 4K@60Hz (4:4:4) Resolution - 10m from extender to display
  • Maximum Range for 4K@60Hz (4:2:0) / 4K@30 - 15m from extender to display
  • Maximum Range for 1080p@60Hz - 15m from extender to display
  • Maximum Resolution - 4K@60Hz (4:4:4)
  • Content Protection - Up to HDCP 2.2


  • KRT-USBC ADDITIONAL SPECIFICATIONS
  • Max. Data Rate: 10Gbps
  • Power Rating: 3A max
  • Max. Resolution: 4K 30Hz


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Type: Plastic (ABS PC)
  • Color: Black
  • Fixed Cable Length: 20cm (7.9")
  • Retractable Cable Length: 180cm (71")


• Item Includes:

  • KRT-4 Cable Retractor
  • M4x50 screws for installation (3)
  • WCP(KRT) Insert Kit (1)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063091316
