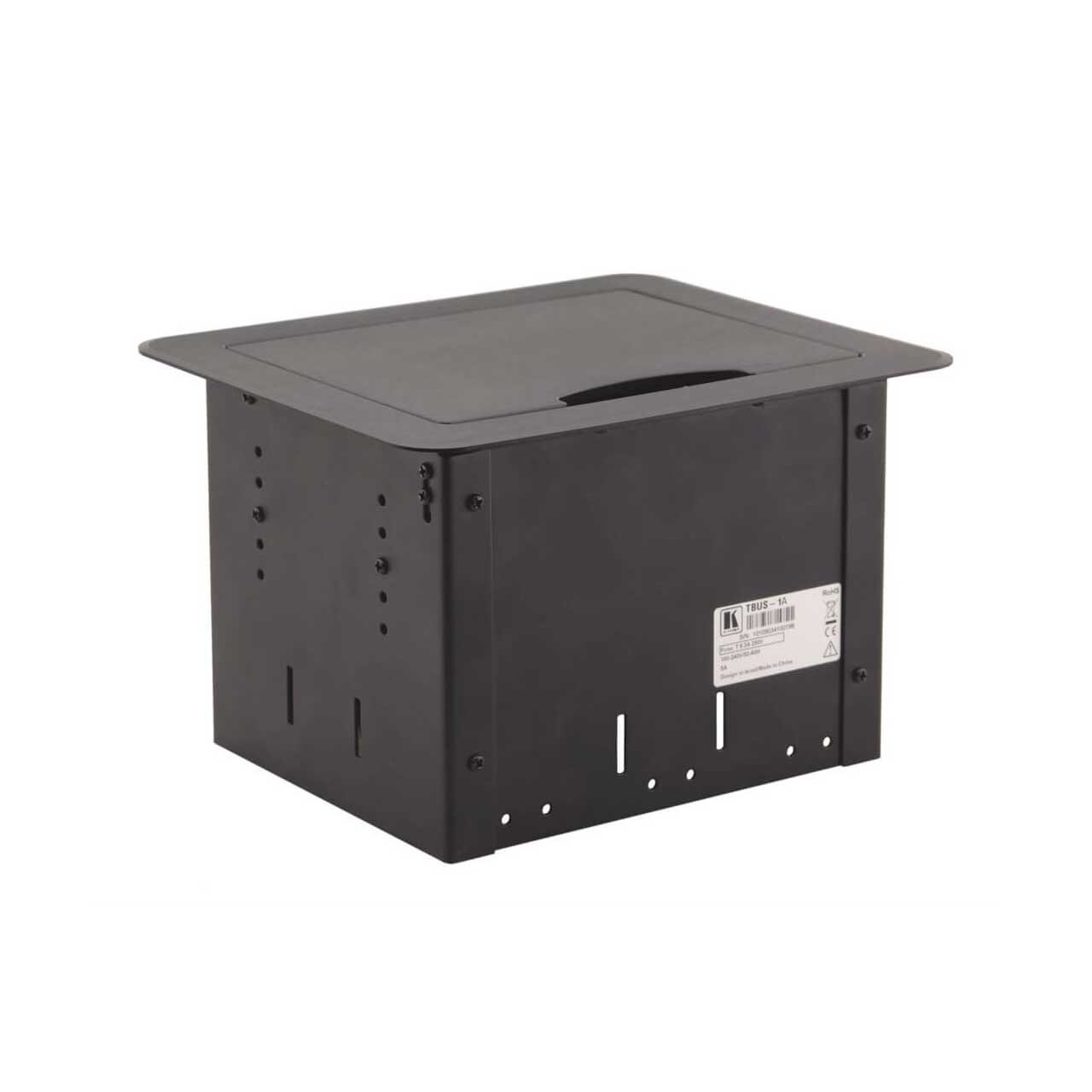

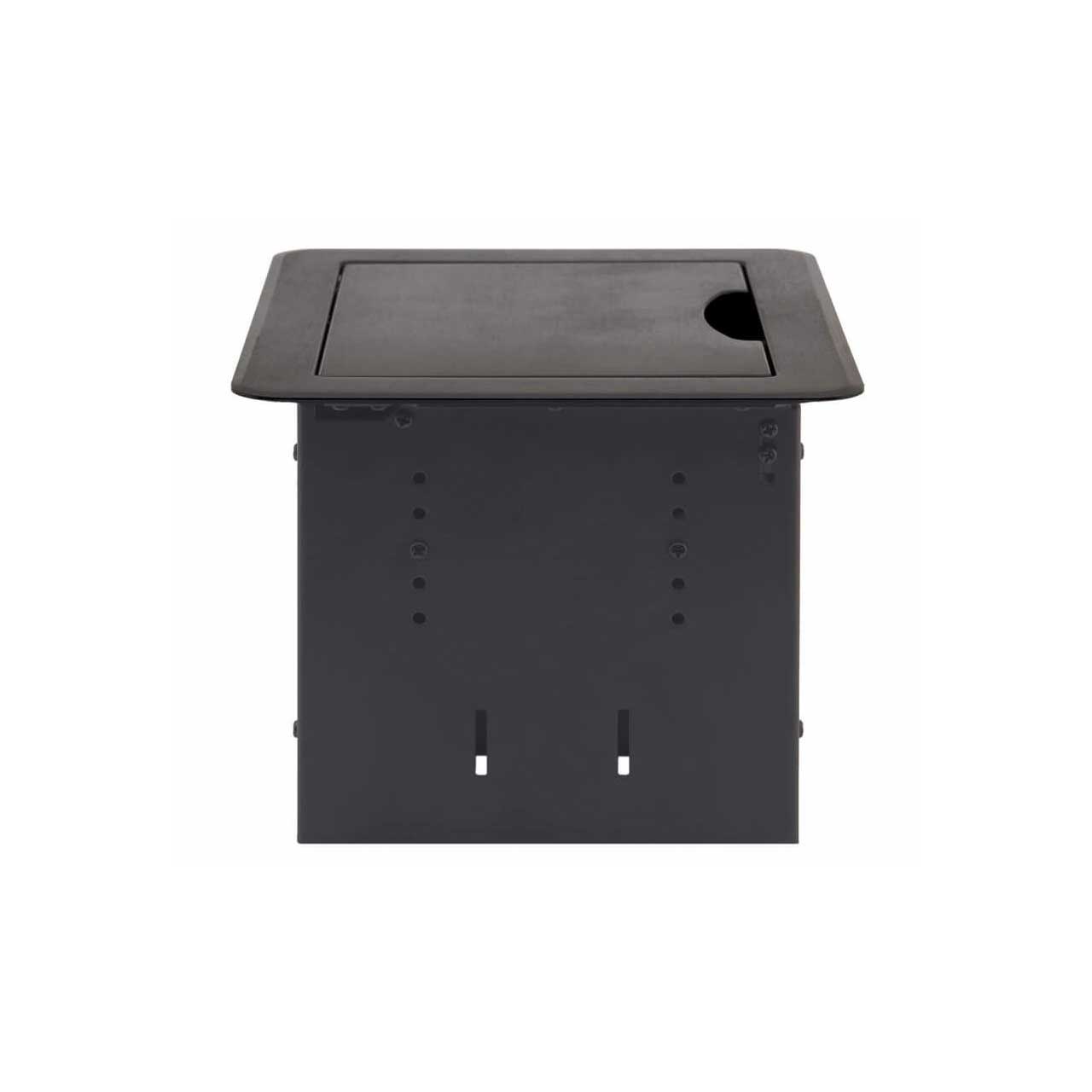

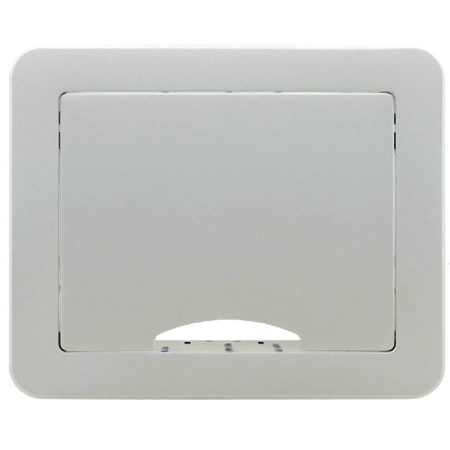

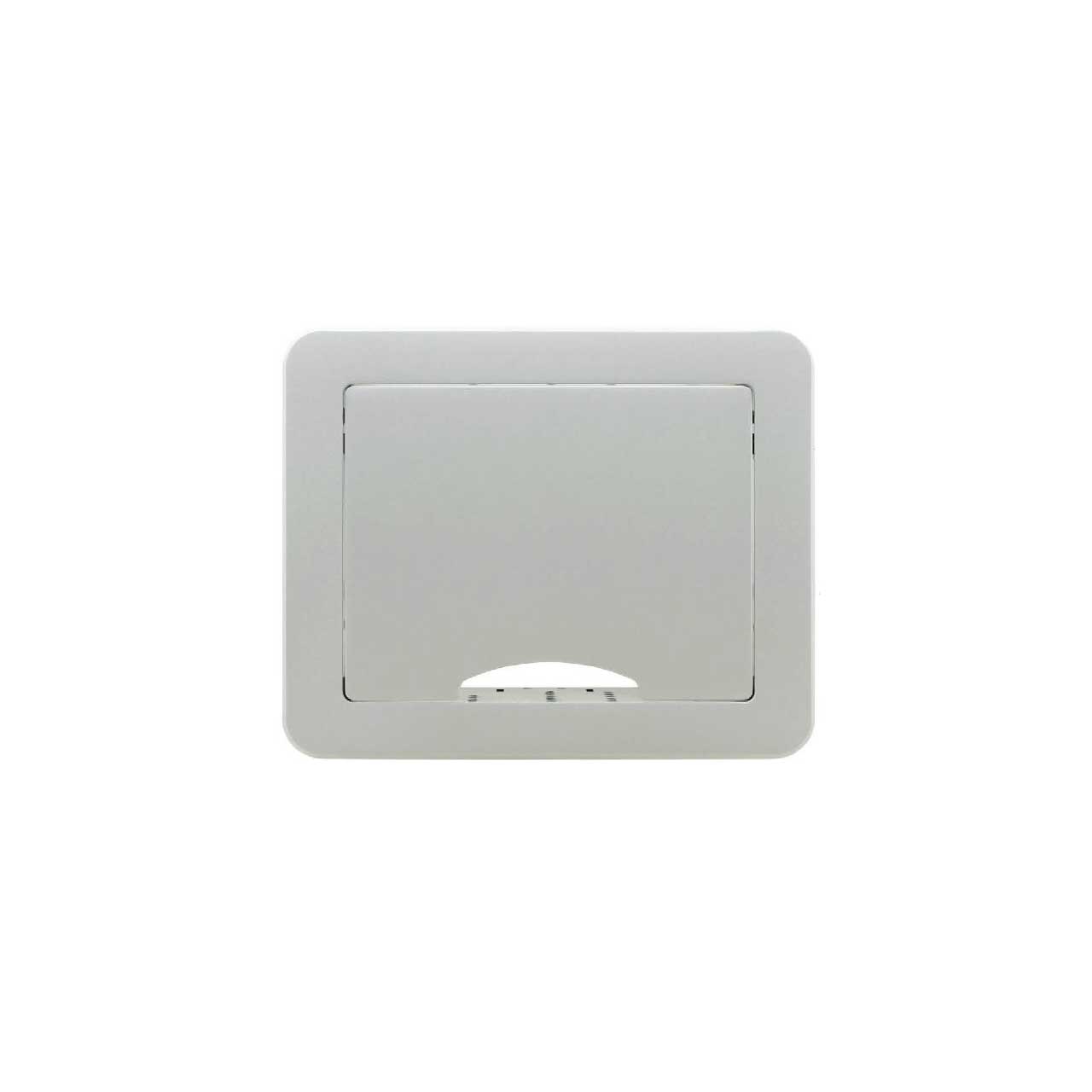

Kramer TBUS-1Axl(BC) Table Mount Modular Multi-Connection Solution - Silver Sand Blasted Top

TBUS-1AXL(BC) - Overview

Table Mount Modular Multi-Connection Solution with a Tilt-Up Lid

• Features:

  • Cover - Manually opens & closes.

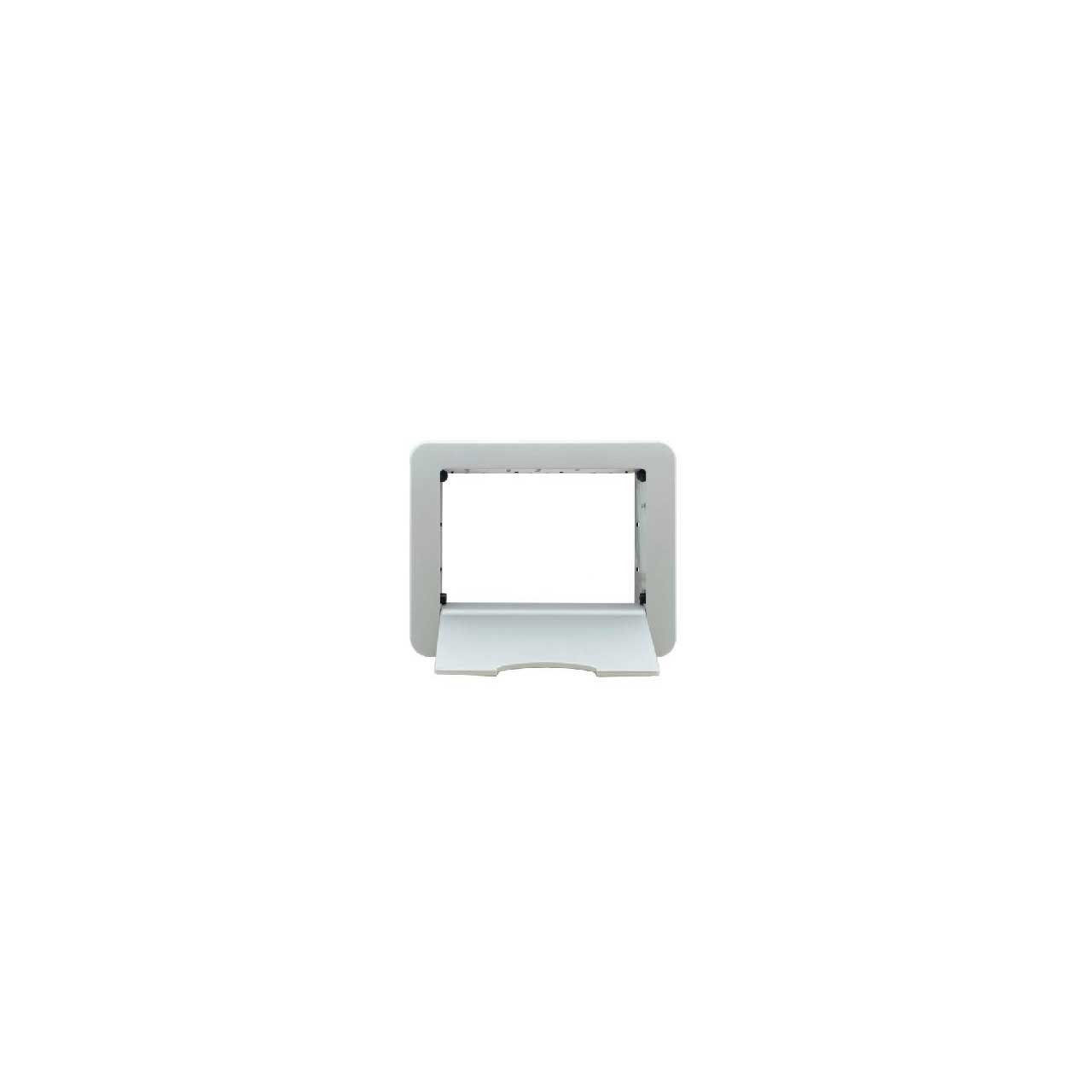

  • Inner Frame - 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  • Power Sockets - 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket.
  • Optional Accessories - TBUS Brackets, K-ABLE Box Cable Reels, Step-In Modules and Controllers are available.
  • UL and CE Qualified.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).


• Specifications:

  • OPERATING TEMPERATURE RANGE:
  • +5° to +45°C


  • OPERATING HUMIDITY RANGE:
  • 10 to 90% RHL, non-condensing


  • STORAGE TEMPERATURE RANGE:
  • -20° to +70°C


  • STORAGE HUMIDITY
  • 5 to 95% RHL, non-condensing


• Item Includes:

  • TBUS-1Axl in sand blasted silver
  • Six self-locking ties


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063018627
