FPA-1 - Overview

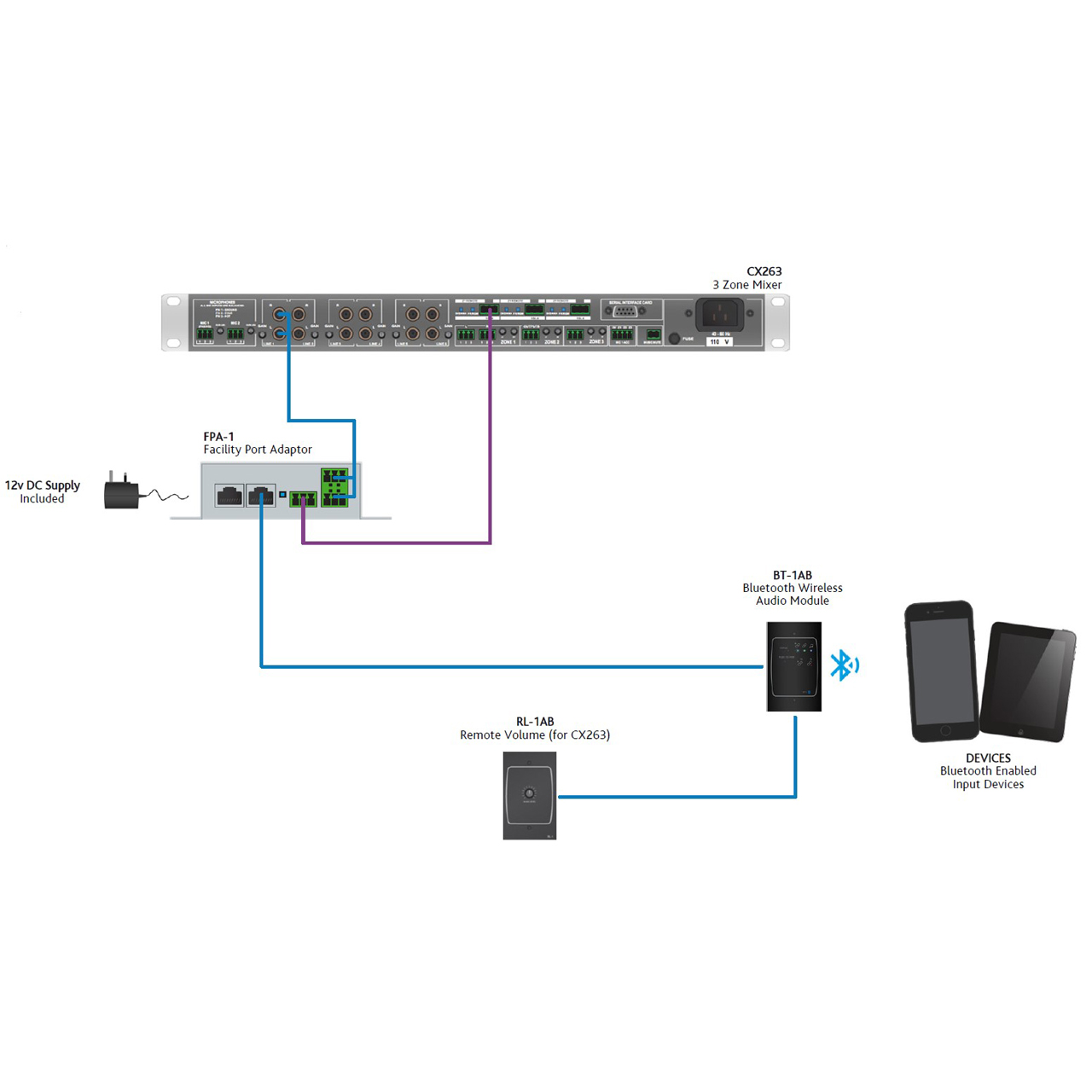

The Cloud Electronics FPA-1 is designed as a comprehensive solution for retrospectively connecting any of Clouds Facility Ported accessory such as the Line-Mic Input plate (LM-2) or Bluetooth Input plate (BT-1) to any system that does not have a Facility Port connector. The FPA-1 also allows for Clouds LE-1, BE-1 & ME-1 Stereo Input Plates to be used on any product with a Line Input. For example a Bluetooth Facility plate can be connected directly to an existing installed amplifier or mixer.

The FPA-1 can also be used as a Power Injector for extending the range of a Facility Plate.

  • Features:

    • 12v PSU included
    • 3x Phoenix Connectors (Degson - 3 pole, 3.5mm Pitch Pole)
    • Twin Electronically Balanced Outputs
    • RSL Output for use with LM-2 Active Input plate
    • Remote Inputs via Bluetooth or Line to any existing sound system.

  • Specifications:

    • Electrical
    • Frequency Response: ±0.5dB 20Hz - 20kHz
    • Distortion: < 0.01%
    • Noise: <-90dB
    • Power Input: 12V AC (adaptor supplied) or 12 - 24V DC

      Physical
    • Dimensions: 4.56" x 1.29" x 2.12" (116mm x 33mm x 54mm)
    • Shipping Dimensions: 7.87" x 5.51" x 3.14" (200mm x 140mm x 80mm)
    • Weight (discounting PSU): 0.4lbs (184g)
    • Shipping Weight: 1.2lbs (545g)

  • Item Includes:

    • 1x Cloud Electronics FPA-1 Facility Port Adapter
    • 1x 12v PSU

  • Warranty:

    • 5-Year Limited Warranty
