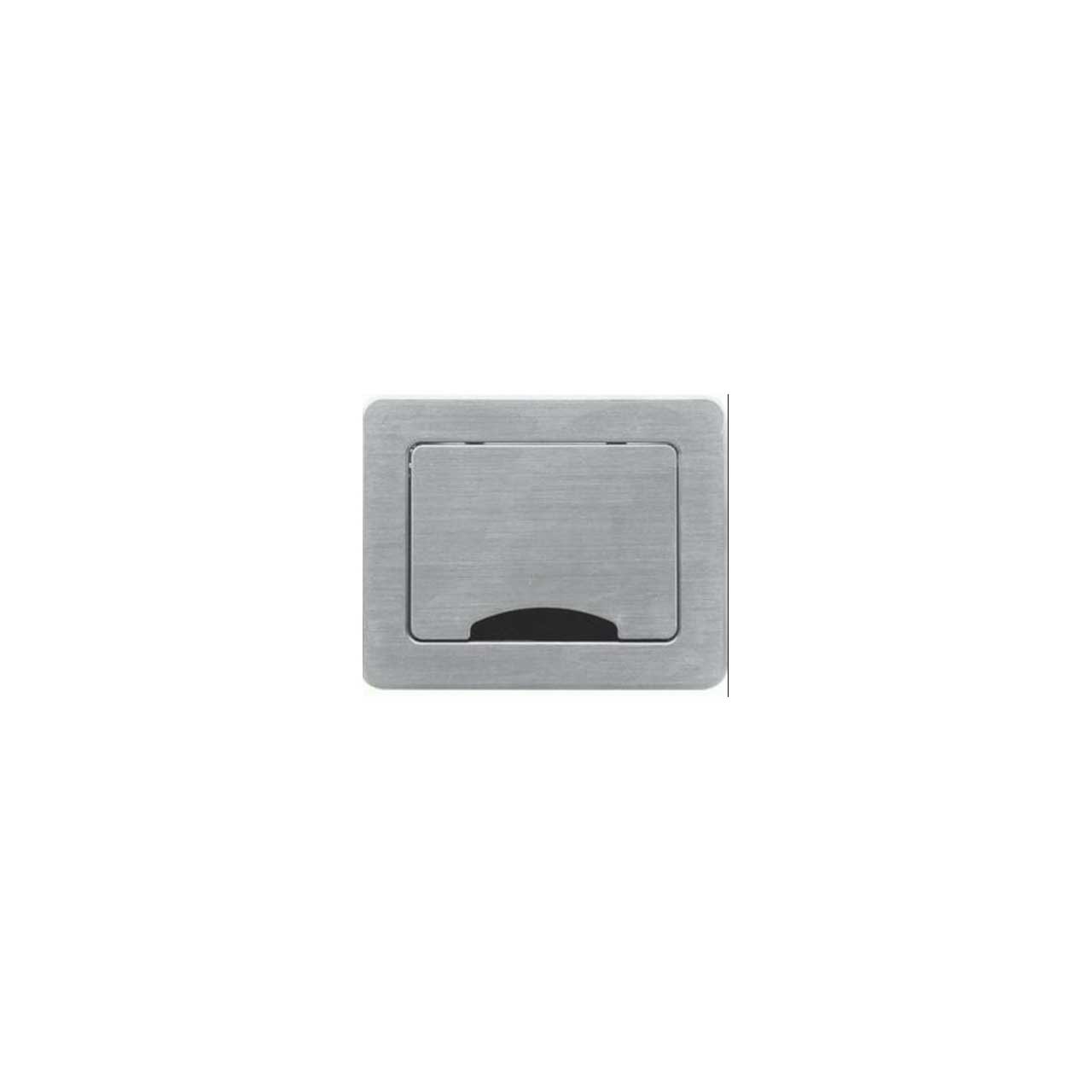

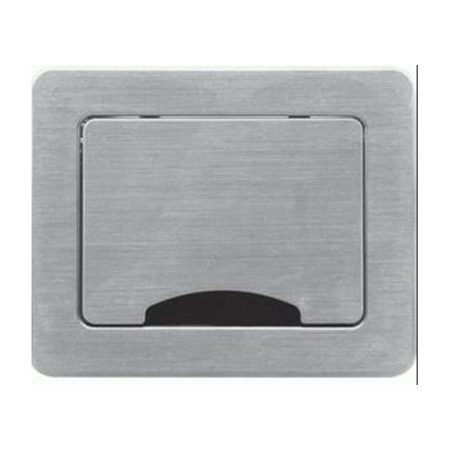

Kramer TBUS-5XLBC Table Mount Modular Multi-Connection Solution - Silver Sand Blasted Top

TBUS-5XL(BC) - Overview

• Features:

  • Inner Frame - 2 different "T5F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  • Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords for each power socket.
  • Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
  • Retractable Lid - Manually slides into unit.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 158mm x 123mm (6.23" x 4.85").
  • Dimensions - Top plate: 17.6cm x 14.0.4cm (6.9" x 5.5") W, D; Enclosure: 15.4cm x 10.2cm x 13.0cm (6.1" x 4.0" x 5.1") W, D, H.
  • Weight - 0.9kg (2.0lbs) approx.; table clamps: 0.25kg (0.55lbs) approx.


• Specifications:

  • DIMENSIONS: Top plate: 176mm x 140.4mm (6.9" x 5.5") W, D; Enclosure: 136mm x 102mm x 130mm (5.4" x 4.0" x 5.1") W, D, H.


  • WEIGHT: TBUS-5 enclosure: 1.35kg (2.98lb) approx; table clamps: 0.26kg (0.57lbs); template: 0.12kg (0.27lbs).


• Item Includes:

  • TBUS-5xl Table Box
  • 6 self-locking ties
  • Cut out template
  • Template screws


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063019006
