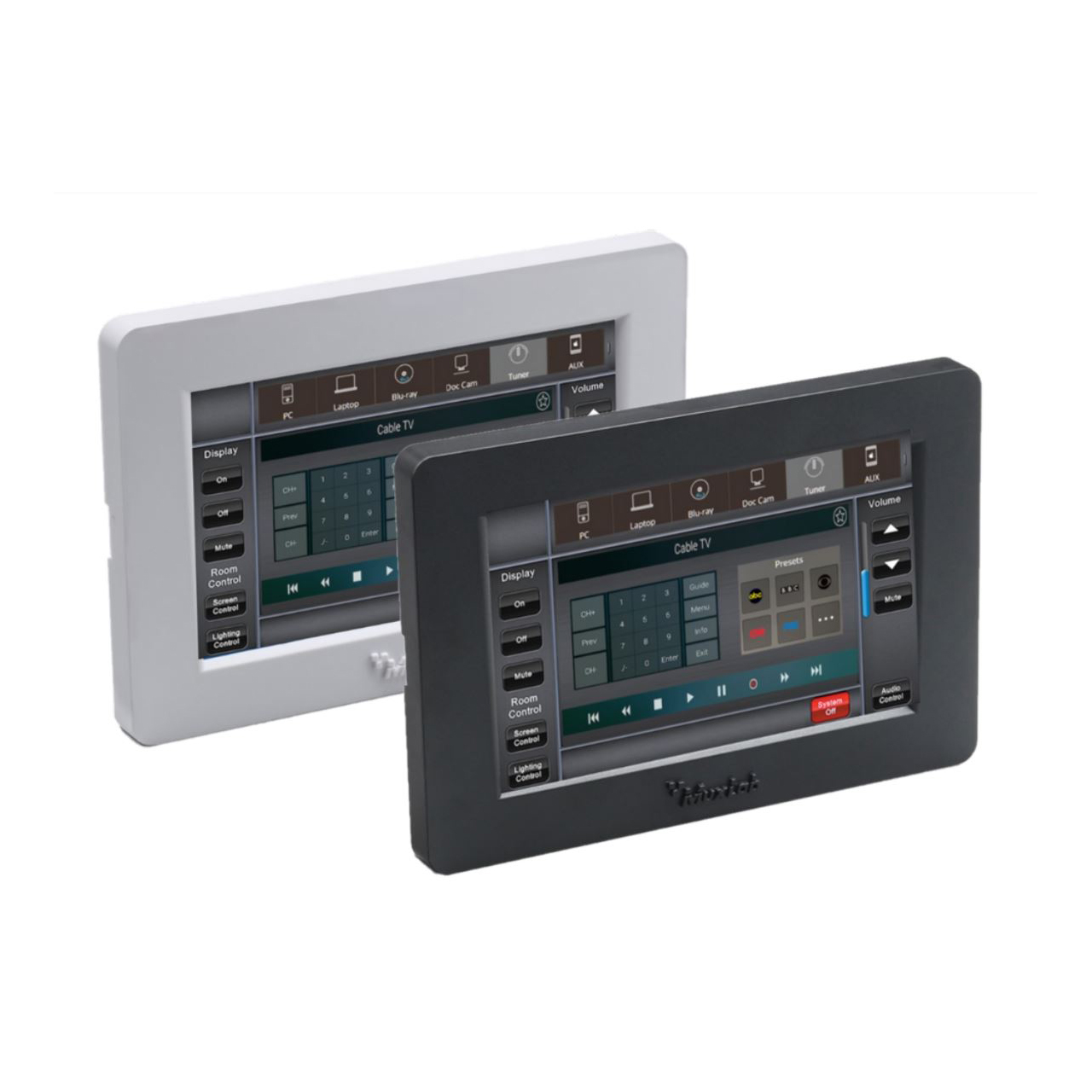

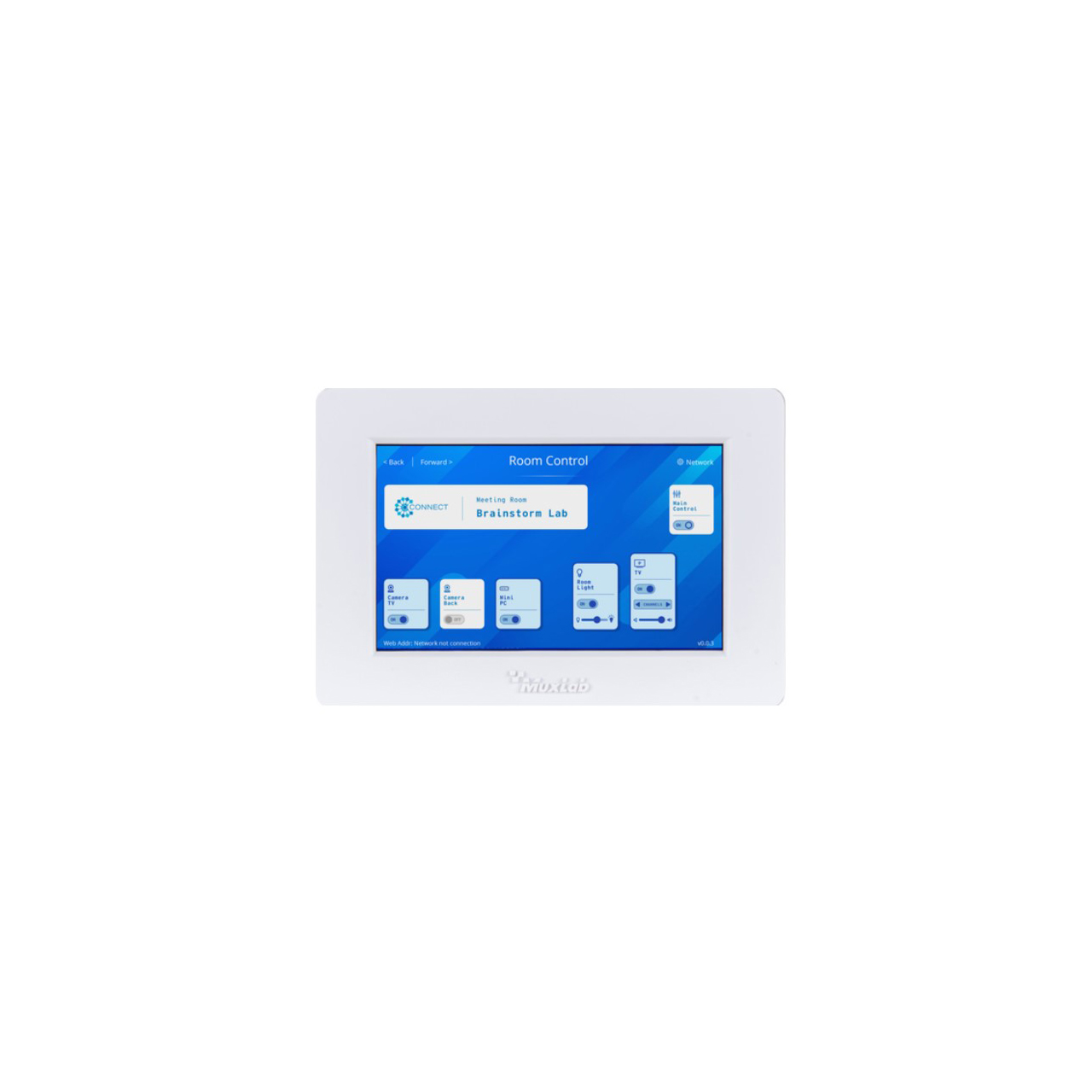

MuxLab 500817-WH High-Resolution Color 5-Inch PoE Touch Control Panel - White

Name: MuxLab 500817-WH High-Resolution Color 5-Inch PoE Touch Control Panel - White
Brand: MuxLab Inc
SKU: MUX-500817-WH
Price: 798.00 USD
Availability: PreSale

ITEM #: MUX-500817-WH MFG #: 500817-WH

MuxLab Inc

List Price:

$998.00

Our Price:

$798.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500817-WH - Overview

The MuxLab 500817-WH Touch Control Panel 5 inch White, PoE is a versatile wall touch control panel for MuxLab devices and third-party products. The device combines the capabilities of an in-wall touch panel and an advanced control processor. Featuring a 5"high-resolution color touch screen, and two-way feedback, the device supports the addition of various programmable buttons that can be placed on different pages as required. The unit supports one Ethernet port (for TCP/IP, HTTP, UDP, and Telnet), two RS-232 ports, one RS-485 port, one Infrared port, two voltage sense ports, and two Relay ports for control of end devices.

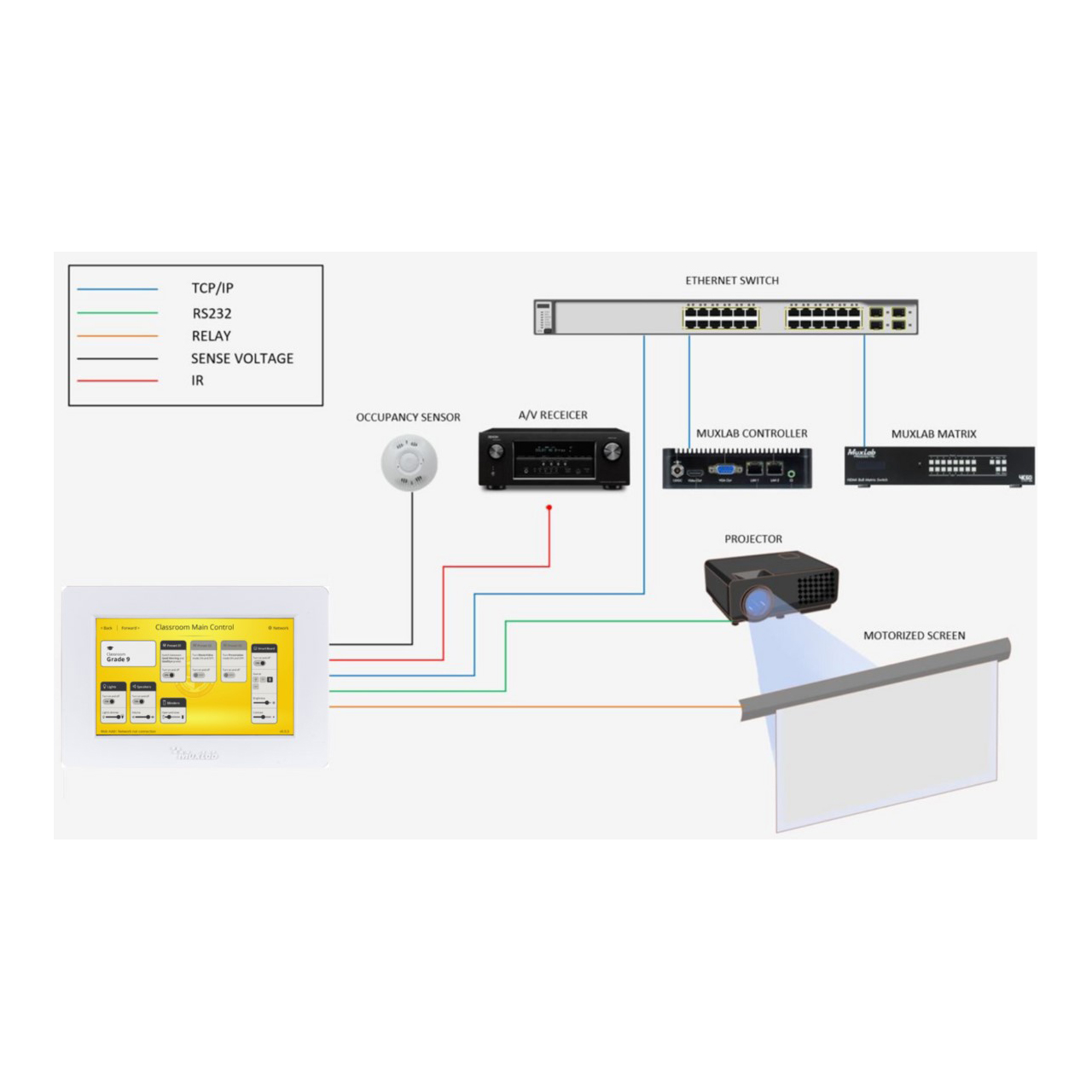

The MuxLab Touch Control Panel 5 inch White, PoE can control MuxLab products including MuxLab's AV over IP system via the 500812 Pro Digital Network Controller, MuxLab's TCP/IP, Telnet and RS-232 managed Matrix Switches, as well as third party devices such as projectors, projector screens, displays, AV sources, and other similar devices. The 500817 Touch Control Panel can be programmed, configured, and managed via the web interface.

Please Note: Installation requires 2 gang US electrical box. Refer to the manual for installaton instructions.

Features:
- 5" LCD panel resolution 480x800
- Control end devices via TCP/IP, UDP, Telnet, RS232, IR & Relay
- Programmable via Web Interface Powered using power supply or PoE (Power over Ethernet)
- Supports the addition of various programmable buttons that can be placed on different pages
- Supports one Ethernet port, two RS232 ports, one RS-485 port, one Infrared port, two voltage sense ports, and two Relay ports
Specifications:
- Devices: AV over IP Controller, Matrix Switch, projectors, monitors, TV
- Compatibility: Compatible with select MuxLab & third party products
- Screen Size: 5.0 inch
- Video Resolution: 800x480
- Touch Screen: Capacitive touch
- Output Ports:
  - 1x Ethernet port for TCP/IP
  - 2x RS232 ports
  - 1x RS485 port
  - 1x Infrared Emitter port
  - 2x Low voltage Relay ports
- Input Ports: 2x Low level detection

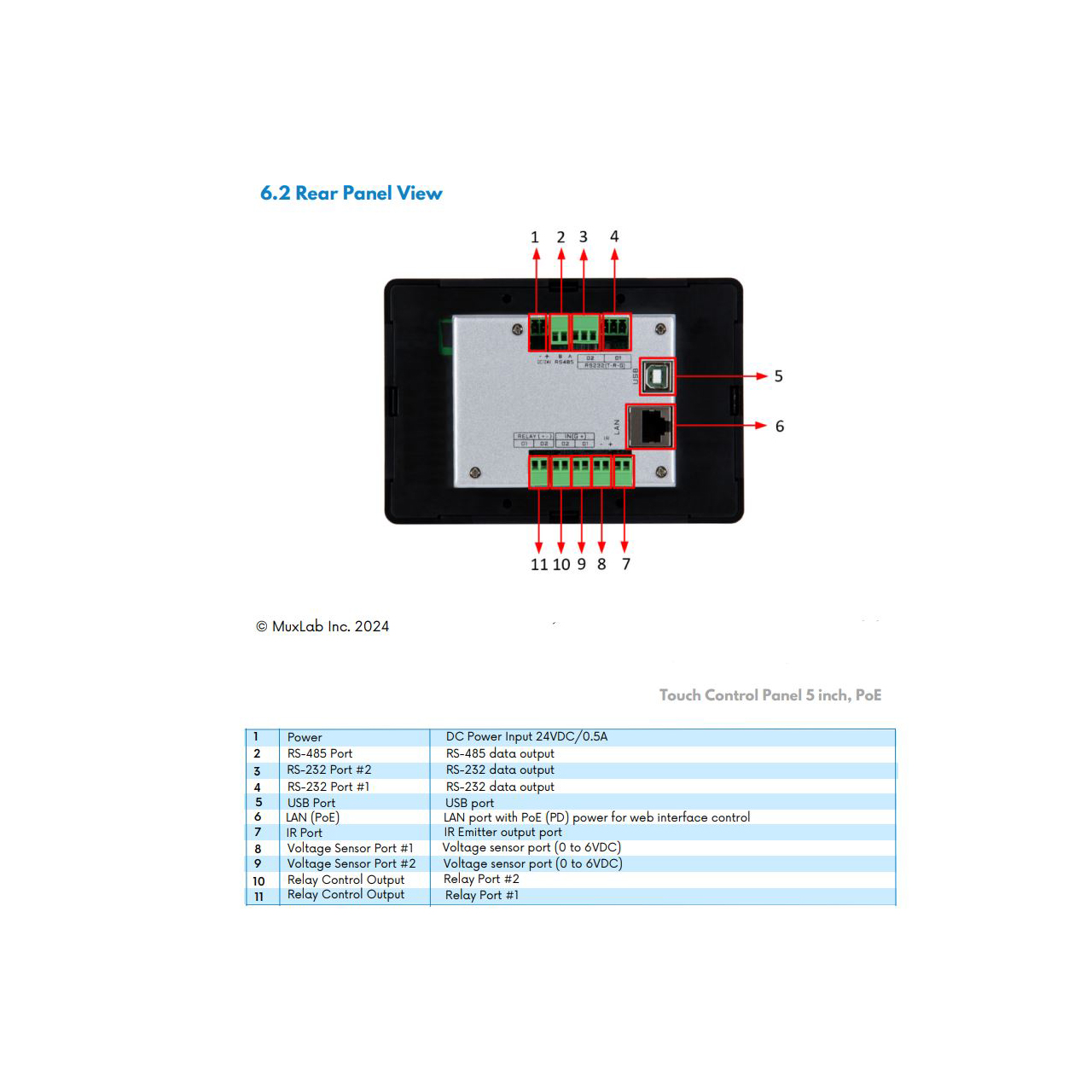

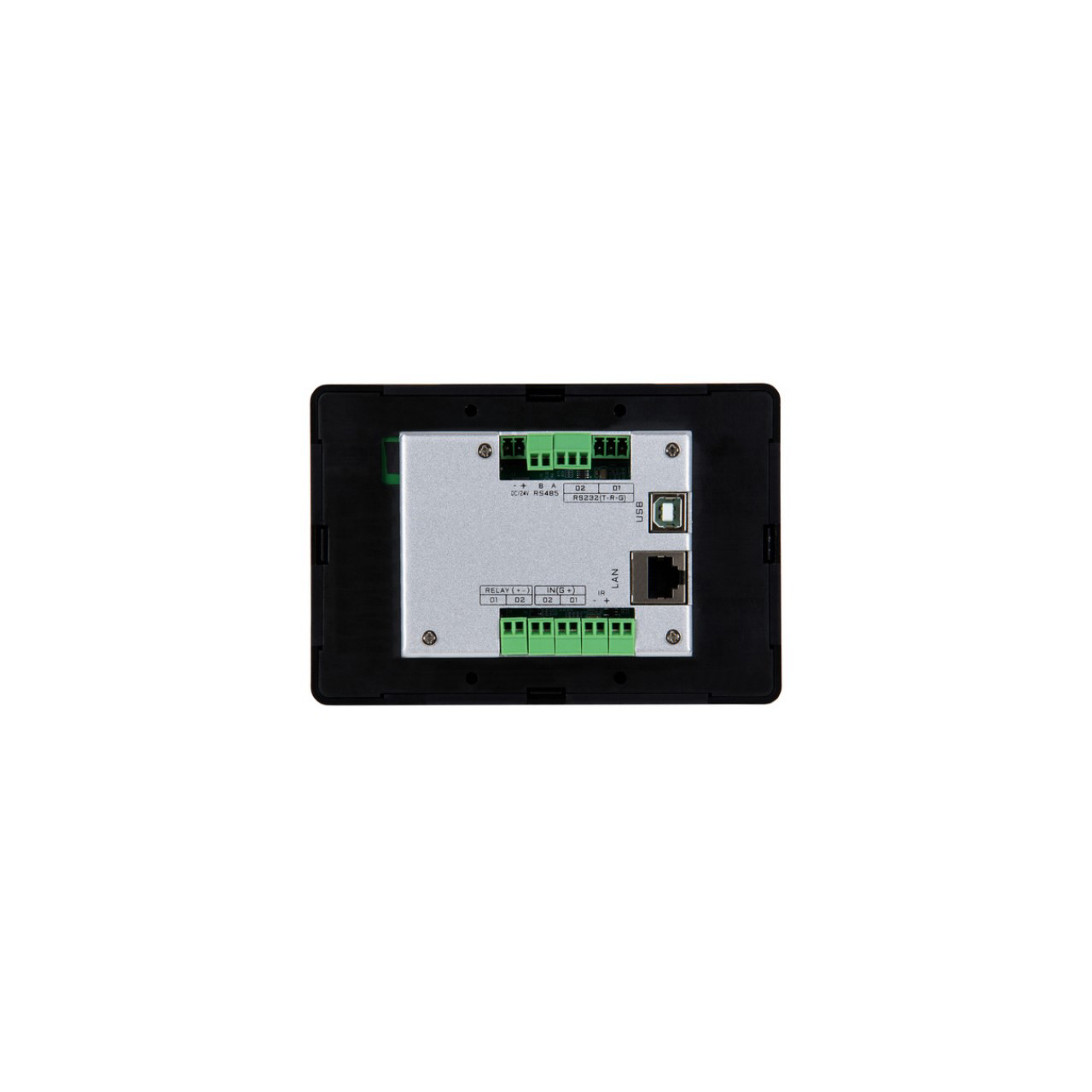

- Connectors:
  - 1x RJ45 for TCP/IP, Telnet, UDP control, and for firmware upgrade
  - 2x 3-pin terminal blocks (3.81mm) for Serial (RS232)
  - 1x 3-pin terminal blocks (3.81mm) for Serial (RS485)
  - 1x 2-pin terminal block (3.81mm) for IR
  - 2x 2-pin terminal blocks (3.81mm) for Relay
  - 2x 2-pin terminal blocks (3.81mm) for Low level detection
  - 1x 2-pin terminal block (3.81mm) for Power
  - 1x USB female Type B for firmware update
- Relay: Max Voltage 30VDC, Max Current 0.5A
- Low Level Detection: Range supported: 0 ~ 6VDC
- PoE: 802.3af
- Power Supply: 1x 110-240VAC to 24VDC/0.2A power supply with US, UK & Euro Blade
- Housing: White Metal Enclosure
- Dimensions: 5.71" x 1.46" x 3.94" (145mm x 37mm x 100mm)
- Weight: 12.13oz (344g)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (non-condensing)
Item Includes:
- 1x Touch Control Panel 5 inch, PoE
- 1x IR Emitter
- 1x Spatula
- 6x 2-Pin Phoenix Connectors
- 2x 3-pin Phoenix Connectors
- 1x 24VDC/0.5A Power Adapter
- 1x User manual (available via download, see attached)
Warranty:
- 2 Year Warranty
Applications:
- Commercial and residential AV systems
- Classroom AV systems
- Boardroom systems
- Home Theatre
- Showroom
GTIN:
0627699018170

500817-WH - Recommended Accessories

MuxLab 500812 Pro Digital Network Controller
MUX-500812
Our Price: $630.00
West Penn Wire 291 2 Conductor Shielded Mic/Low Voltage Communication and Control Cable 1000 Feet Black Reel-In-Box
WP-291-1000BK
Our Price: $124.75
Netgear GS108 8-port Gigabit Ethernet Switch (10/100/1000 Mbps)
NG-GS108
Our Price: $54.99
Ocean Matrix OMX-HDMI-1X2-4K2 4K UHD 1x2 HDMI 2.0 Splitter/Distribution Amplifier with EDID
OMX-HDMI-1X2-4K2
Our Price: $45.95
ATEN VC980 Mini DisplayPort to HDMI Adapter
ATEN-VC980
Our Price: $19.25
CAIG Products CCS-503 Screen Cleaning Kit
CCS-503
Our Price: $16.95
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
FSR SMWB-2G-WHT 2-Gang Surface Mount Wall Box - White
FSR-SMWB-2G-WHT
Our Price: $72.00
RDL WB-2U 2 Gang Universal Wall Box
WB-2U
Our Price: $18.75
FSR DSKB-2G-WHT 2 Gang Desktop Box with an IPS Grommet Kit - White
DSKB-2G-WHT
Our Price: $117.00
