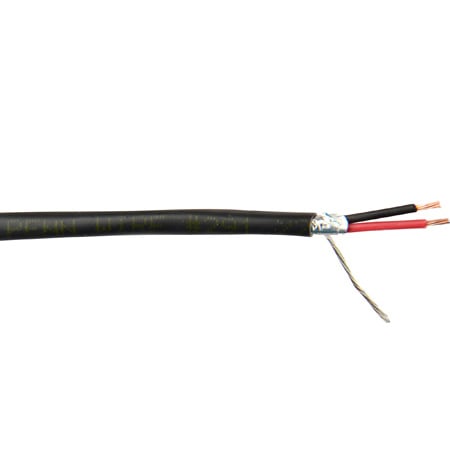

West Penn Wire 291 2 Conductor Shielded Mic/Low Voltage Communication and Control Cable 1000 Feet Black Reel-In-Box

291 BLACK - Overview

• Features:

  • 22 AWG
  • 1000 Feet
  • 2 BC Conductor
  • Black PVC Jacket


• Specifications:

  • Conductor
  • Number of Conductors: 2
  • AWG Size: 22
  • Conductor Stranding: 7x30
  • Conductor Type: Bare Copper
  • Nominal DCR: 17 Ohm/1000ft
  • Cabling Lay Length: 2.5 in
  • Twists/Foot: 4.8 twist/ft

    Insulation
  • Insulation Type: Thermoplastic
  • Insulation Thickness: 0.007 in
  • Insulation Color Code: 1. Black 2.Red

    Shielding Parameter
  • Shield Type: Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG

    Electrical Characteristics
  • Nom. Cap. Between Conductors: 34 pF/ft
  • Nom. Cap. Conductor to Shield: 67 pF/f

    Overall Construction Parameters
  • Jacket Type: PVC
  • Jacket Thickness: 0.017 in
  • Nominal Cable O.D.: 0.127 in
  • Plenum: No
  • NEC UL Rating: CMR, CMG
  • RoHS Compliant: Yes
  • Pull Tension: 24 lbs
  • Bend Radius: 1.143 in
  • Cable Weight: 14 lbs

    Overall Electrical/Optical Characteristics
  • UL Flammability: UL1666 Vertical Shaft
  • CSA Flammability: FT4
  • Operating Range: 4° to 140°F (-20 to 60°C
  • UL Voltage Rating: 300


• Item Includes:

  • 1x West Penn Wire 291 2 Conductor Shielded Mic Cable - 1000Ft - Black


• GTIN:

  0612825051633
