West Penn Wire 291 2 Conductor Shielded Mic/Low Voltage Communication and Control Cable 1000 Feet Gray Reel-In-Box

ITEM #: WP-291-1000GY MFG #: 291 GRAY

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$130.80

Our Price:

$124.75

Availability: In Stock
iAvailability Description Popup


291 GRAY - Overview

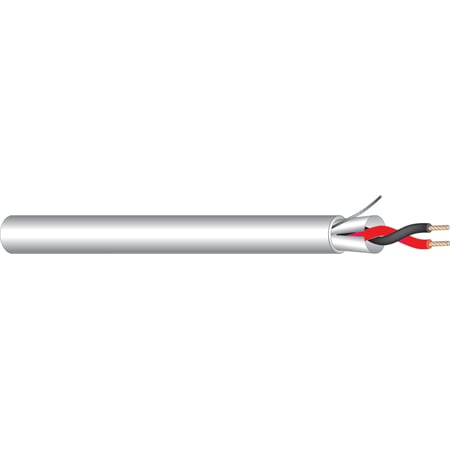

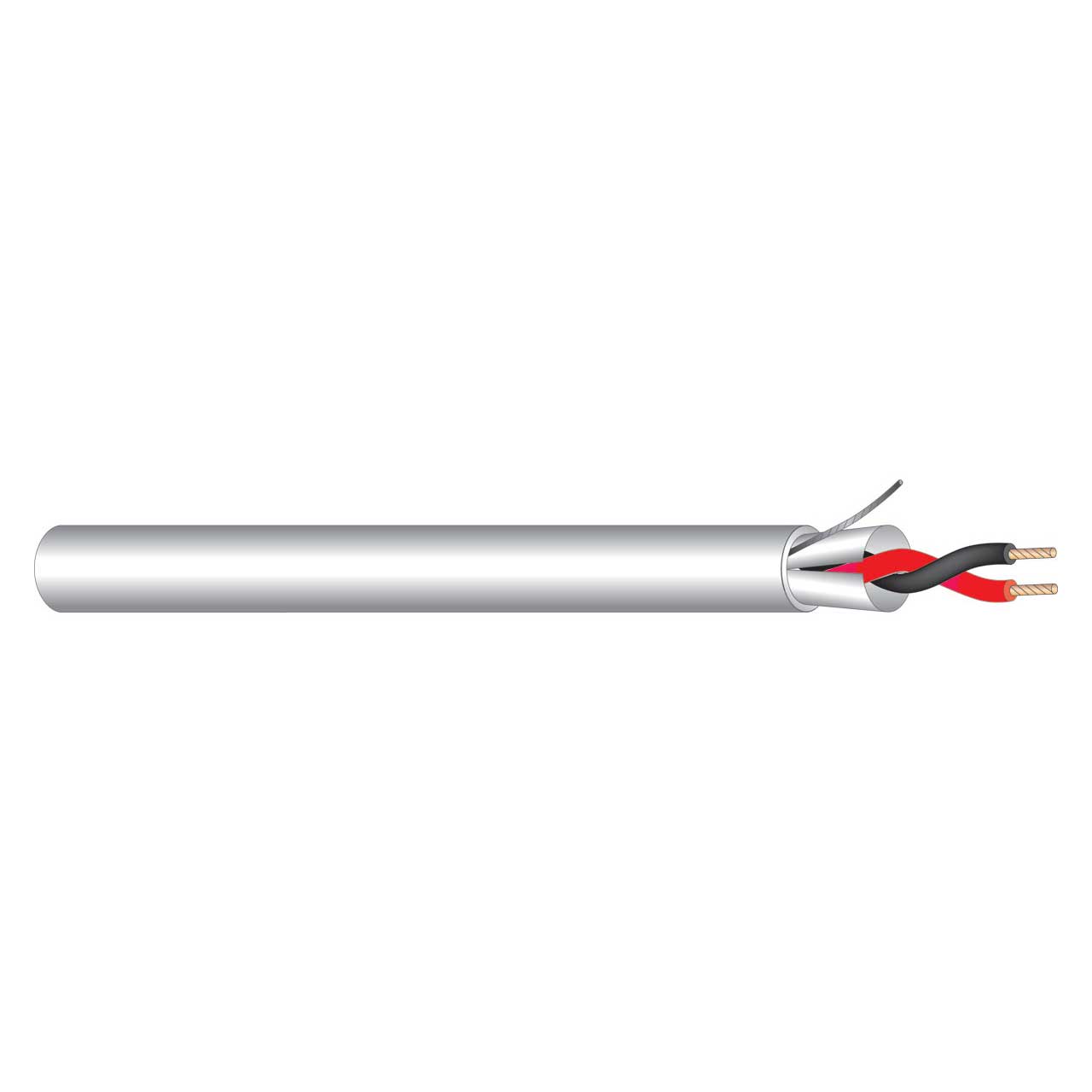

West Penn Wire 291GY1000 is a 1000-foot all-purpose communication cable with a gray PVC jacket. This 291-series cable has 22/2 stranded bare copper conductors and shielded with an overall jacket. The 291 is ideal for a variety of applications, including: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.

  • Features:

    • 22 AWG
    • 1000 Feet
    • 2 BC Conductor
    • Gray PVC Jacket

  • Specifications:


    • Conductor
    • Number of Conductors: 2
    • AWG Size: 22
    • Conductor Stranding: 7x30
    • Conductor Type: Bare Copper
    • Nominal DCR: 17 Ohm/1000ft
    • Cabling Lay Length: 2.5 in
    • Twists/Foot: 4.8 twist/ft

      Insulation
    • Insulation Type: Thermoplastic
    • Insulation Thickness: 0.007 in
    • Insulation Color Code: 1. Black 2.Red

      Shielding Parameter
    • Shield Type: Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG

      Electrical Characteristics
    • Nom. Cap. Between Conductors: 34 pF/ft
    • Nom. Cap. Conductor to Shield: 67 pF/f

      Overall Construction Parameters
    • Jacket Type: PVC
    • Jacket Thickness: 0.017 in
    • Nominal Cable O.D.: 0.127 in
    • Plenum: No
    • NEC UL Rating: CMR, CMG
    • RoHS Compliant: Yes
    • Pull Tension: 24 lbs
    • Bend Radius: 1.143 in
    • Cable Weight: 14 lbs

      Overall Electrical/Optical Characteristics
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • Operating Range: 4° to 140°F (-20 to 60°C
    • UL Voltage Rating: 300

  • Item Includes:

    • 1x West Penn Wire 291 2 Conductor Shielded Mic Cable - 1000Ft - Gray

  • GTIN:

    0612825051725
