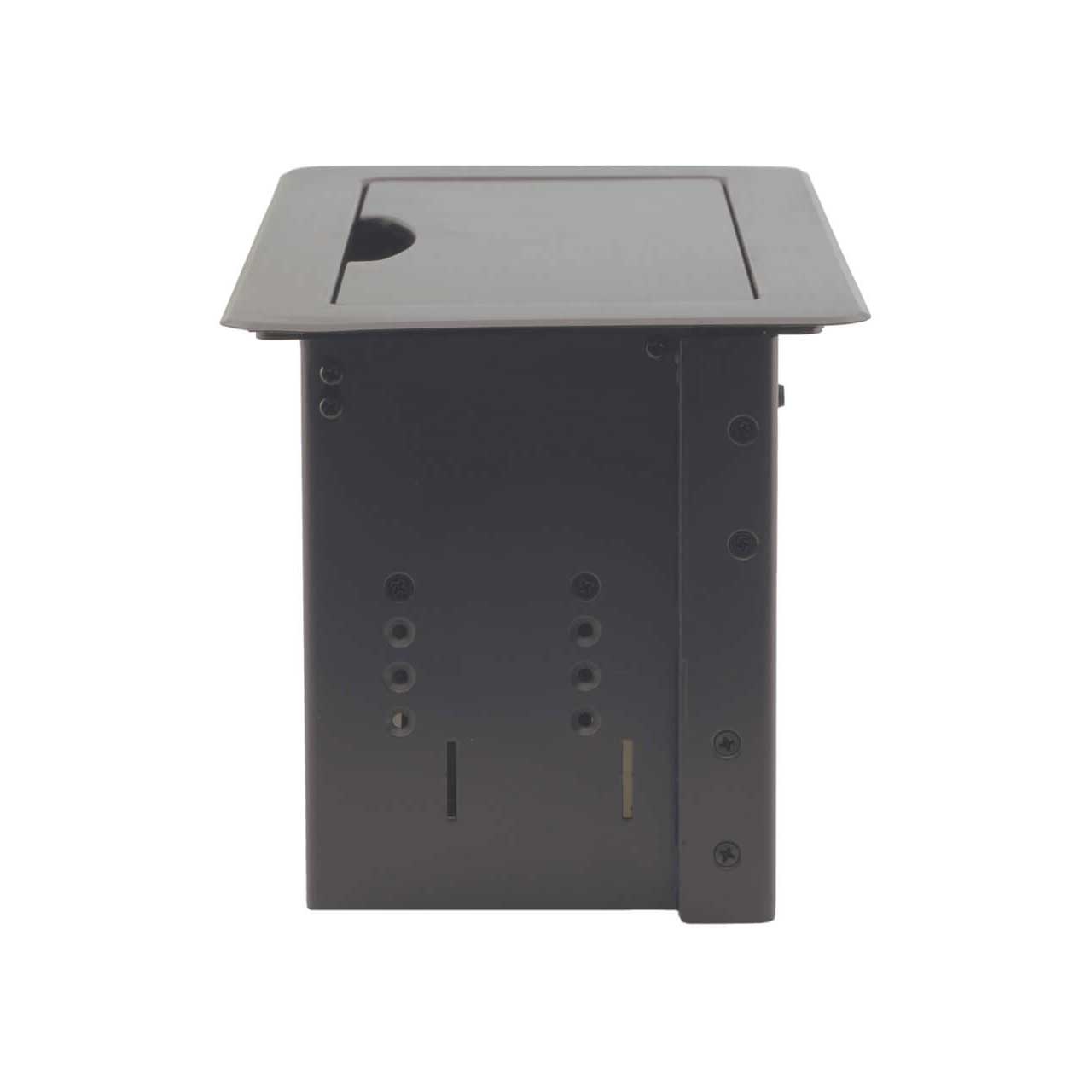

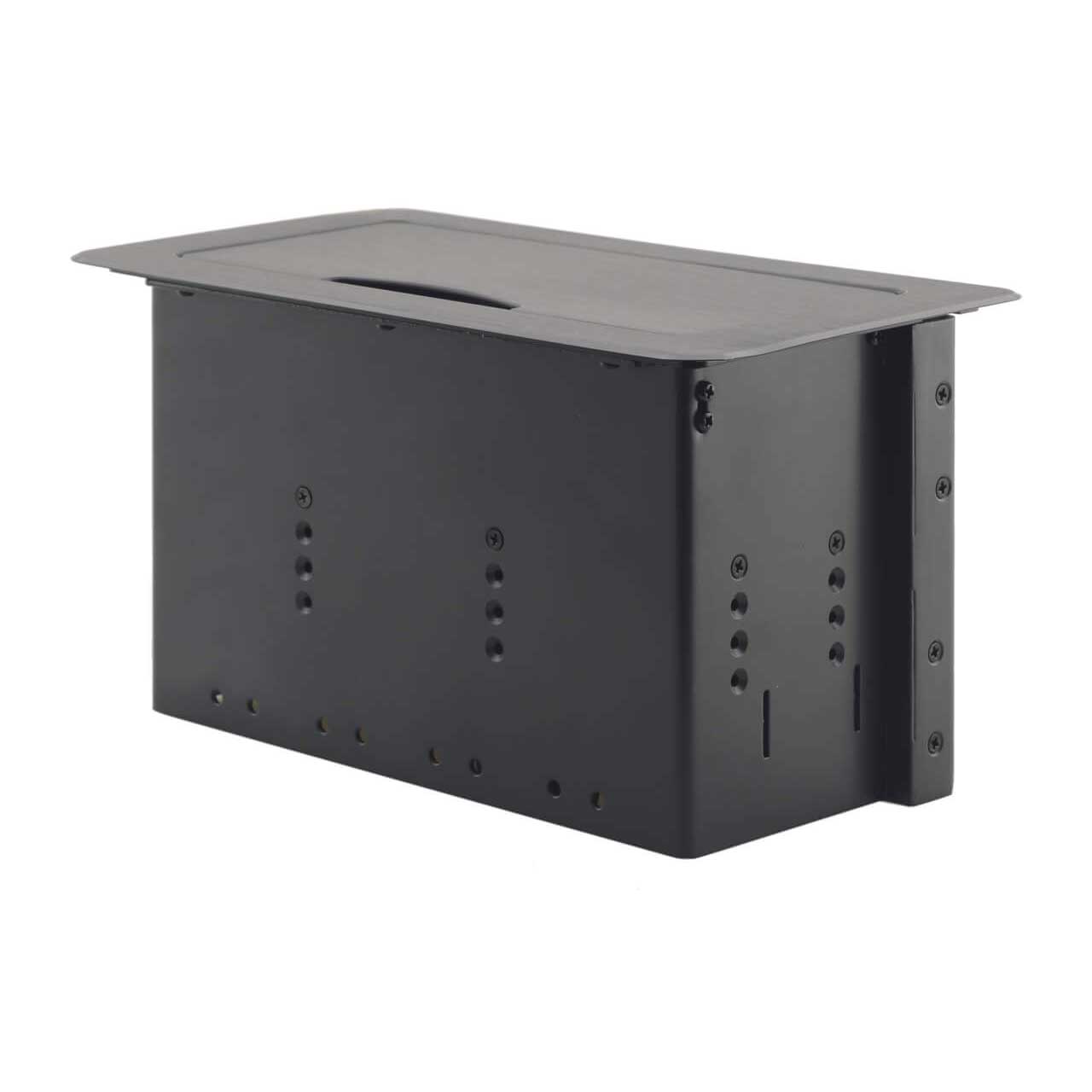

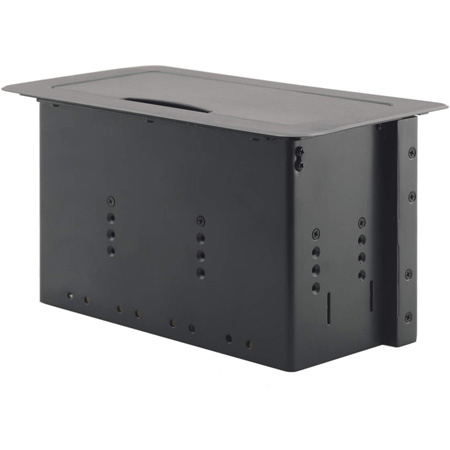

Kramer TBUS-6XL(B) Table Mount Modular Multi-Connection Solution - Black Sand Blasted Top

TBUS-6XL(B) - Overview

Table Mount Modular Multi-Connection Solution!

• Features:

  • Inner Frame - 3 different "T6F" inner frame options are available.
  • Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket.
  • Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
  • Retractable Lid - Manually slides into unit.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 225mm x 123mm (8.87" x 4.85").
  • Dimensions - Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
  • Weight - 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.


• Specifications:

  • DIMENSIONS:
  • Top plate(W x D): 9.6 inch x 5.5 inch (24.3cm x 14.0cm)
    ENCLOSURE (W x D x H):
  • 8.7 inch x 4.0 inch x 5.1 inch (22.1cm x 10.2cm x 13.0cm)


• Item Includes:

  • TBUS-6XL Table Box (unpopulated)
  • Power cord
  • Table clamps
  • Self locking ties
  • Template
  • Template screws


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063019051
