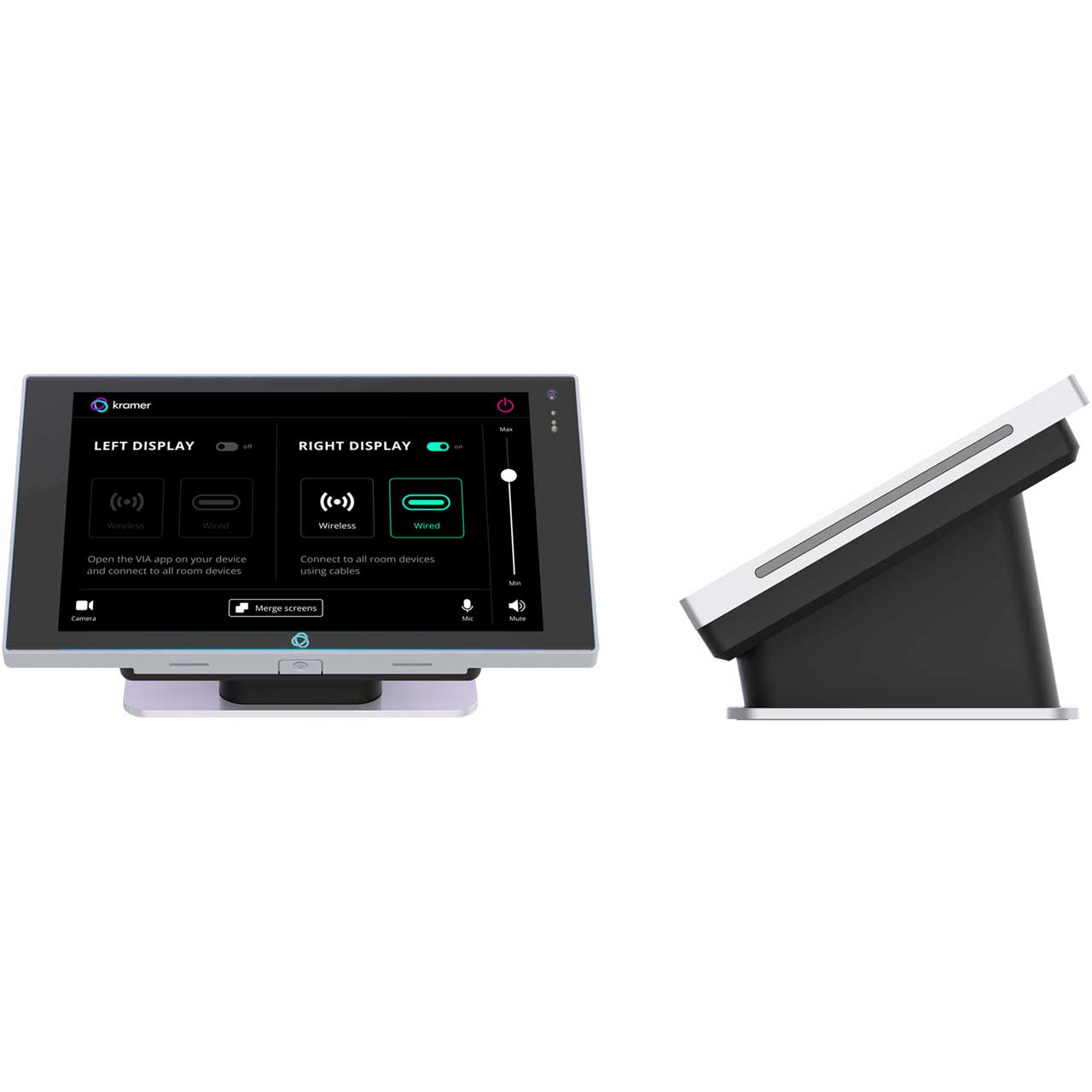

Kramer KT-208 8-Inch Table Mount PoE Portable Touch Panel for Kramer Control - 1200x800

30-004790 - Overview

• Features:

  • Elegant Design: Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
  • Superior User Experience: IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi-touch points and 2-finger gesture capabilities.
  • Powerful Processing: i.MX8M Plus Quad Core A53, 4GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 5Mp FF front camera operation.
  • Flexible Services: Latest Android 11 operating system.
  • Easy Installation: Powering and connectivity via a single Ethernet cable.
  • Flexible Mounting: Including table and wall mounts.
  • Optional Connectivity: Simple wireless Bluetooth 5 as well as connection to USB peripheral devices for either table or wall-mount installations, using the included USB cable.
  • Reliable Networking: Seamless switching between wired and wireless 802.11ac connectivity.
  • Versatile Powering Options: PoE and power adapter (sold separately).
  • Auto Sensing: Optimized performance and operation according to automatically detected LAN speed.
  • Firmware Update: Define automatic updates on a predefined time of the day or update manually using USB port.
  • Secured Operation: Highly secured operation of applications using password protection, hidden control buttons and more. Red LED alert when camera is active.
  • Secured Deployment: Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.


• Specifications:

  • Ports:
  • 1 Ethernet: On an RJ-45 connector with PoE 802.3at
  • 1 USB: On a USB type C (ADB) connector

    General:
  • CPU Performance: ARM Quad-core Cortex-A53 up to 1.8GHz (64 bit)
  • System Memory: 4GB LPDDR4
  • Internal Storage Memory: 32GB eMMC
  • Touch Panel Type: 10.1 point capacitive multi-touch type
  • Wireless Communication: Wi-Fi 6, 802.11 a/b/g/n/ax/ax+BT 5.0
  • Ethernet: 10/100/1000 Mbps LAN
  • Display Screen: 5 points, multi-touch (PCAP)
  • Display Size: 8" (16:10 diagonal), 1280 RGB (H) x 800(V) pixels
  • Wall Mounting Ready: Dedicated bracket for easy mounting
  • Contrast Ratio: 350cd/m2 brightness, 1000:1
  • Back-light: LED Side-light type

    Audio:
  • Speaker Unit: Built-in, 2x 1W
  • Microphone: 2, Built-in
  • Audio Codecs: MPEG/OGG/AAC

    Video:
  • Camera: 5Mp FF
  • Video Format: H.264 / H.265,VC-1, MPEG-4, VP9/VP8
  • Image Codecs: JPEG/BMP/GIF/PNG

    Power:
  • PoE: Power over Ethernet 802.3af
  • Source: 12V/2A DC adapter (optional)

    User Interface:
  • Controls: Volume, menu, and power buttons
  • Indicators: LED sidebars to indicate room status (requires 3rd party integration)

    Accessories:
  • Included: 2 LED side bars, table mount for KT-208 or on-wall mounting bracket & panel mounting bracket for KT-208WM, installation screws

    Environmental Conditions:
  • Operating Temperature & Humidity: 0° to +40°C (32° to 104°F), 5% to 85%
  • Storage Temperature & Humidity: -20° to +60°C (-4° to 140°F), 5% to 90%

    Regulatory Compliance (Standards Compliance):
  • Safety: CE, FCC, UL, UKCA
  • Environmental: RoHs, WEEE

    Physical:
  • Product Dimensions: 21.2x2.5x12.7 (8.3" x 1" x 5") W,D,H
  • Package Dimensions: 29cm x 20.6cm x 16.4cm (11.4" x 8.1" x 6.5" ) W, D, H
  • Product Weight: 0.48kg (1.1lbs) approx
  • KT-208 Package Weight: 1.35kg (3lbs) approx
  • KT-208WM Package Weight: 1kg (2.2lbs) approx

    Product Dimensions:
  • Product Weight: 0.5kg (1.1lbs) approx.
  • Shipping Dimensions: 59.40cm x 47.80cm x 29.00cm (23.39" x 18.82" x 11.42" ) W, D, H
  • Shipping Weight: 1.0kg (2.2lbs) approx.
