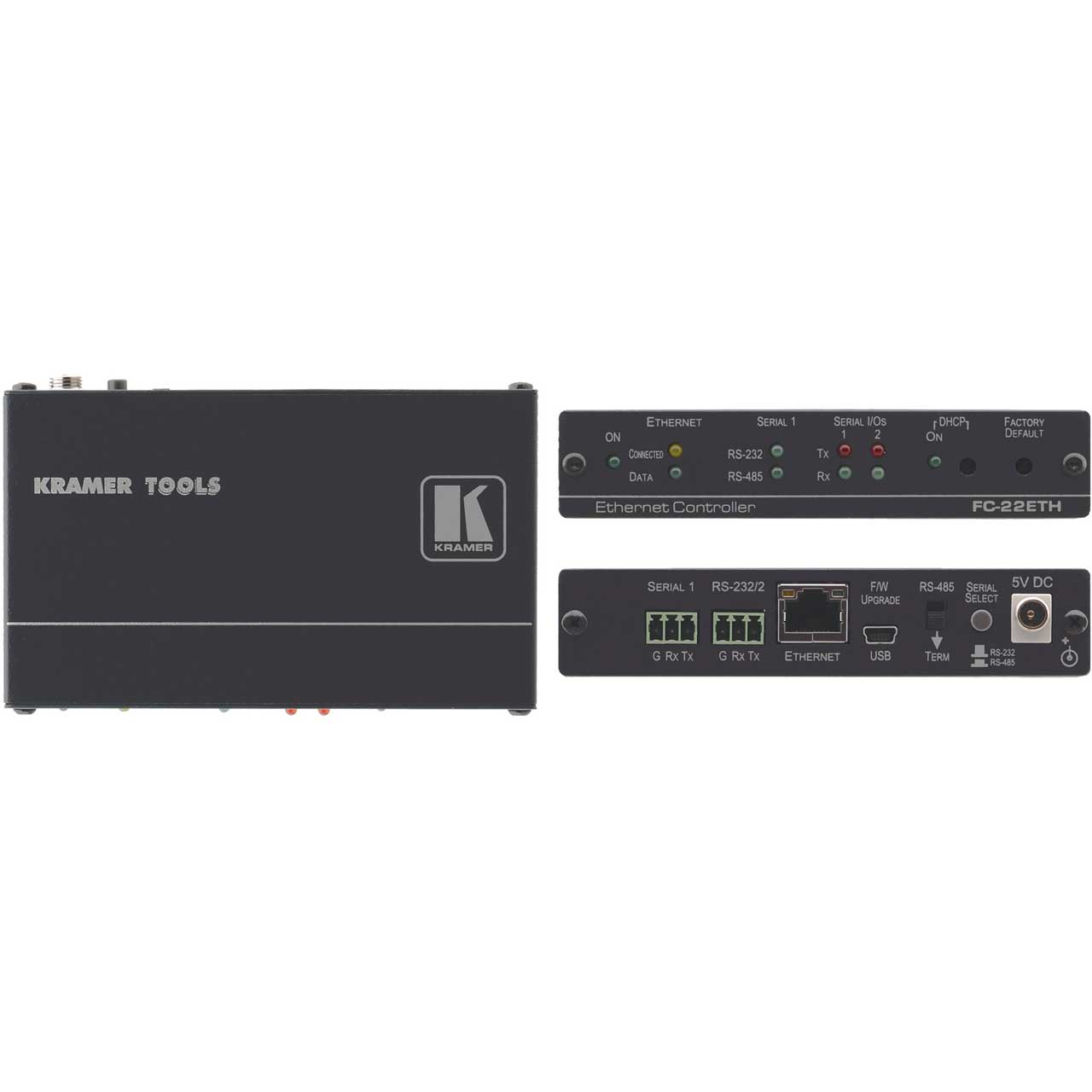

Kramer Control FC-22ETH 2 Port Serial Control Gateway

FC-22ETH - Overview

Ethernet Control Gateway

• Features:

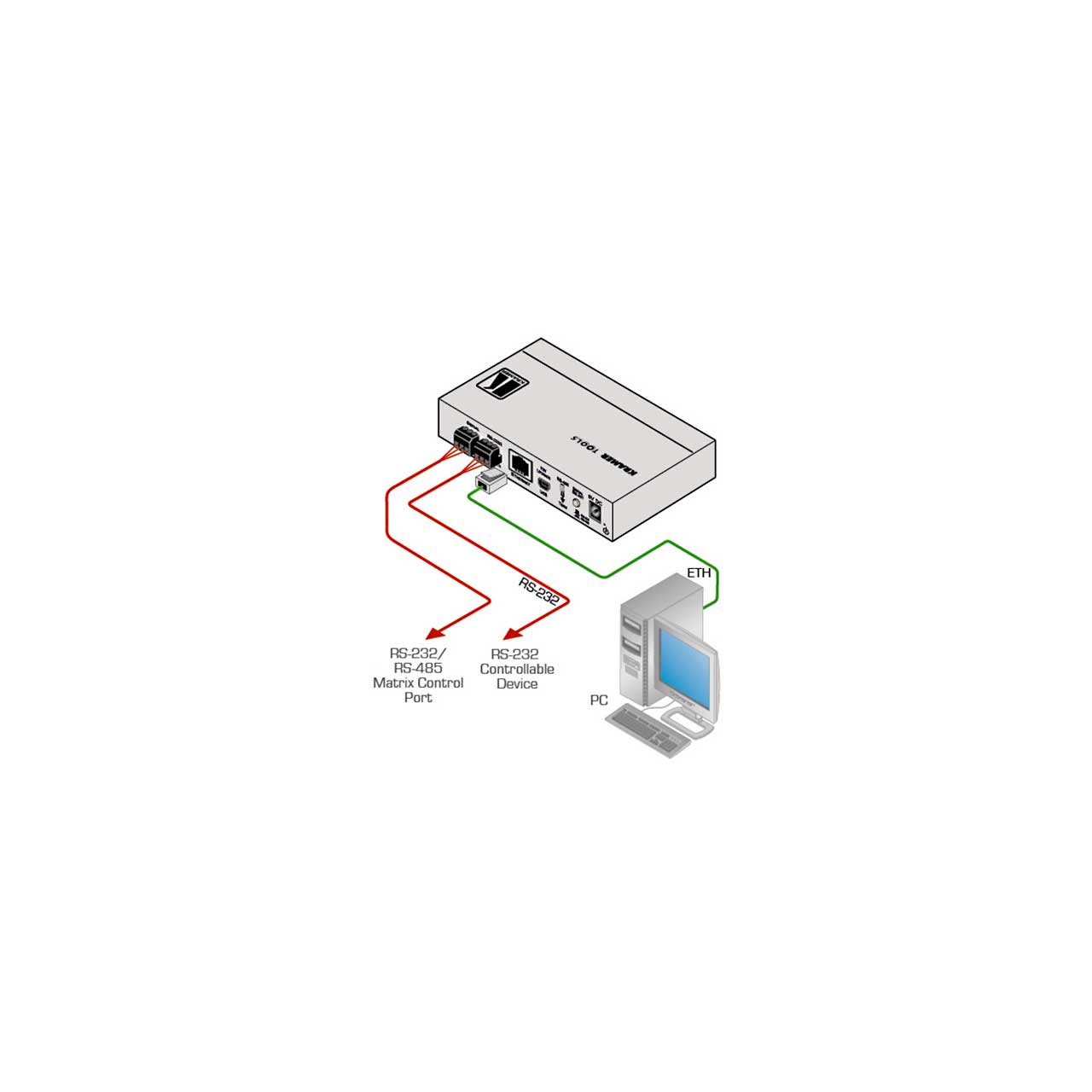

  • 1 RS-485 or RS-232 Selectable Bidirectional Control Port - Controls a device via bi-directional serial control protocols.
  • 1 RS-232 Bidirectional Control Port - Controls a device via bidirectional RS-232 serial control protocols.
  • 1 Ethernet Control Port - Remote protocol-based control port.
  • Built-in Web Pages - Remote browser-based control and support.
  • Simultaneous IP Control Communication - With up to 40 IP control clients.
  • Mini USB Port - For firmware upgrades and local technical services.
  • Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.


• Specifications:

  • PORTS
  • 1 RS-232/RS-485 selectable and 1 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services


  • SUPPORTED SERIAL PORT BAUD RATES
  • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps


  • RS-232 COMMUNICATION
  • Transparent up to 115200bps


  • MAXIMUM DATA HANDLING OF DEVICE
  • Up to 150kbps summed on all ports


  • CONTROLS
  • Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons


  • INDICATORS
  • Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs


  • POWER CONSUMPTION
  • 5V DC, 200mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Convection


  • ENCLOSURE TYPE
  • Aluminum


  • INCLUDED ACCESSORIES
  • Power adapter


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • FC-22ETH Ethernet Controller
  • 5V DC Power adapter
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063067144
