DNF EB-44-RH IP Control Buddy Four Ethernet Buttons with 4 GPI (in/out) & Serial Port - Horizontal Mount Fits 1-RU Panel

ITEM #: DNF-EB-44-RH MFG #: EB-44-RH

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,401.75

Our Price:

$1,331.66

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EB-44-RH - Overview

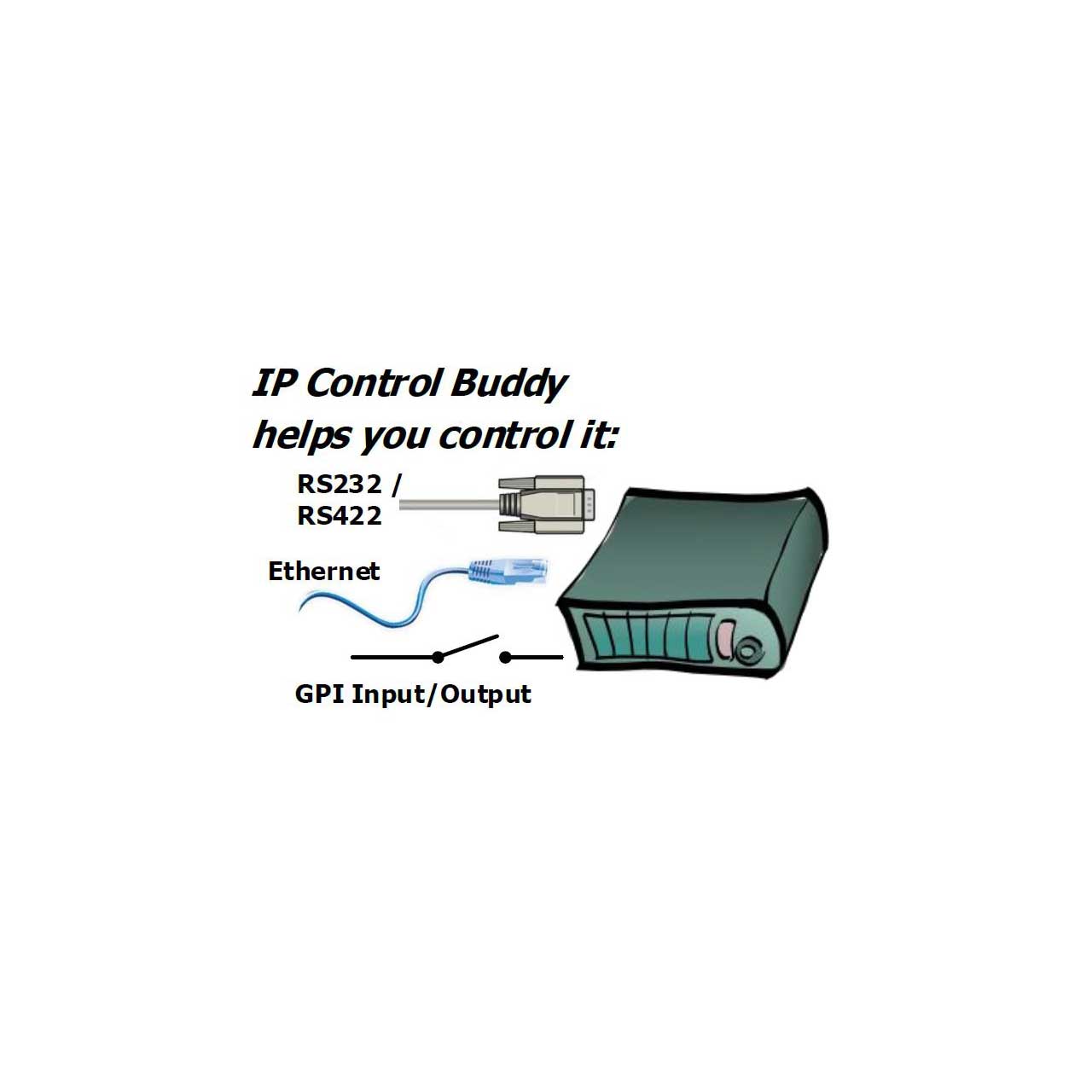

With DNF Controls EB-44RH the IP Control Buddy controls any Ethernet, RS422, or RS232 enabled device from a button push, GPI trigger, relay closure, or web page button. The IP Buddy helps Turn on/off, Start/Stop, Open/Close, whatever device you are using that you wish to control.

One button press can Turn a GPI Output On or Off, Transmit a Serial Command and Transmit an Ethernet TCP, UDP, SNMP, or HTTP command. EB-44RH is Programmer-free and a browser-based setup that uses drop-down menus & fill-in text boxes

  • Features:

    • Power Over Ethernet (POE)
    • Optional External Power Supply
    • Mounts in a 1-RU panel, desktop, or control surface

  • Specifications:

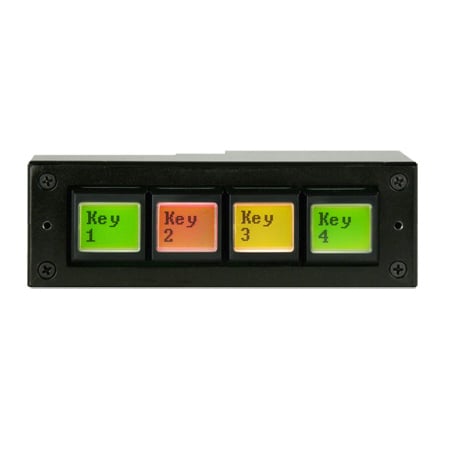

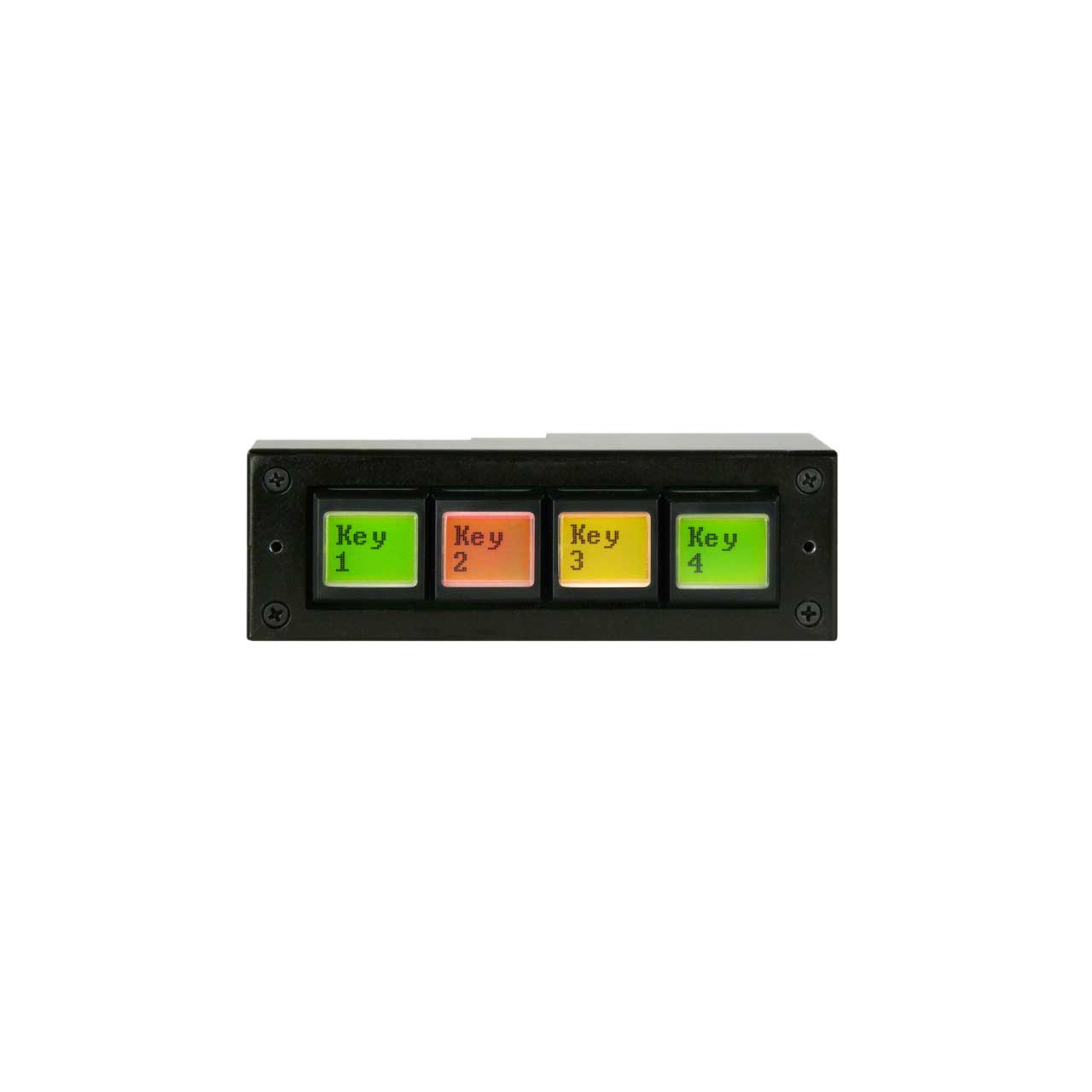

    • 4-LCD Buttons

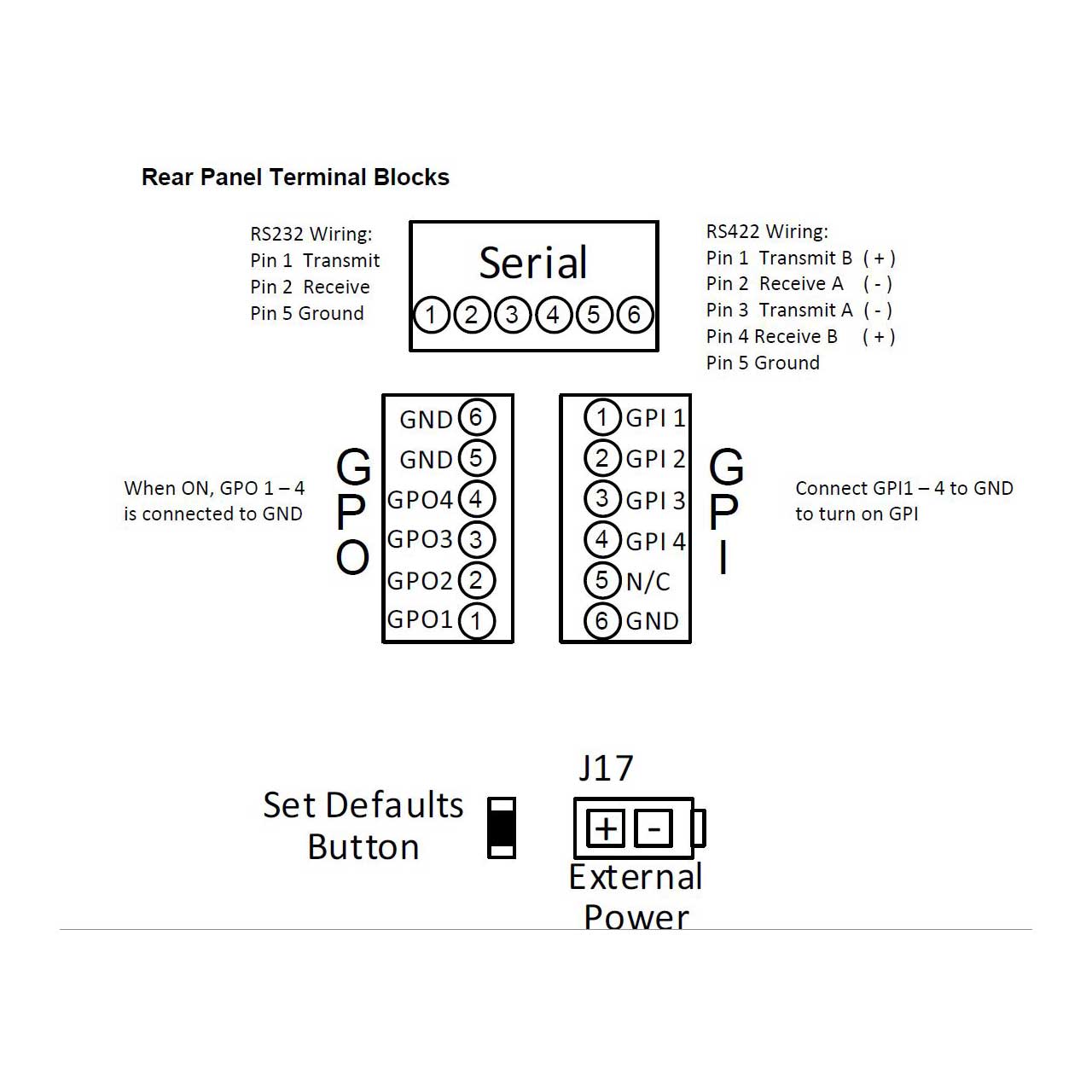

    • 4-GPI Inputs
    • 4-GPI Outputs
    • 1- Serial Port RS422/RS232
    • 1-Ethernet 100BaseT Full Duplex
    • Power Over Ethernet
    • Dimensions: 4.75"(W) x 1.5"(H) x 2"(D)


EB-44-RH - Required Accessories
